30400-ZW1-013 Honda Module | Genuine Used Part

🔧 Product Description

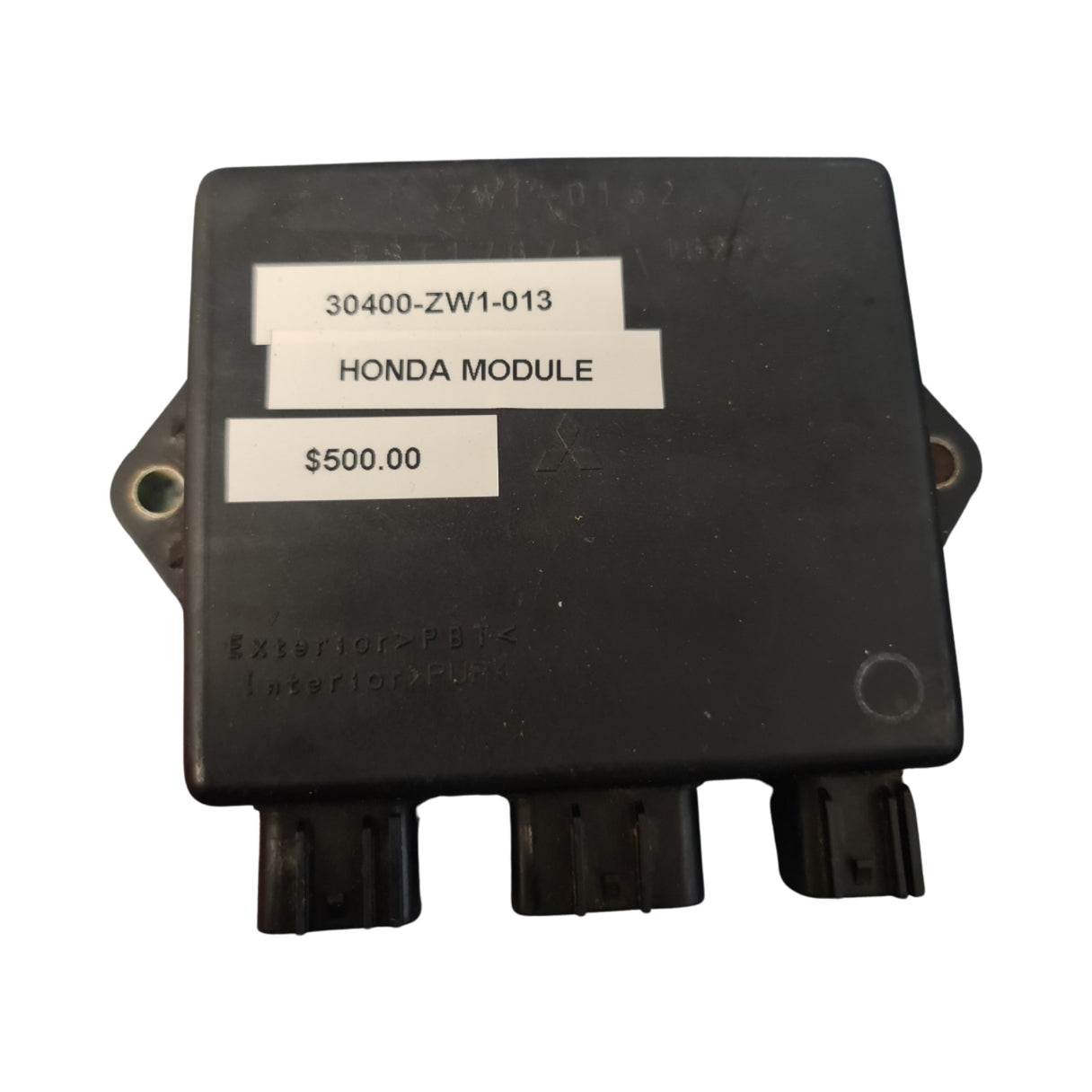

Genuine Honda Ignition Control Module / CDI Unit - Part Number: 30400-ZW1-013

A genuine Honda ignition control module / CDI unit for BF75 and BF90 four-stroke outboards. This module manages ignition control on compatible Honda 75HP and 90HP applications and is cross-referenced with Mitsubishi module marking F8T17671.

⚙️ Key Features

• Genuine Honda ignition control module / CDI unit

• Correct Honda part number 30400-ZW1-013

• Mitsubishi module marking F8T17671

• Used on Honda BF75A and BF90A four-stroke ignition systems where specified

• Must be matched by exact Honda model code, year, connector layout and serial-numbered parts diagram

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 30400-ZW1-013 current / later Honda ignition-control module reference

• 30400-ZW1-003 earlier related Honda BF75 / BF90 ignition-control module reference

• F8T17671 Mitsubishi module marking / related identifier

OEM / Related Numbers:

• 30400-ZW1-013

• 30400ZW1013

• 30400-ZW1-003

• 30400ZW1003

• F8T17671

• Related Honda BF75 / BF90 ignition coil and CDI unit family

Aftermarket / Verified Equivalents:

• Ignition module repair-service reference: 30400-ZW1-003 / 30400-ZW1-013

• No complete aftermarket replacement

🚤 Compatibility

Commonly used on:

• Honda BF75A / BF90A four-stroke ignition-control systems

Typically suits:

• Engine models:

• Honda BF75A four-stroke outboard ignition-control applications using 30400-ZW1-013

• Honda BF90A four-stroke outboard ignition-control applications using 30400-ZW1-013

• Honda BF90A1 XRTA 2001 ignition coil / CDI unit diagram applications

• Honda BF90A1 XRTA / XRTH ignition-control module applications using 30400-ZW1-013

• Honda BF90A2 LHTA ignition coil / CDI unit applications where 30400-ZW1-013 is specified

• HP Range: 75HP - 90HP

• Engine Type: Honda BF75 / BF90 four-stroke outboard ignition-control system

• Year Range: early-2000s BF75A / BF90A applications where 30400-ZW1-013 is specified

• Fitment Note: confirm exact Honda frame serial and connector layout before installation

🔌 Function

The ignition control module controls timing and coil triggering so the engine receives spark at the correct crankshaft position and operating condition.

Common signs of failure:

• No spark or intermittent spark

• Crank-no-start after fuel and mechanical checks

• Misfire or loss of power under load

• Spark returns intermittently after the module cools

• Ignition timing fault after pulser, coil and wiring checks

• No tachometer signal where supplied from ignition output

• Module failure caused by heat, corrosion or voltage damage

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
