30416-ZW5-000 Honda Case Ignition | Genuine Used Part

🔧 Product Description

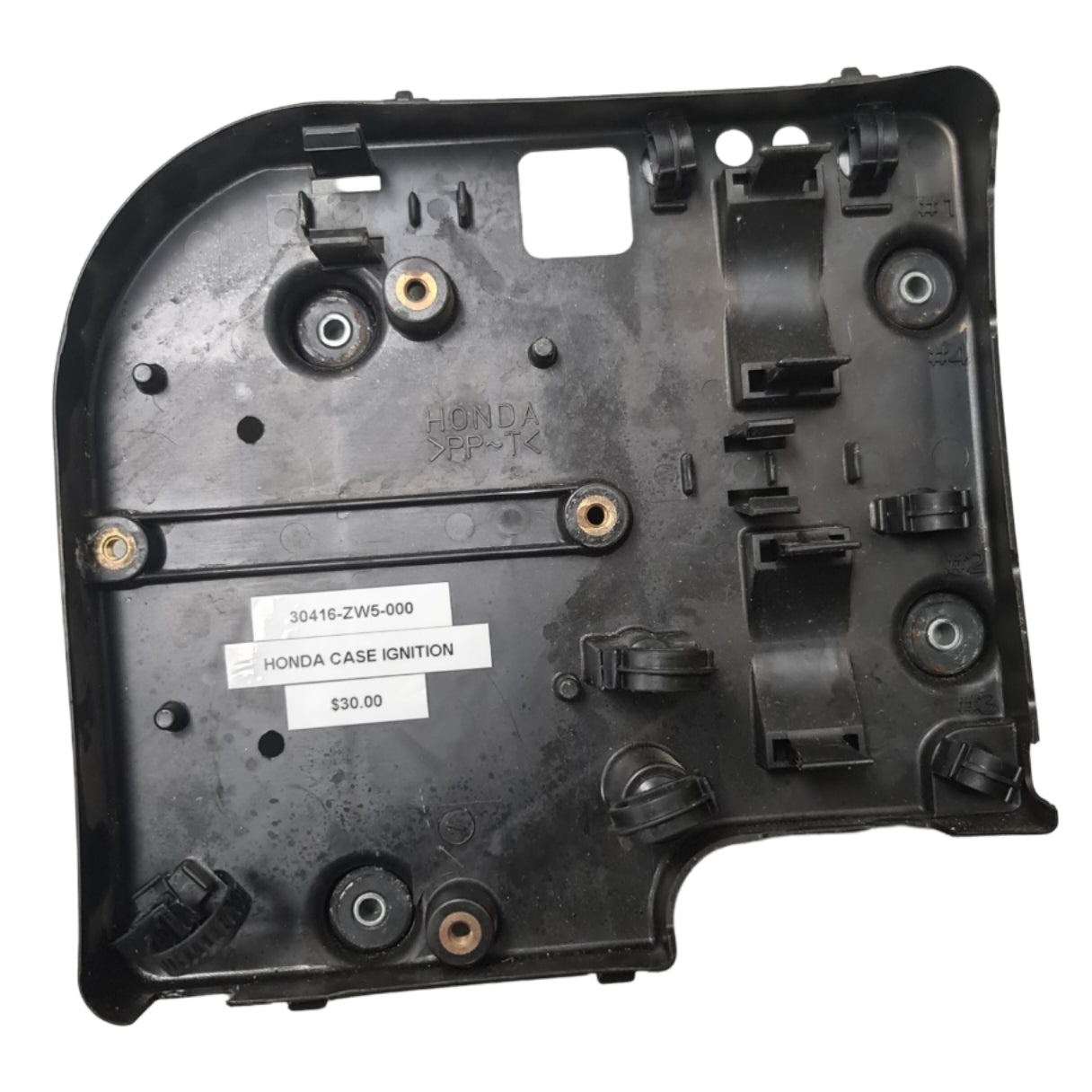

Genuine Honda Ignition Control Module Case - Part Number: 30416-ZW5-000

A genuine used Honda ignition control-module case for BF115A and BF130A four-stroke outboards.

The case supports the engine control or CDI module and related ignition components. It isolates the module from engine vibration, maintains the correct wiring layout and provides the mounting interface for cover 30421-ZW1-000.

⚙️ Key Features

• Genuine Honda Marine ignition-module case
• Correct Honda part number 30416-ZW5-000
• Used on BF115A and BF130A engines
• Supports the CDI / electronic engine-control module
• Works with cover 30421-ZW1-000 and mounting collars

🚤 Compatibility

Commonly used on

• Honda BF115A ignition-control assemblies
• Honda BF130A ignition-control assemblies
• ZW5-series electronic ignition systems

Typically suits

• Engine models:
• Honda BF115AX
• Honda BF115A1
• Honda BF115A2
• Honda BF115A3
• Honda BF115A4
• Honda BF115A5
• Honda BF115A6
• Honda BF130AX
• Honda BF130A1
• Honda BF130A2
• Honda BF130A3
• Honda BF130A4
• HP Range: 115HP - 130HP
• Engine Type: Honda inline four-cylinder fuel-injected four-stroke outboard
• Year Range: Approximately 1999 - 2006

🔌 Function

The case supports and protects the ignition control module while keeping the electrical wiring, ignition coils and module mounting points correctly aligned.

⚠️ Common Signs of Failure

• Module or ignition components sitting loose
• Case cracked around mounting collars
• Excessive vibration transferred to the control module
• Wiring rubbing against nearby engine components
• Broken cover or fastener mounting point

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 30416-ZW5-000 current Honda OEM case reference

OEM / Related Numbers

• 30416-ZW5-000
• 30416ZW5000
• 30421-ZW1-000 related ignition-module cover
• 34750-ZW5-013 related engine control module
• 34750-ZW5-043 related later electronic control unit
• 91553-ZV5-000 related mounting collar
• 30500-ZW5-003 related ignition coil

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
