30520-ZVL-003 Honda Coil | Genuine Used Part

30520-ZVL-003 Honda Coil | Genuine Used Part

$80.00 AUD
$80.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 6 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

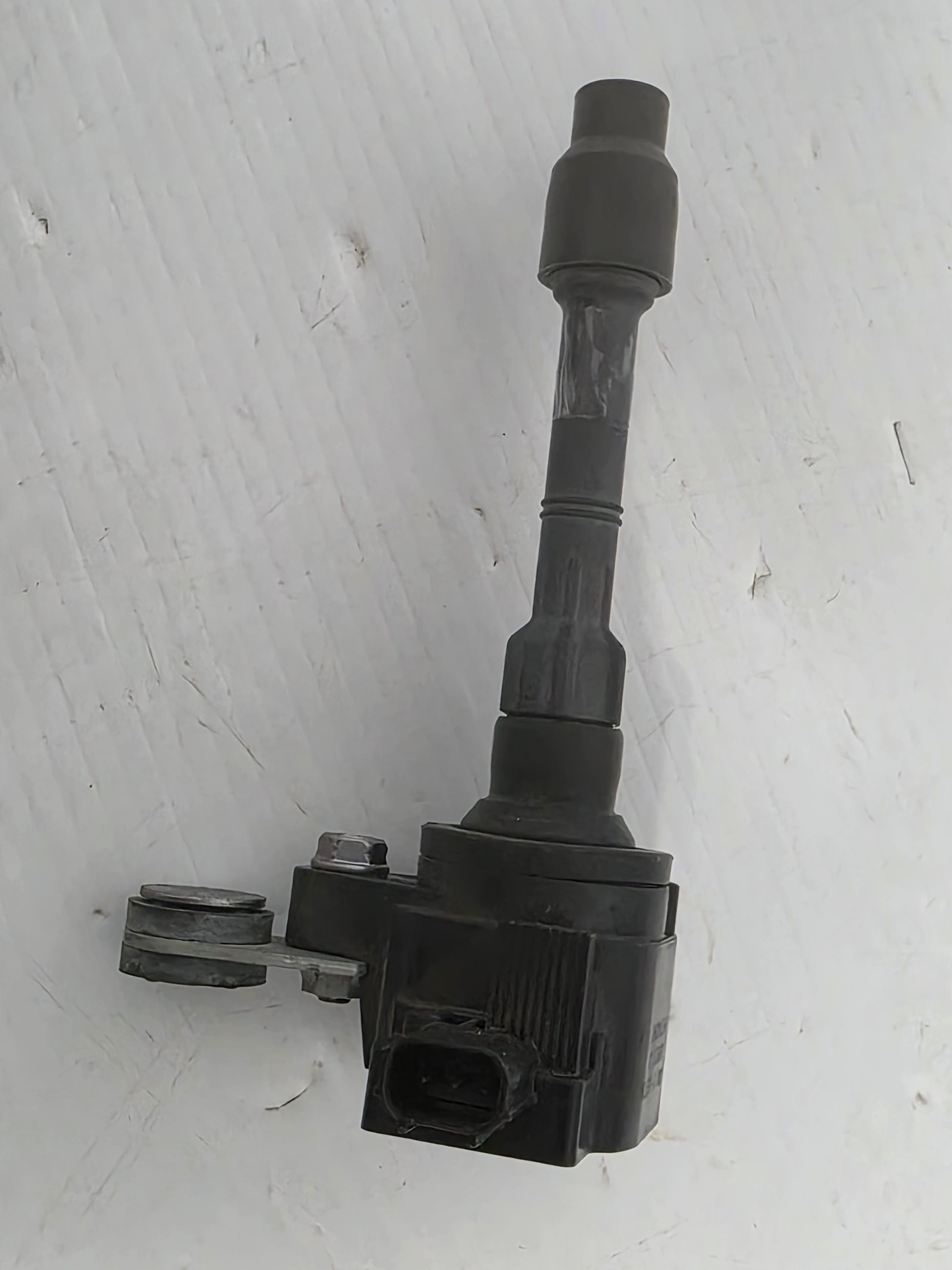

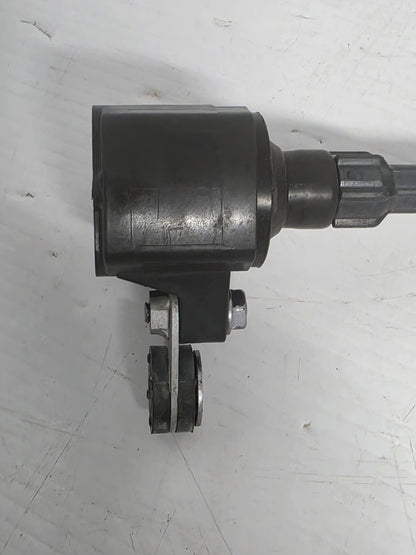

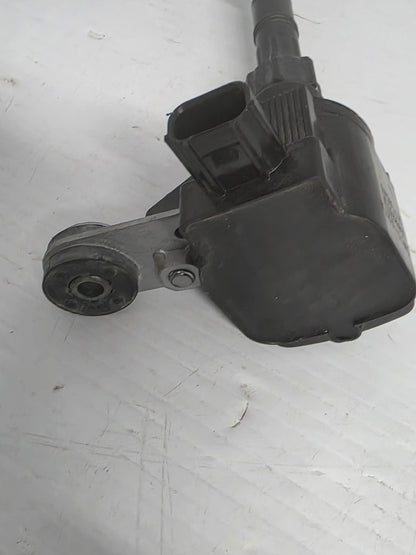

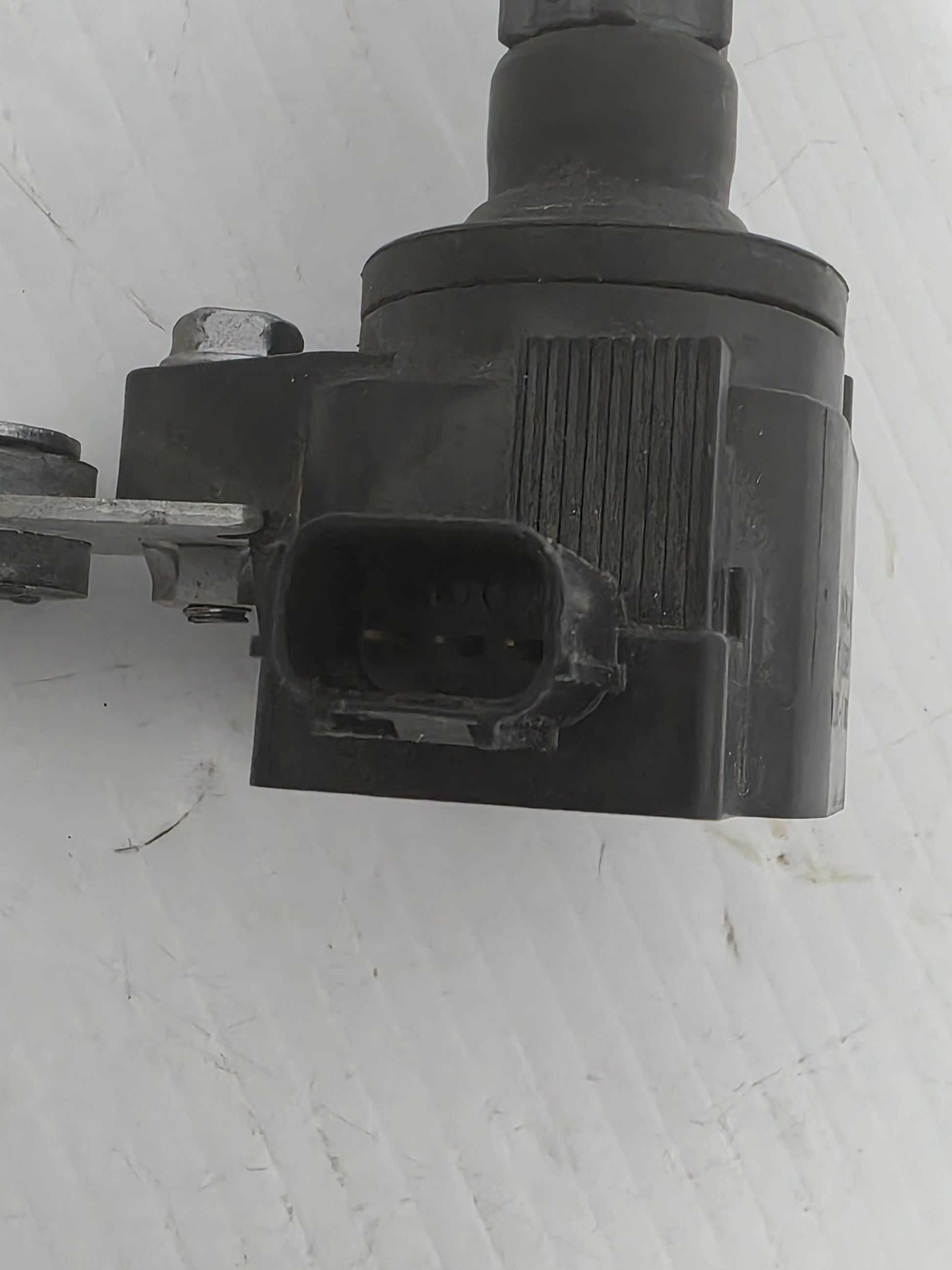

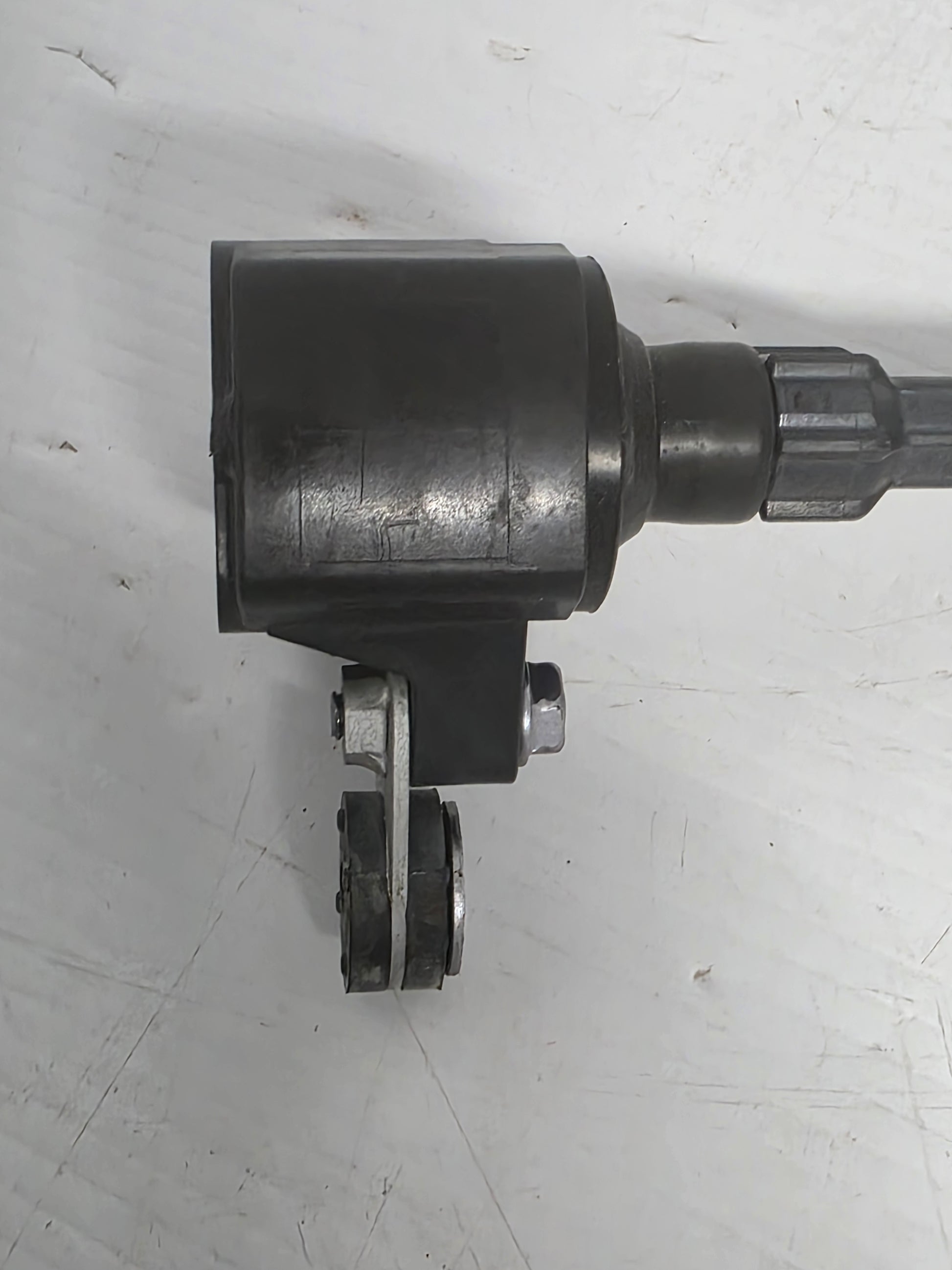

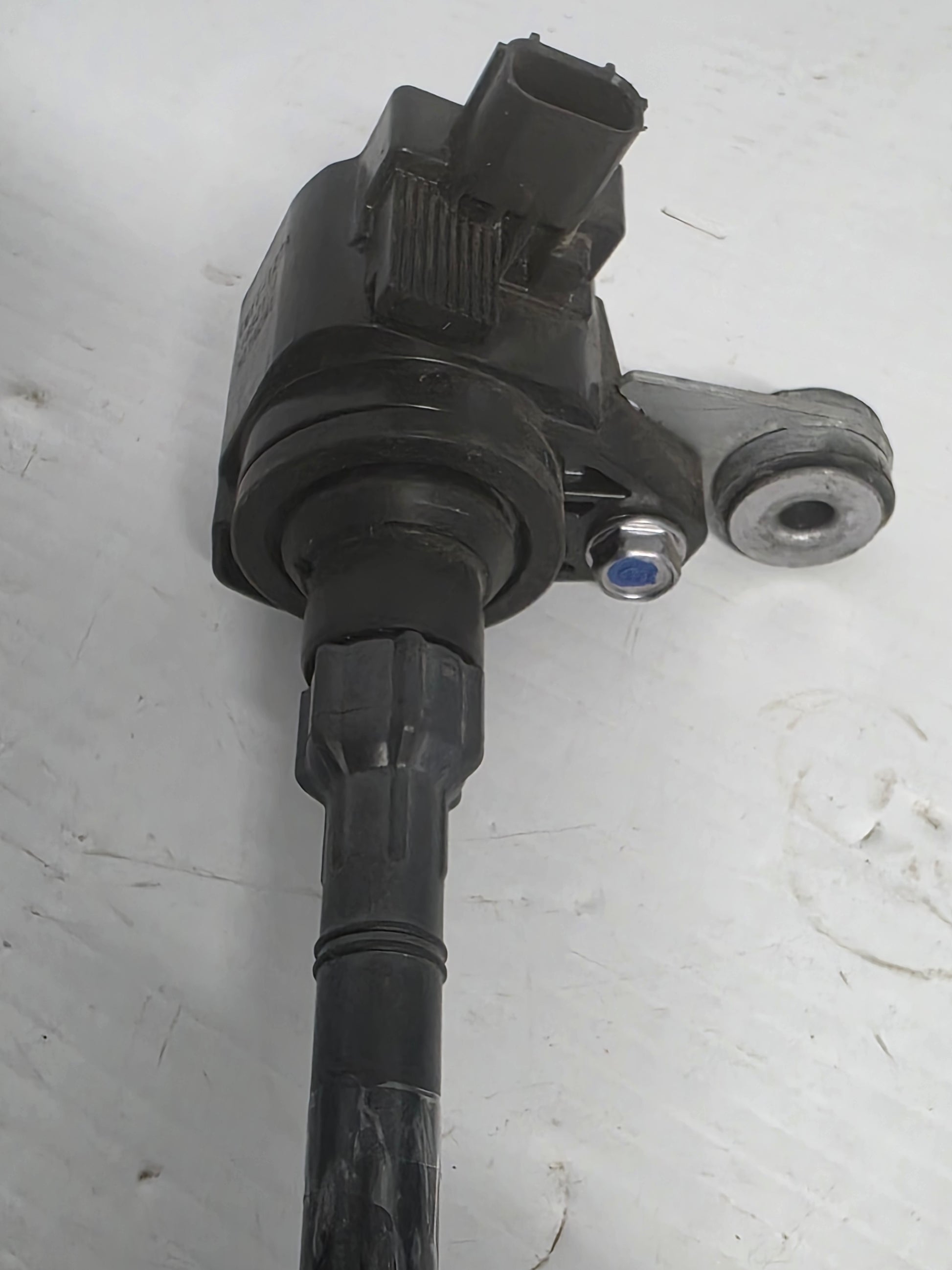

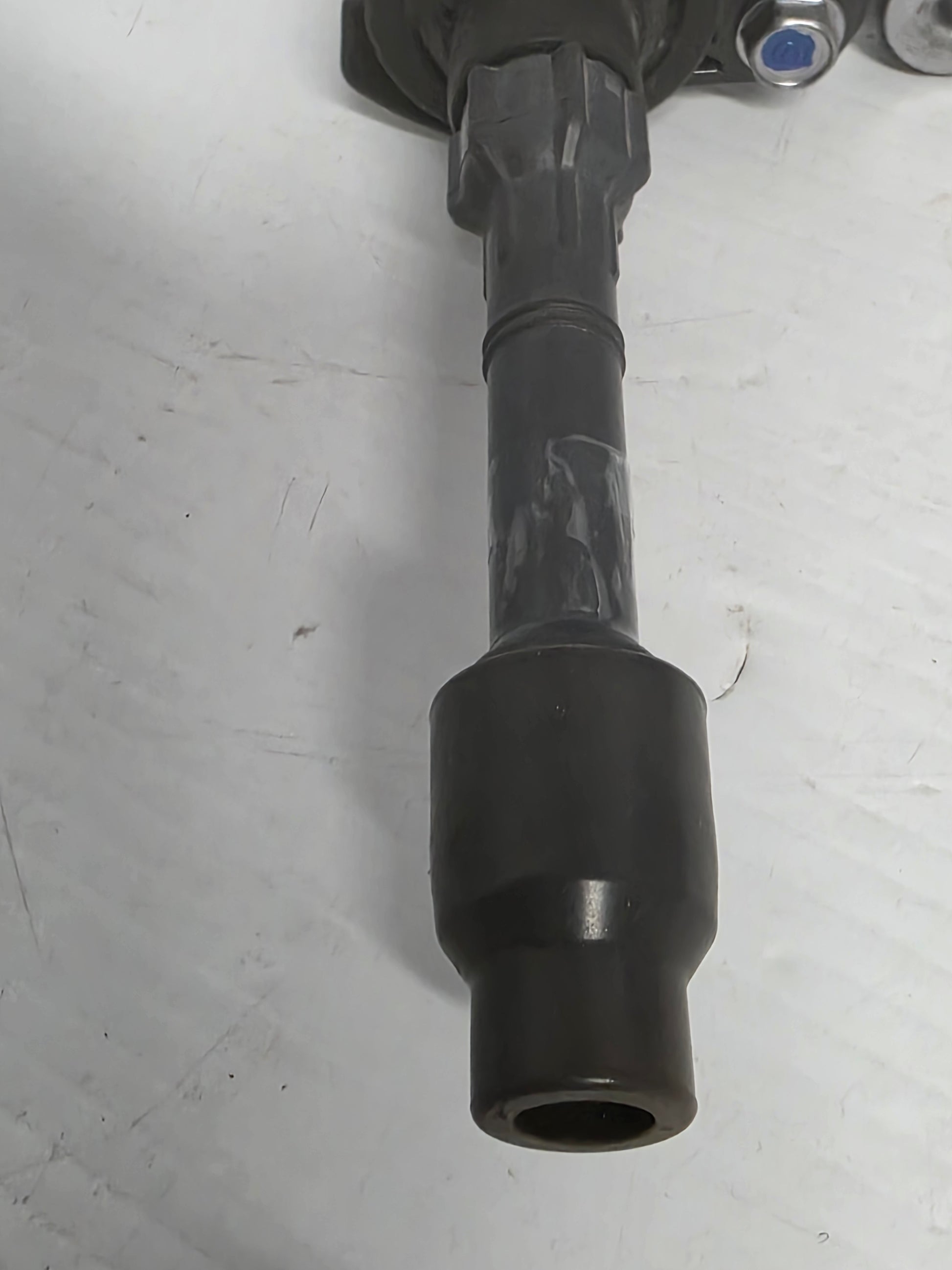

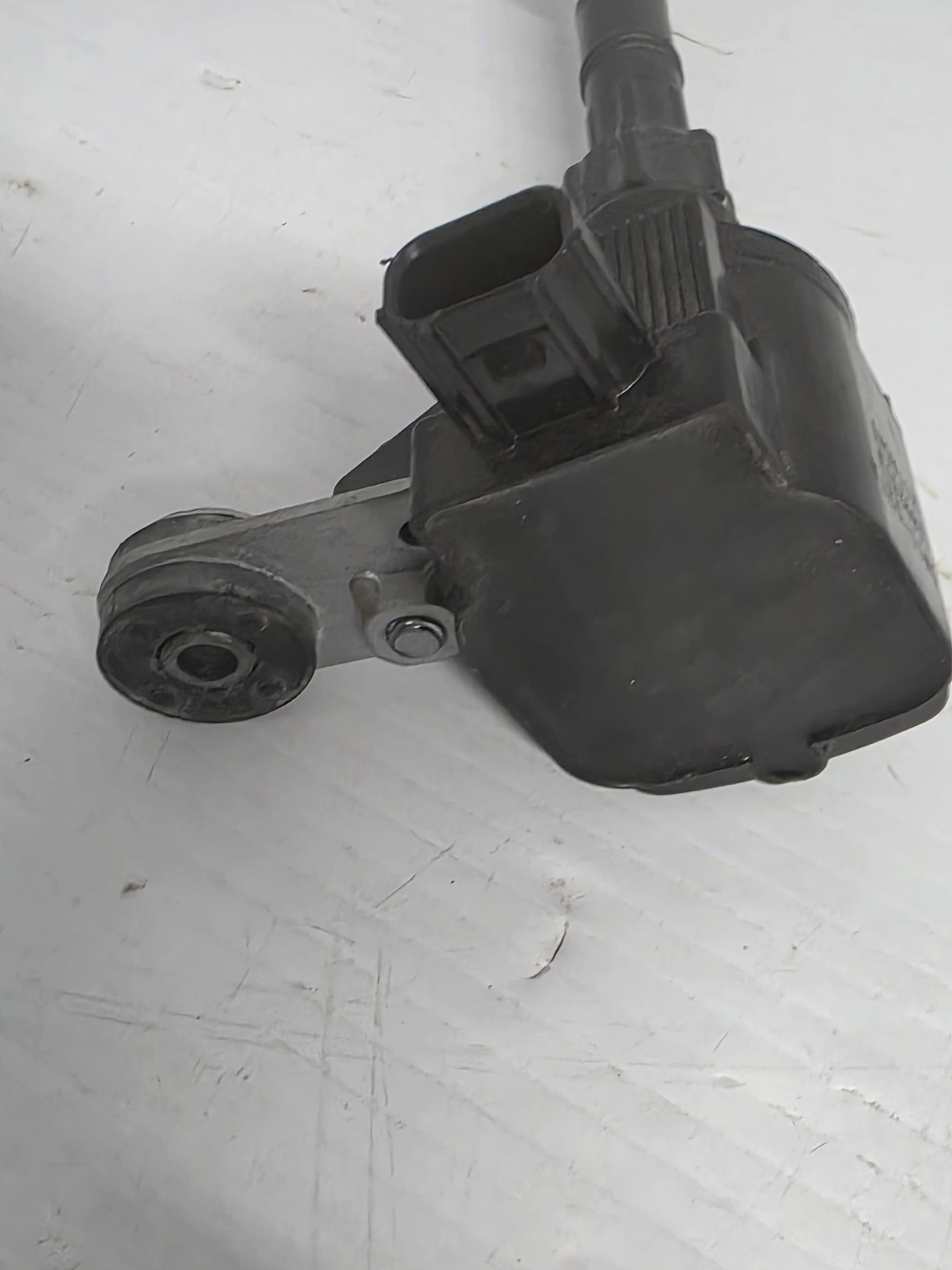

Genuine Honda Plug Top Ignition Coil - Part Number: 30520-ZVL-003

A genuine Honda Marine plug top ignition coil used on selected Honda BF175D, BF200D, BF225D and BF250D outboards. This coil sits directly over the spark plug and provides high-voltage spark output for the cylinder it is fitted to.

⚙️ Key Features

  • Genuine Honda Marine plug top ignition coil
  • Correct OEM part number 30520-ZVL-003
  • Used on selected Honda V6 four-stroke outboards
  • Direct plug-top coil design
  • Match by Honda frame serial, coil connector and ignition diagram

🚤 Compatibility

Commonly used on

  • Honda BF175D / BF200D / BF225D / BF250D ignition systems

Typically suits

  • Engine models:
  • Honda BF175D plug-top coil applications
  • Honda BF200D plug-top coil applications
  • Honda BF225D plug-top coil applications
  • Honda BF250D plug-top coil applications
  • Honda V6 outboard ignition systems where the diagram specifies 30520-ZVL-003
  • HP Range: 175HP - 250HP
  • Engine Type: Honda V6 four-stroke outboard coil-on-plug ignition system
  • Year Range: model and frame-serial controlled
  • Serial Note: Match by exact Honda model code, frame serial, coil connector, cylinder layout and ignition diagram before installation.

🔌 Function

The plug top ignition coil converts ignition-system voltage into high-voltage spark directly at the spark plug.

⚠️ Common Signs of Failure

  • Misfire on one cylinder
  • Hard starting
  • Rough idle
  • Loss of power under load
  • Check-engine or ignition fault on compatible diagnostic systems
  • Spark plug fouling on affected cylinder
  • Coil body cracked or swollen
  • Misfire follows the coil when swapped to another cylinder

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 30520-ZVL-003 Honda plug top coil assembly reference

OEM / Related Numbers

  • 30520-ZVL-003
  • 30520ZVL003
  • Coil assy, plug top
  • Plug top coil
  • Plug hole coil
  • Ignition coil
  • Honda V6 ignition coil

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
