0309946 Evinrude/Johnson 10 x 9 1/4 Pin-Drive Aluminium Propeller | Genuine Used Part

🔧 Product Description

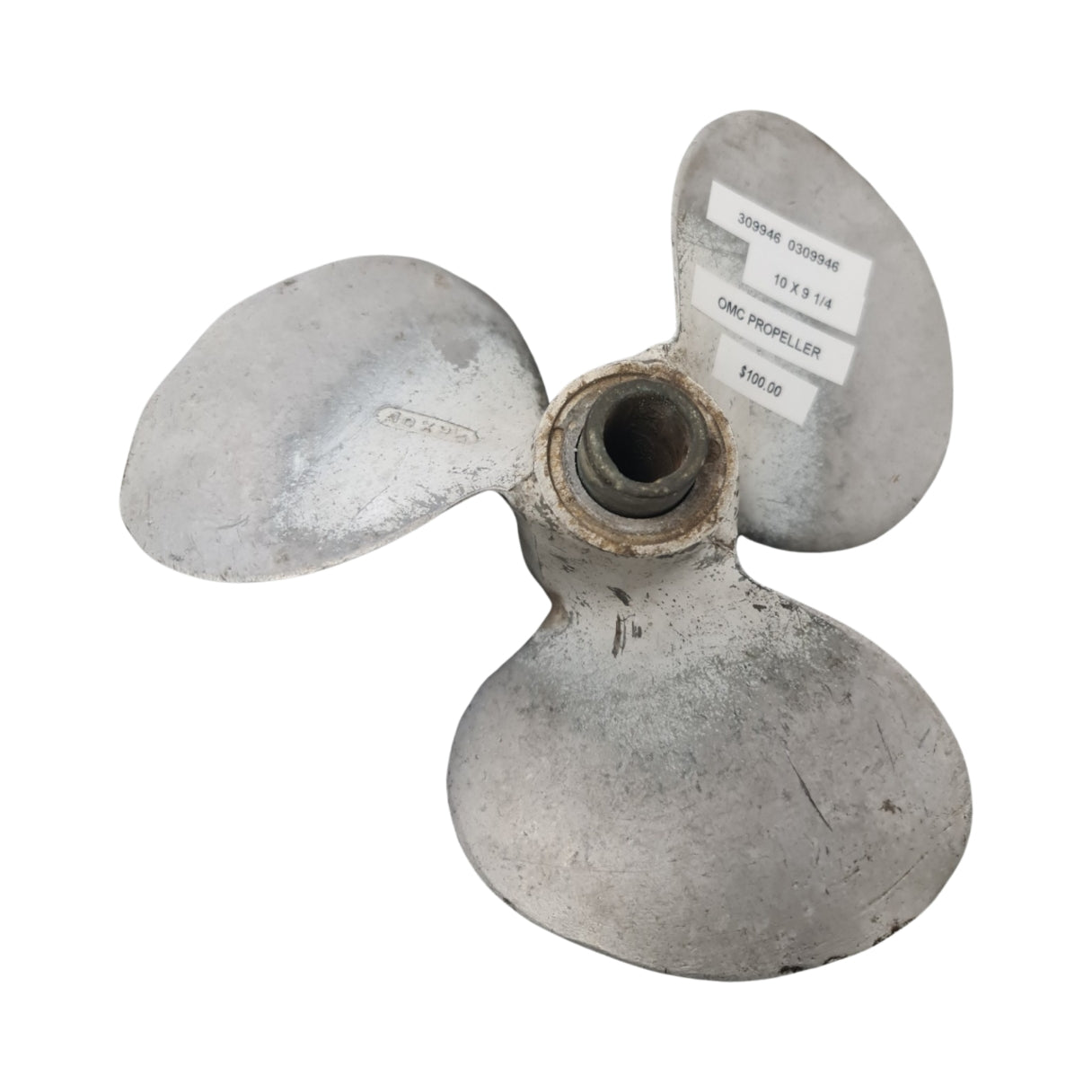

Genuine Evinrude Johnson 10 x 9 1/4 Pin-Drive Aluminium Propeller - Part Number: 0309946

A genuine used three-blade right-hand aluminium propeller for early Johnson and Evinrude V4 outboards using the pin-drive propeller shaft.

This 10-inch diameter x 9 1/4-inch pitch propeller uses the early non-thru-hub drive-pin arrangement. The lower pitch is suited to heavy loads, workboat use or hulls requiring maximum acceleration from the compatible early V4 gearcase.

⚙️ Key Features

• Genuine OMC / Evinrude / Johnson OEM propeller
• 10-inch diameter x 9 1/4-inch pitch
• Three-blade aluminium construction
• Right-hand pin-drive hub
• Used on early 60HP-85HP V4 outboards

🚤 Compatibility

Commonly used on

• Early Evinrude and Johnson V4 pin-drive gearcases
• Non-thru-hub-exhaust propeller shafts using a removable drive pin

Typically suits

• Engine models:
• Johnson / Evinrude 60HP - approximately 1960-1967
• Johnson / Evinrude 65HP - through 1968
• Johnson / Evinrude 70HP early pin-drive applications
• Johnson / Evinrude 75HP, 80HP and 85HP V4 - approximately 1960-1968
• Southcentral fitment family: 60HP-85HP, approximately 1960-1968
• HP Range: 60HP - 85HP
• Engine Type: Early OMC / Evinrude / Johnson V4 two-stroke outboard with pin-drive gearcase
• Year Range: Approximately 1960 - 1968

🔌 Function

The propeller converts engine torque into thrust through a removable shaft pin. Its low 9 1/4-inch pitch provides strong acceleration and load carrying at the expense of potential top speed.

⚠️ Common Signs of Failure

• Blades are bent, chipped, cracked or out of track
• The rubber hub slips and engine RPM rises without matching boat speed
• Propeller vibration increases with engine speed
• Cavitation, ventilation or poor acceleration develops after impact damage
• Hub splines, drive-pin surfaces or thrust faces are worn or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0309946 current known OMC propeller reference
• 309946 original unprefixed reference

OEM / Related Numbers

• 0309946
• 309946

Aftermarket / Verified Equivalents

• Michigan Wheel: vintage 10 x 9 to 9 1/4 pin-drive replacement family
• Michigan Wheel: 032136 - 10 x 9 aluminium functional alternative where hub configuration matches

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
