🔧 Product Description

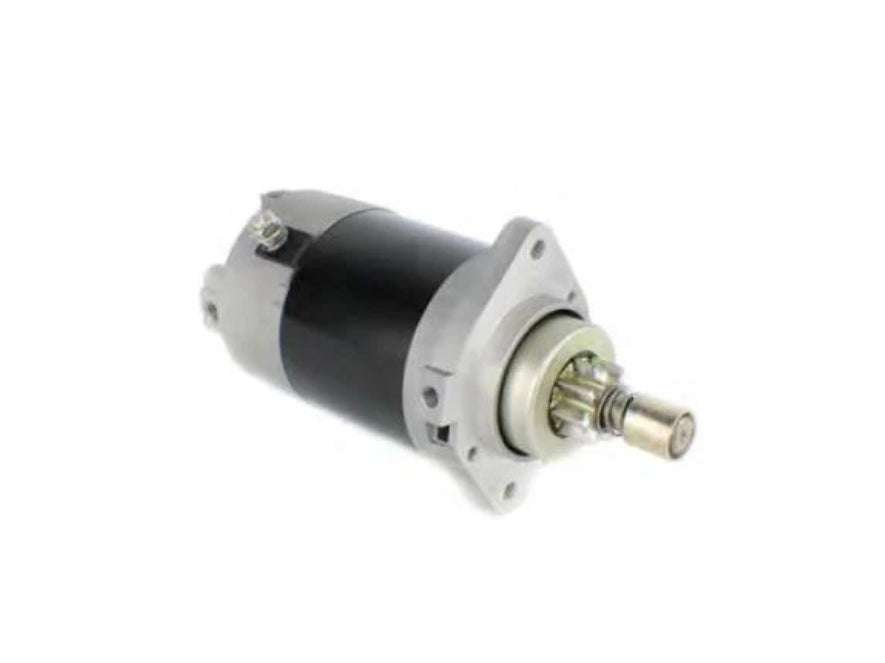

Aftermarket replacement Suzuki Early DF-Series Starter Motor - Replaces Part Number: 31100-87J00

New aftermarket Hitachi-pattern direct-drive starter replacing Suzuki 31100-87J00 for early DF40, DF50, DF60 and DF70 four-stroke outboards.

⚙️ Key Features

• 12-volt electrical system

• Counter-clockwise rotation viewed from the drive end

• 8-tooth pinion

• Direct-drive Hitachi-pattern construction

• Outboard marine starter with integrated solenoid

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 31100-87J00

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 31100-87J00 → Supersedes/cross-references 31100-87500

OEM / Related Numbers:

• 31100-87500

• 31100-87J00

• Hitachi S114-671A

Aftermarket / Verified Equivalents:

• API Marine: MOT5020

• Arrowhead: SHI0181

• J&N: 410-44094

• Recmar: REC31100-87J00

🚤 Compatibility

Commonly used on:

• Suzuki early four-stroke outboard starting systems

Typically suits:

• Engine / Generator models:

• DF40 and DF50, principally 1999-2000

• DF60 and DF70, principally 1998-2000

• HP / Output Range: 40HP - 70HP

• Year Range: 1998 - 2000 on the principal applications

• Starter Identification: Confirm 8 teeth and counter-clockwise rotation; later DF engines use different starter families.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
