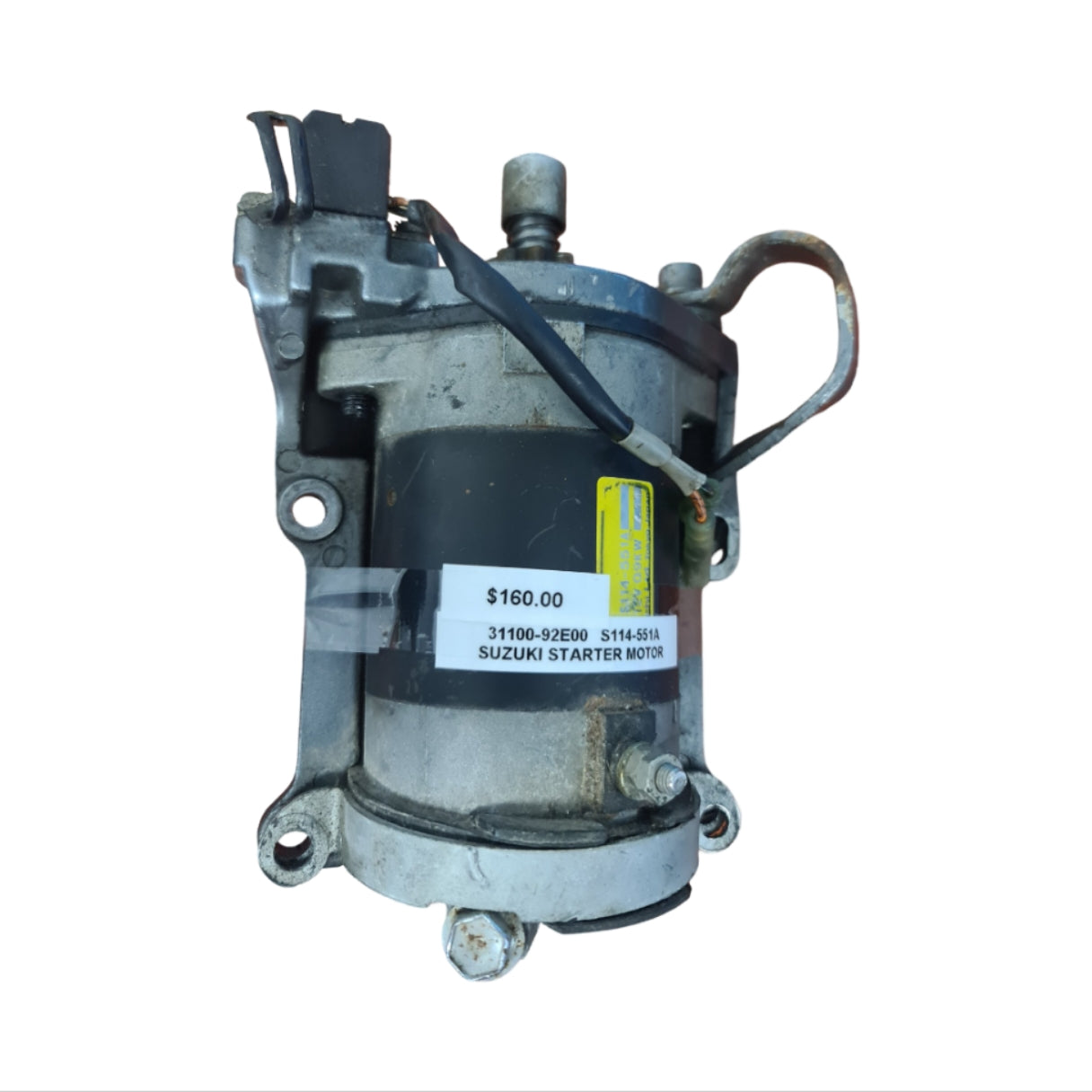

31100-92E00 S114-551A Suzuki Starter Motor | Genuine Used Part

🔧 Product Description

Genuine Suzuki Starter Motor - Part Number: 31100-92E00 / Hitachi S114-551A

A genuine Suzuki starter motor used on higher-output Suzuki two-stroke outboards. This 8-tooth Hitachi-style starter family is commonly used on Suzuki DT150, DT200, DT225 and related large two-stroke starter systems.

⚙️ Key Features

• Genuine Suzuki starter motor

• Correct Suzuki part number 31100-92E00

• Hitachi S114-551A starter motor reference

• 8-tooth starter drive family

• Used on large Suzuki two-stroke outboard starter systems

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 31100-92E00 Suzuki starter motor reference

• 31100-87D10 related Suzuki starter motor reference

• 31100-87D00 related Suzuki starter motor reference

OEM / Related Numbers:

• 31100-92E00

• 3110092E00

• Hitachi: S114-551A

• Hitachi: S114-551

• Hitachi: S114-674

• 31100-87D10

• 3110087D10

• 31100-87D00

• 3110087D00

Aftermarket / Verified Equivalents:

• API Marine: 5008N-AM style replacement

• Aftermarket reference: 31100-92E00

• Aftermarket Hitachi-style reference: S114-551A

• Marine replacement starter for Suzuki 150HP / 200HP / 225HP two-stroke applications

🚤 Compatibility

Commonly used on:

• Suzuki large two-stroke outboard starter systems

• DT150 / DT200 / DT225 electric-start applications using the 31100-92E00 starter family

Typically suits:

• Engine models:

• Suzuki DT150 two-stroke starter applications where 31100-92E00 is specified

• Suzuki DT200 two-stroke starter applications where 31100-92E00 is specified

• Suzuki DT225 two-stroke starter applications where 31100-92E00 is specified

• Suzuki large-displacement two-stroke outboards using Hitachi S114-551A / S114-674 starter references

• Suzuki 8-tooth electric starter systems using 31100-92E00 in the starter motor diagram

• HP Range: commonly 150HP - 225HP

• Engine Type: Suzuki large two-stroke outboard

• Year Range: model-specific DT-series applications

• Starter Type: 12V, 8-tooth starter motor family

🔌 Function

The starter motor converts battery current into cranking force, driving the starter pinion into the flywheel ring gear so the engine can start.

Common signs of failure:

• Heavy current draw and slow crank

• Starter motor spins but does not engage

• Worn 8-tooth drive gear

• Grinding at flywheel engagement

• No crank despite good battery and solenoid

• Internal corrosion, brush wear or armature failure

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
