31100-94J22 31100-94J21 Suzuki DF60A Starter Motor | Genuine Used Part

🔧 Product Description

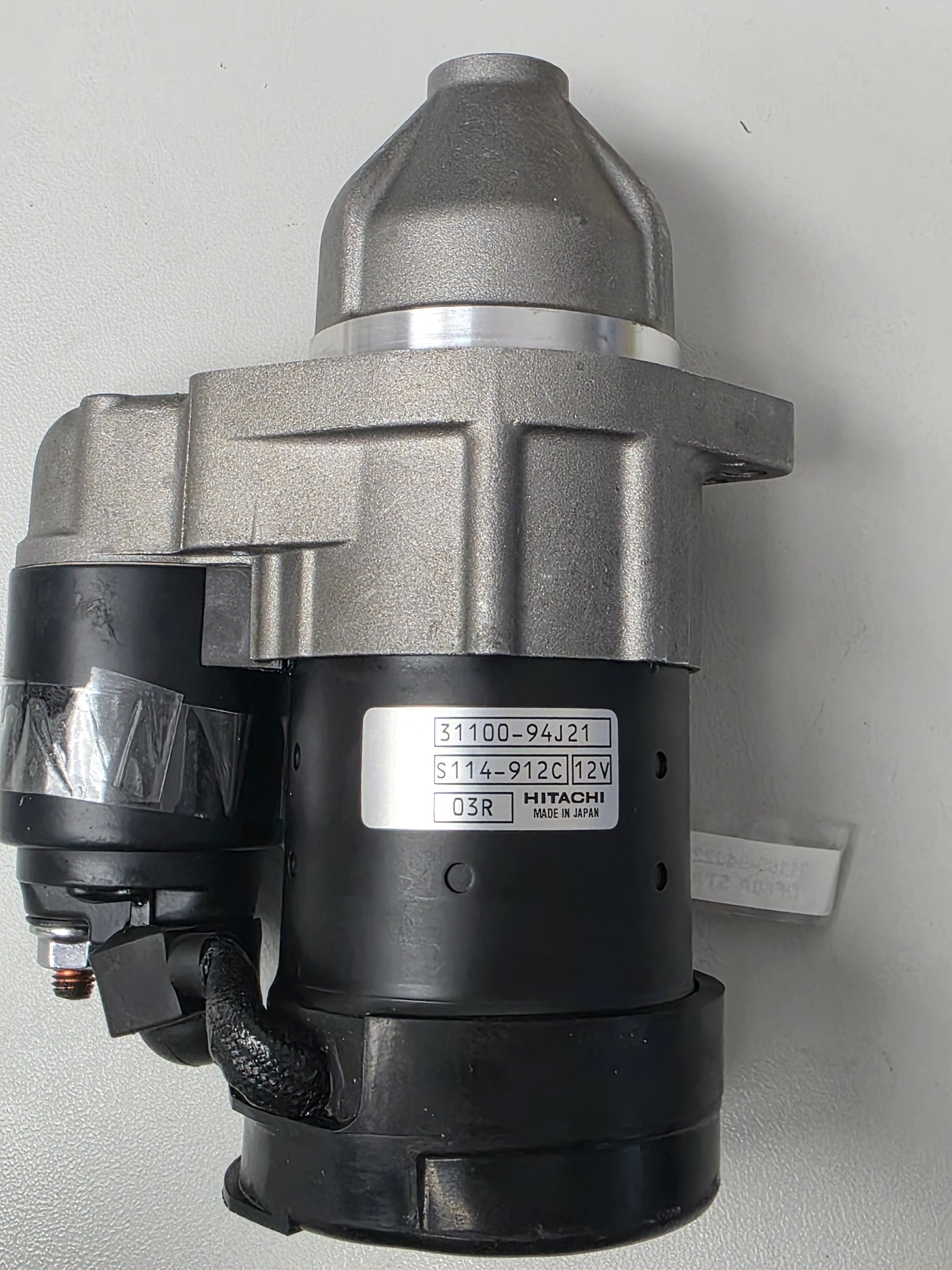

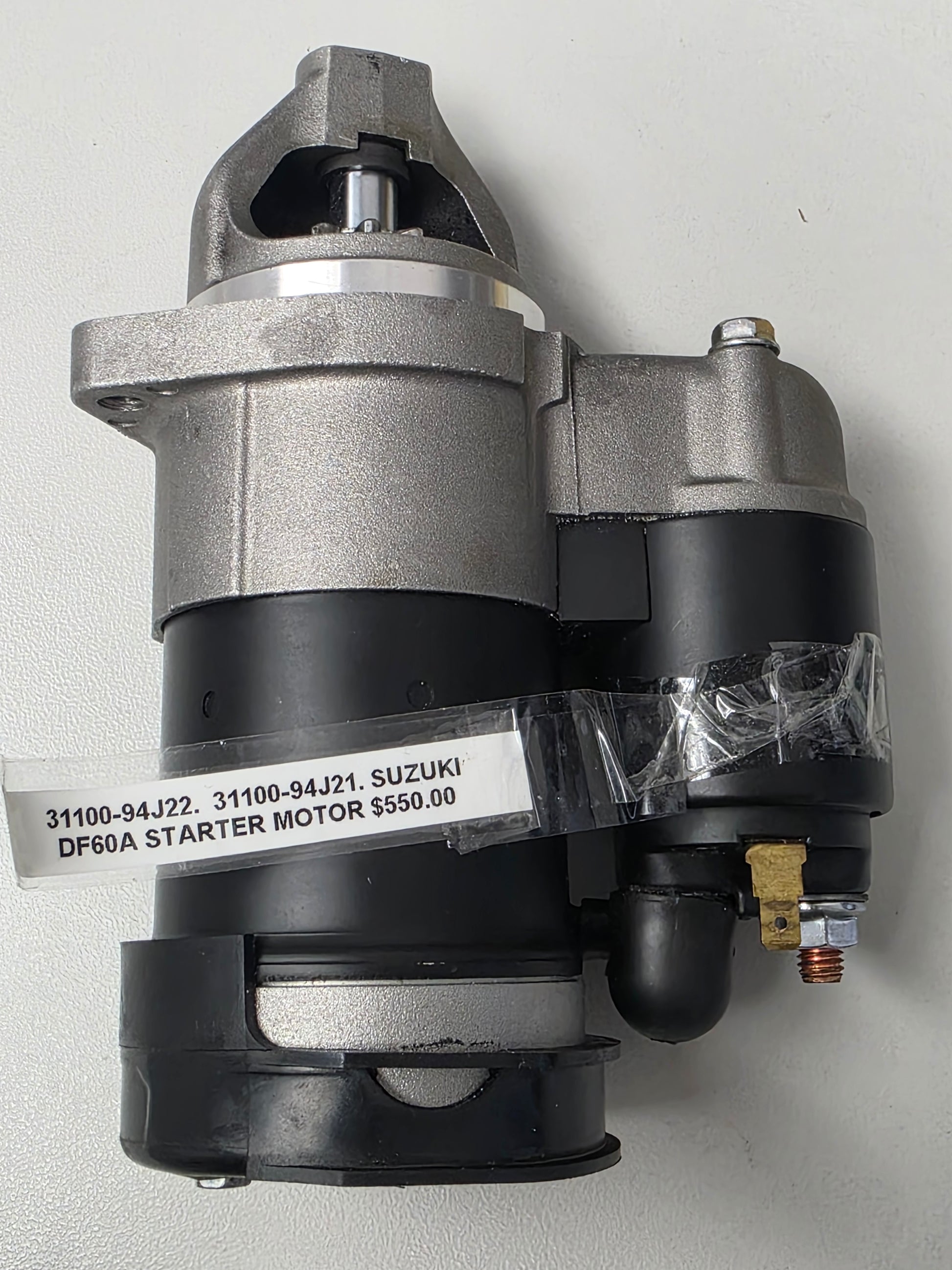

Genuine Suzuki DF60A Starter Motor - Part Numbers: 31100-94J22 / 31100-94J21

A genuine Suzuki starter motor used on DF9.9, DF15, DF20, DF25, DF40, DF50 and DF60A four-stroke outboards. This 12-volt, 9-tooth, counter-clockwise starter family is commonly fitted to Suzuki small and mid-range four-stroke engines from the mid-2000s onward.

⚙️ Key Features

• Genuine Suzuki starter motor
• Correct OEM references 31100-94J22 and 31100-94J21
• 12-volt starter motor

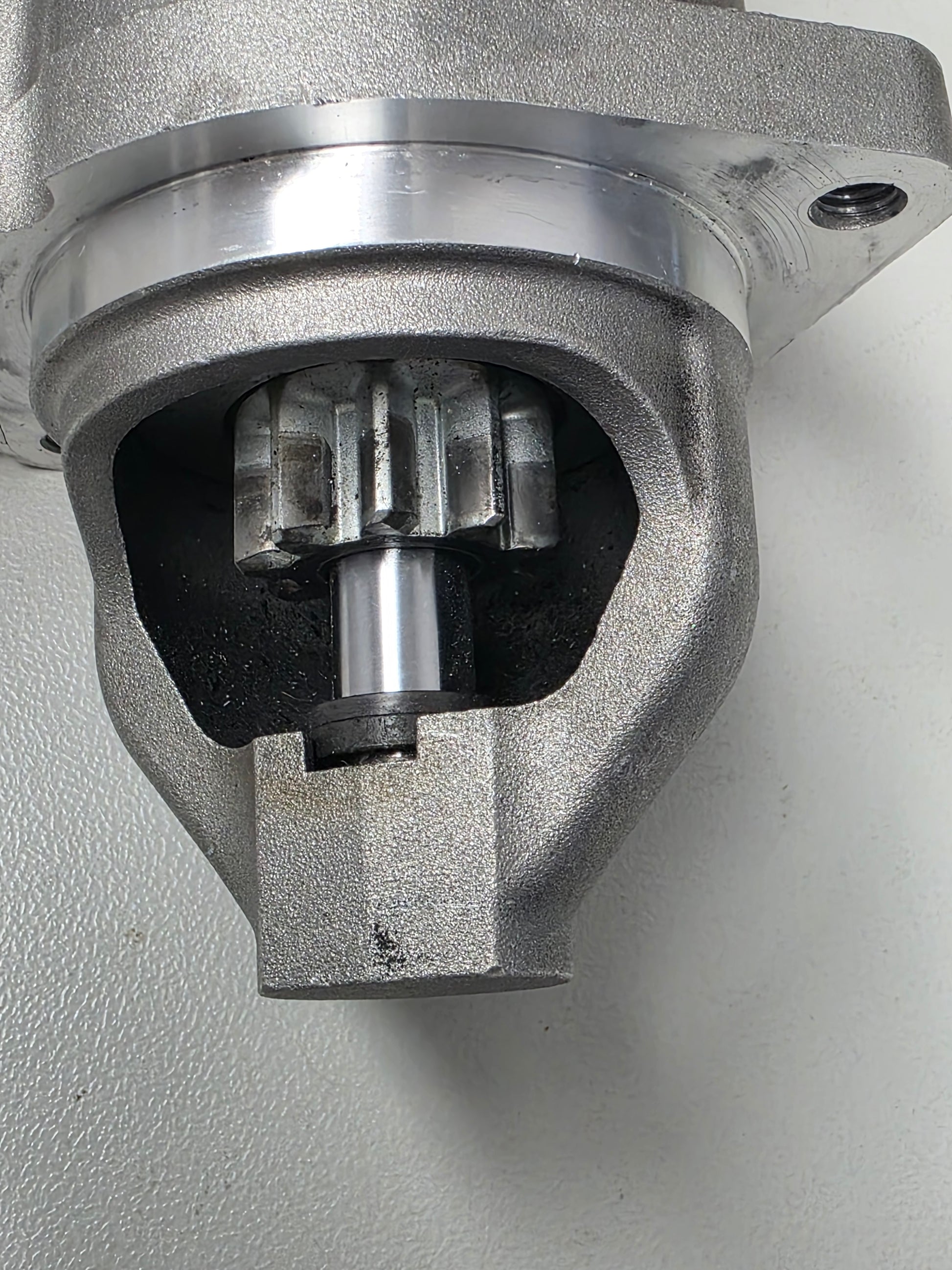

• 9-tooth drive gear
• Used on DF60A and related 9.9HP to 60HP four-stroke starter systems

🚤 Compatibility

Commonly used on

• Suzuki DF9.9 / DF15 / DF20 four-stroke starter systems
• Suzuki DF25 / DF40 / DF50 / DF60A four-stroke starter systems
• Suzuki 94J / 95J starter motor family

Typically suits

• Engine models:
• Suzuki DF9.9 four-stroke - approximately 2005-2018
• Suzuki DF15 four-stroke - approximately 2005-2018
• Suzuki DF20 four-stroke - approximately 2005-2018
• Suzuki DF25 four-stroke - approximately 2006-2014
• Suzuki DF40 four-stroke - approximately 2005-2018
• Suzuki DF50 four-stroke - approximately 2005-2018
• Suzuki DF50A four-stroke starter-family applications
• Suzuki DF60A four-stroke - approximately 2010-2018
• Suzuki DF60AV four-stroke applications where 31100-94J22 / 31100-94J21 is specified
• Suzuki DF60A 2010 model-family starter applications using 31100-94J21
• HP Range: commonly 9.9HP - 60HP
• Engine Type: Suzuki four-stroke outboard
• Year Range: approximately 2005-2018 depending on model
• Starter Type: 12V, 9-tooth, counter-clockwise rotation

🔌 Function

The starter motor engages the flywheel ring gear and cranks the engine from the battery-powered starting circuit.

⚠️ Common Signs of Failure

• Starter relay clicks but motor does not crank
• Slow cranking despite good battery
• Starter drive fails to rise or engage
• Grinding noise from worn drive teeth
• Starter motor overheating
• Corrosion, brush wear or internal armature failure

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 31100-95J01 later related Suzuki starter motor reference
• 31100-95J00 related Suzuki starter motor reference
• 31100-94J22 later Suzuki starter motor reference
• 31100-94J21 related Suzuki starter motor reference
• 31100-94J20 related earlier starter motor reference
• 31100-94J10 related earlier starter motor reference

OEM / Related Numbers

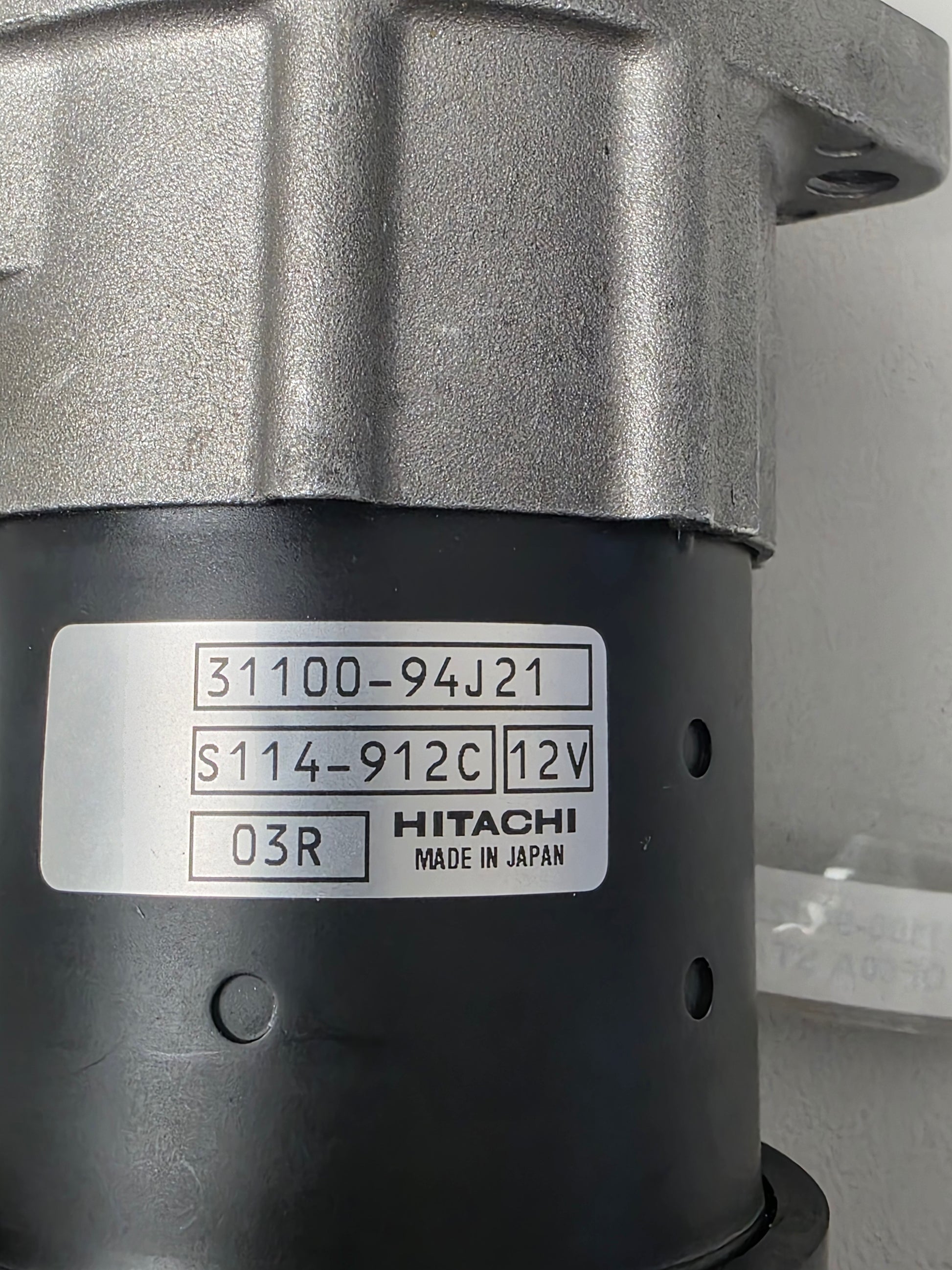

• 31100-94J22
• 3110094J22
• 31100-94J21
• 3110094J21
• 31100-94J20
• 3110094J20
• 31100-94J10
• 3110094J10
• 31100-95J00
• 3110095J00
• 31100-95J01
• 3110095J01
• Johnson / Evinrude: 5036244 related shared-platform reference

Aftermarket / Verified Equivalents

• ARCO: 3449
• Recmar-style replacement: REC31100-95J01
• Aftermarket reference: 31100-94J22 / 31100-94J21
• Marine replacement starter for Suzuki DF9.9-DF60 four-stroke applications

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
