🔧 Product Description

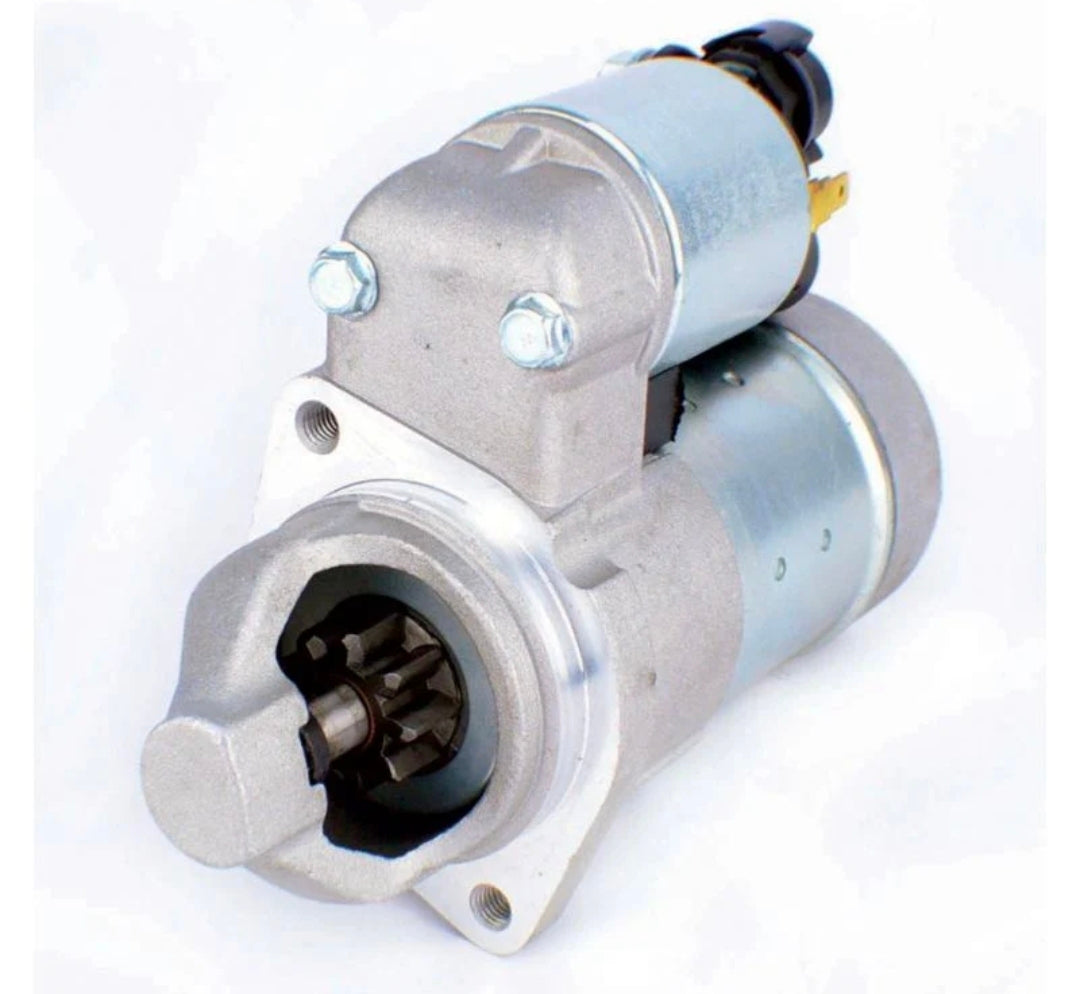

Aftermarket replacement Suzuki 96J-Series Starter Motor - Replaces Part Number: 31100-96J02

New aftermarket Hitachi-pattern starter replacing Suzuki 31100-96J02 and BRP 5035078 for a broad range of Suzuki four-stroke outboards through the 2017 application period.

⚙️ Key Features

• 12-volt electrical system

• Clockwise rotation viewed from the drive end

• 9-tooth pinion

• Hitachi gear-reduction construction

• Integrated marine starter solenoid

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 31100-96J02

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 31100-96J02 → Supersedes/cross-references 31100-96J01, 31100-96J00 and 31100-93J00/-02

OEM / Related Numbers:

• 31100-93J00

• 31100-93J02

• 31100-96J00

• 31100-96J01

• 31100-96J02

• BRP 5035078

• Hitachi S114-868

• S114-868A

• S114-868B

• S114-868C

Aftermarket / Verified Equivalents:

• Sierra: 18-6941

• ARCO: 3452

• Recmar: REC31100-96J02

🚤 Compatibility

Commonly used on:

• Suzuki and Suzuki-built BRP four-stroke outboard starting systems

Typically suits:

• Engine / Generator models:

• DF70A, DF80A and DF90A, principally 2009-2016

• DF150 and DF175, principally 2006-2017

• DF200, DF225 and DF250, principally 2004-2017

• DF300, principally 2007-2017

• HP / Output Range: 70HP - 300HP

• Year Range: Principally 2004 - 2017; model dependent

• Starter Identification: Corrected brand classification: this is Suzuki/BRP, not Bombardier-only.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
