31200-ZY3-003 Aftermarket Honda Outboard Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

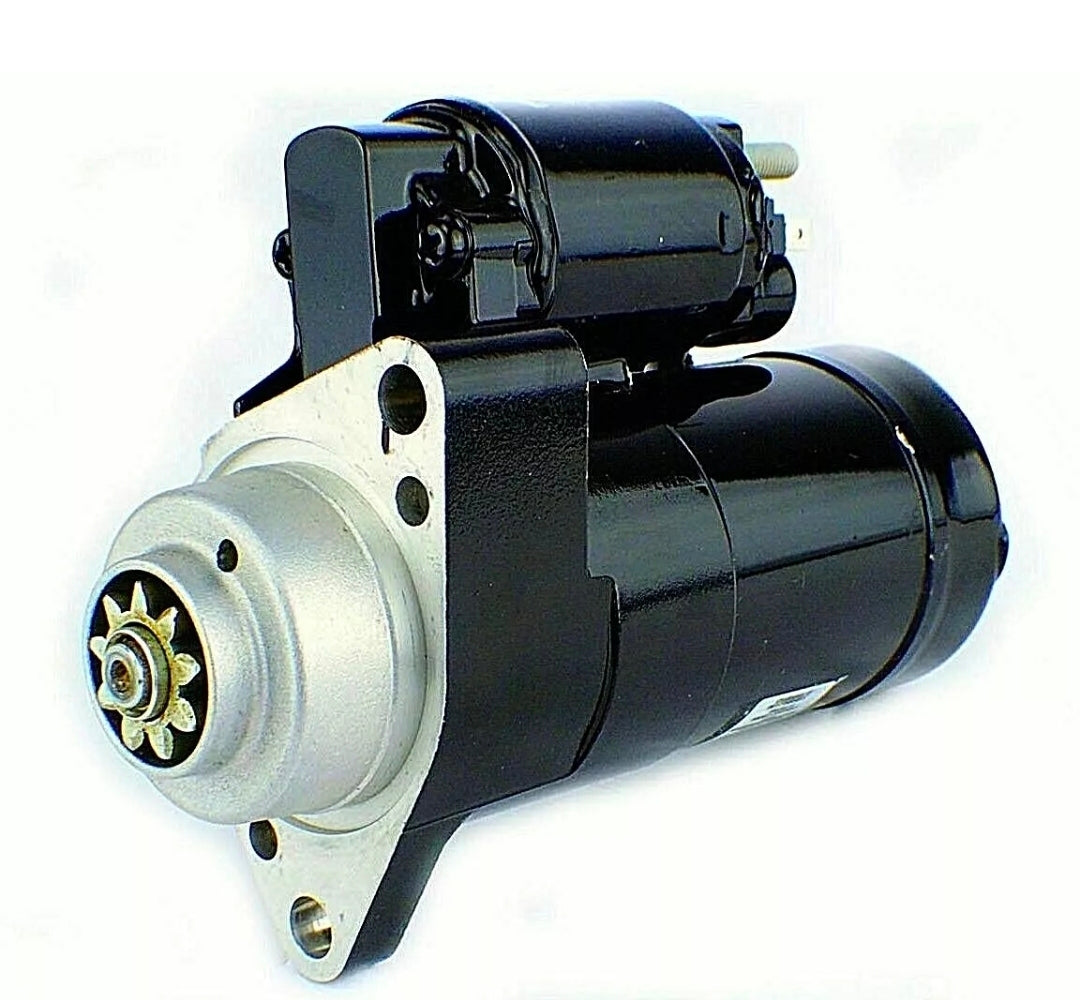

Aftermarket replacement Honda V6 Outboard Starter Motor - Replaces Part Number: 31200-ZY3-003

New aftermarket permanent-magnet gear-reduction starter replacing Honda 31200-ZY3-003 for large V6 four-stroke outboards.

⚙️ Key Features

• 12-volt electrical system

• Approximately 1.7kW rated output

• Clockwise rotation viewed from the drive end

• 9-tooth pinion

• Permanent-magnet gear-reduction construction

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 31200-ZY3-003

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 31200-ZY3A-0034 → Related later Honda service reference for 31200-ZY3-003

OEM / Related Numbers:

• 31200-ZY3-003

• 31200-ZY3A-0034

• MHG015

Aftermarket / Verified Equivalents:

• WAI: 19607N

• Recmar: REC31200-ZY3-003

• Aftermarket MHG015 starter

🚤 Compatibility

Commonly used on:

• Honda V6 four-stroke outboard starting systems

Typically suits:

• Engine / Generator models:

• BF175

• BF200

• BF225

• BF250 applications whose parts catalogue specifies the ZY3 starter

• HP / Output Range: 175HP - 250HP

• Year Range: Principally 2002 onward; model and serial dependent

• Starter Identification: Confirm 9 teeth, clockwise rotation and ZY3 mounting.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
