31200-ZY6-003 Aftermarket Honda 9-Tooth CW Starter Motor | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket replacement Honda/Tohatsu Mid-Range Outboard Starter Motor - Replaces Part Number: 31200-ZY6-003

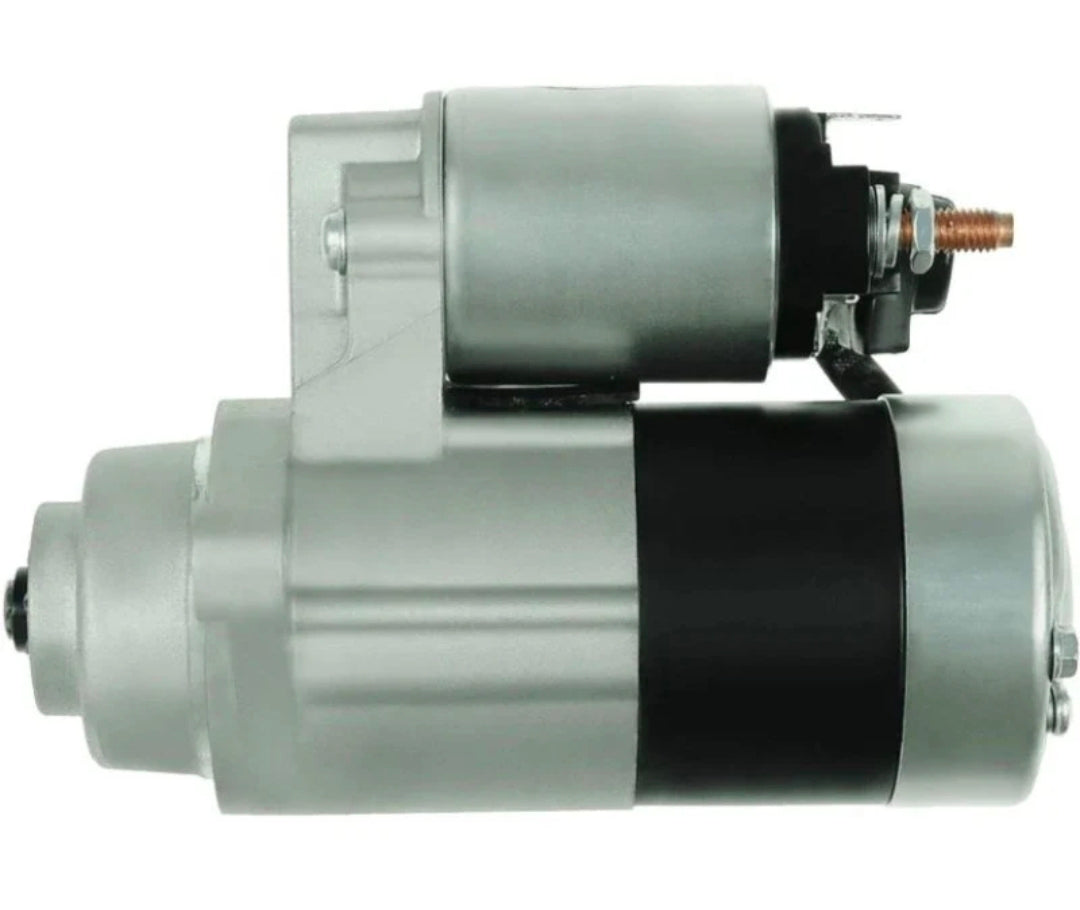

New aftermarket Mitsubishi-pattern permanent-magnet gear-reduction starter replacing Honda 31200-ZY6-003. It is a 12-volt, approximately 1.0kW clockwise unit with a 9-tooth pinion.

⚙️ Key Features

• 12-volt electrical system

• Approximately 1.0kW rated output

• Clockwise rotation viewed from the drive end

• 9-tooth pinion

• Permanent-magnet gear-reduction construction

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 31200-ZY6-003

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 31200-ZY9-003 / ZY9-H01 / ZY9A-0031 → Related later service family for 31200-ZY6-003

OEM / Related Numbers:

• 31200-ZY6-003

• 31200-ZY9-003

• 31200-ZY9-H01

• 31200-ZY9A-0031

• Mitsubishi M0T60981

• Mitsubishi M0T65481

• Quicksilver 50-8M6007338

Aftermarket / Verified Equivalents:

• Sierra: 18-6959

• ARCO: 3453

• Recmar: REC31200-ZY6-003

🚤 Compatibility

Commonly used on:

• Honda and Honda-platform Tohatsu four-stroke outboard starting systems

Typically suits:

• Engine / Generator models:

• BF75, BF80, BF90 and BF100 applications using the ZY6/ZY9 starter

• BF115, BF135 and BF150 applications using this starter family

• Corresponding Tohatsu BFT models after exact OEM-number confirmation

• HP / Output Range: 75HP - 150HP

• Year Range: Principally 2004 onward; model dependent

• Starter Identification: Honda/Tohatsu

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
