31911-94620-OED Suzuki Starter Motor Bracket | Genuine Used Part

🔧 Product Description

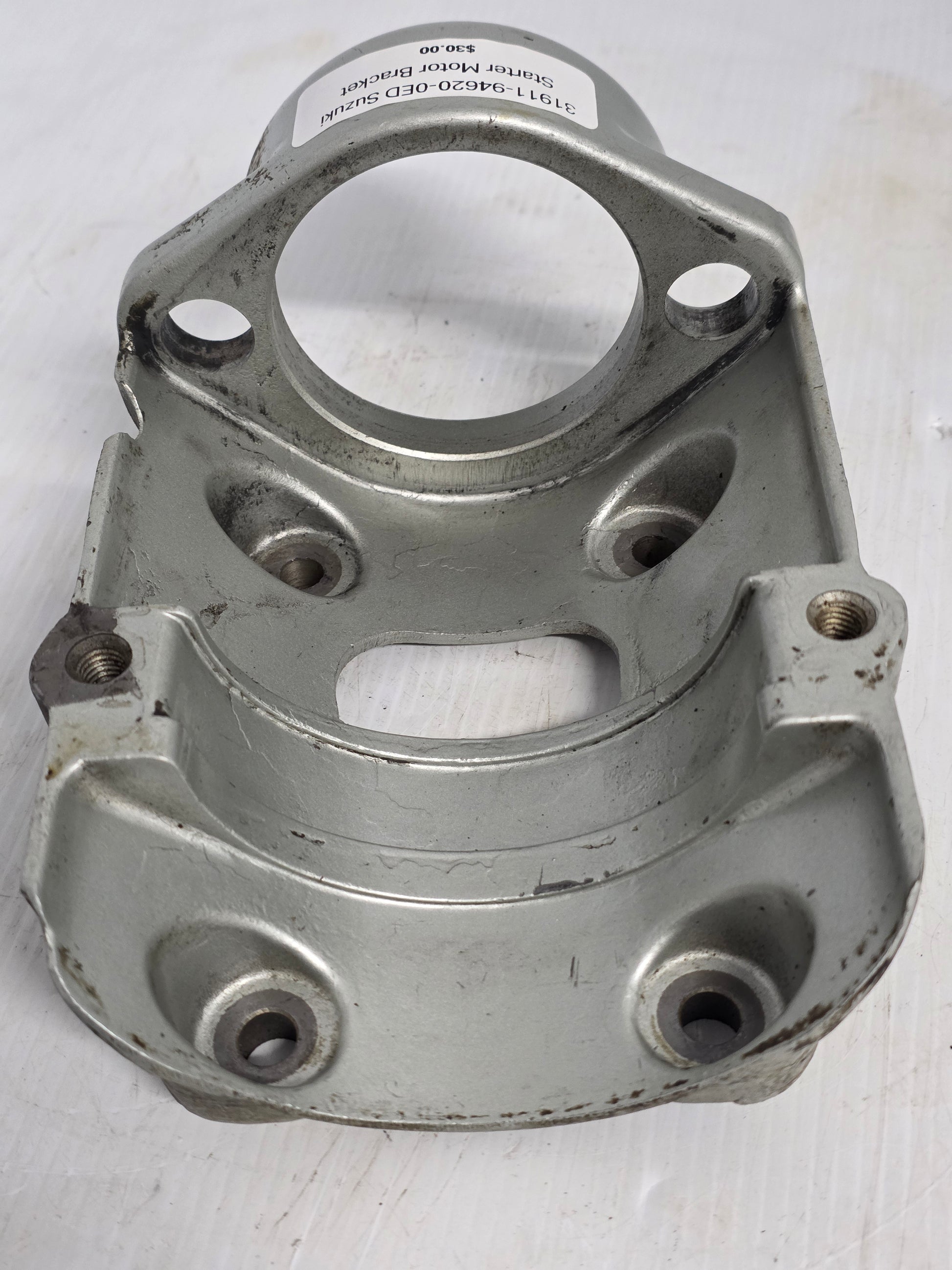

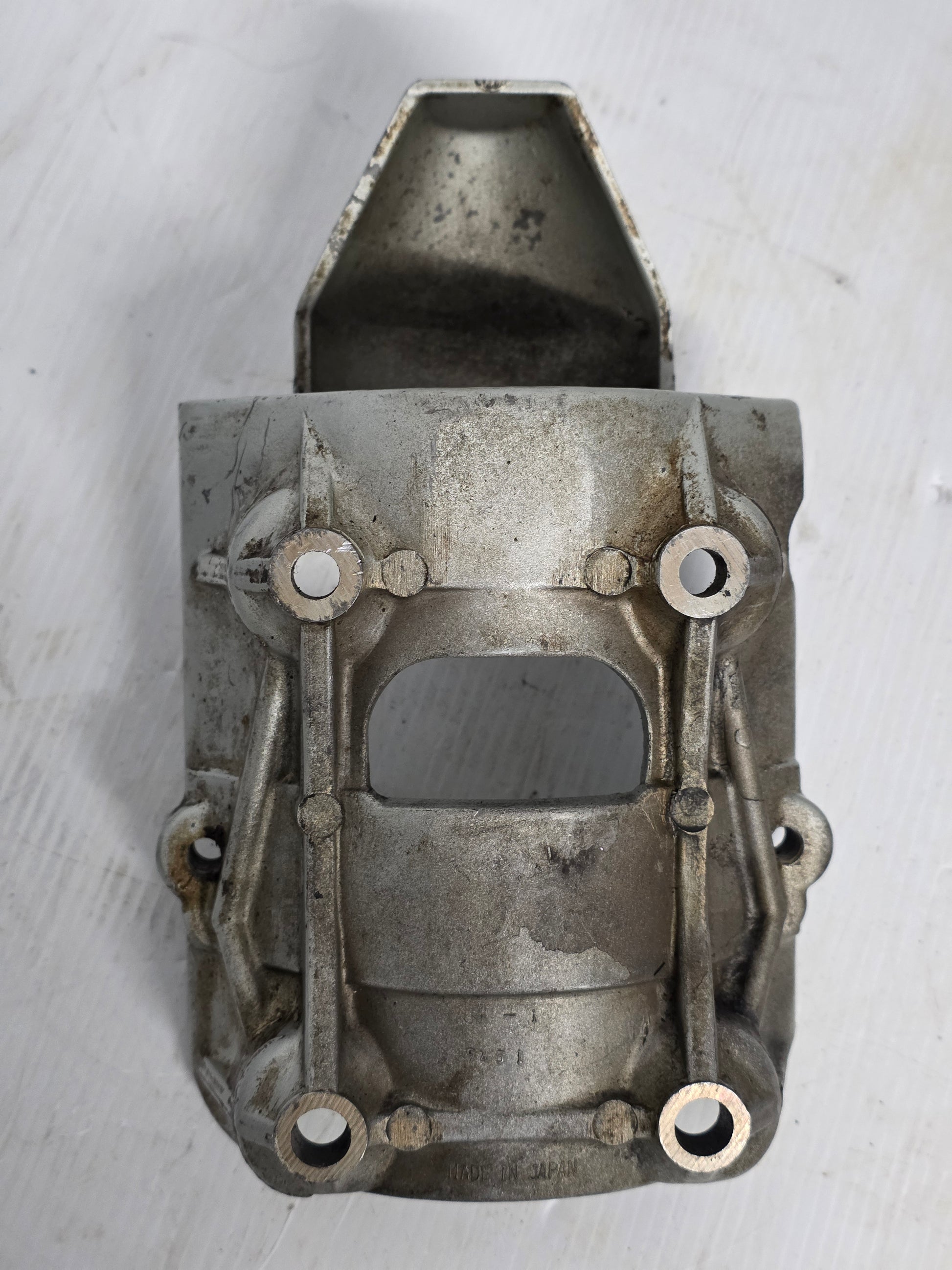

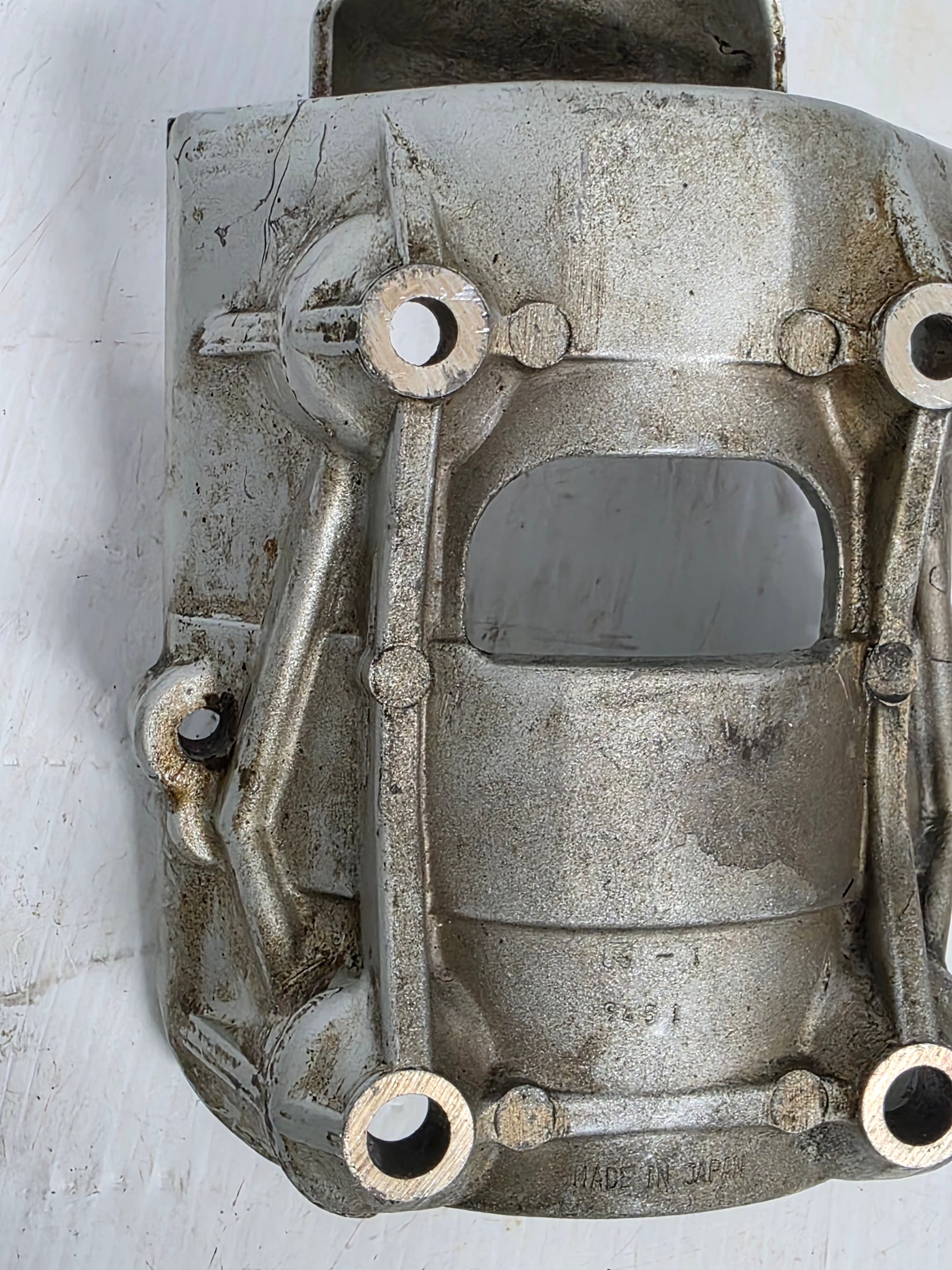

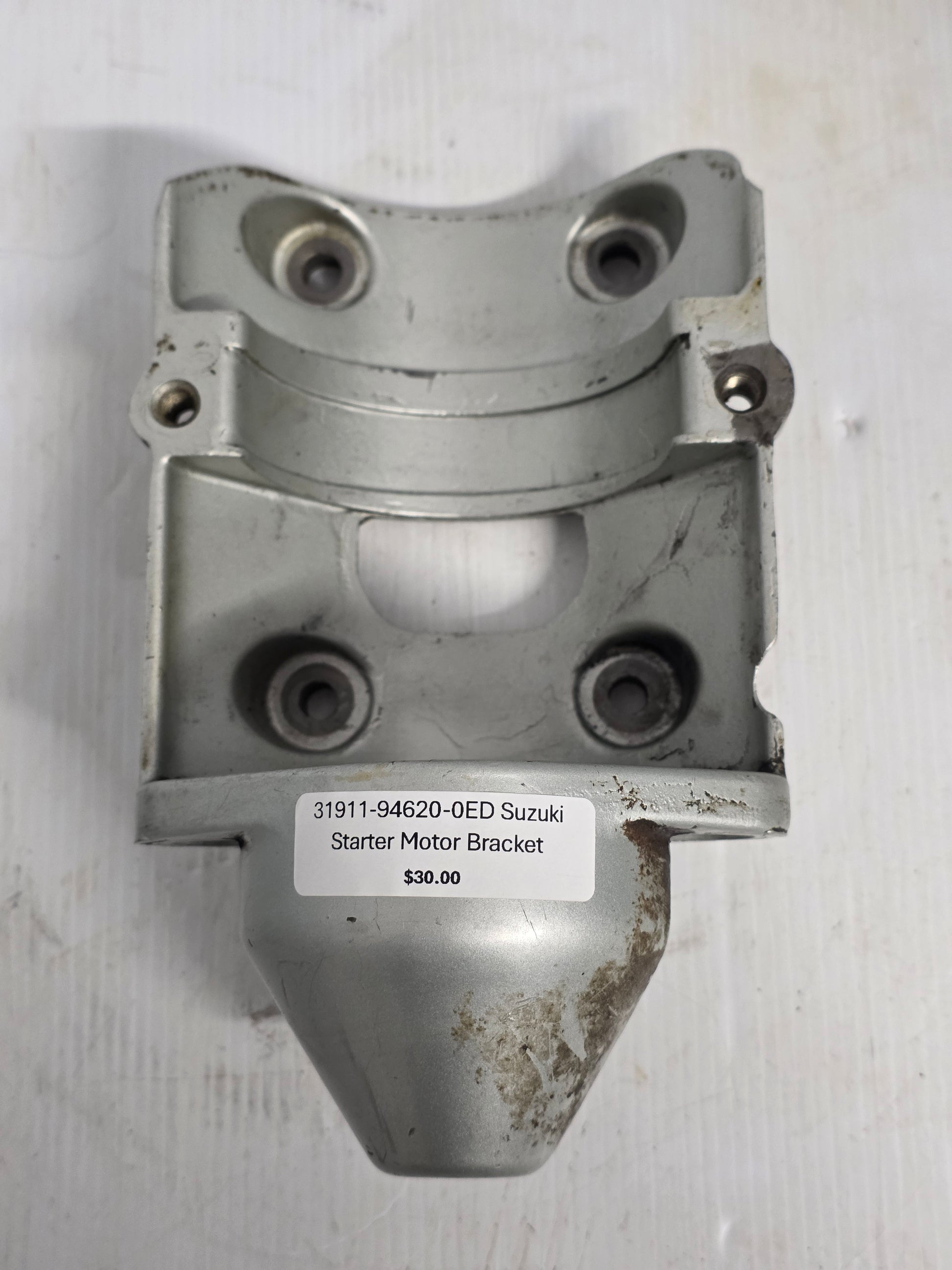

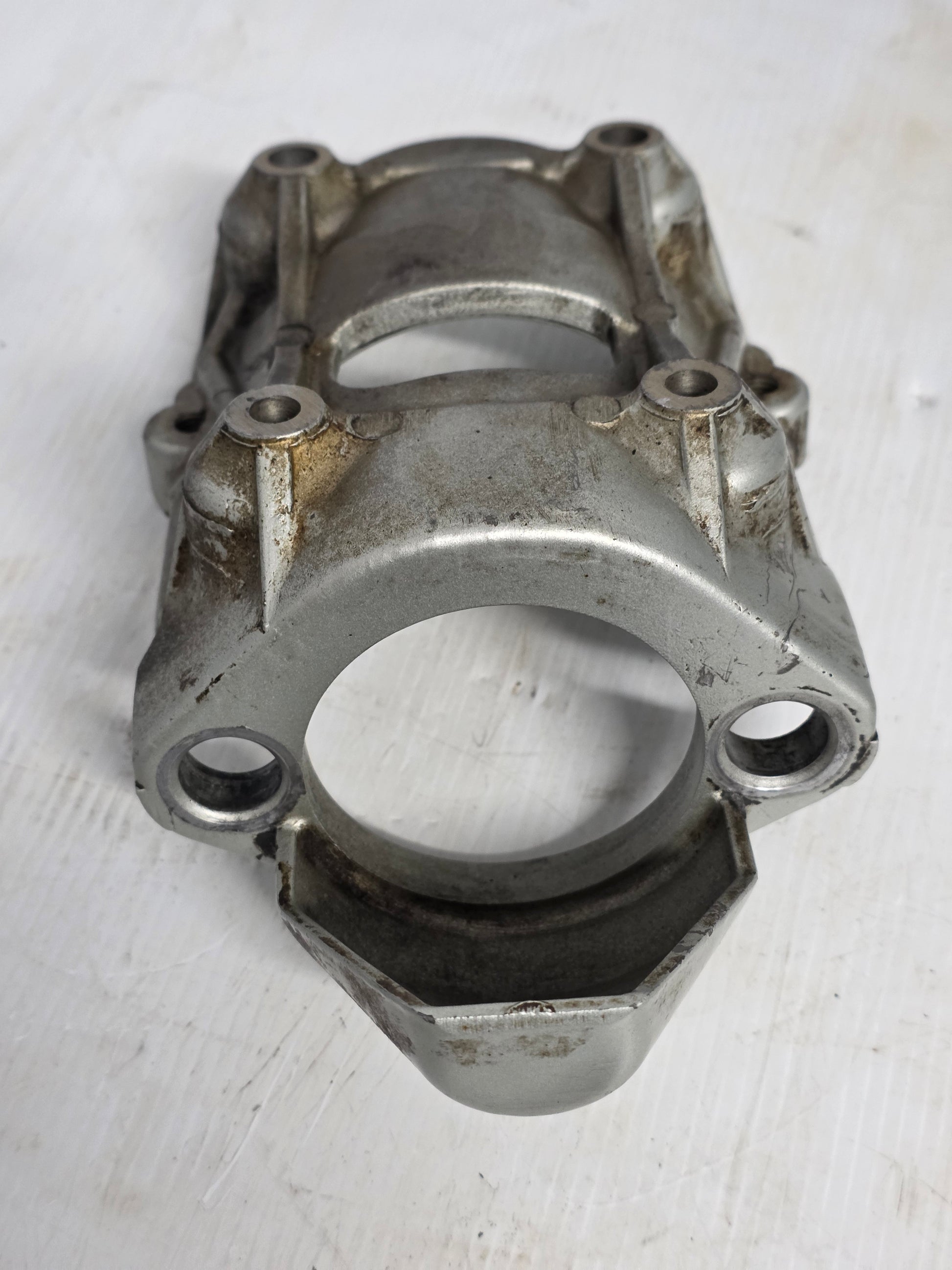

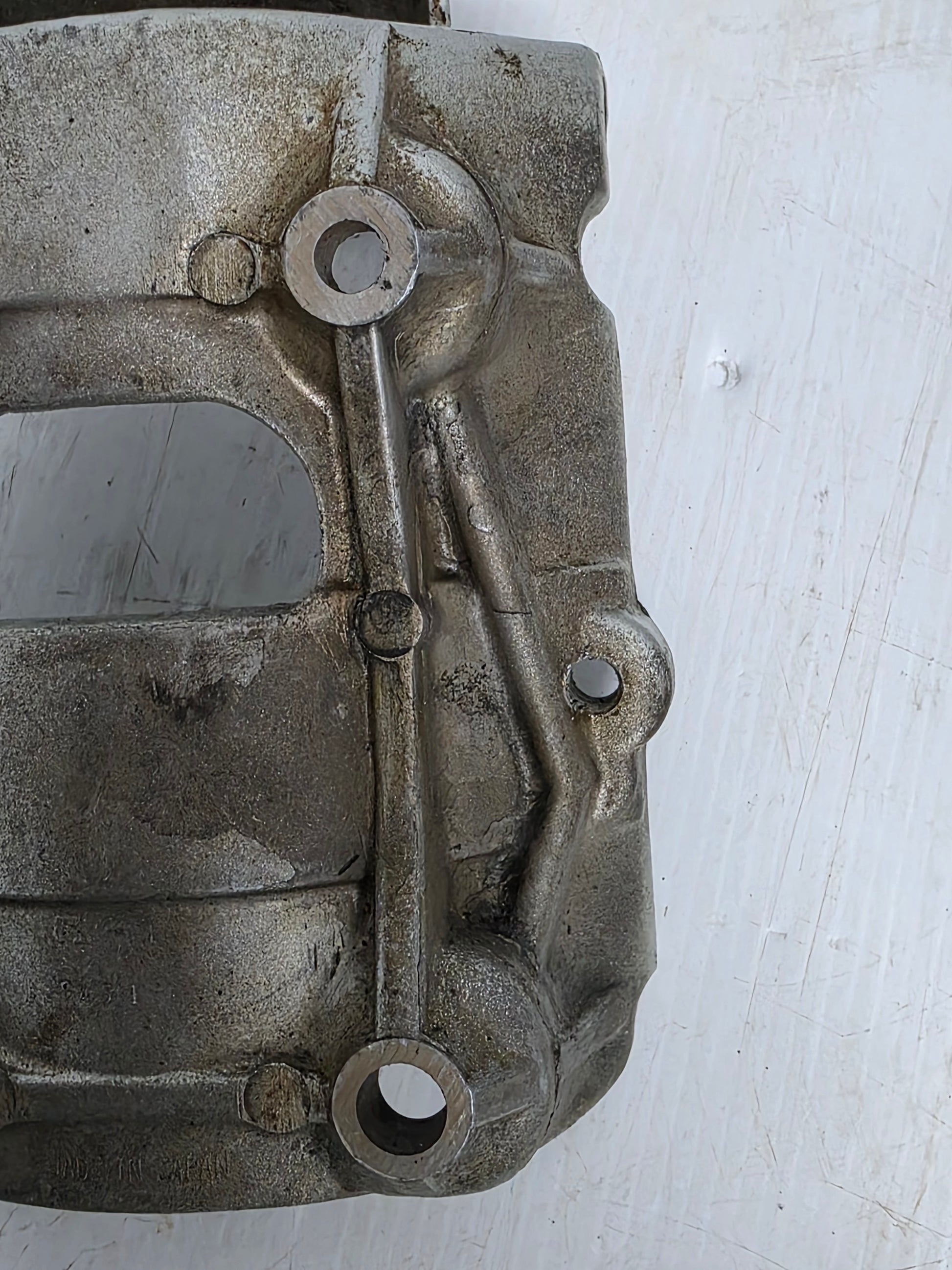

Genuine Suzuki DT115 DT140 Starter Motor Bracket - Part Number: 31911-94620-0ED

A genuine Suzuki grey starter-motor mounting bracket for selected DT115 and DT140 V4 two-stroke outboards.

The supplied suffix was written as OED. Suzuki catalogues use colour code 0ED, with a zero, identifying the grey-finish bracket.

⚙️ Key Features

• Genuine Suzuki starter-motor bracket
• Correct part number 31911-94620-0ED
• Grey 0ED factory finish
• Supports starter motor 31100-94610
• Used on DT115 and DT140 two-strokes
• Factory mounting alignment and damper locations

🚤 Compatibility

Documented on

• Suzuki DT115
• Suzuki DT140
• V4 two-stroke model years approximately 1989-2001
• 2000 and 2001 starter-motor diagrams using 31100-94610
• Earlier DT115 / DT140 models using related 31100-945xx starter assemblies
• HP Range: 115HP - 140HP
• Engine Type: Suzuki V4 carburetted two-stroke outboard

🔌 Function

The bracket secures the starter motor to the engine and maintains correct engagement between the starter pinion and flywheel ring gear.

⚠️ Common Signs of Failure

• Starter motor moves during cranking
• Pinion engagement is noisy or uneven
• Bracket is cracked or bent
• Mounting threads are stripped
• Rubber dampers are missing or compressed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 31911-94620-0ED current documented bracket for the applicable DT115 / DT140 starter arrangement
• No direct supersession confirmed

OEM / Related Numbers

• 31911-94620-0ED
• 31100-94610 starter motor assembly
• 31100-94500
• 31100-94510
• 31100-94511
• 31100-94512
• 31100-94600 related starter assemblies
• 31912-94600 starter band
• 31916-94500 upper damper
• 31917-94500 middle damper
• 31918-94600 lower damper

Aftermarket / Verified Equivalents

• Used complete Suzuki DT115 / DT140 starter mounting assembly
• Aftermarket starter motors may reuse the original bracket
• No verified direct aftermarket bracket casting

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect dampers and mounting bolts during installation
