31912-88L00 Suzuki Starter Motor Band | Genuine Used Part

🔧 Product Description

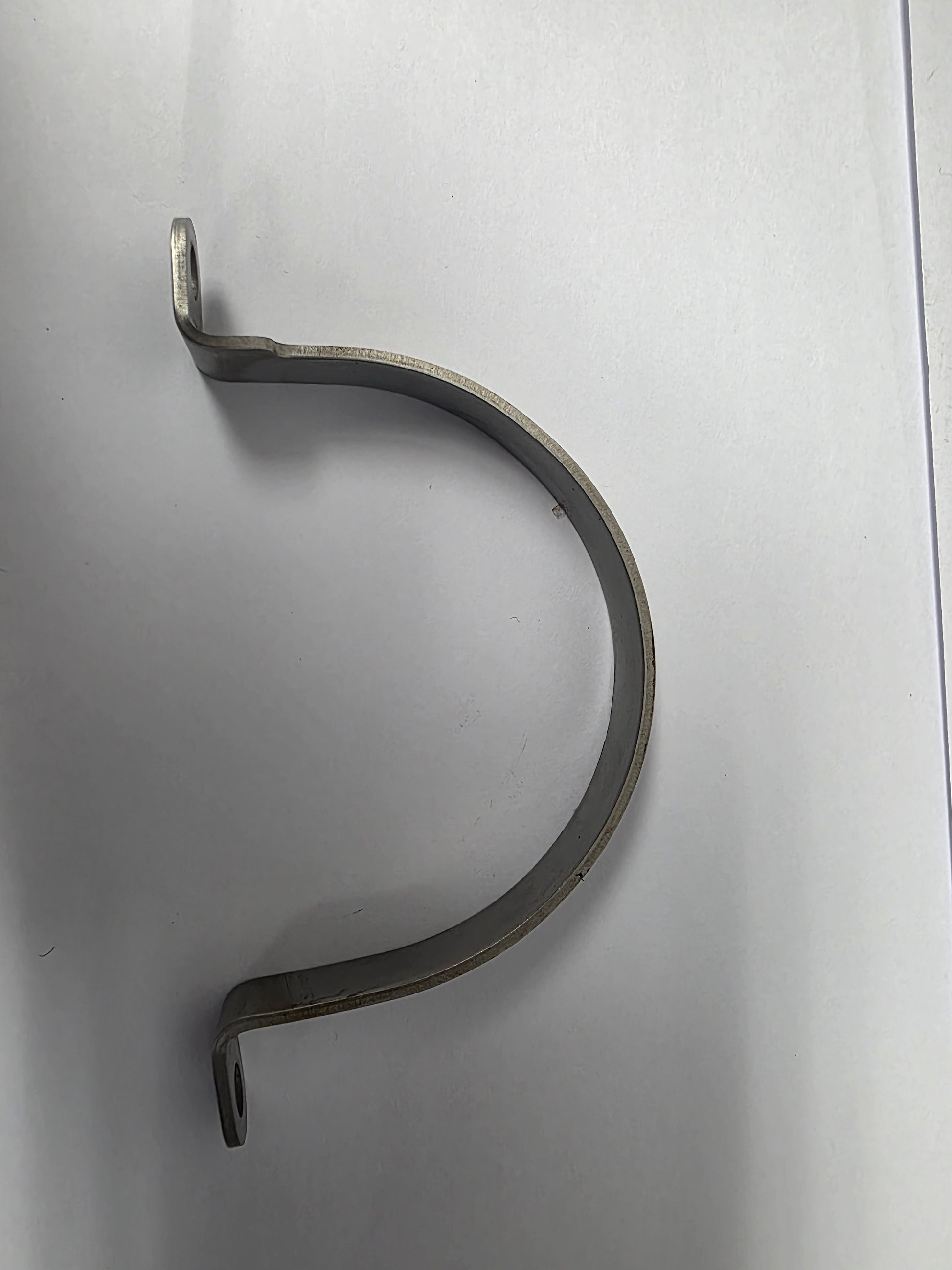

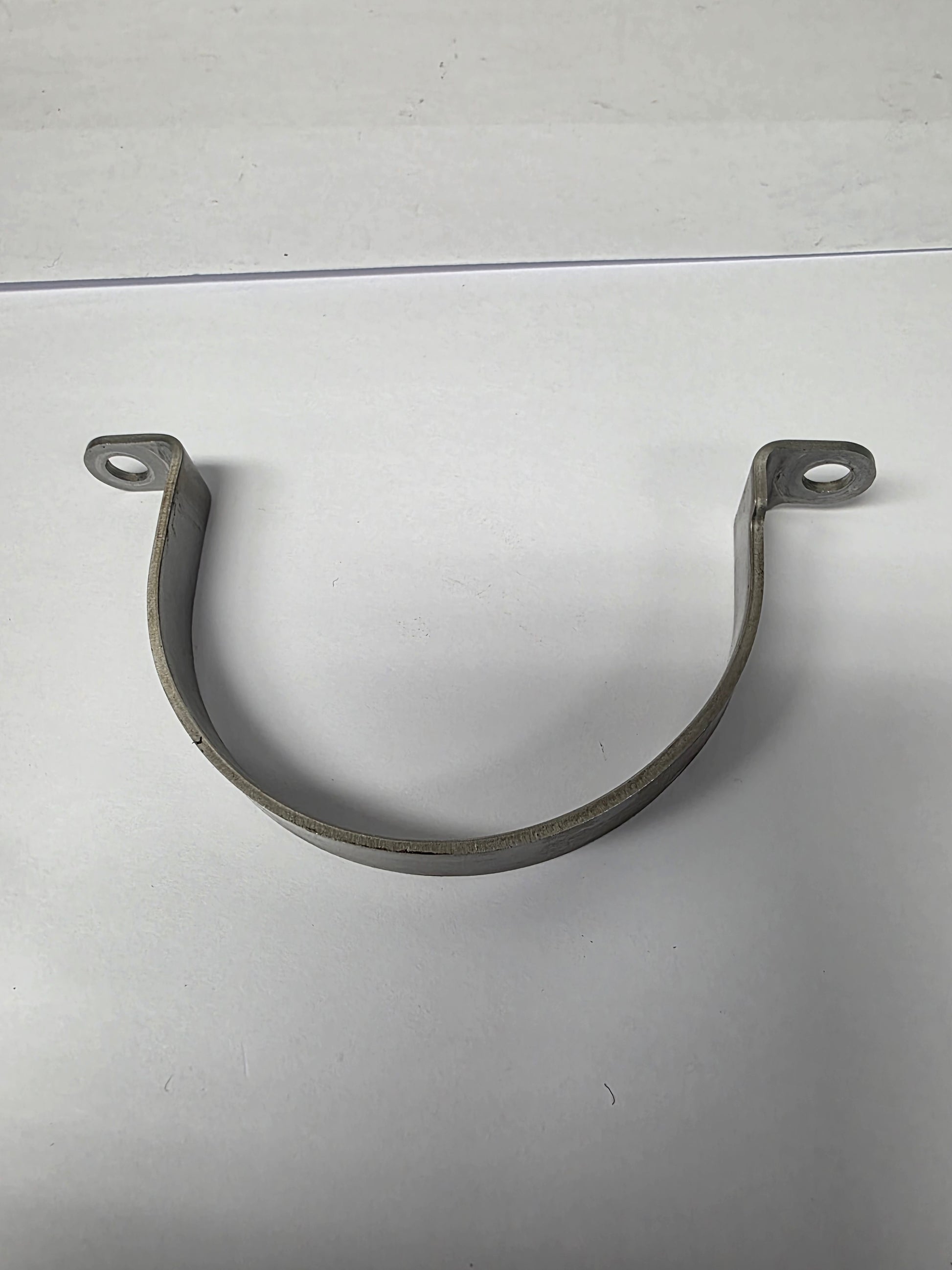

Genuine Suzuki DF40A-DF60A Starter Motor Band - Part Number: 31912-88L00

A genuine Suzuki retaining band used to secure the starter motor assembly on selected DF40A, DF50A and DF60A EFI four-stroke outboards.

The band wraps around or retains the starter housing against its bracket and works with the upper and lower starter-motor bolts and dampers.

⚙️ Key Features

• Genuine Suzuki starter-motor band
• Correct part number 31912-88L00 / 31912-88L00-000
• Factory curvature and mounting-hole spacing
• Used on Suzuki 941cc inline-three engines
• Supports the original electric starter assembly
• Broad 2011-2024 application

🚤 Compatibility

Documented on

• Suzuki DF40A
• Suzuki DF40AS
• Suzuki DF50A
• Suzuki DF50AV
• Suzuki DF60A
• Suzuki DF60AV
• VIN families from 2011 through at least 2024
• Examples include DF60ATL VIN 06002F-110001, 210001 and later 44-series production
• HP Range: 40HP - 60HP
• Engine Type: Suzuki 941cc inline-three EFI four-stroke outboard

🔌 Function

The band retains and supports the starter motor so pinion alignment remains correct during high-current cranking loads.

⚠️ Common Signs of Failure

• Starter motor moves or vibrates
• Band is cracked, stretched or corroded
• Mounting holes are elongated
• Starter pinion engagement becomes noisy
• Retaining bolts repeatedly loosen

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 31912-88L00 current documented starter-band reference
• No direct supersession confirmed

OEM / Related Numbers

• 31912-88L00
• 31912-88L00-000
• 31170-94J00 starter rear cover
• 31918-87L00 / 31918-92J01 lower damper
• 01550-06167 lower bolt
• 01550-08307 / 01550-0830C upper bolt
• Related starter motor and planetary gear components

Aftermarket / Verified Equivalents

• Specialist used Suzuki 31912-88L00 band
• Used complete DF40A-DF60A starter assembly
• Professionally formed band only where material thickness and hole spacing match
• No verified direct packaged aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
• Inspect the band and starter dampers before installation
