32-87234 Aftermarket Mercruiser Hose Assembly | Sawley's Select Marine Parts

🔧 Product Description

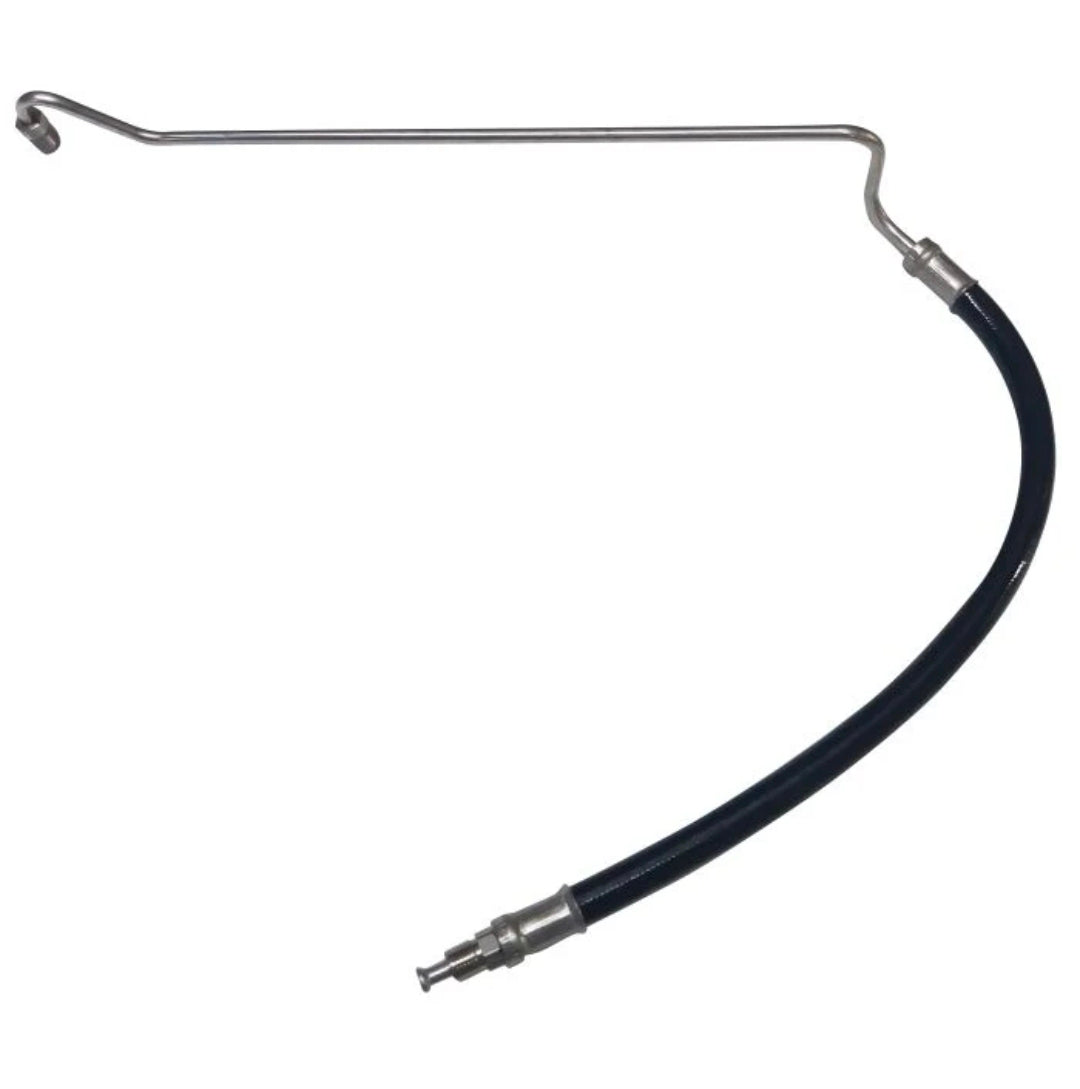

Aftermarket replacement MerCruiser MC-1 Port External Trim Cylinder Hose - Replaces Part Number: 32-87234

New aftermarket hydraulic trim hose replacing MerCruiser/Mercury 32-87234. It is a position-specific line for mc-1 external-line trim cylinders.

⚙️ Key Features

• Direct replacement for the listed OEM hose number

• Marine hydraulic hose with corrosion-resistant end fittings

• Configured for MC-1 external-line trim cylinders

• Pressure-rated for power trim service

• Compare length and fitting angles before ordering

🧰 Kit / Assembly Contents

• 1 × Complete hydraulic trim hose assembly - P/N 32-87234

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32-87234 (Mercury/MerCruiser OEM hose reference)

OEM / Related Numbers:

• Approximately 14-inch hose with 1/8-inch fittings

Aftermarket / Verified Equivalents:

• Sierra 18-2112

• GLM 26110

🚤 Compatibility

Commonly used on:

• MC-1 external-line trim cylinders

Typically suits:

• Engine / Drive models:

• 1972-1991 external-line cylinders; port side

• HP / Drive Range: Engine or drive rating dependent

• System Type: Marine hydraulic trim-hose system

• Year Range: Application- and serial-dependent

• Serial / Component Identification: Match both fittings, overall length and the cylinder/connector position. Opposite-side hoses are not interchangeable.

🔌 Function

The hydraulic hose carries pressurised trim fluid between the pump, connector block and trim cylinder while allowing the drive or outboard to move through its operating range.

Common signs of failure / service requirement:

• Hydraulic fluid leaks from the hose or crimp

• Trim movement becomes slow or uneven

• Hose is cracked, chafed or corroded

• Fitting threads or flare are damaged

• Air enters the hydraulic circuit after fluid loss

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
