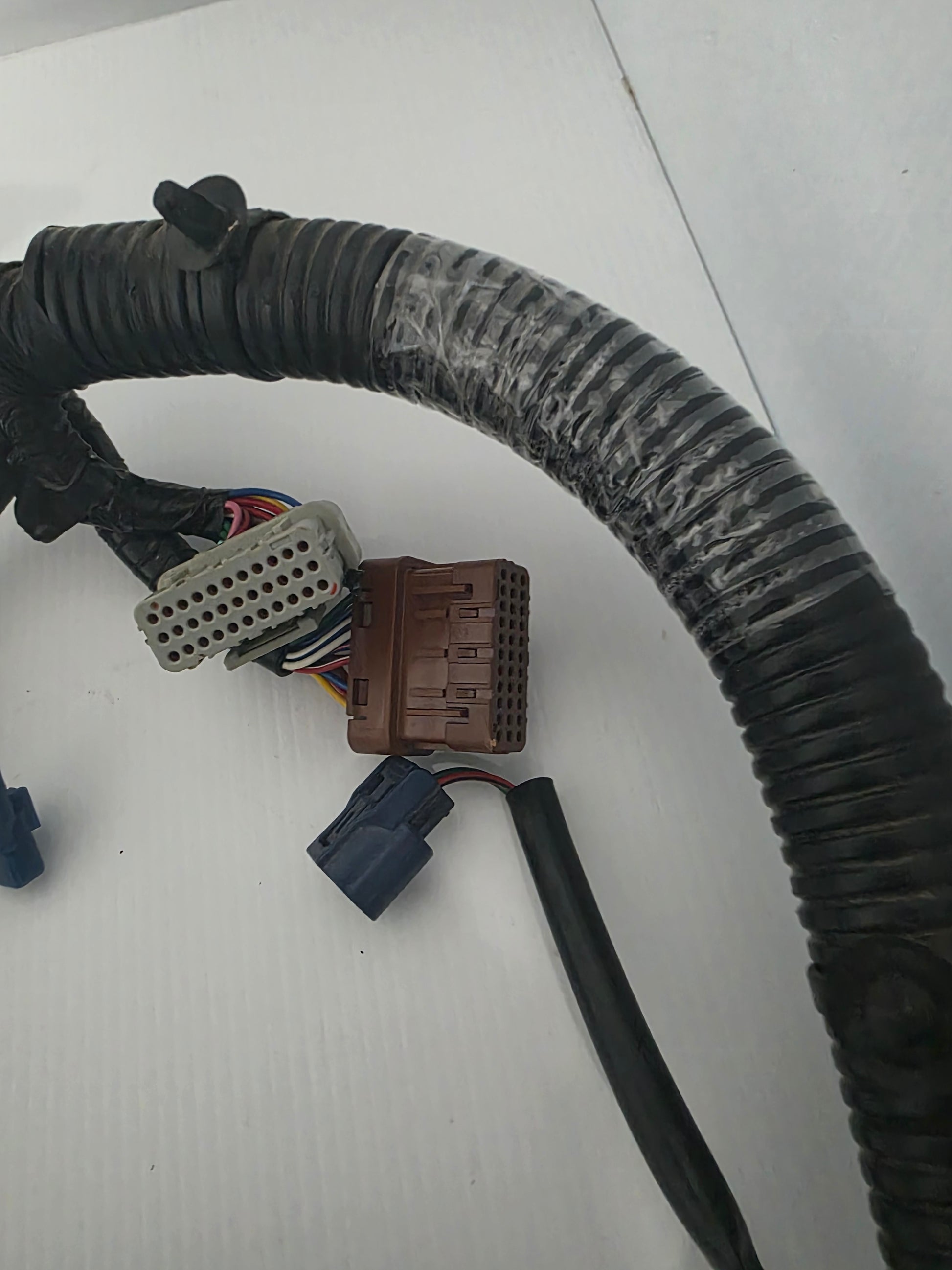

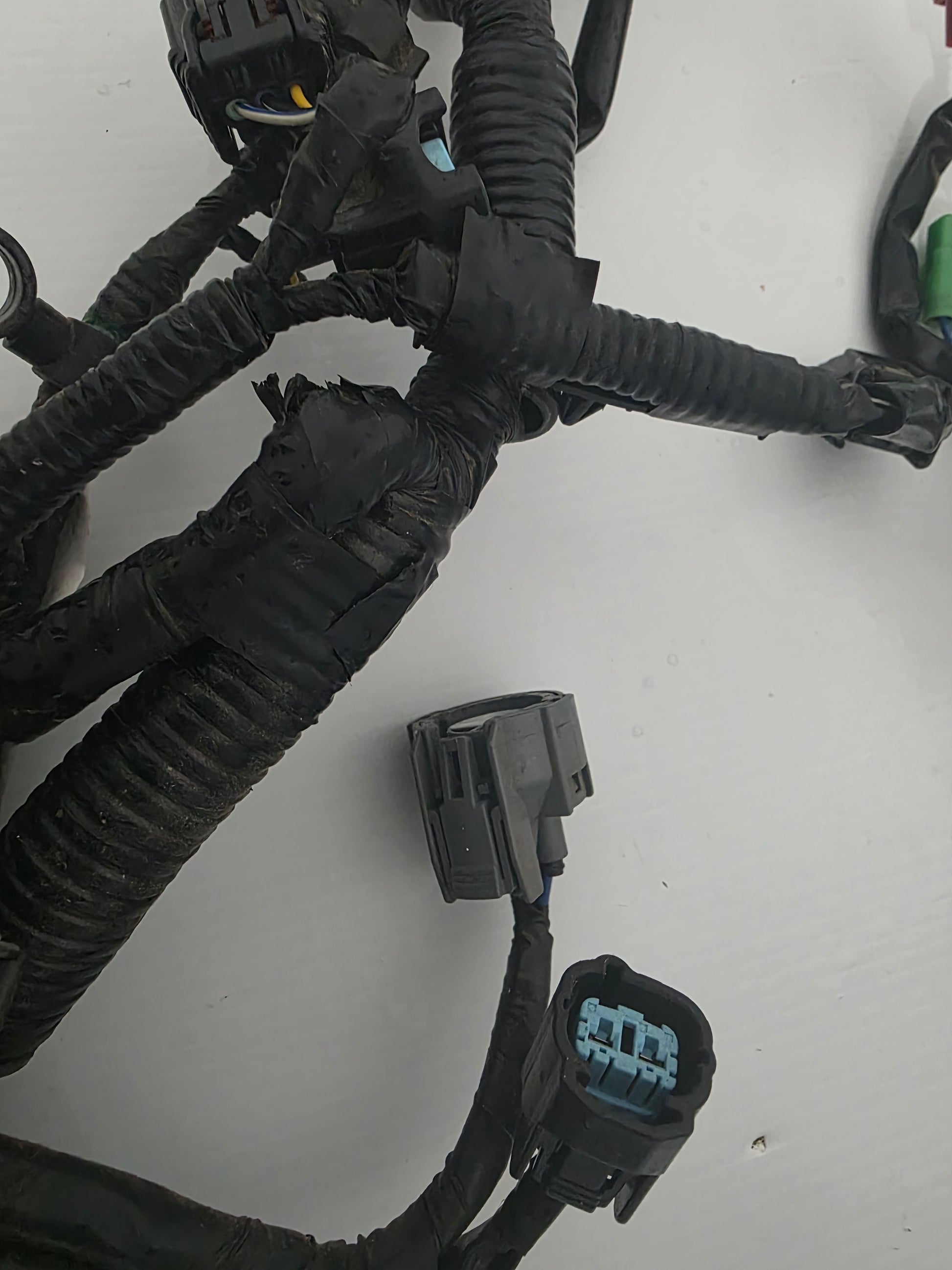

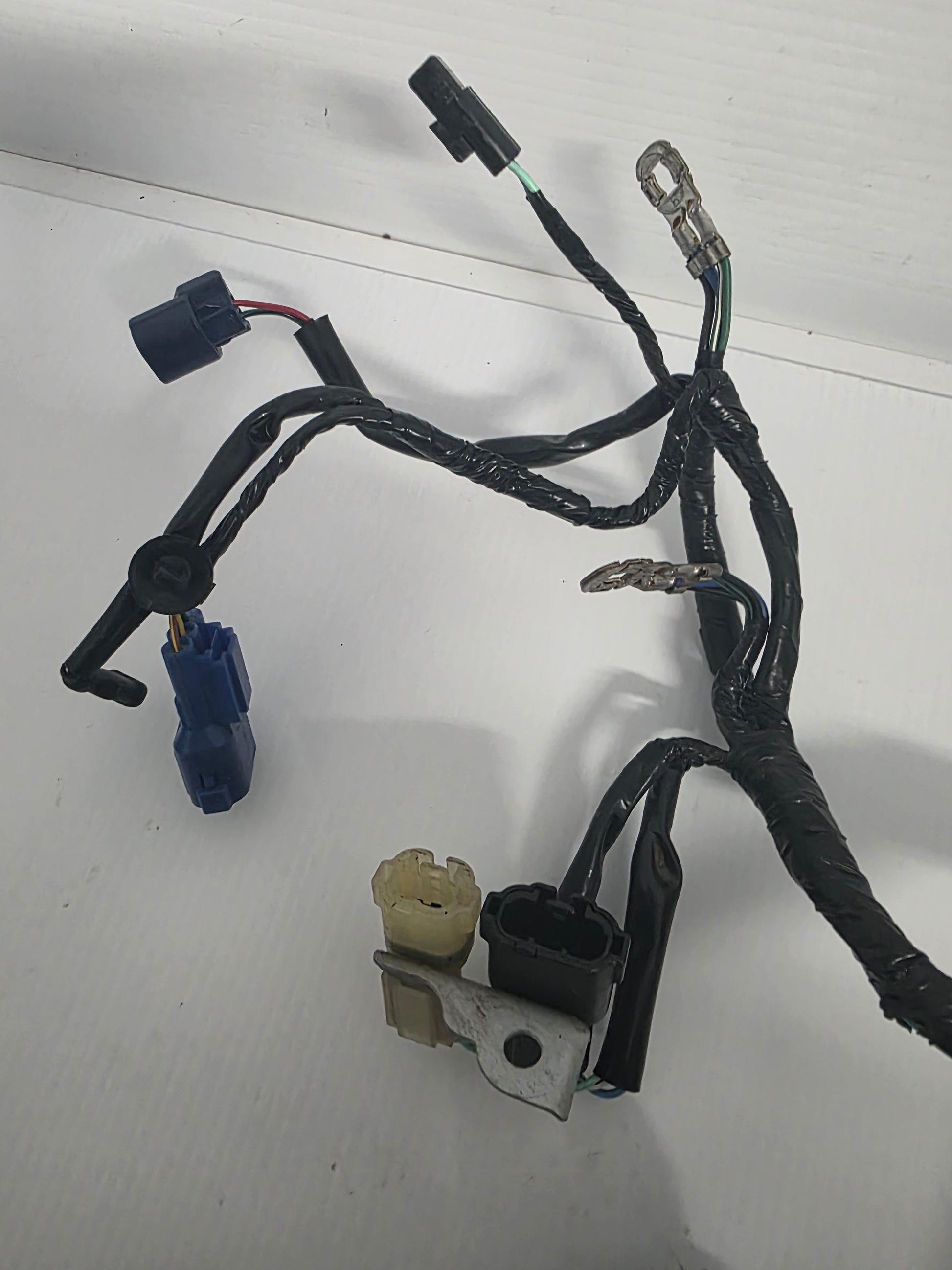

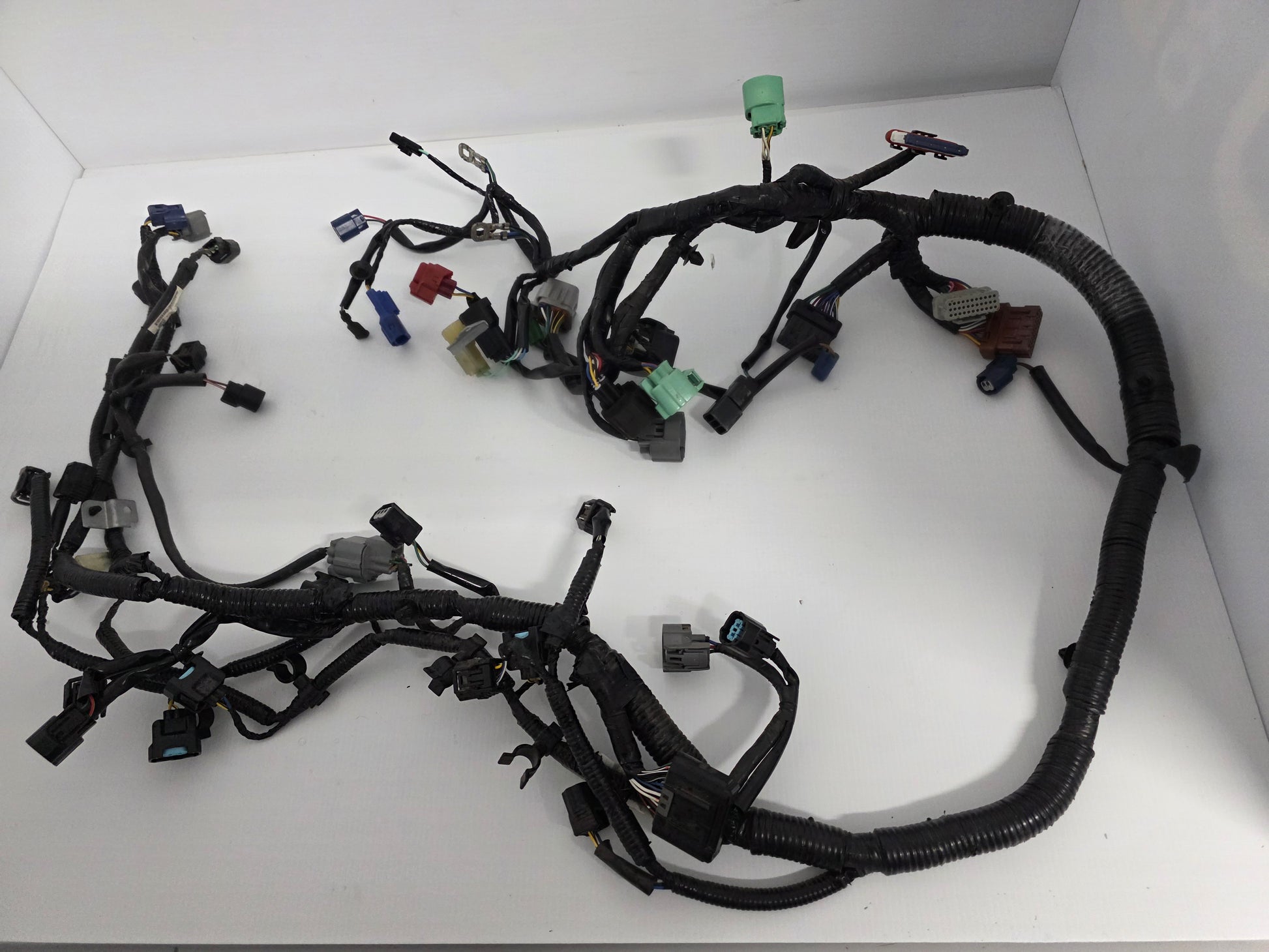

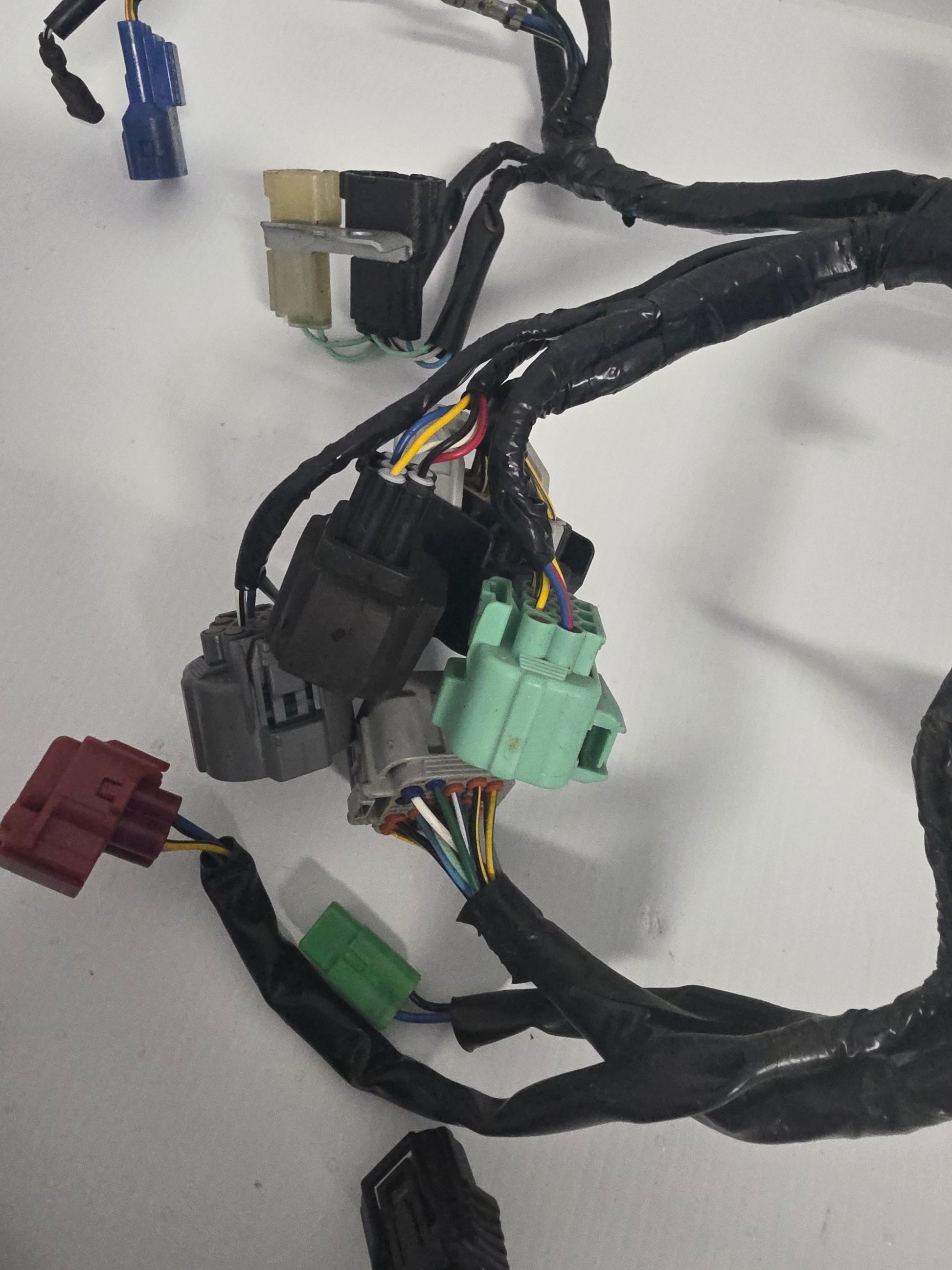

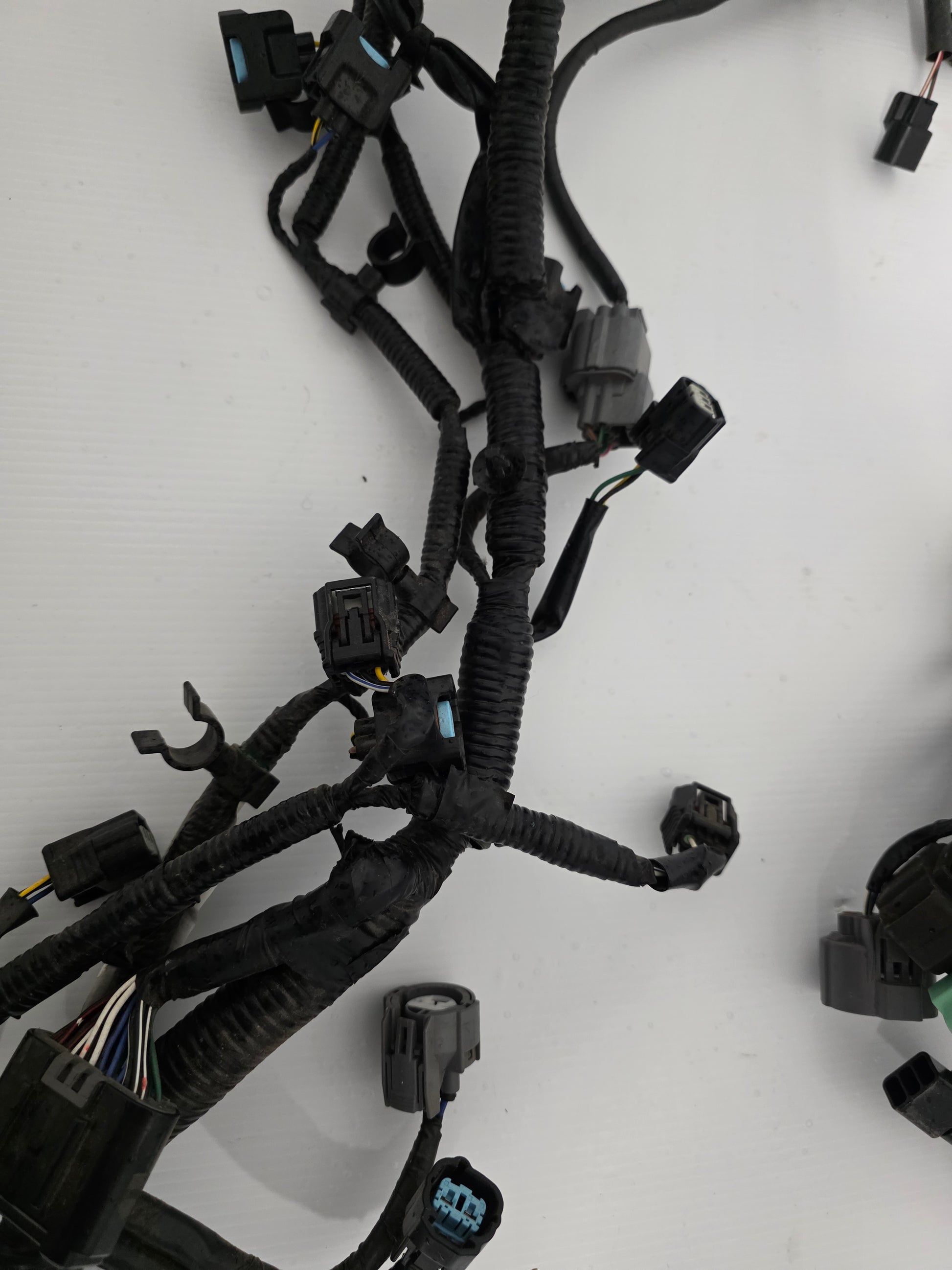

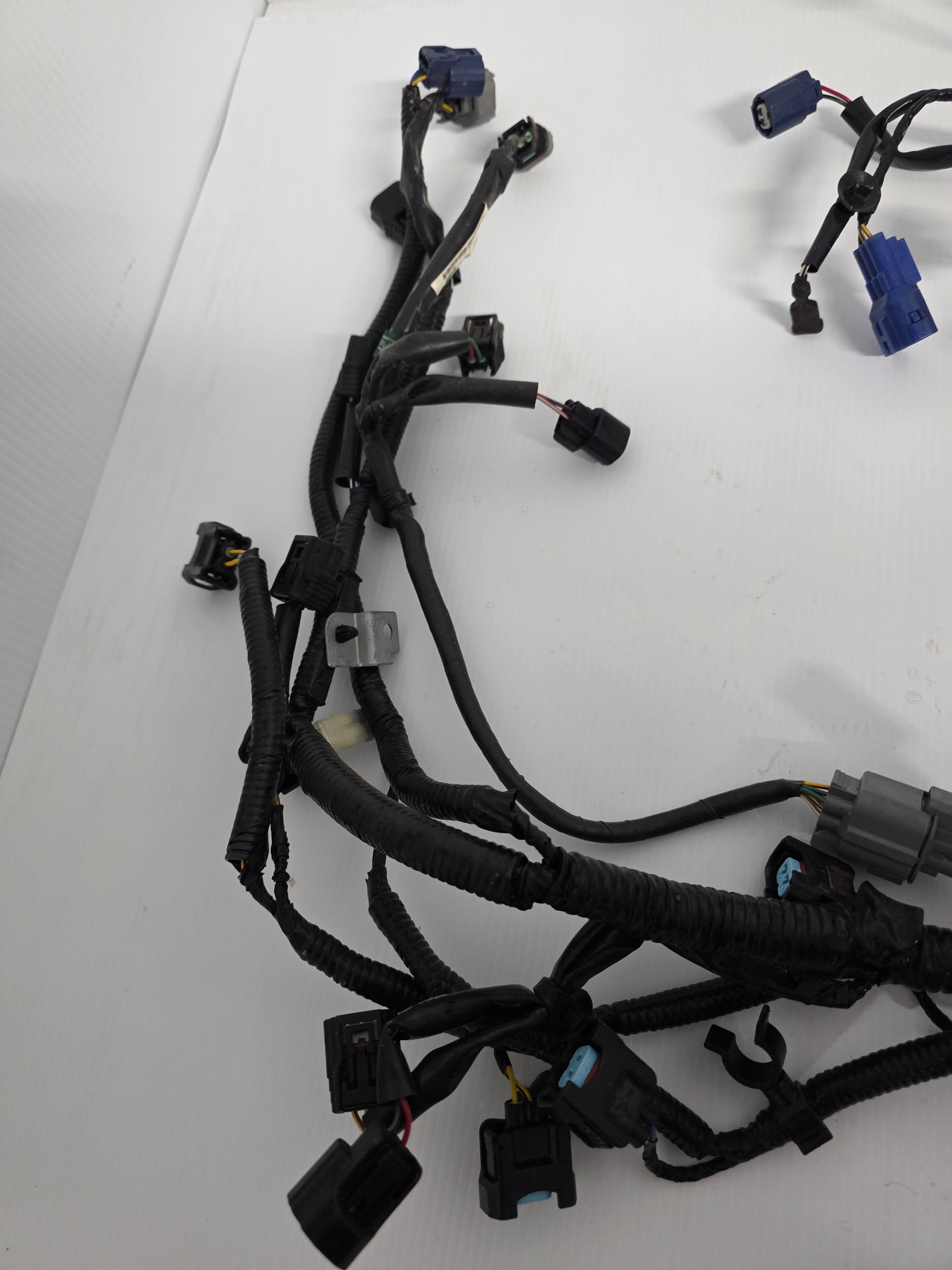

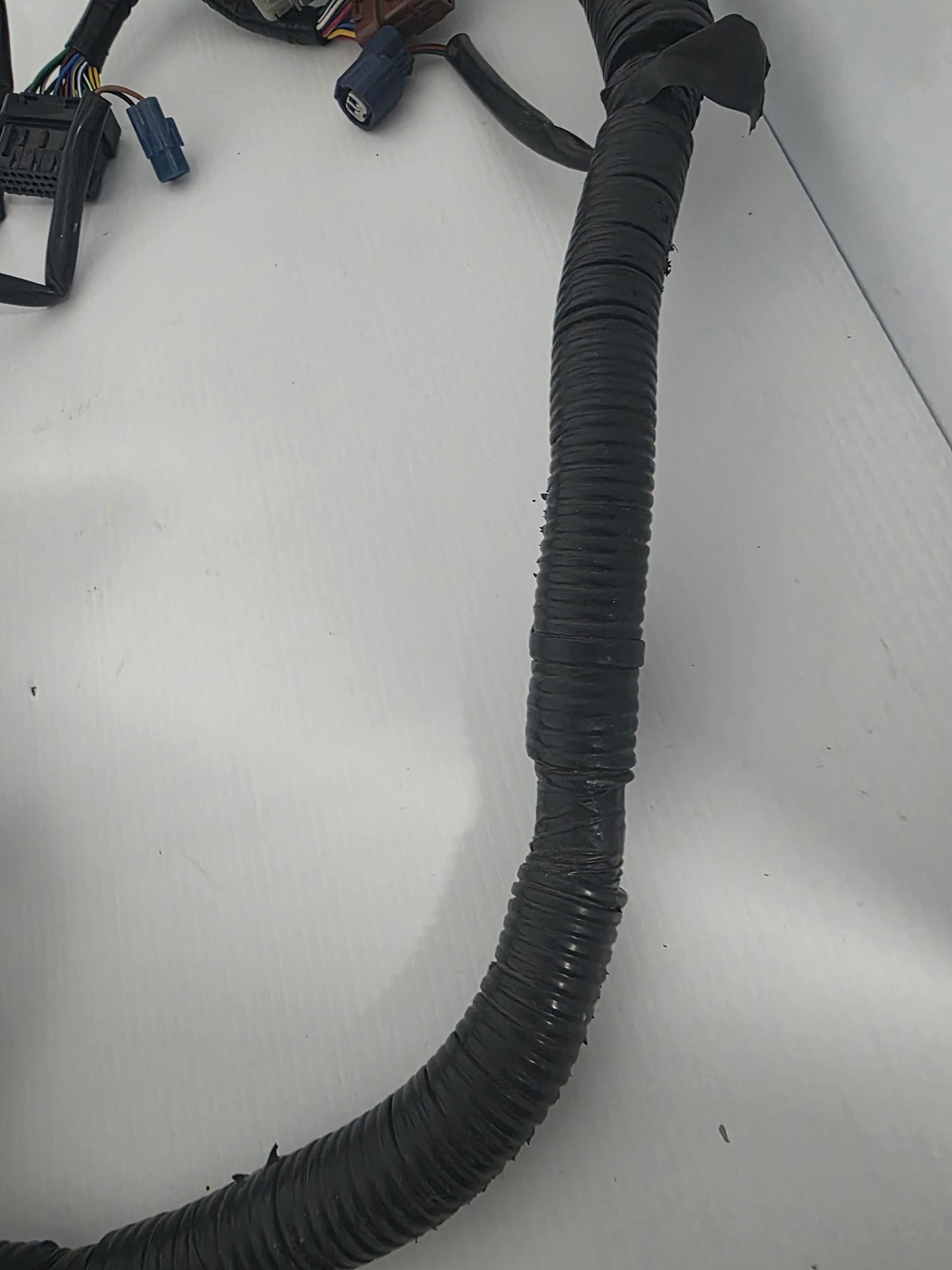

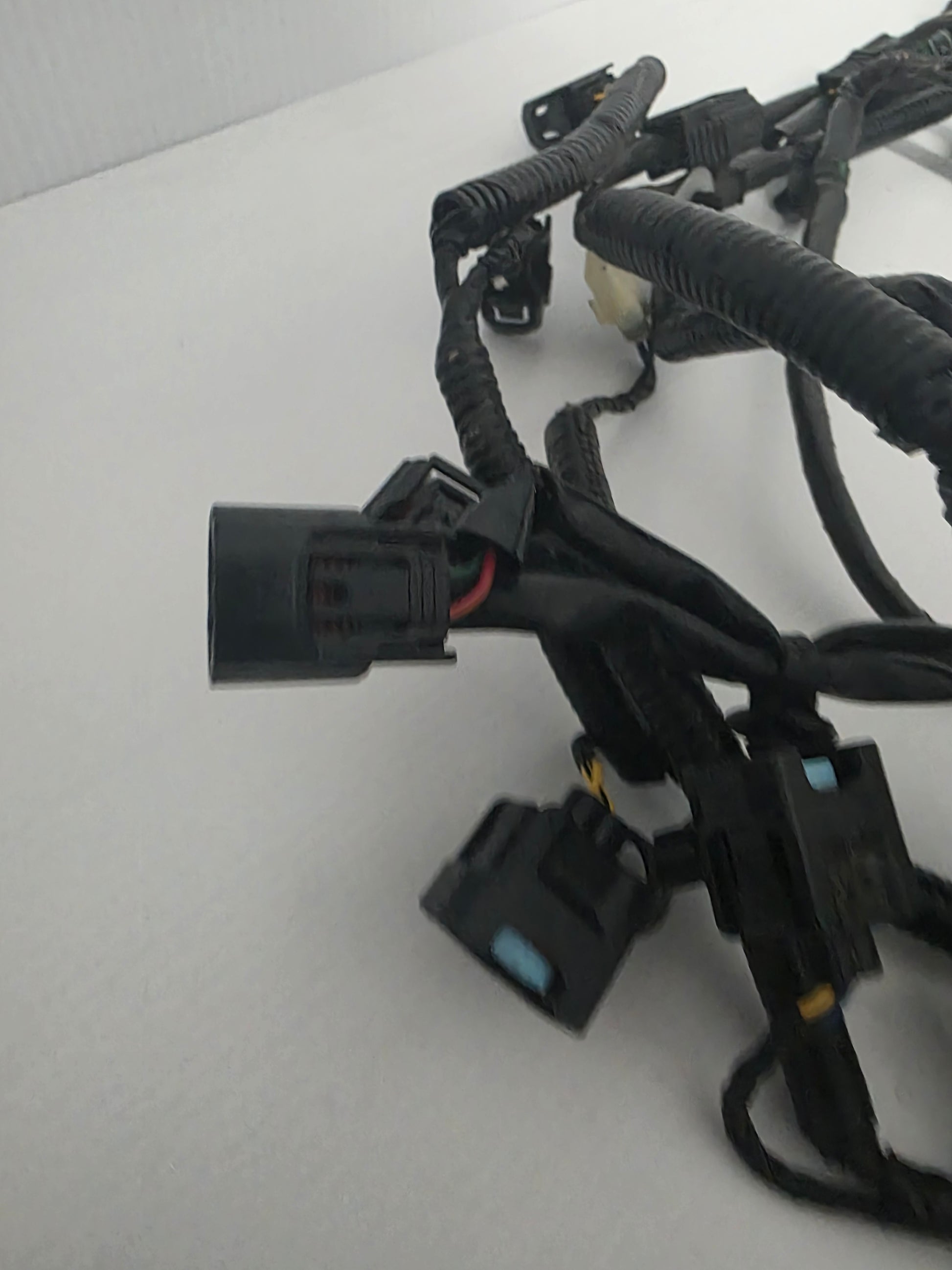

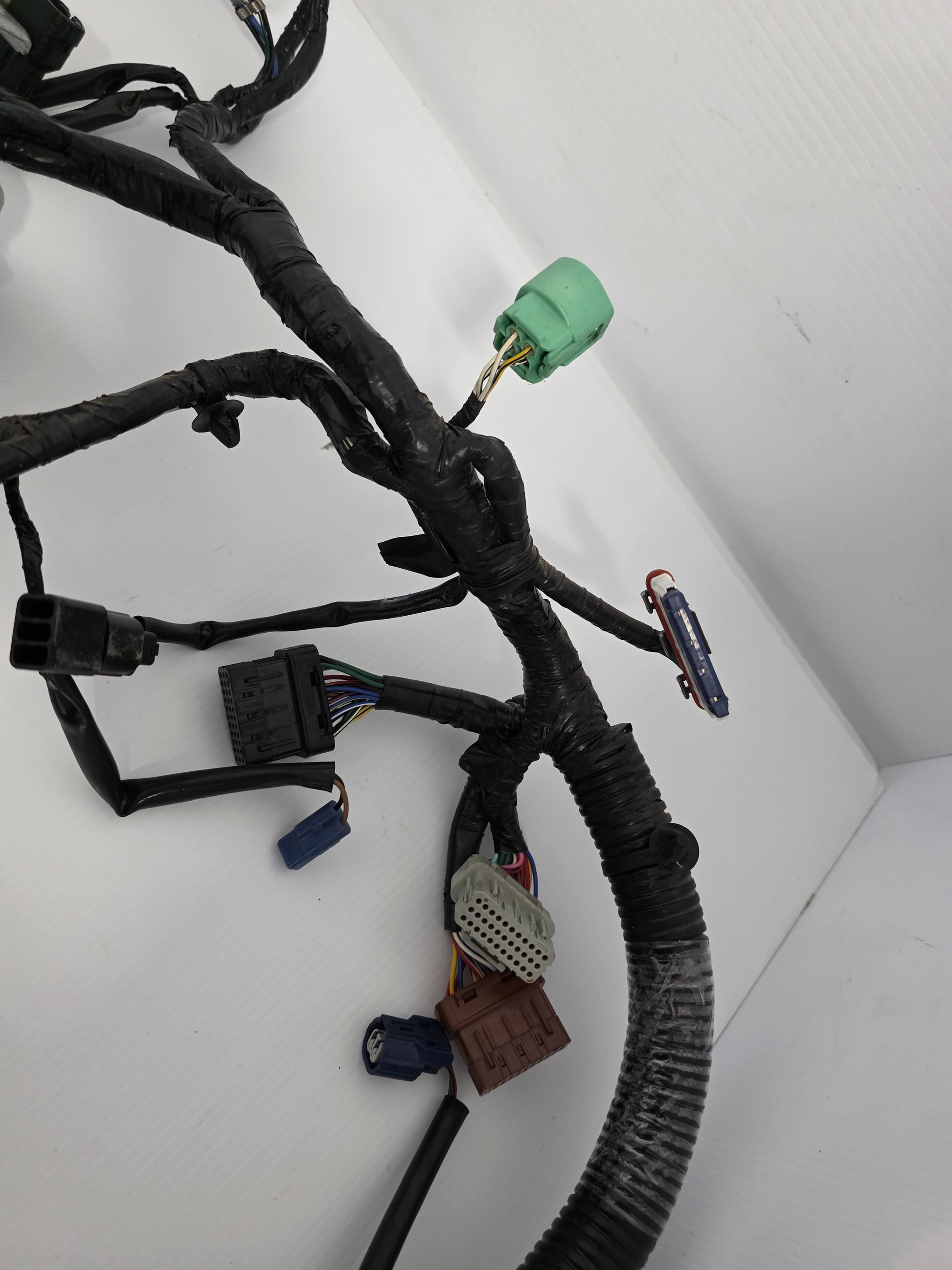

Genuine Honda BF200D Mechanical-Control Main Wire Harness - Part Number: 32100-ZVJ-900
A genuine Honda engine wiring harness for selected mechanically controlled BF200D V6 four-stroke outboards.
The loom connects the engine control module, ignition coils, injectors, sensors, starter, charging system and mechanical-control electrical components. Its connector layout is specific to the applicable BF200D mechanical-control configurations.
⚙️ Key Features
Genuine Honda OEM main engine harness
Correct Honda part number 32100-ZVJ-900
Designed for mechanical-control BF200D models
Connects the PGM-FI, ignition, charging and starting systems
Original Honda waterproof electrical connectors
🚤 Compatibility
Commonly used on
Honda BF200D mechanical remote-control electrical systems
Honda V6 PGM-FI engine harness assemblies
Typically suits
Engine models:
Honda BF200D LRJ mechanical-control configuration
Honda BF200D URJ mechanical-control configuration
Honda BF200D XRJ mechanical-control configuration
Honda BF200DK1 mechanical-control applications where 32100-ZVJ-900 is specified
HP Range: 200HP
Engine Type: Honda V6 fuel-injected four-stroke outboard with mechanical controls
Year Range: Approximately 2019 onward
🔌 Function
The harness distributes electrical power and control signals between the PGM-FI control unit, injectors, ignition coils, engine sensors, starter and charging system.
⚠️ Common Signs of Failure
Engine cranks but does not start
Intermittent injector or ignition-coil fault codes
Sensor readings become erratic
Charging or starter circuits operate intermittently
Connector seals, terminals or wiring insulation are damaged
🔄 Supersession & Cross Reference
OEM Supersession Chain
32100-ZVJ-900 current documented BF200D mechanical-control harness reference
OEM / Related Numbers
32100-ZVJ-900
32100ZVJ900
32106-ZVL-000 related junction-connector bracket
32108-ZVL-003 related waterproof dummy connector
32100-ZVJ-010 related alternate BF200D harness configuration
32100-ZVL-900 related BF225D / BF250D mechanical-control harness
