32101-95500 Suzuki Stator | Genuine Used Part

🔧 Product Description

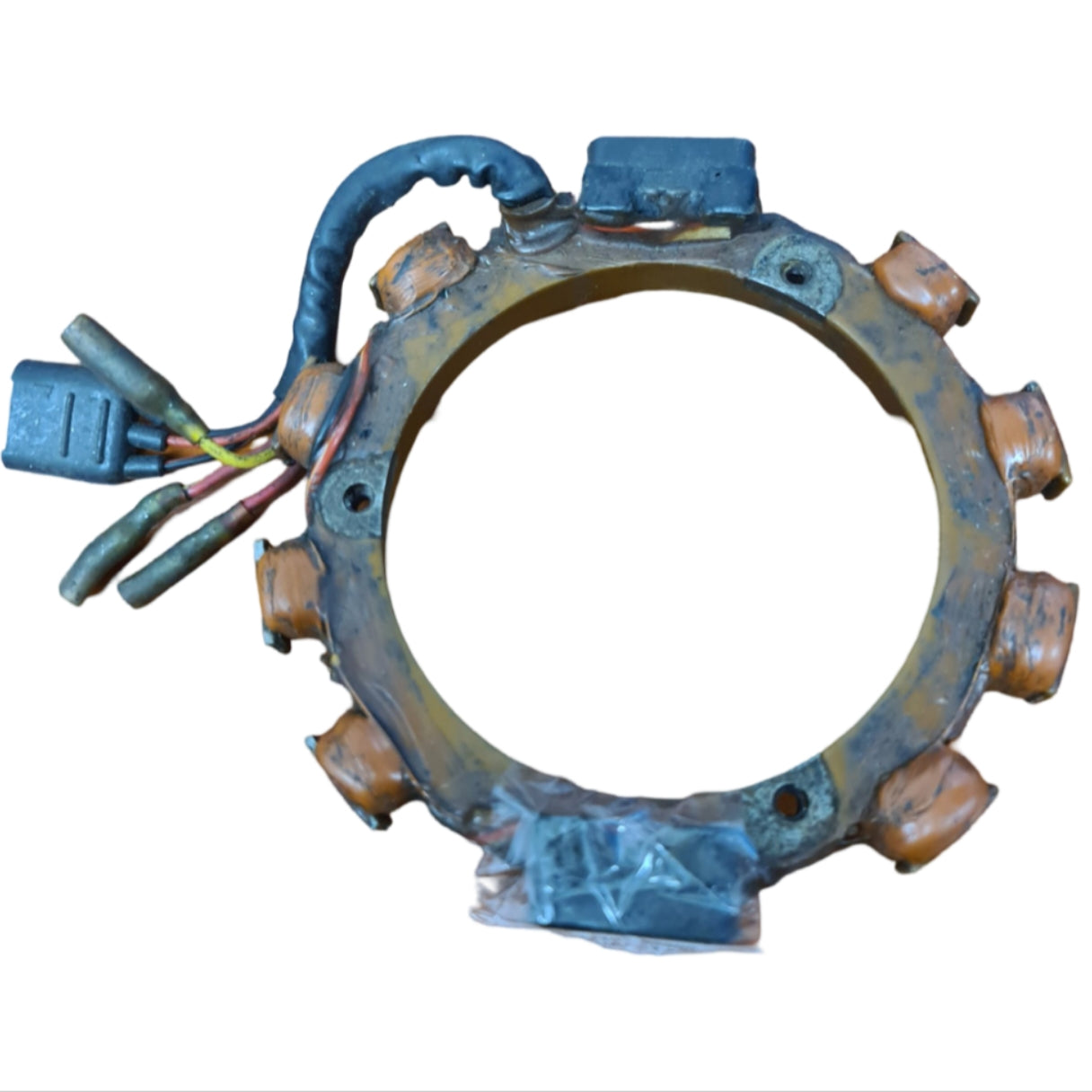

Genuine Suzuki Magneto Stator Assembly - Part Number: 32101-95500

A genuine Suzuki stator assembly used on Suzuki DT75 and DT85 three-cylinder two-stroke outboards. This 6-wire magneto stator supplies electrical output for the ignition and charging systems on early Suzuki two-stroke engines.

⚙️ Key Features

• Genuine Suzuki stator assembly

• Correct OEM part number 32101-95500

• Related to 32101-95501 and 32100-95500 stator references

• Used on DT75 and DT85 three-cylinder two-stroke outboards

• 6 amp stator family for early Suzuki magneto systems

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32101-95501 later related Suzuki stator reference

• 32101-95500 primary Suzuki stator assembly reference

• 32100-95500 related early Suzuki magneto / stator reference

OEM / Related Numbers:

• 32101-95500

• 3210195500

• 32101-95501

• 3210195501

• 32100-95500

• 3210095500

Aftermarket / Verified Equivalents:

• CDI Electronics: 178-9550

• Aftermarket reference: 32101-95500

• Aftermarket reference: 32101-95501

🚤 Compatibility

Commonly used on:

• Suzuki DT75 and DT85 two-stroke ignition / charging systems

• Suzuki three-cylinder magneto assemblies using the 32101-95500 stator family

Typically suits:

• Engine models:

• Suzuki DT75 3-cylinder two-stroke - 1983-1987

• Suzuki DT85 3-cylinder two-stroke - 1979-1987

• Suzuki DT75 magneto / stator assembly applications using 32101-95500

• Suzuki DT85 magneto / stator assembly applications using 32101-95500

• Suzuki T75HP / DT75HP 3-cylinder two-stroke stator systems where 32101-95500 or 32101-95501 is specified

• Suzuki T85HP / DT85HP 3-cylinder two-stroke stator systems where 32101-95500 or 32101-95501 is specified

• HP Range: 75HP - 85HP

• Engine Type: Suzuki 3-cylinder two-stroke outboard

• Year Range: approximately 1979-1987

• Charging Output: 6 amp stator family

🔌 Function

The stator sits beneath the flywheel and generates electrical output for the ignition and charging circuits. It provides the electrical energy needed for spark generation and battery charging.

Common signs of failure:

• Weak or missing spark

• Battery not charging

• Engine cuts out as RPM rises

• Hard starting when hot

• Misfire under load

• Burnt or darkened windings

• Brittle stator leads or cracked insulation

• Incorrect resistance or AC output during testing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
