🔧 Product Description

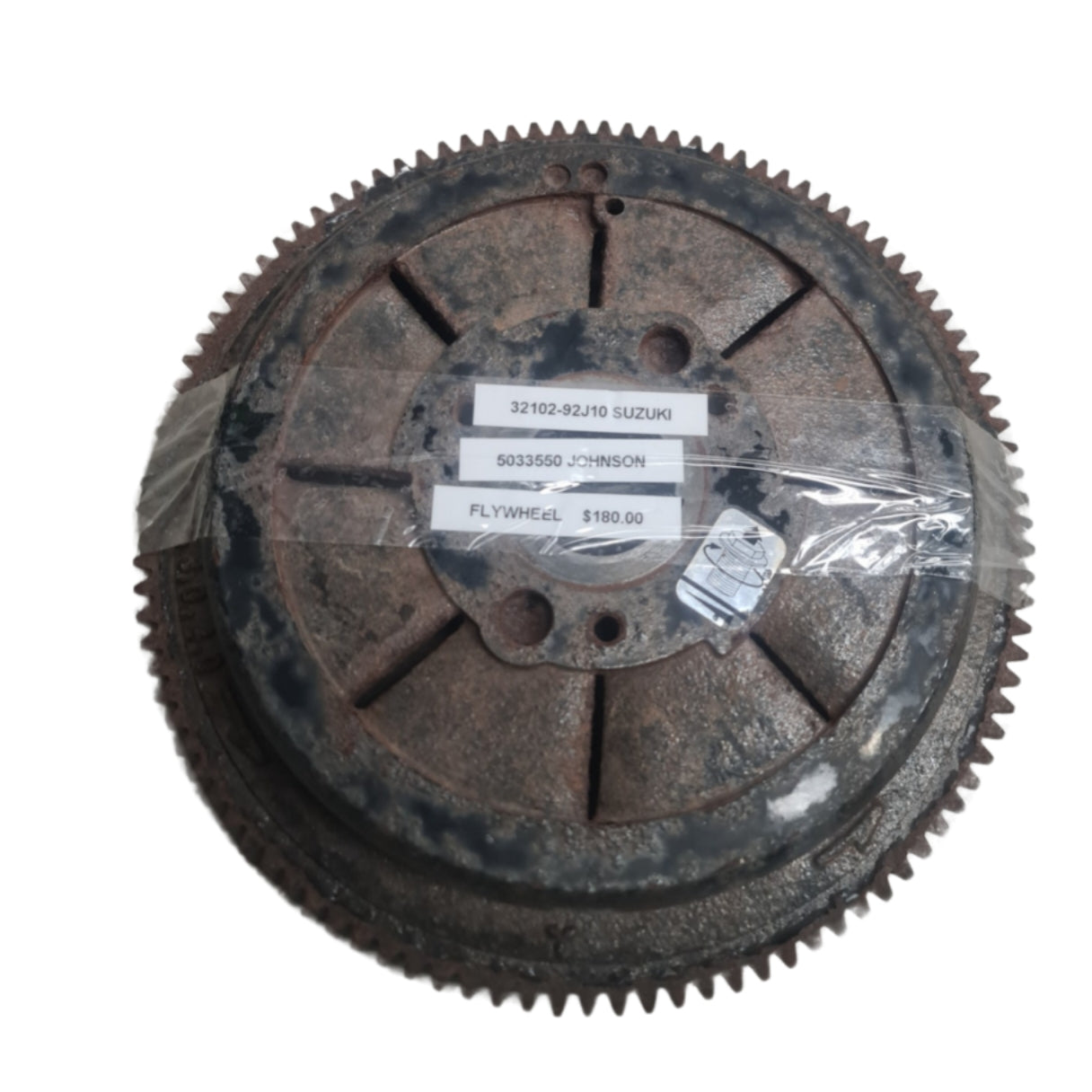

Genuine Suzuki / Johnson 105-Tooth Flywheel Assembly - Part Number: 32102-92J10

A genuine used Suzuki flywheel for first-generation DF90, DF100, DF115 and DF140 four-stroke outboards and equivalent Johnson four-stroke engines.

The large-hub flywheel has a 105-tooth starter ring and directly cross-references Johnson / Evinrude part number 5033550.

⚙️ Key Features

  • Genuine Suzuki flywheel assembly
  • Correct Suzuki reference 32102-92J10
  • Johnson / Evinrude equivalent 5033550
  • 105-tooth starter ring gear
  • Suits selected 90HP-140HP inline four-cylinder engines

🚤 Compatibility

Commonly used on

  • Suzuki DF90, DF100, DF115 and DF140 four-stroke engines
  • Johnson and Evinrude Suzuki-manufactured four-stroke outboards
  • Large-hub 105-tooth flywheel systems

Typically suits

  • Engine models:
  • Suzuki DF90
  • Suzuki DF100
  • Suzuki DF115
  • Suzuki DF140
  • Suzuki DF90T, DF100T, DF115T and DF140T
  • Suzuki DF90Z, DF115Z and DF140Z counter-rotation variants
  • Johnson 90HP four-stroke - 2003-2006
  • Johnson 100HP four-stroke - 2003-2006 where specified
  • Johnson 115HP four-stroke - 2003-2006
  • Johnson 140HP four-stroke - 2003-2006
  • Evinrude four-stroke applications using BRP 5033550
  • HP Range: 90HP - 140HP
  • Engine Type: Inline four-cylinder, four-stroke EFI outboard
  • Year Range: Suzuki approximately 2001 - 2012; Johnson / Evinrude approximately 2003 - 2006

🔌 Function

The flywheel provides rotating inertia, starter engagement, electrical generation and timing references for the engine-management system.

⚠️ Common Signs of Failure

  • Starter grinds against damaged teeth
  • Loose or cracked charging magnets
  • Battery charging output is low
  • Engine will not start due to timing-signal loss
  • Flywheel keyway is damaged
  • Excessive vibration or runout
  • Stator contact marks inside the flywheel

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 32102-92J10 later Suzuki flywheel reference
  • 32102-92J00 earlier related Suzuki flywheel reference
  • 5033550 corresponding Johnson / Evinrude reference

OEM / Related Numbers

  • Suzuki: 32102-92J10
  • Suzuki: 3210292J10
  • Suzuki: 32102-92J10-000
  • Suzuki: 32102-92J00
  • Johnson / Evinrude: 5033550
  • Starter ring: 105 teeth
  • Matching flywheel and stator system from the 92J engine family

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
