32111-ZVL-000 Honda Bracket | Genuine Used Part

🔧 Product Description

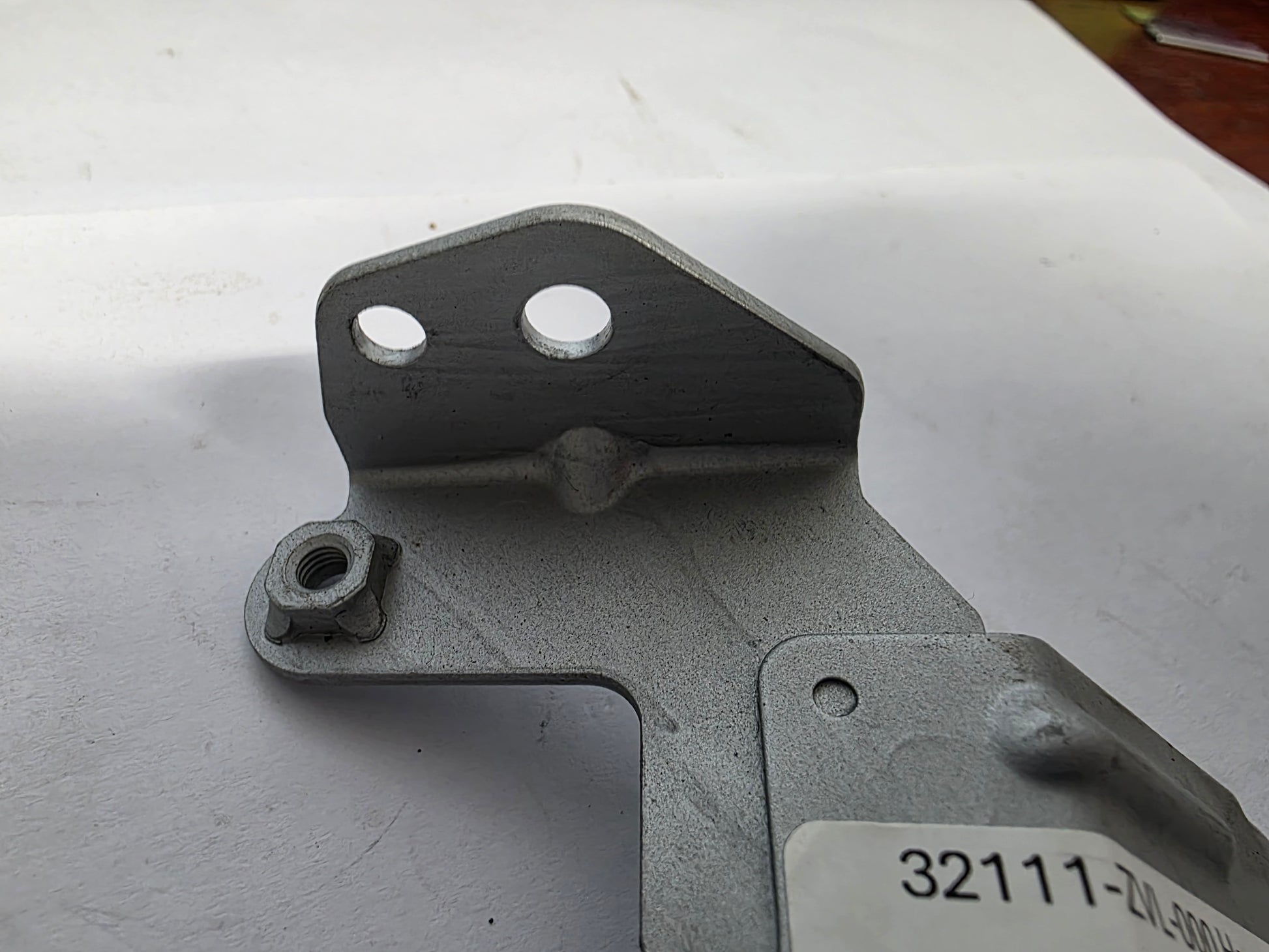

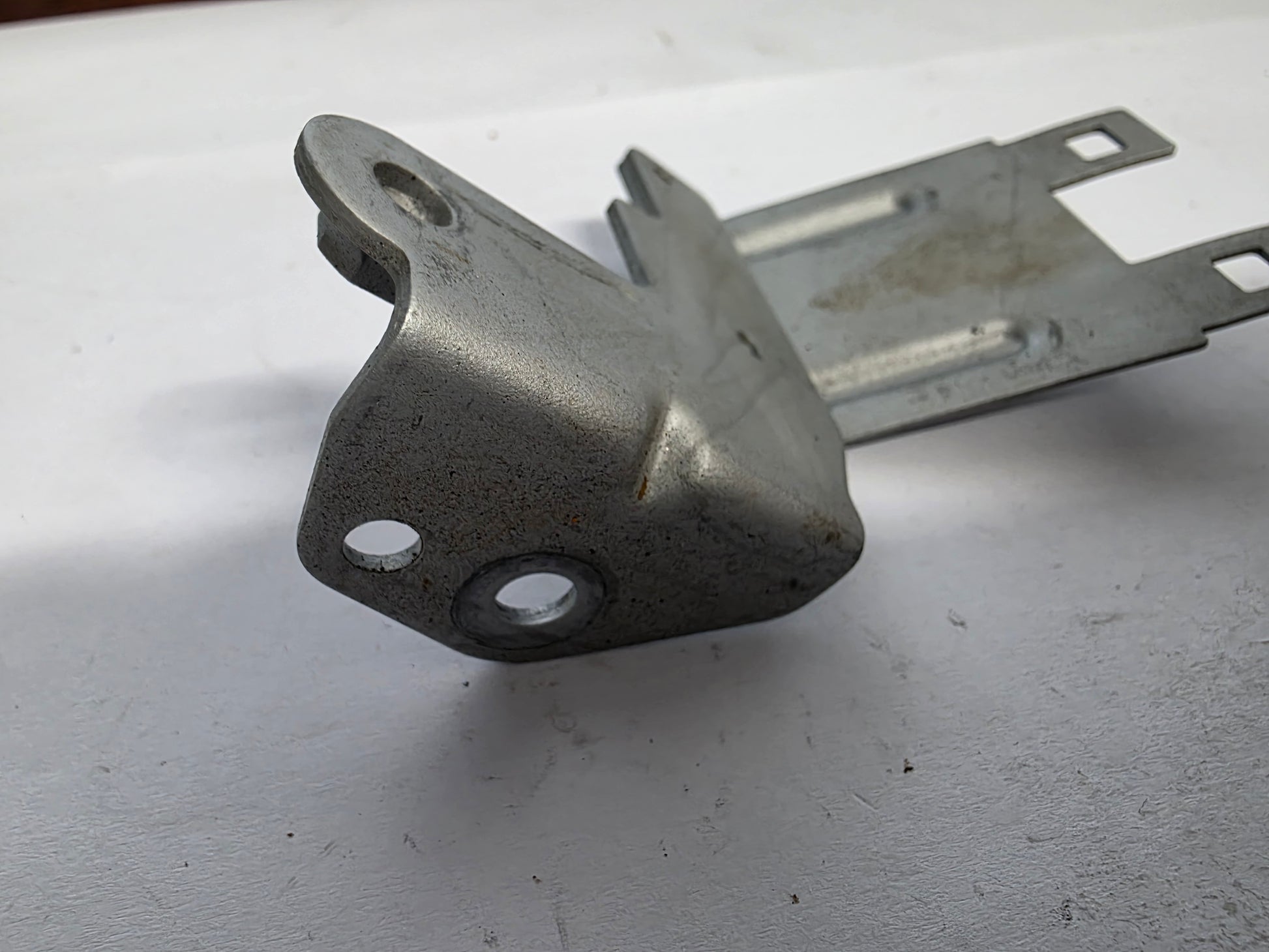

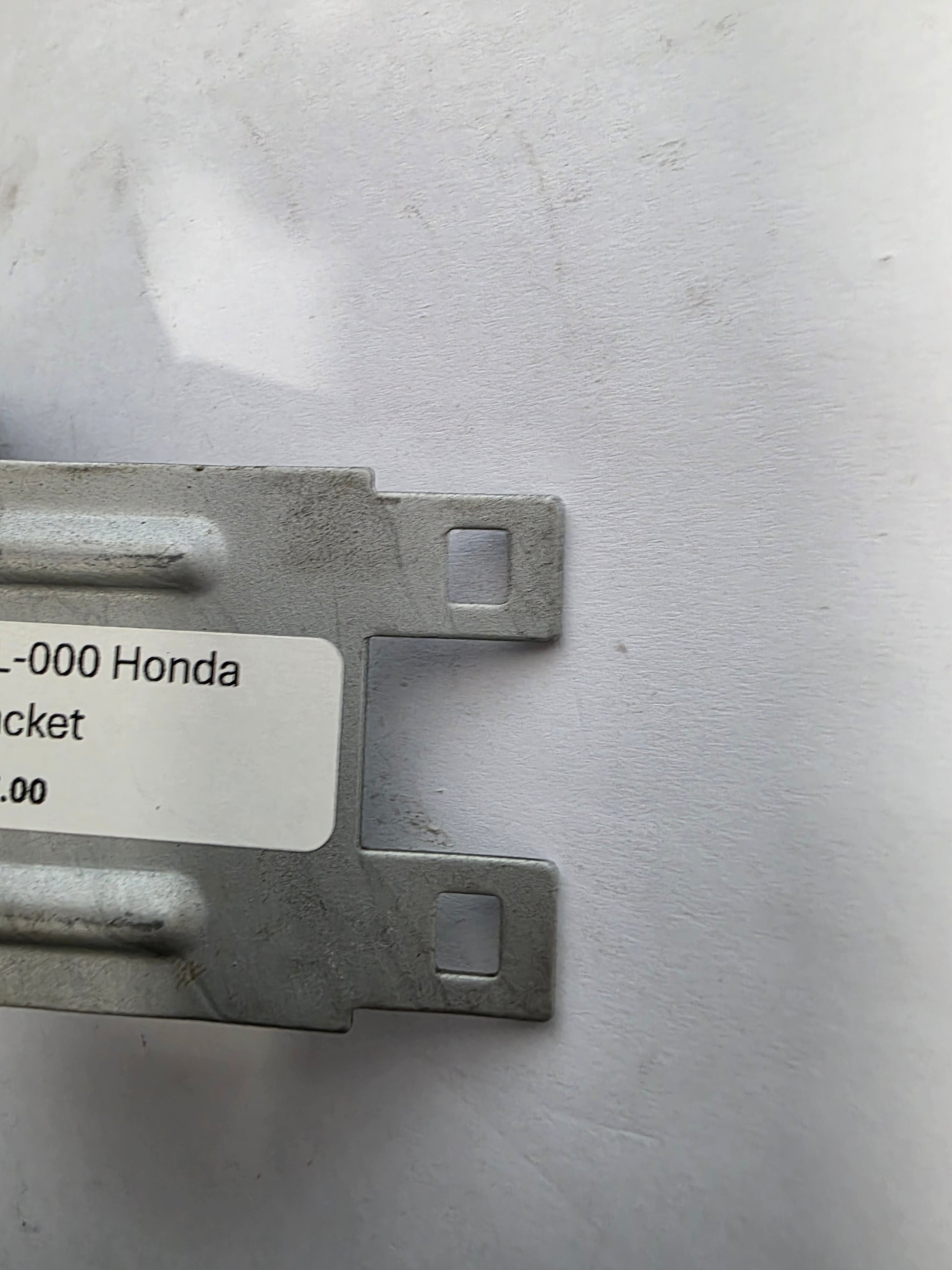

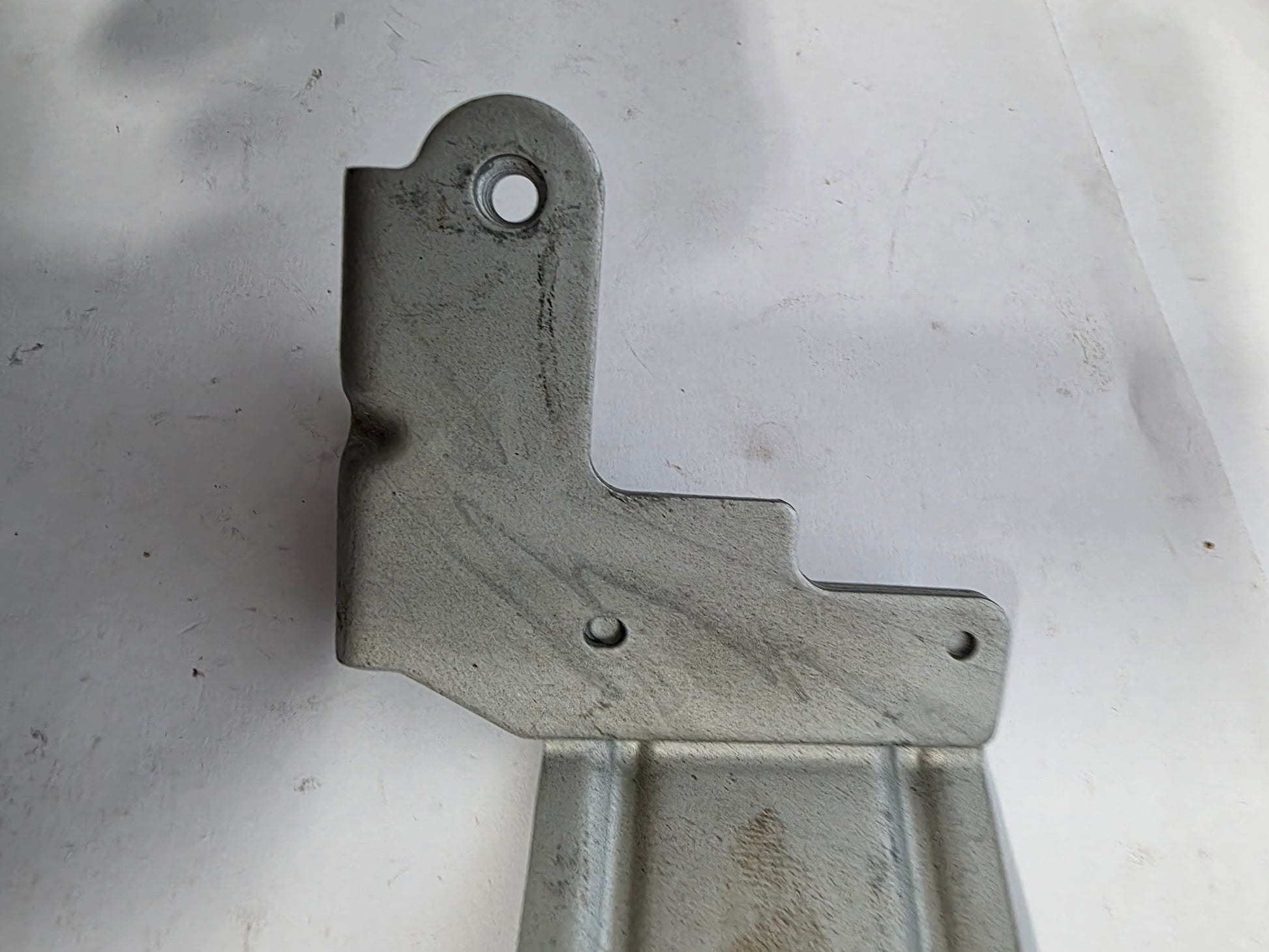

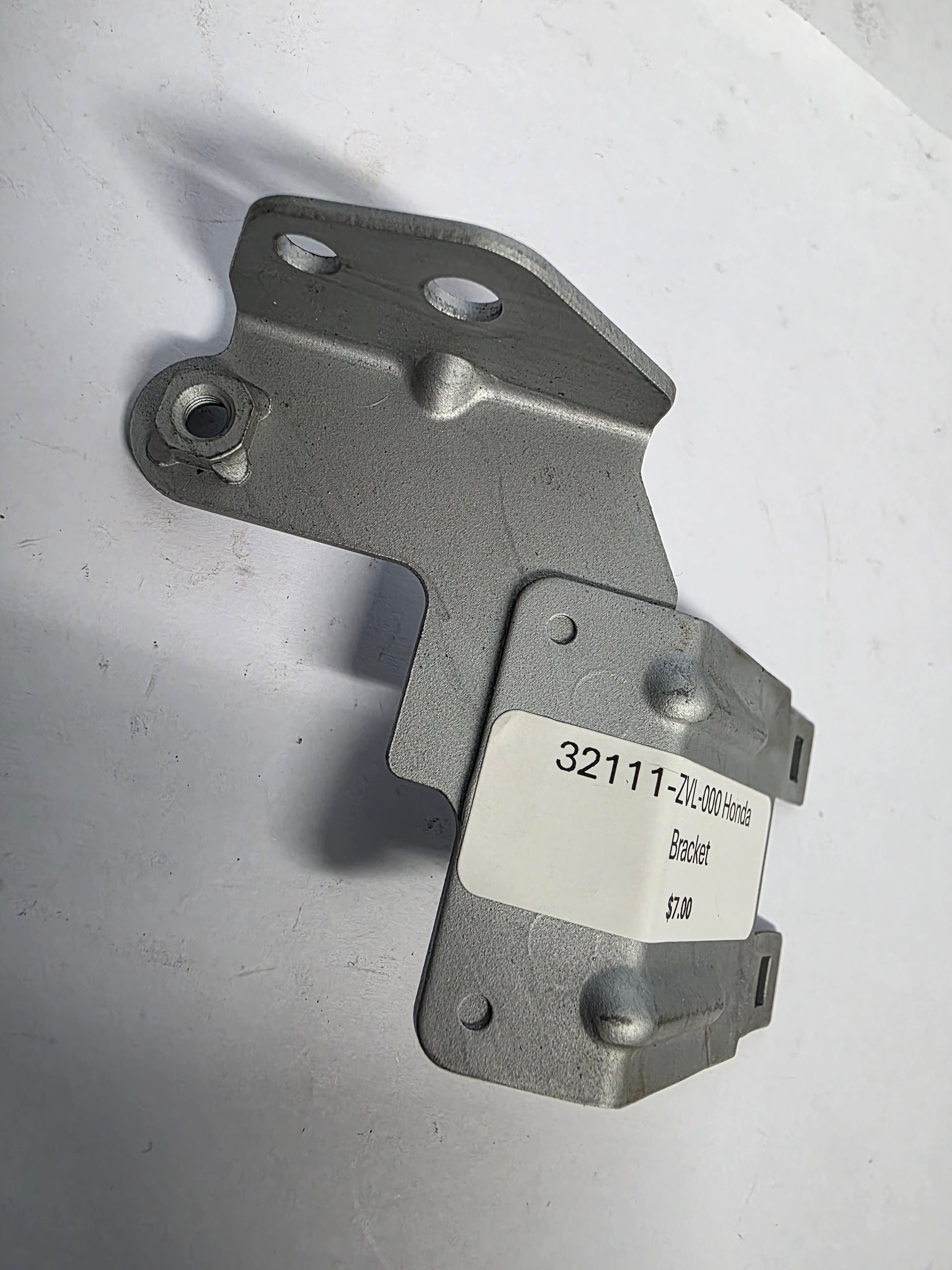

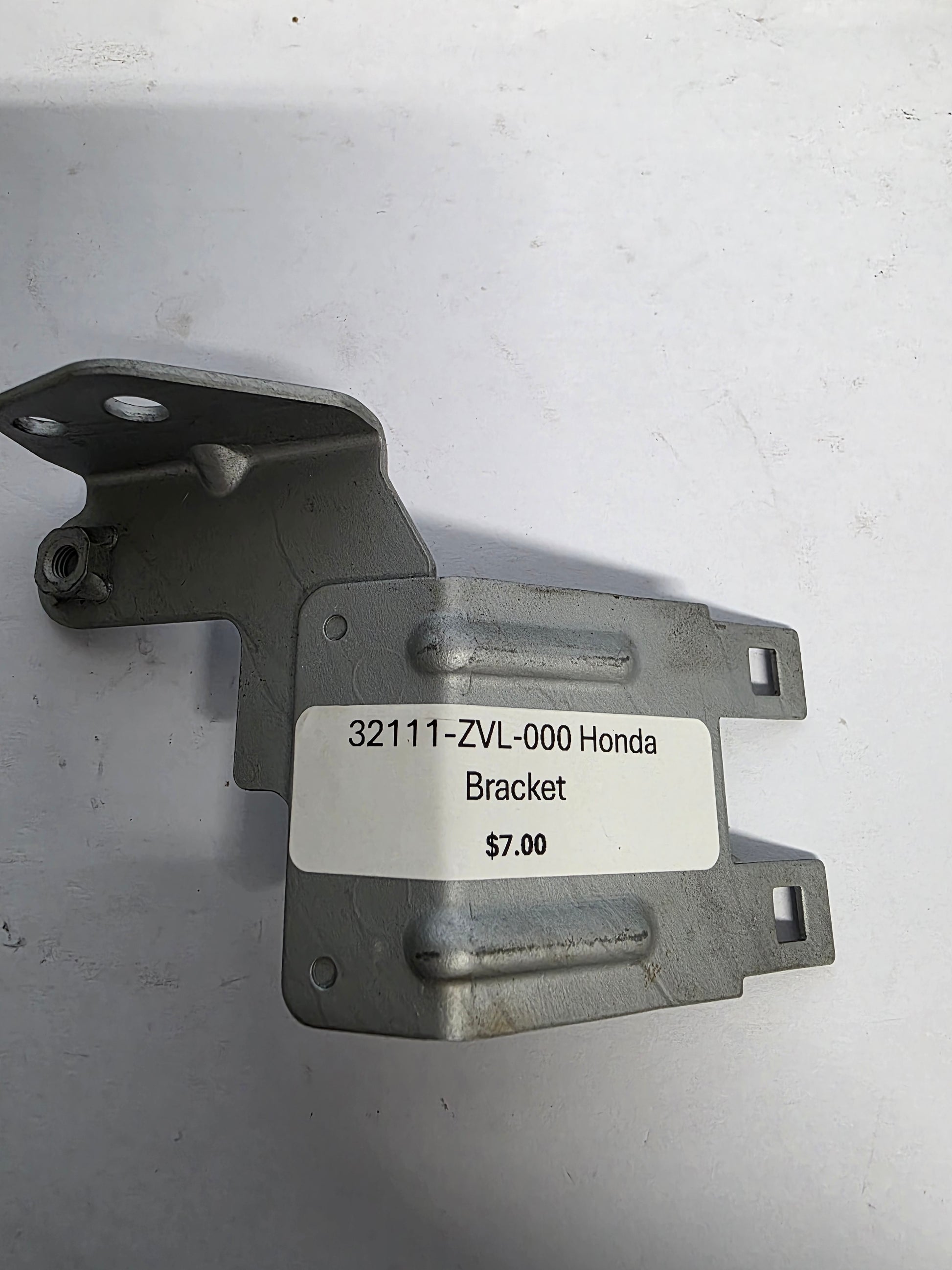

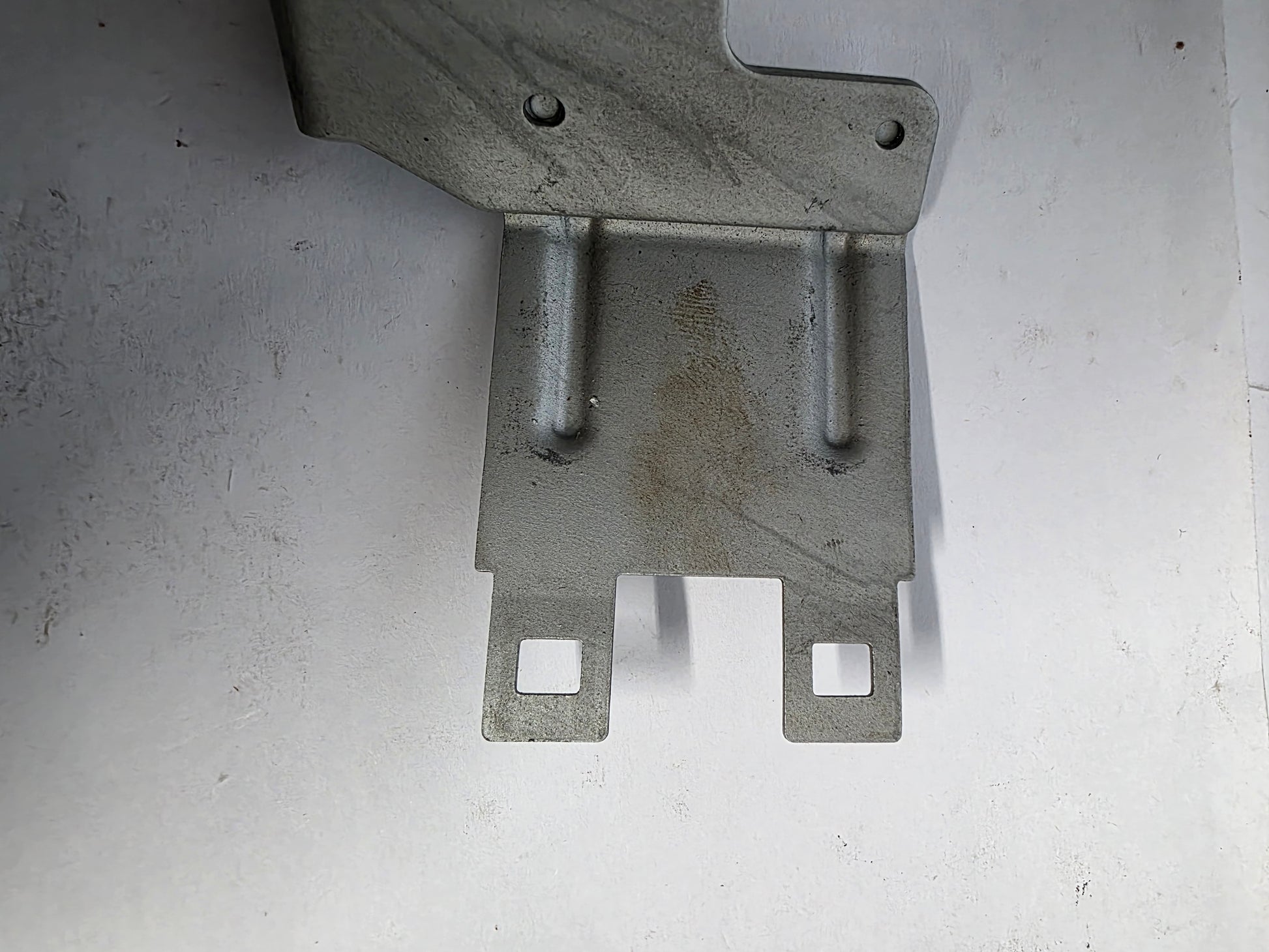

Genuine Honda Connector D Electrical Bracket - Part Number: 32111-ZVL-000

A genuine used Honda electrical connector mounting bracket for selected BF175D, BF200D, BF225D and BF250D V6 four-stroke outboards.

Identified in Honda parts catalogues as the Connector D or Coupler D bracket, this component secures the corresponding wiring-harness connector to the engine. It helps keep the electrical coupler correctly positioned and protected from engine vibration, heat and contact with moving components.

⚙️ Key Features

• Genuine Honda Marine electrical connector bracket
• Correct current Honda part number 32111-ZVL-000
• Supersedes earlier bracket 32111-ZY3-010
• Secures Connector D within the engine wiring-harness assembly
• Used on selected Honda 175HP to 250HP V6 outboards

🚤 Compatibility

Commonly used on

• Honda V6 outboard engine wiring-harness assemblies
• Connector D and Coupler D electrical mounting locations
• BF175D to BF250D engine electrical systems

Typically suits

• Engine models:
• Honda BF175D
• Honda BF200D
• Honda BF200DK1
• Honda BF225D
• Honda BF225DK1
• Honda BF250D
• Honda BF250DK1
• Honda BF200D applications from serial BBRJ-1000001 and above
• Honda BF250D applications from serial BBNJ-1000001 and above
• Honda BF250D applications from serial BBNJ-8000001 and above
• Honda BF250D applications from serial BBNJ-1100001 and above
• Honda BF250D applications from serial BBNJ-8100001 and above
• HP Range: 175HP - 250HP
• Engine Type: Honda V6 four-stroke outboard
• Year Range: Approximately 2012 onward, dependent on model and frame serial number

🔌 Function

The bracket fixes the electrical connector to the engine in the correct position. This prevents the coupler and wiring harness from moving excessively, rubbing against nearby components or placing strain on the connector terminals.

⚠️ Common Signs of Failure

• Electrical connector hanging loose inside the engine cowling
• Wiring harness rubbing or chafing
• Intermittent electrical connection caused by connector movement
• Broken or cracked mounting ears
• Excessive vibration at the connector assembly

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 32111-ZVL-000 → Supersedes 32111-ZY3-010
• 32111-ZY3-010 earlier Honda OEM bracket reference

OEM / Related Numbers

• 32111-ZVL-000
• 32111ZVL000
• 32111-ZY3-010
• 32111ZY3010
• 32107-ZVL-003 related engine wiring harness
• 32108-ZVL-003 related coupler and harness mounting component

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
