32120-90J00 Suzuki Stator | Genuine Used Part

🔧 Product Description

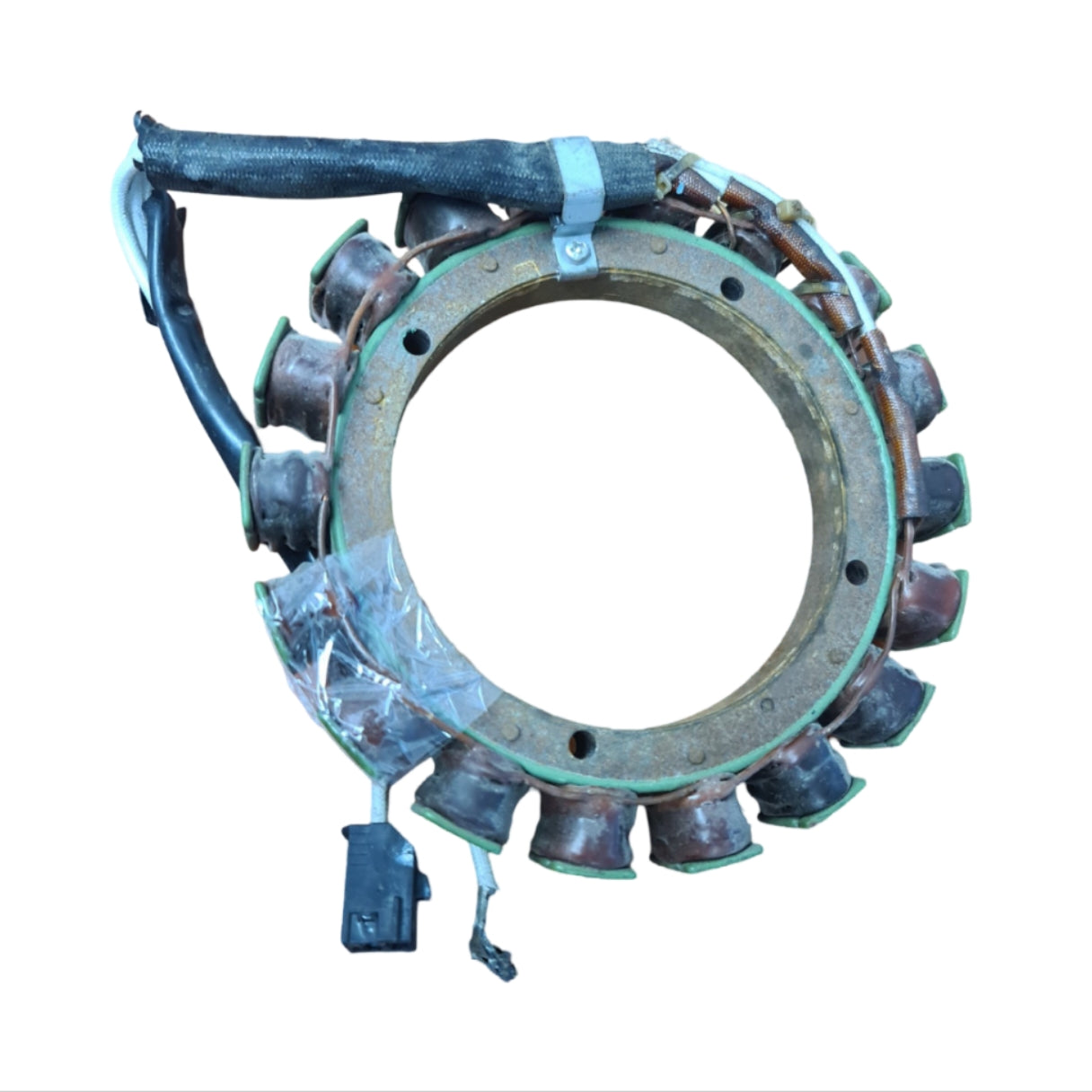

Genuine Suzuki Charging Coil / Stator Assembly - Part Number: 32120-90J00

A genuine Suzuki stator assembly used on DF90, DF100, DF115 and DF140 four-stroke EFI outboards. This charging coil supplies electrical output to the rectifier / regulator and battery charging system.

⚙️ Key Features

• Genuine Suzuki stator / charging coil assembly

• Correct OEM part number 32120-90J00

• Used on DF90 to DF140 four-stroke EFI engines

• Supports battery charging and engine electrical supply

• Earlier 90J charging coil family before later plug-style updates

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32120-90J20 later related grey-plug charging coil reference for selected applications

• 32120-90J00 earlier Suzuki charging coil / stator reference

OEM / Related Numbers:

• 32120-90J00

• 3212090J00

• 32120-90J00-000

• 32120-90J20 related later stator reference

• 3212090J20 related later stator reference

Aftermarket / Verified Equivalents:

• Aftermarket reference: 32120-90J00

• Aftermarket DF90 / DF100 / DF115 / DF140 stator replacement

🚤 Compatibility

Commonly used on:

• Suzuki DF90 / DF100 / DF115 / DF140 four-stroke charging systems

• Suzuki 90J-series stator / generator assemblies

Typically suits:

• Engine models:

• Suzuki DF90 four-stroke EFI charging coil applications

• Suzuki DF90T / DF90TL / DF90TX applications where 32120-90J00 is specified

• Suzuki DF100 four-stroke EFI charging coil applications

• Suzuki DF100T / DF100TL / DF100TX applications where 32120-90J00 is specified

• Suzuki DF115 four-stroke EFI charging coil applications

• Suzuki DF115T / DF115TL / DF115TX applications where 32120-90J00 is specified

• Suzuki DF140 four-stroke EFI charging coil applications

• Suzuki DF140T / DF140TL / DF140TX applications where 32120-90J00 is specified

• HP Range: 90HP - 140HP

• Engine Type: Suzuki inline 4-cylinder four-stroke EFI outboard

• Year Range: approximately 2001-2011 depending on model, serial range and plug style

• System Type: Charging coil / stator assembly

🔌 Function

The stator generates AC charging output beneath the flywheel. The rectifier / regulator converts that output into controlled DC voltage for the battery and engine electrical systems.

Common signs of failure:

• Battery not charging

• Low or unstable charging voltage

• Electrical accessories draining the battery while running

• Charging warning or voltage fault

• Hard starting from insufficient battery recovery

• Burnt winding smell or discoloured coil windings

• Damaged stator wires or poor connector contact

• AC output below specification

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
