32120-90J20 Suzuki Stator | Genuine Used Part

🔧 Product Description

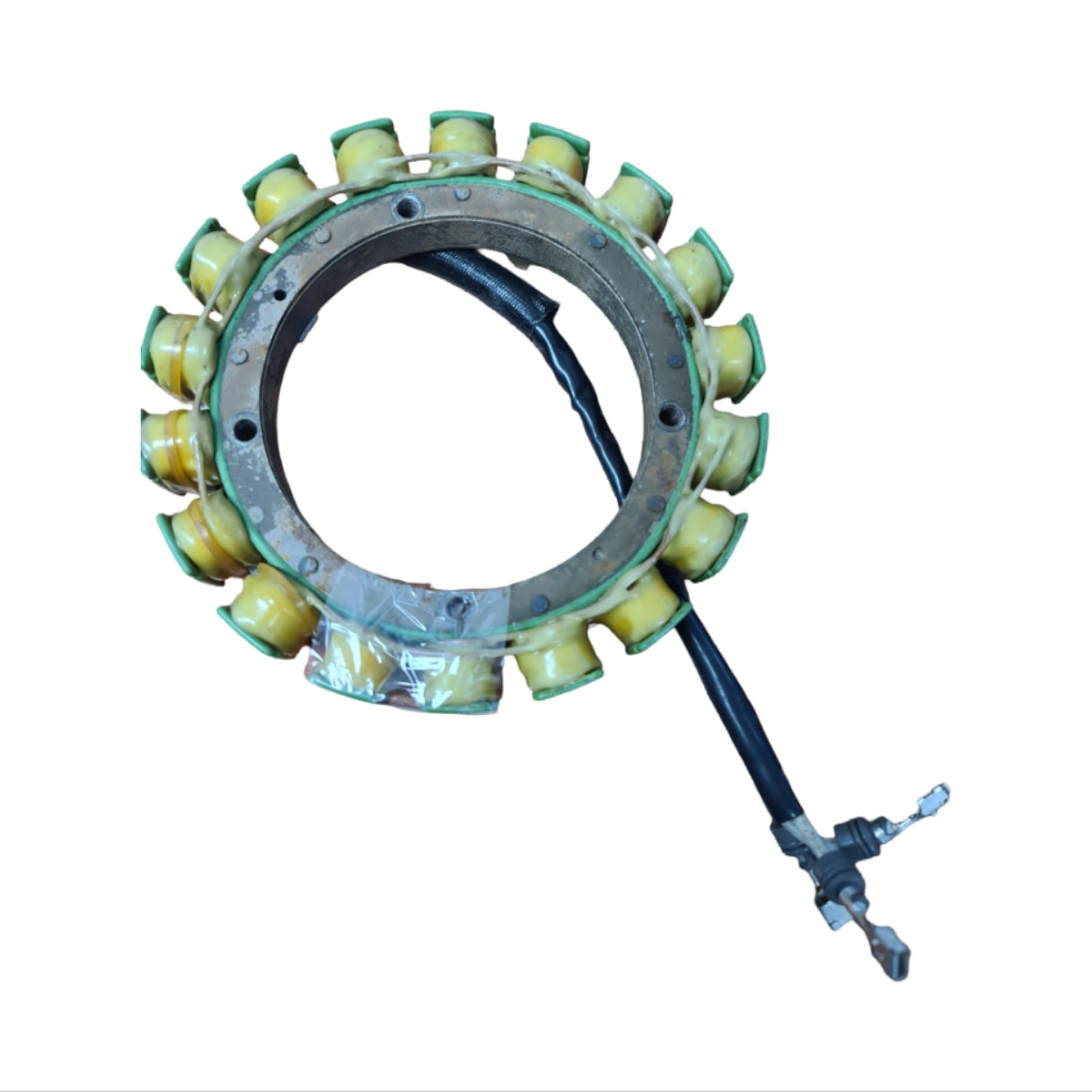

Genuine Suzuki Charging Coil / Stator Assembly - Part Number: 32120-90J20

A genuine Suzuki stator assembly used on DF100, DF115 and DF140 four-stroke EFI outboards with the later grey-plug charging coil configuration. This stator supplies charging-system output to the rectifier / regulator and battery circuit.

⚙️ Key Features

• Genuine Suzuki charging coil / stator assembly

• Correct OEM part number 32120-90J20

• Later grey-plug stator style for selected DF100 / DF115 / DF140 engines

• Supports battery charging and engine electrical-system supply

• Direct replacement where the generator diagram specifies 32120-90J20

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32120-90J20 later Suzuki charging coil reference

• 32120-90J00 earlier related charging coil reference for selected earlier applications

OEM / Related Numbers:

• 32120-90J20

• 3212090J20

• 32120-90J20-000

• 32120-90J00 related earlier stator reference

• 3212090J00 related earlier stator reference

Aftermarket / Verified Equivalents:

• Aftermarket reference: 32120-90J20

• Aftermarket DF100 / DF115 / DF140 stator replacement

🚤 Compatibility

Commonly used on:

• Suzuki DF100 / DF115 / DF140 four-stroke EFI charging systems

• Later Suzuki 90J-series generator assemblies using grey-plug stator configuration

Typically suits:

• Engine models:

• Suzuki DF100 four-stroke EFI applications using 32120-90J20

• Suzuki DF100A / DF100T generator applications where 32120-90J20 is specified

• Suzuki DF115 four-stroke EFI applications using 32120-90J20

• Suzuki DF115A / DF115T generator applications where 32120-90J20 is specified

• Suzuki DF140 four-stroke EFI applications using 32120-90J20

• Suzuki DF140A / DF140T generator applications where 32120-90J20 is specified

• Suzuki DF140 4-stroke engines with later grey-plug stator assembly

• Suzuki DF140 model family around serial 14001F-884248 where the generator assembly uses 32120-90J20

• HP Range: commonly 100HP - 140HP

• Engine Type: Suzuki inline 4-cylinder four-stroke EFI outboard

• Year Range: approximately 2008-2014 depending on model, serial range and plug configuration

• System Type: Charging coil / stator assembly

🔌 Function

The stator produces charging current while the engine is running. Its AC output is regulated and rectified to maintain battery charge and provide stable electrical supply for onboard systems.

Common signs of failure:

• Battery voltage does not rise while running

• Low charging output at cruise RPM

• Intermittent charging fault

• Battery repeatedly going flat

• Electrical warning or voltage fault

• Heat damage near windings or connector

• Broken or corroded plug terminals

• AC stator output outside specification

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
