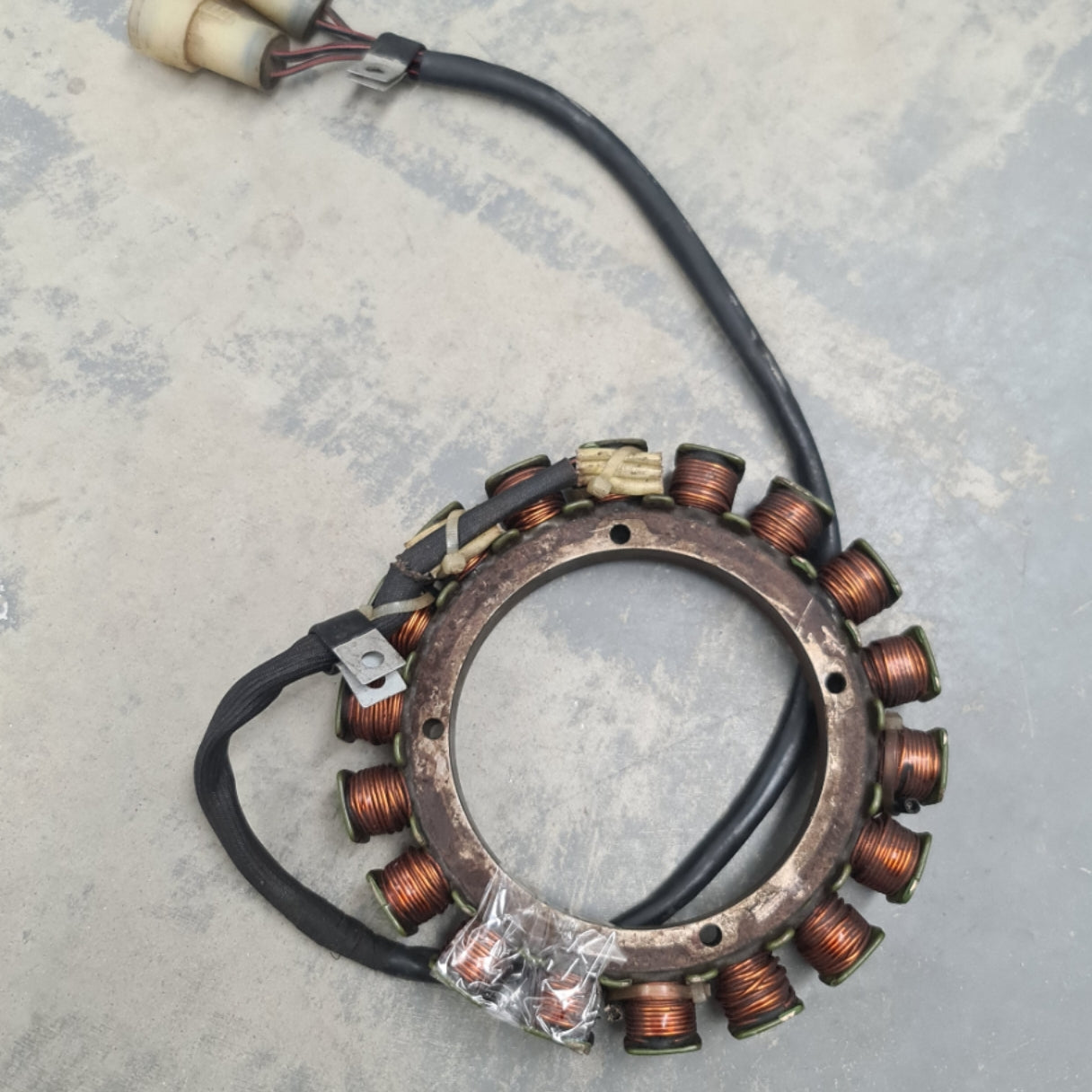

Genuine Suzuki Charging Coil / Stator Assembly - Part Number: 32120-93J00
A genuine Suzuki charging coil / stator assembly used on high-output Suzuki DF200, DF225, DF250 and DF300 four-stroke outboards. This stator provides charging-system output for the battery, engine management and onboard electrical systems.
⚙️ Key Features
- Genuine Suzuki charging coil / stator assembly
- Correct OEM part number 32120-93J00
- Used on Suzuki high-output V6 four-stroke engines
- Supports charging output for EFI and engine-management systems
- Direct replacement generator component where specified
🚤 Compatibility
Commonly used on
- Suzuki DF200 / DF225 / DF250 / DF300 four-stroke charging systems
- Suzuki V6 generator assemblies using 32120-93J00
Typically suits
- Engine models:
- Suzuki DF200 four-stroke V6 charging coil applications
- Suzuki DF200A / DF200T applications where 32120-93J00 is specified
- Suzuki DF225 four-stroke V6 charging coil applications
- Suzuki DF225T / DF225Z applications where 32120-93J00 is specified
- Suzuki DF250 four-stroke V6 charging coil applications
- Suzuki DF250T / DF250Z applications where 32120-93J00 is specified
- Suzuki DF300 four-stroke V6 charging coil applications
- Suzuki DF300AP / DF300APL / DF300APX / DF300APXX applications where 32120-93J00 is specified
- Suzuki DF200 / DF225 / DF250 / DF300 outboards around 2004-2019 generator-family applications where the diagram lists 32120-93J00
- HP Range: commonly 200HP - 300HP
- Engine Type: Suzuki V6 four-stroke EFI outboard
- Year Range: approximately 2004-2019 depending on model and serial range
- System Type: Charging coil / stator assembly
🔌 Function
The stator generates AC electrical current under the flywheel. The rectifier / regulator converts this output to stable DC voltage for battery charging, ECU operation and marine electrical loads.
⚠️ Common Signs of Failure
- Battery not charging while engine is running
- Low system voltage at idle or cruise
- Charging warning or electrical fault
- Engine electronics behaving erratically due to low voltage
- Repeated flat battery after normal use
- Burnt stator windings or heat damage
- Corroded or damaged connector pins
- AC charging output below specification
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 32120-93J00 current / primary Suzuki charging coil reference for listed applications
OEM / Related Numbers
- 32120-93J00
- 3212093J00
- 32120-93J00-000
Aftermarket / Verified Equivalents
- Aftermarket reference: 32120-93J00
- Aftermarket Suzuki DF200 / DF225 / DF250 / DF300 charging coil replacement
📦 Condition
- Genuine used part
- Removed from running engine where applicable
- In good working condition unless otherwise stated
