32160-87L01 Suzuki 5034149 Johnson Ignition Timing Coil | Genuine Used Part

🔧 Product Description

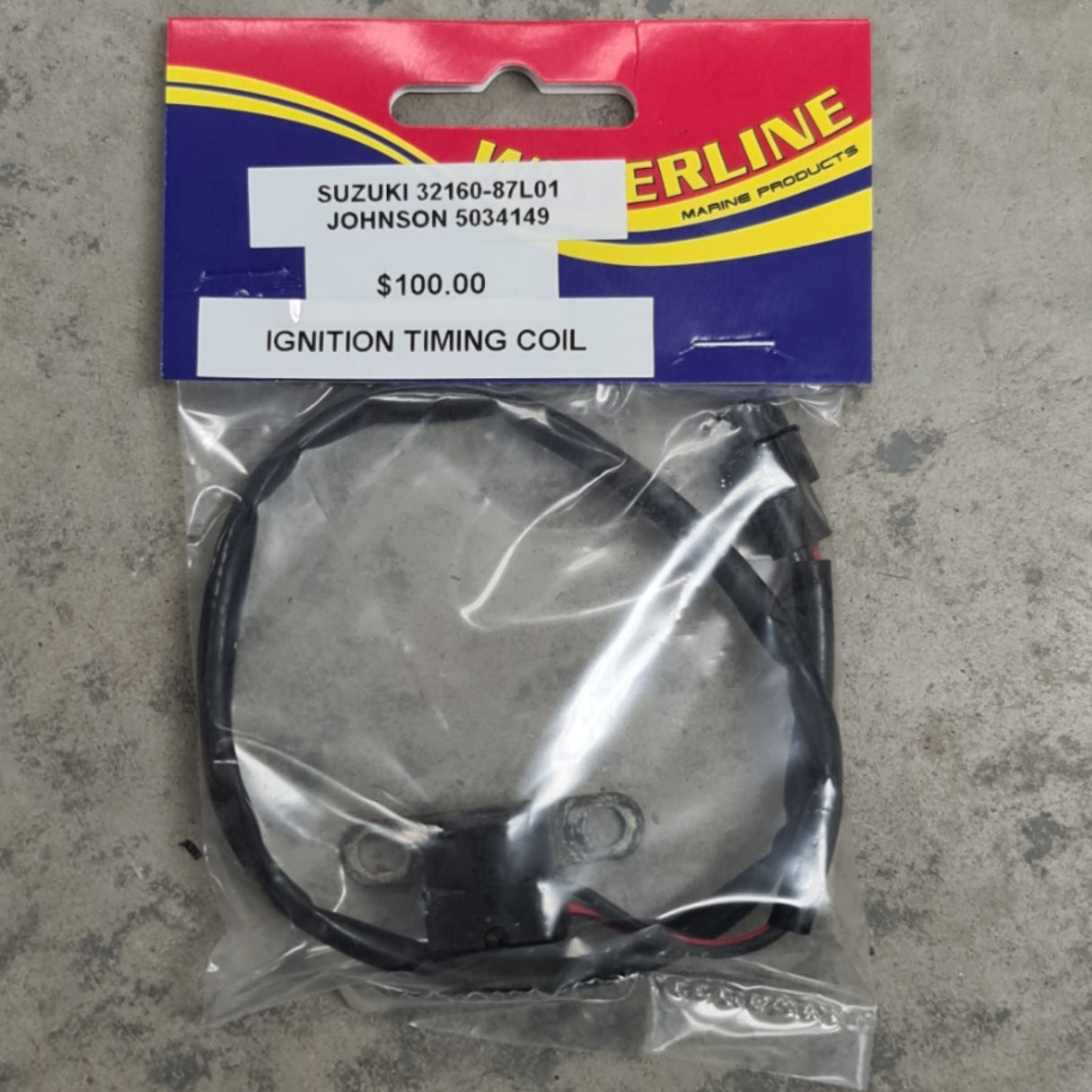

Genuine Suzuki / Johnson Crankshaft Position Sensor - Part Numbers: 32160-87L01 / 5034149

A genuine used ignition-timing or crankshaft-position sensor for Suzuki four-stroke outboards and corresponding Suzuki-built Johnson and Evinrude engines.

The sensor detects crankshaft position and engine speed from the rotating timing trigger. The ECU uses this signal to synchronise ignition timing and fuel injection.

⚙️ Key Features

• Genuine Suzuki / Johnson ignition-timing sensor
• Suzuki part number 32160-87L01
• Johnson / Evinrude part number 5034149
• Also described as a crankshaft-position or CKP sensor
• Provides engine-speed and timing-reference information

🚤 Compatibility

Commonly used on

• Suzuki electronic ignition and fuel-injection systems
• Suzuki-built Johnson and Evinrude four-stroke outboards

Typically suits

• Engine models:
• Suzuki DF40A
• Suzuki DF50A
• Suzuki DF60A
• Suzuki DF70A
• Suzuki DF80A
• Suzuki DF90A
• Suzuki DF115 and DF140 applications using the 87L-series sensor
• Suzuki-built Johnson / Evinrude 115HP four-strokes
• Suzuki-built Johnson / Evinrude 140HP four-strokes
• Suzuki-built Johnson / Evinrude 200HP and 225HP applications where 5034149 is specified
• HP Range: Approximately 40HP - 225HP
• Engine Type: Suzuki-built electronic fuel-injected four-stroke outboard
• Year Range: Approximately 2003 onward, dependent on engine family

🔌 Function

The sensor reports crankshaft position and rotational speed to the ECU so ignition and injection events occur at the correct point in the engine cycle.

⚠️ Common Signs of Failure

• Engine cranks but will not start
• Intermittent stalling
• Loss of ignition or injection synchronisation
• Tachometer signal drops out
• Crankshaft-position or timing-sensor fault code

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 32160-87L01 later Suzuki ignition-timing sensor reference
• 32160-87L00 earlier Suzuki reference
• 5034149 corresponding Johnson / Evinrude OEM reference

OEM / Related Numbers

• 32160-87L01
• 3216087L01
• 32160-87L00
• 32160-87J10 related Suzuki timing-sensor reference
• 5034149
• BRP-5034149

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
