32160-95510 Suzuki Trigger | Genuine Used Part

🔧 Product Description

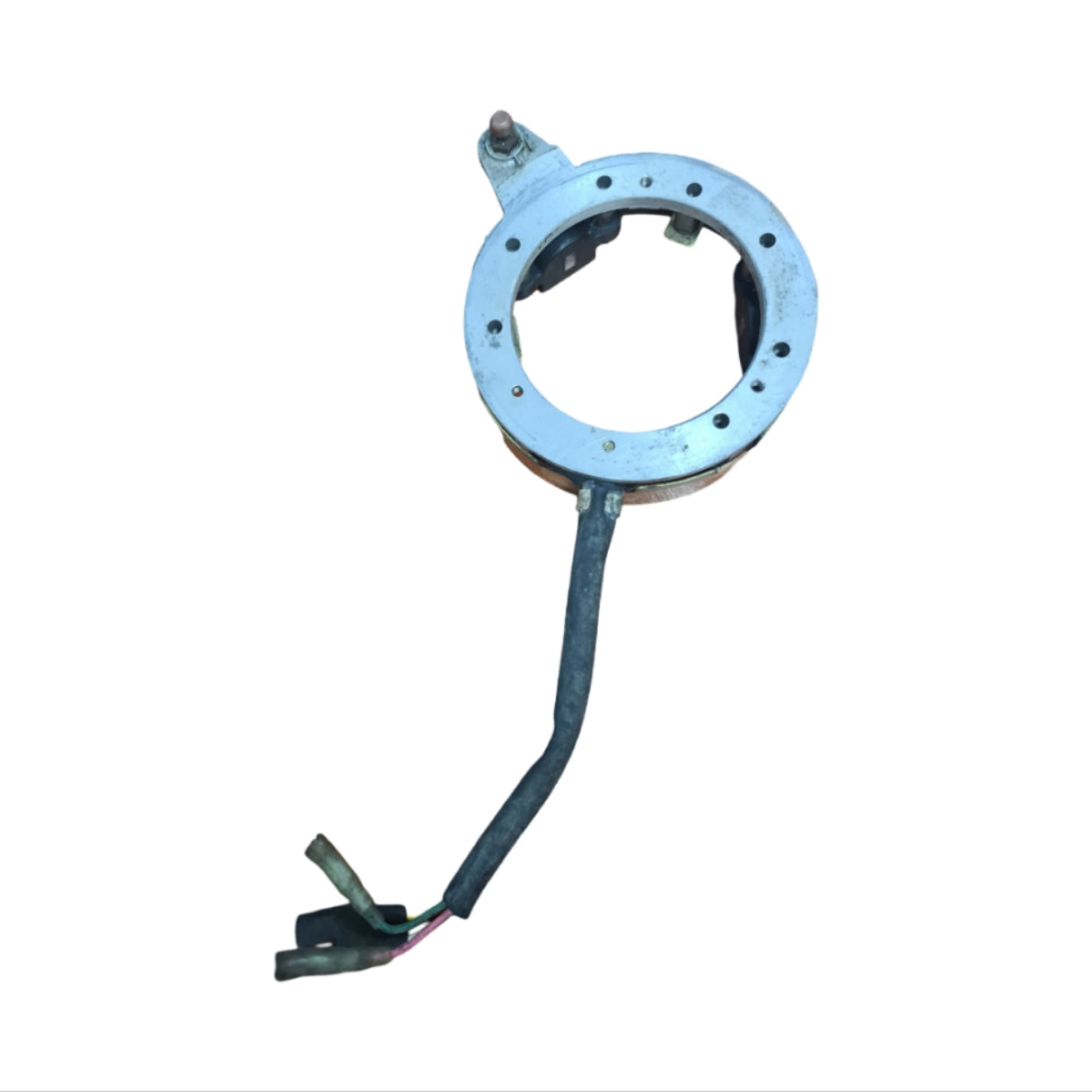

Genuine Used Suzuki DT75 / DT85 Timer Base and Sensor Assembly - Part Number: 32160-95510

A genuine pre-owned Suzuki Marine timer-base and trigger-sensor assembly for selected DT75 and DT85 three-cylinder two-stroke outboards.

Suzuki identifies this component as the timer-base and sensor assembly. It is mounted beneath the flywheel and provides ignition-timing signals while rotating with the spark-advance linkage.

⚙️ Key Features

• Genuine Suzuki Marine used timer base

• Correct OEM part number 32160-95510

• Complete timer-base and sensor assembly

• Used on selected DT75 and DT85 engines

• Three-cylinder ignition-trigger configuration

• Original Suzuki ignition component

🔄 Supersession & Cross Reference

OEM Supersession / Production Chain:

• 32160-95502 - Earlier timer-base and sensor assembly

• 32160-95510 - Later assembly introduced at the specified production break

• 32160-95511 - Related later service reference on selected catalogues

OEM / Related Numbers:

• 32160-95510

• 3216095510

• 32160-95502

• 32160-95511

• OEM Description: Timer Base and Sensor Assembly

• Stator assembly: 32101-95500

• Retainer No.1: 32395-95501

• Retainer No.2: 32396-95500

Aftermarket / Verified Equivalents:

• No verified new aftermarket complete equivalent

🚤 Compatibility

Commonly used on:

• Suzuki DT75 two-stroke outboards

• Suzuki DT85 two-stroke outboards

• Three-cylinder magneto and CDI ignition systems

Typically suits selected:

• DT75 model years approximately 1983-1987

• DT85 model years approximately 1983-1987

• 1985 DT85TCLF

• 1986 DT75TCLG

• 1987 DT75TCLH

• 1987 DT85TCLH

Important fitment note:

• Earlier DT85 engines may use 32160-95502 before the catalogue serial-number break.

• Confirm the wire colours, connector, mounting pattern and spark-advance linkage.

🔌 Function

The timer-base sensors generate timed electrical pulses as the flywheel passes above the assembly.

The ignition unit uses these signals to fire the ignition coils, while movement of the timer base provides mechanical spark advance.

Common signs of failure:

• No spark on one or more cylinders

• Intermittent spark

• Engine loses spark when warm

• Difficult starting

• Misfire during acceleration

• Engine will not reach full timing advance

• Trigger resistance or output is outside specification

• Cracked or brittle wiring

• Timer base binds instead of rotating freely

Recommended checks before installation:

• Compare every wire and terminal

• Measure trigger resistance

• Test peak output where specified

• Inspect the timer-base support and retainers

• Check the flywheel key and magnets

• Test the CDI unit, stator and ignition coils

• Set the throttle and ignition linkage after installation

📦 Condition

• Genuine Suzuki Marine used part

• Pre-owned electrical component

• Wire ageing, marks and light oxidation may be present

• Electrical testing before installation is strongly recommended

• Supplied in protective or equivalent packaging
