32520-ZW5-000 Honda Loom 115HP 130HP | Genuine Used Part

32520-ZW5-000 Honda Loom 115HP 130HP | Genuine Used Part

$200.00 AUD
$200.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

🔧 Product Description

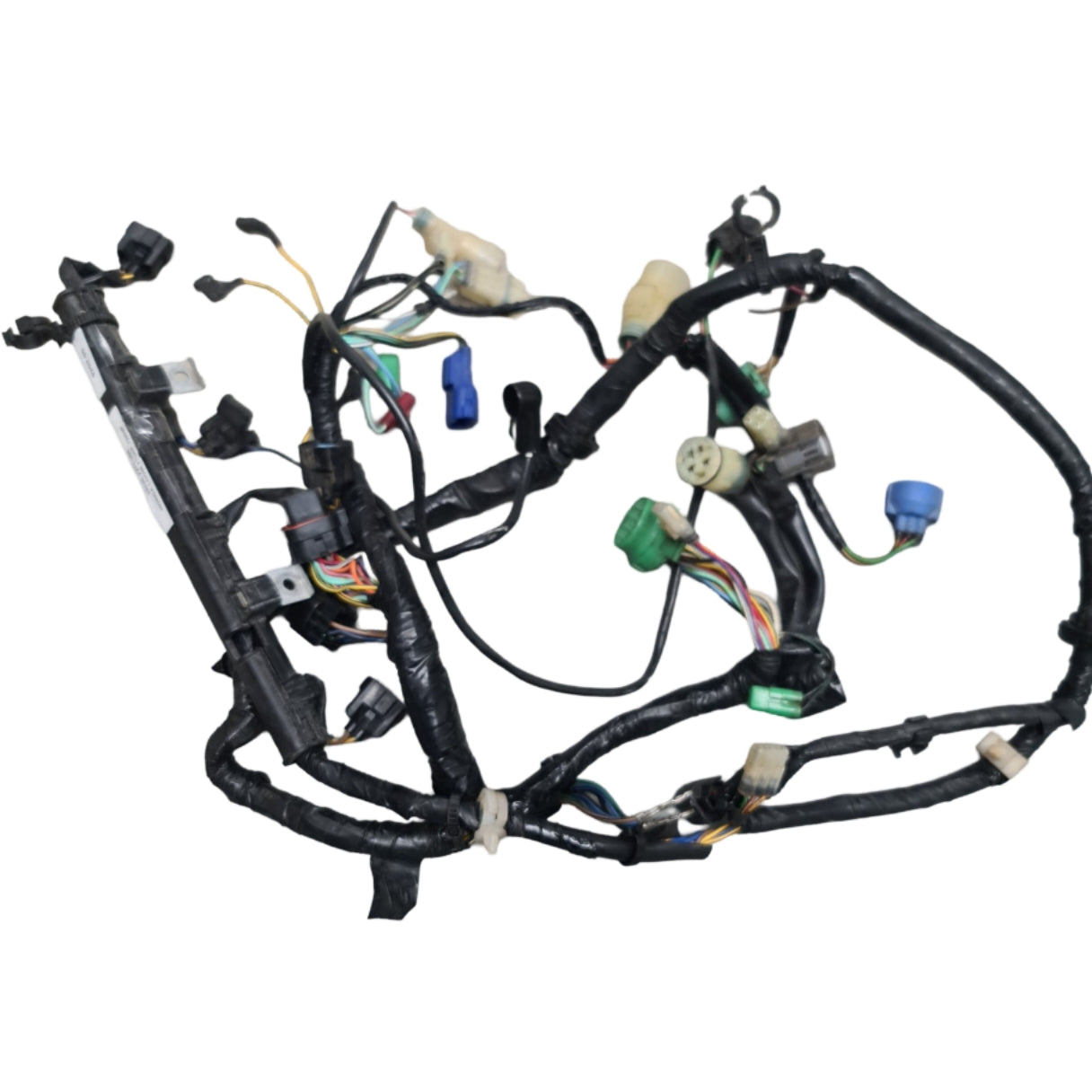

Genuine Honda BF115A / BF130A Remote Control Cable Harness Assembly A - Part Number: 32520-ZW5-000

A genuine Honda remote-control electrical cable assembly for selected BF115A and BF130A four-stroke outboards.

The loom links the engine electrical system with the remote-control and helm wiring, carrying ignition, start, stop, warning, trim and instrument signals through its engine-specific connectors. Honda identifies the component as Remote Control Cable Assembly A.

⚙️ Key Features

  • Genuine Honda OEM remote-control cable harness
  • Correct part number 32520-ZW5-000
  • Used on selected BF115A and BF130A engines
  • Supports ignition, starting, warning and instrument circuits
  • Original Honda connector and terminal configuration

🚤 Compatibility

Commonly used on

  • Honda BF115A and BF130A remote-control electrical systems
  • Honda ZW5 engine-to-helm harness assemblies

Typically suits

  • Engine models:
  • Honda BF115A
  • Honda BF115AX
  • Honda BF115A1
  • Honda BF115A2
  • Honda BF115A3
  • Honda BF115A4
  • Honda BF115A5
  • Honda BF115A6
  • Honda BF115AK0
  • Honda BF130A
  • Honda BF130AX
  • Honda BF130A1
  • Honda BF130A2
  • Honda BF130A3
  • Honda BF130A4
  • HP Range: 115HP - 130HP
  • Engine Type: Honda inline four-cylinder fuel-injected four-stroke outboard
  • Year Range: Approximately 1999 - 2007

🔌 Function

The loom carries engine-control and monitoring signals between the outboard and the helm-mounted key switch, control box, gauges and warning system.

⚠️ Common Signs of Failure

  • Engine does not crank from the helm
  • Trim switch or trim gauge operates intermittently
  • Warning buzzer or indicator lamps fail
  • Tachometer loses its engine signal
  • Connector pins become corroded, loose or heat damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 32520-ZW5-000 current documented remote-control cable assembly A reference

OEM / Related Numbers

  • 32520-ZW5-000
  • 32520ZW5000
  • 32127-P0A-A00 related connector holder
  • 32411-KB9-930 related terminal cover
  • 90013-ZV0-010 related mounting bolt
  • Related key-switch, warning-panel and remote-control wiring

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
