326440 0387195 0435946 OMC Trim and Tilt Assembly | Genuine Used Part

🔧 Product Description

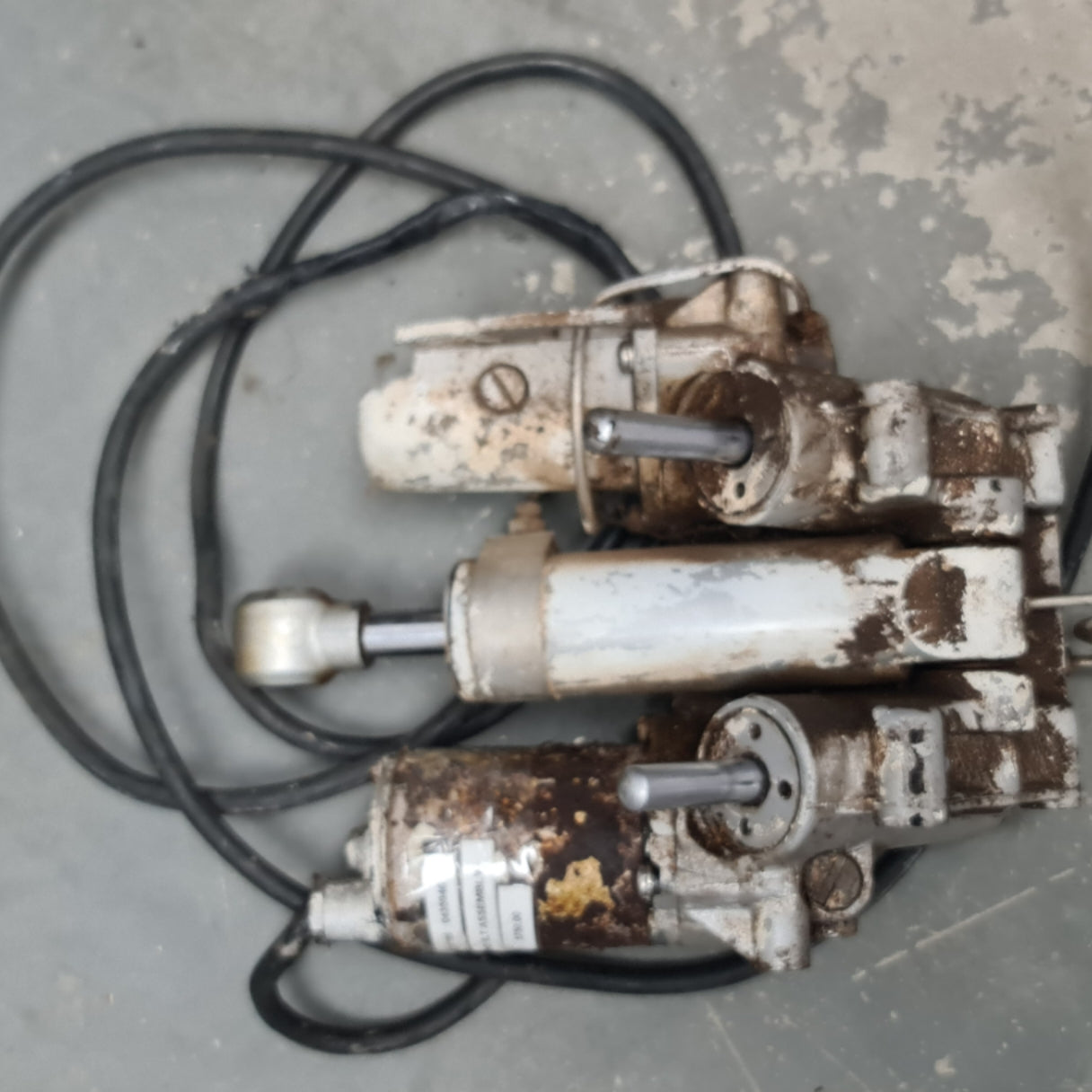

Genuine OMC Johnson / Evinrude Early Hydraulic Power Trim and Tilt Assembly - Current Service Number: 0435946

A genuine early OMC hydraulic trim-and-tilt assembly for vintage Johnson and Evinrude mid- and high-horsepower outboards. Number 326440 is a cast or stamped hydraulic-body identifier rather than the complete service number. Complete assembly 0387195 was replaced by later service kit 0435946 within the early Model-A / three-wire trim-system family.

⚙️ Key Features

• Genuine vintage OMC hydraulic trim assembly
• Current service reference 0435946
• Earlier complete assembly 0387195
• Casting or body marking 326440
• Early three-wire power-trim architecture

🚤 Compatibility

• Johnson / Evinrude 70HP, 75HP, 85HP, 90HP and 115HP vintage applications
• Johnson / Evinrude 140HP, 150HP, 175HP, 200HP and 235HP applications
• Documented examples include 1976 200HP, 1977 200HP, 1978 85HP / 175HP, 1979 85HP / 235HP and 1981 70HP / 75HP / 115HP
• Primary application era: approximately 1976-1981
• Three-wire motor, cylinder style and stern-bracket geometry must match

🔌 Function

The vintage hydraulic assembly changes engine trim angle and raises the outboard for trailering by operating external or integrated trim and tilt cylinders.

⚠️ Common Signs of Failure

• Three-wire motor fails
• Hydraulic unit leaks
• Engine drifts down
• Cylinder rods are pitted
• Valve body is corroded
• Casting number is mistaken for the complete service number

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 0435946 → Replaces earlier 0387195 in applicable catalogues
• Related earlier hydraulic assemblies include 0389358, 0389887, 0390136, 0390472 and 0391013
• 326440 is a housing or body marking and is not a complete-unit supersession

OEM / Related Numbers

• 0435946 / 435946
• 0387195 / 387195
• 326440
• 0389358 / 389358
• 0389887 / 389887
• 0390136 / 390136
• 0390472 / 390472
• 0391013 / 391013

Aftermarket / Verified Equivalents

• No verified new complete aftermarket Model-A assembly
• Aftermarket three-wire OMC trim motors are available from Sierra, ARCO and Pro Marine
• Aftermarket seal and hydraulic rebuild kits are available for matching cylinders
• Specialist remanufactured vintage OMC trim systems are functional alternatives

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
