32800-38F10 Suzuki Rectifier | Genuine Used Part

🔧 Product Description

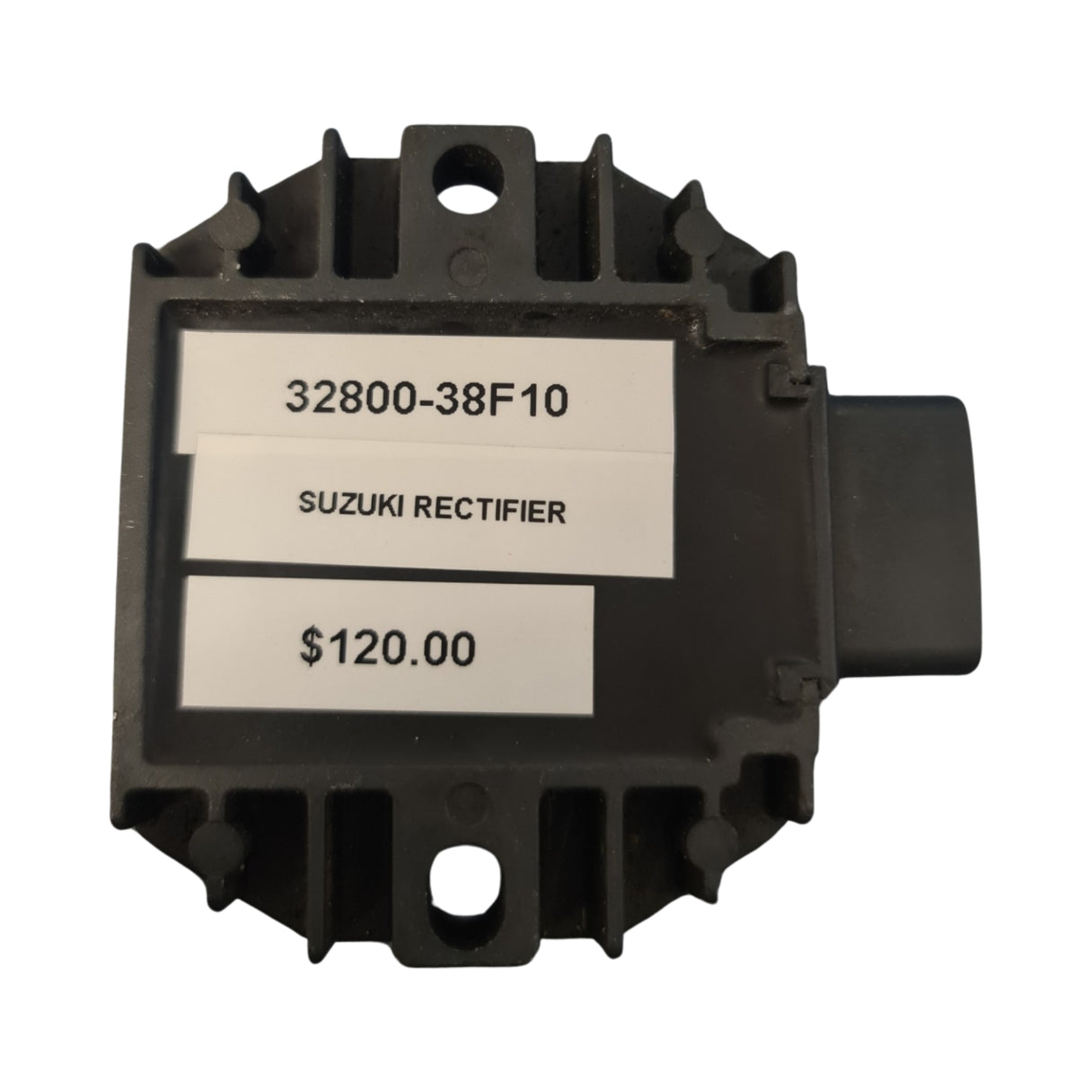

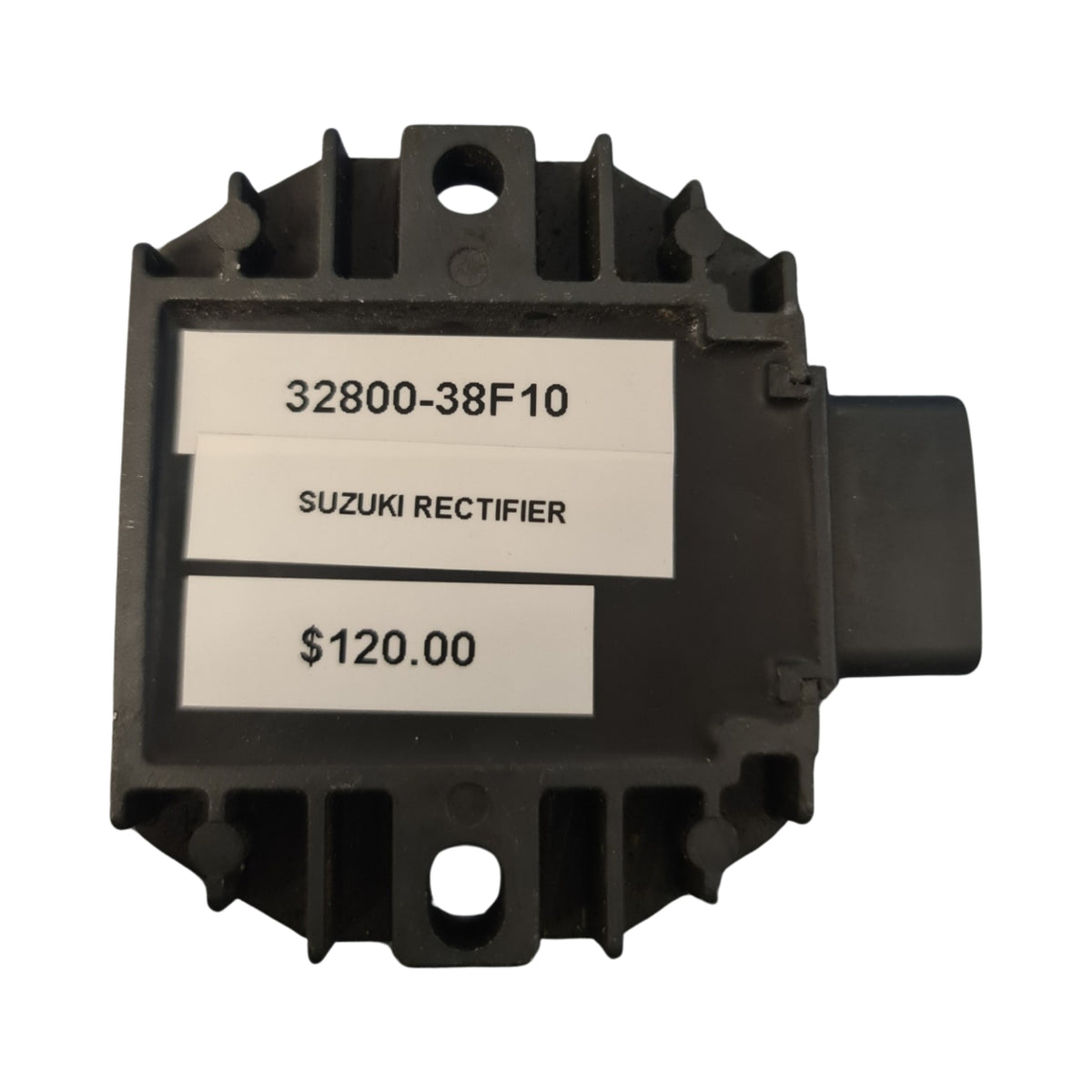

Genuine Suzuki Rectifier & Regulator Assembly - Part Number: 32800-38F10

A genuine Suzuki rectifier / regulator assembly for selected Suzuki DF40 and DF50 four-stroke outboards. This charging-system component converts alternator AC output into regulated DC voltage and supports stable battery charging.

⚙️ Key Features

• Genuine Suzuki rectifier / regulator assembly

• Correct Suzuki part number 32800-38F10

• Used on Suzuki DF40 and DF50 four-stroke charging systems

• Cross-references with Recmar REC32800-38F10

• Must be matched by plug style, wire count and mounting layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32800-38F10 current Suzuki DF40 / DF50 rectifier & regulator reference

• 32800-88L01 related later Suzuki DF40A / DF50A / DF60A regulator reference

• 32800-88L00 related Suzuki DF40A / DF50A / DF60A regulator reference

OEM / Related Numbers:

• 32800-38F10

• 3280038F10

• 32800-38F10-000

• 32800-38F10-0000

• 32800-88L00

• 3280088L00

• 32800-88L00-000

• 32800-88L01

• 3280088L01

• 32800-88L01-000

• SH640D-12 regulator marking

• Rectifier & regulator assembly

• Voltage regulator rectifier

Aftermarket / Verified Equivalents:

• Recmar: REC32800-38F10

• Recmar: REC32800-88L00

• Marine Spare Parts: AM32800-88L00

🚤 Compatibility

Commonly used on:

• Suzuki small to midrange four-stroke charging systems

Typically suits:

• Engine models:

• Suzuki DF40 - 1999-2010

• Suzuki DF40QHS - 2005-2010

• Suzuki DF40QL - 2005-2010

• Suzuki DF40TS - 2005-2010

• Suzuki DF40TL - 2005-2010

• Suzuki DF50 - 1999-2010

• Suzuki DF50X-K10 - 1999-2010

• Suzuki DF40A

• Suzuki DF50A

• Suzuki DF50AV

• Suzuki DF60A

• Suzuki DF60AV

• HP Range: 40HP - 60HP across the linked Suzuki regulator group

• Engine Type: Suzuki EFI four-stroke outboard charging system

• Year Range: Approximately 1999 - 2010 for core DF40 / DF50 32800-38F10 applications; later DF40A / DF50A / DF60A applications use related 32800-88L00 / 32800-88L01 references

• Serial Note: Match by exact Suzuki model, serial number, regulator plug style, wire count and mounting layout.

🔌 Function

The rectifier / regulator converts AC charging output into stable DC voltage for the battery and engine electrical system.

Common signs of failure:

• Battery not charging

• Overcharging or high battery voltage

• Charging warning fault

• Burnt regulator plug

• Melted wiring

• Battery goes flat during use

• Charging voltage remains incorrect after stator and battery testing

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
