32800-95D01 Suzuki Rectifer | Genuine Used Part

🔧 Product Description

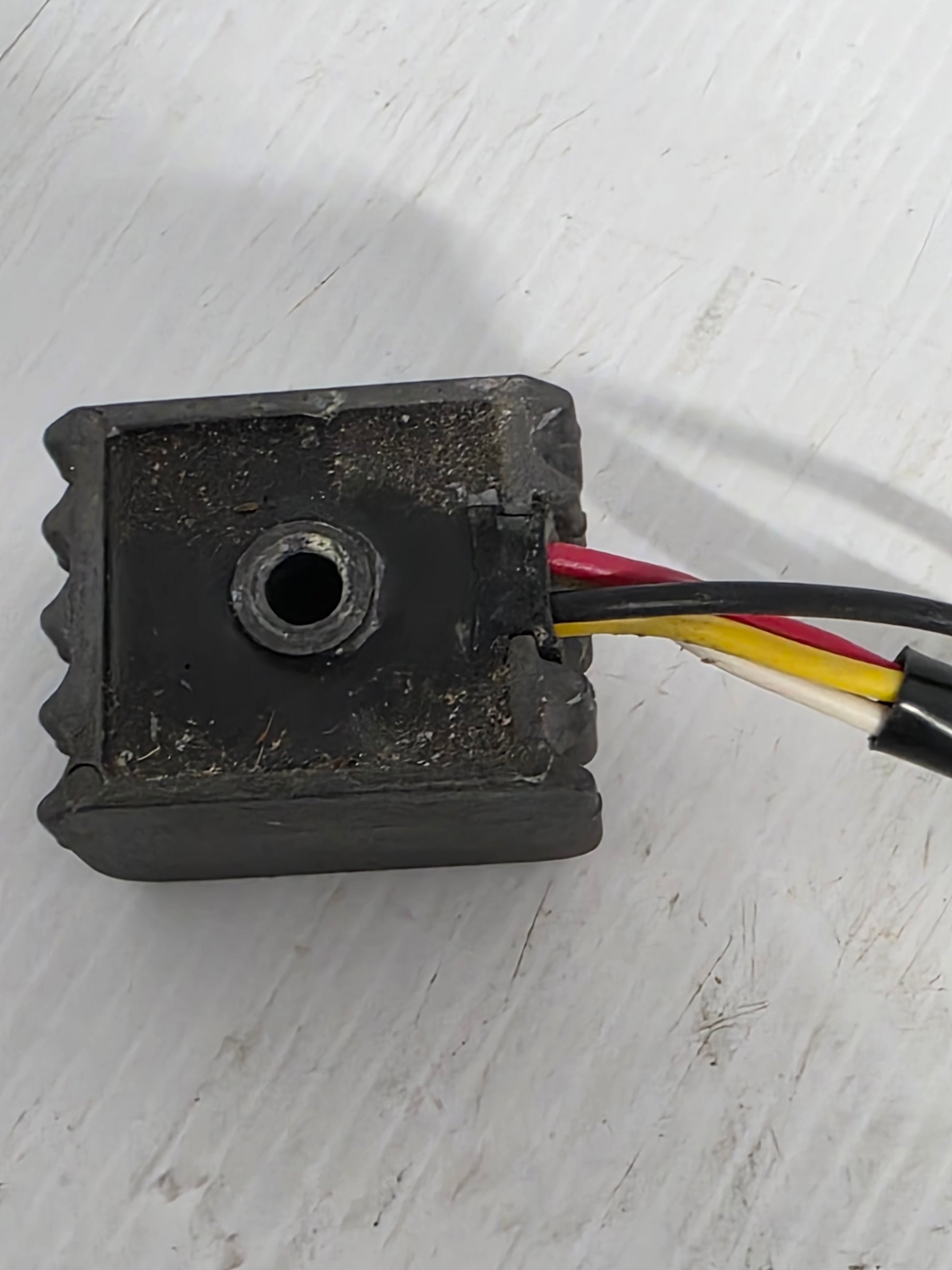

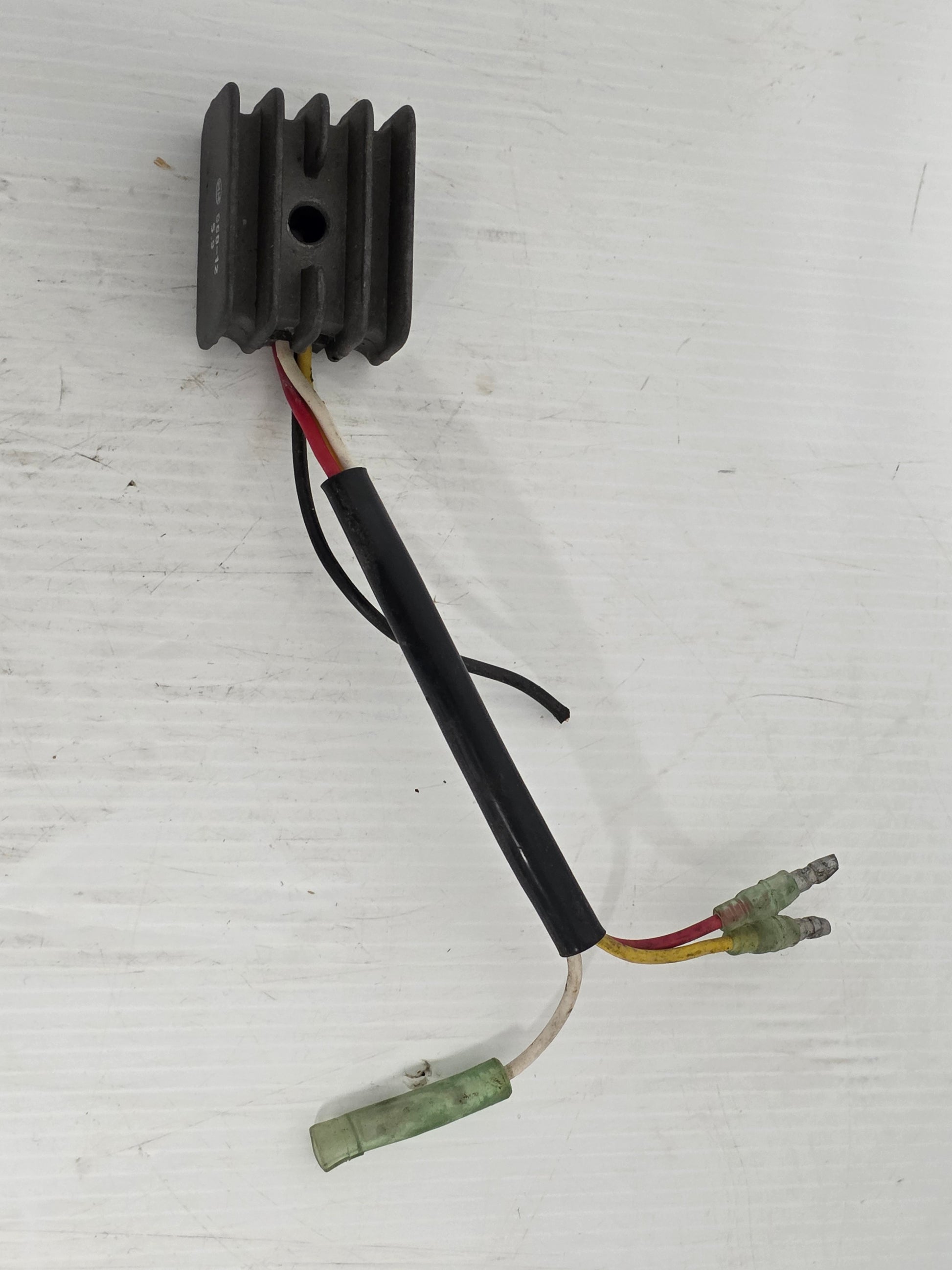

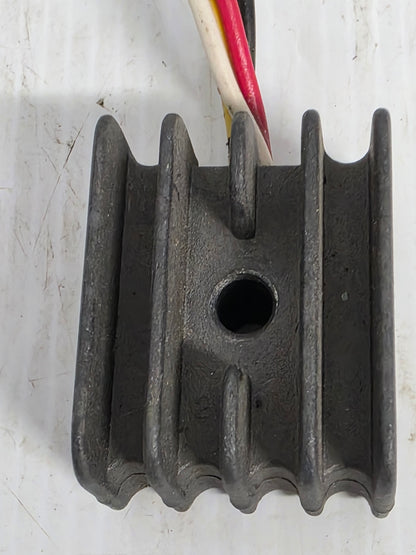

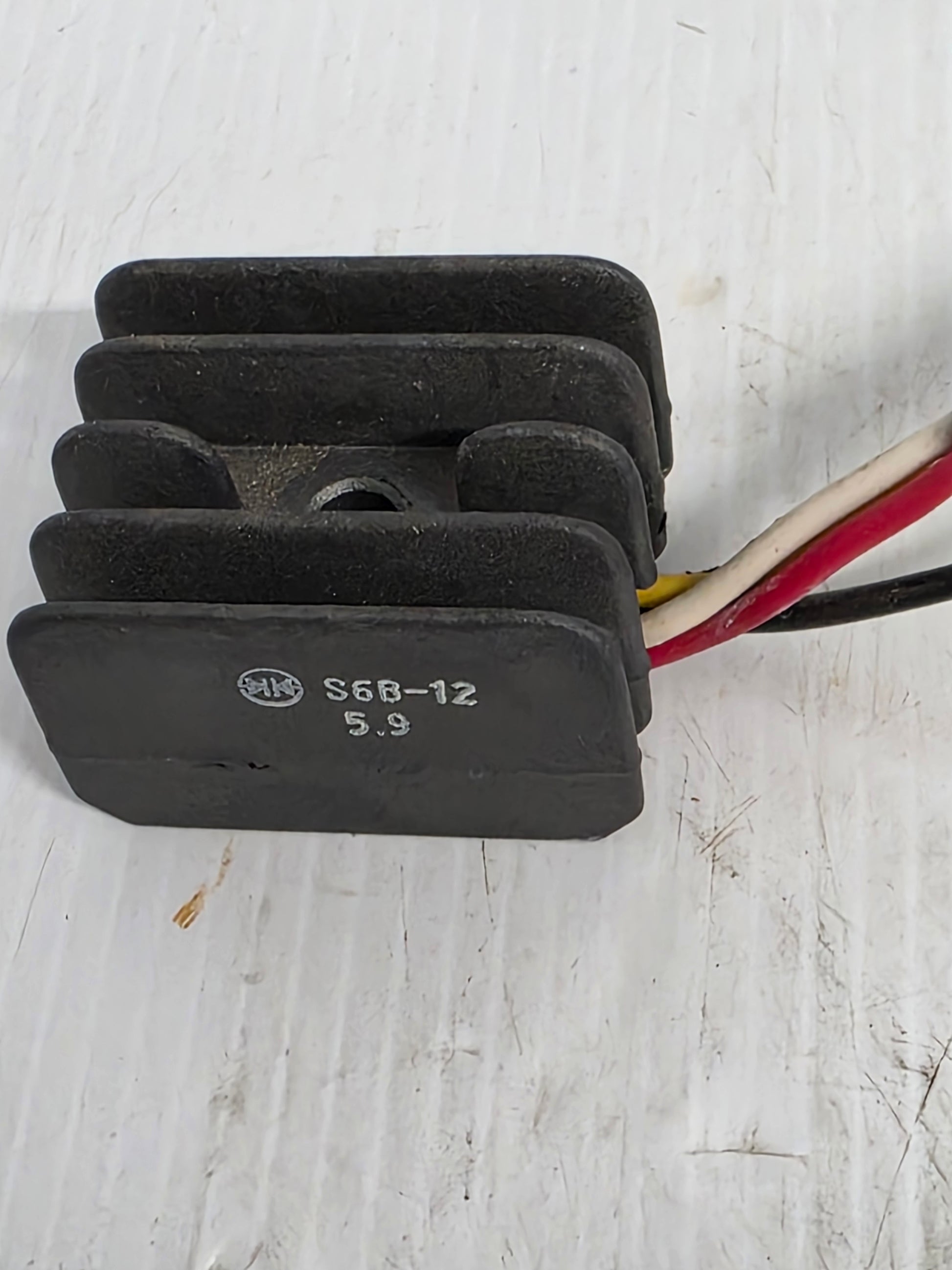

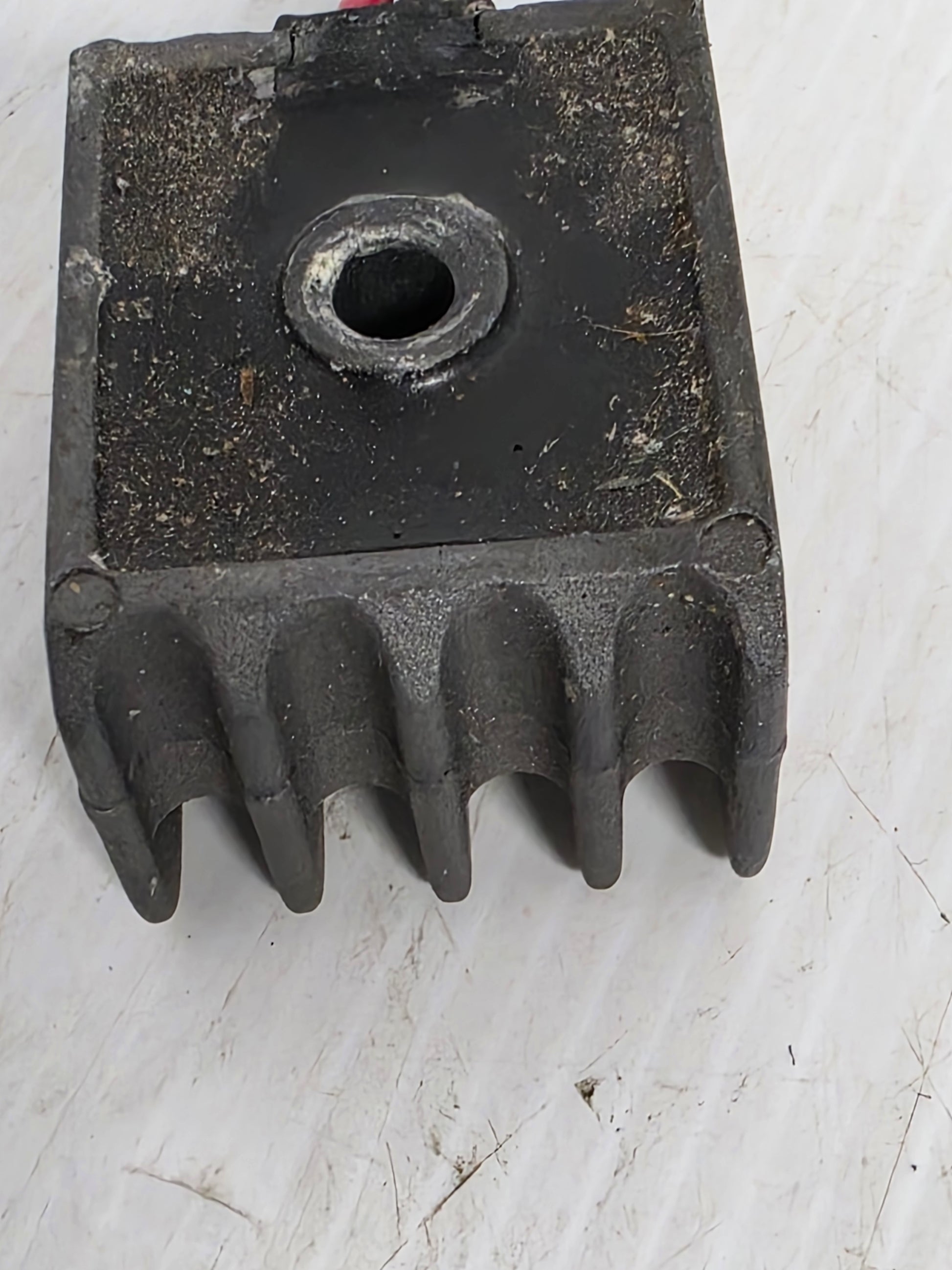

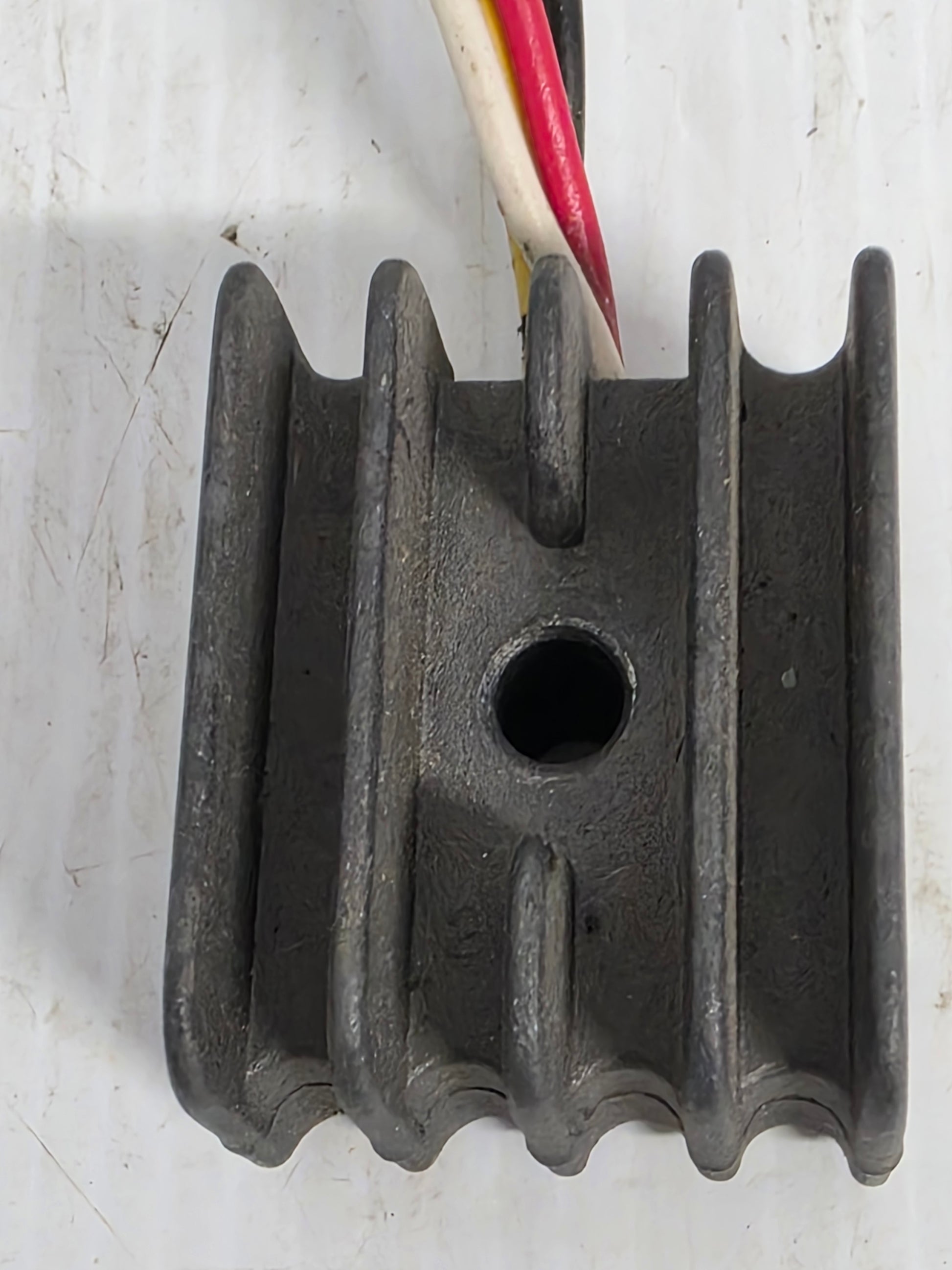

Genuine Suzuki Rectifier & Regulator Assembly - Part Number: 32800-95D01

A genuine Suzuki rectifier / regulator used on selected Suzuki DT two-stroke and DF small four-stroke outboards. This charging component converts stator AC output into DC voltage for battery charging and engine electrical supply.

⚙️ Key Features

• Genuine Suzuki rectifier / regulator

• Correct Suzuki part number 32800-95D01

• Related to Suzuki 32800-95D00 and 32800-95D02 references

• Used on selected Suzuki DT and DF charging systems

• Cross-references with Johnson / Evinrude 5030356 in related Suzuki-built applications

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32800-95D02 related Suzuki rectifier / regulator reference

• 32800-95D01 listed Suzuki rectifier / regulator reference

• 32800-95D00 earlier Suzuki rectifier / regulator reference

• 5030356 Johnson / Evinrude cross-reference for related Suzuki-built applications

OEM / Related Numbers:

• 32800-95D01

• 3280095D01

• 32800-95D01-000

• 32800-95D00

• 3280095D00

• 32800-95D02

• 3280095D02

• 5030356

• Rectifier

• Rectifier regulator

• Voltage regulator rectifier

Aftermarket / Verified Equivalents:

• Amotopart: RRV-A353

• Aftermarket replacement for 32800-95D00 / 32800-95D01 / 32800-95D02

🚤 Compatibility

Commonly used on:

• Suzuki DT two-stroke and selected Suzuki DF four-stroke charging systems

Typically suits:

• Engine models:

• Suzuki DF9.9 - 1996-2011

• Suzuki DF15 - 1996-2011

• Suzuki DT4 - 1986-2004

• Suzuki DT5 - 1986-2004

• Suzuki DT6 - 1986-2004

• Suzuki DT8 - 1986-2004

• Suzuki DT9.9 - 1986-2004

• Suzuki DT15 - 1986-2004

• Suzuki DT20 - 1986-2004

• Suzuki DT25 - 1986-2004

• Suzuki DT30 - 1986-2004

• Suzuki DT40 - 1986-2004

• Suzuki DT55 - 1986-2004

• Suzuki DT60 - 1986-2004

• Suzuki DT65 - 1986-2004

• Suzuki DT75 - 1986-2004

• Suzuki DT85 - 1986-2004

• Suzuki DT115 - 1986-2004

• Suzuki DT140 - 1986-2004

• Suzuki DT150 V6 - 1987-2000

• Suzuki DT175 V6 - 1987-2000

• Suzuki DT200 V6 - 1987-2000

• Suzuki DT225 V6 - 1987-2000

• Johnson / Evinrude Suzuki-built 5HP to 15HP four-stroke applications using 5030356

• HP Range: 4HP - 225HP depending on original rectifier number

• Engine Type: Suzuki DT two-stroke and small DF four-stroke charging system

• Year Range: approximately 1986 - 2011 depending on model

• Serial Note: Match by Suzuki model code, original rectifier number, plug shape, wire count and charging-system diagram.

🔌 Function

The rectifier / regulator converts stator AC output into stable DC charging voltage for the battery and engine electrical system.

Common signs of failure:

• Battery not charging

• Overcharging or high battery voltage

• Charging warning fault

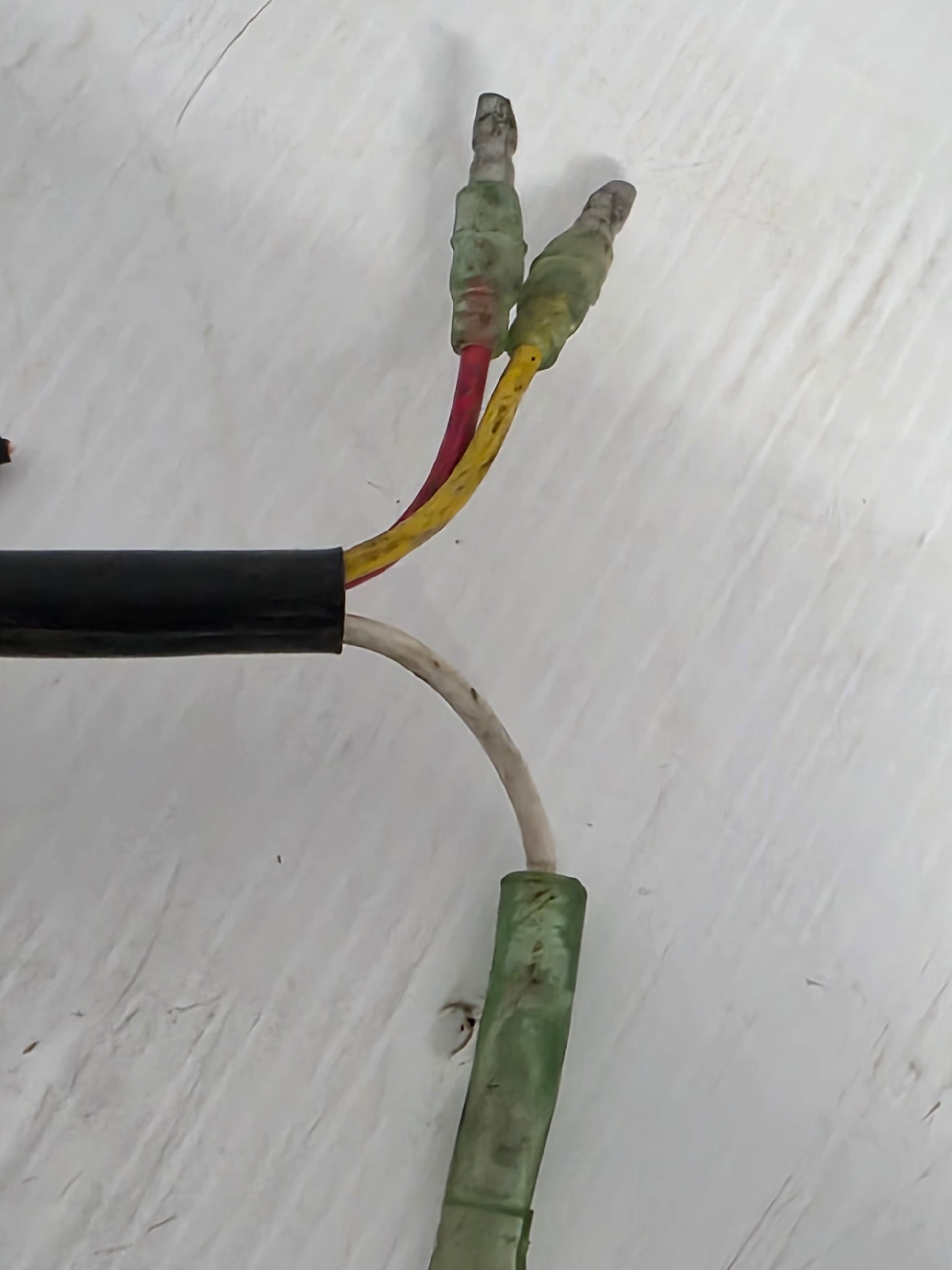

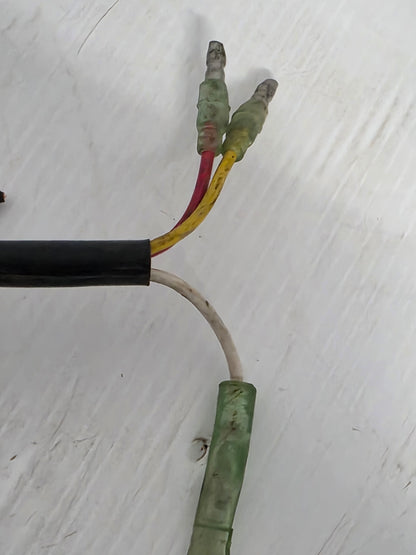

• Burnt rectifier plug

• Battery goes flat while running

• Tachometer fault linked to charging output

• Incorrect charging voltage after stator and battery checks

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
