• 328718 0391037 OMC Trim and Tilt Assembly | Genuine Used Part
1 1

328718 0391037 OMC Trim and Tilt Assembly | Genuine Used Part

328718 0391037 OMC Trim and Tilt Assembly | Genuine Used Part

🔥 50% off all Used Parts - Limited Time 🔥

$375.00 AUD
$750.00 AUD $375.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

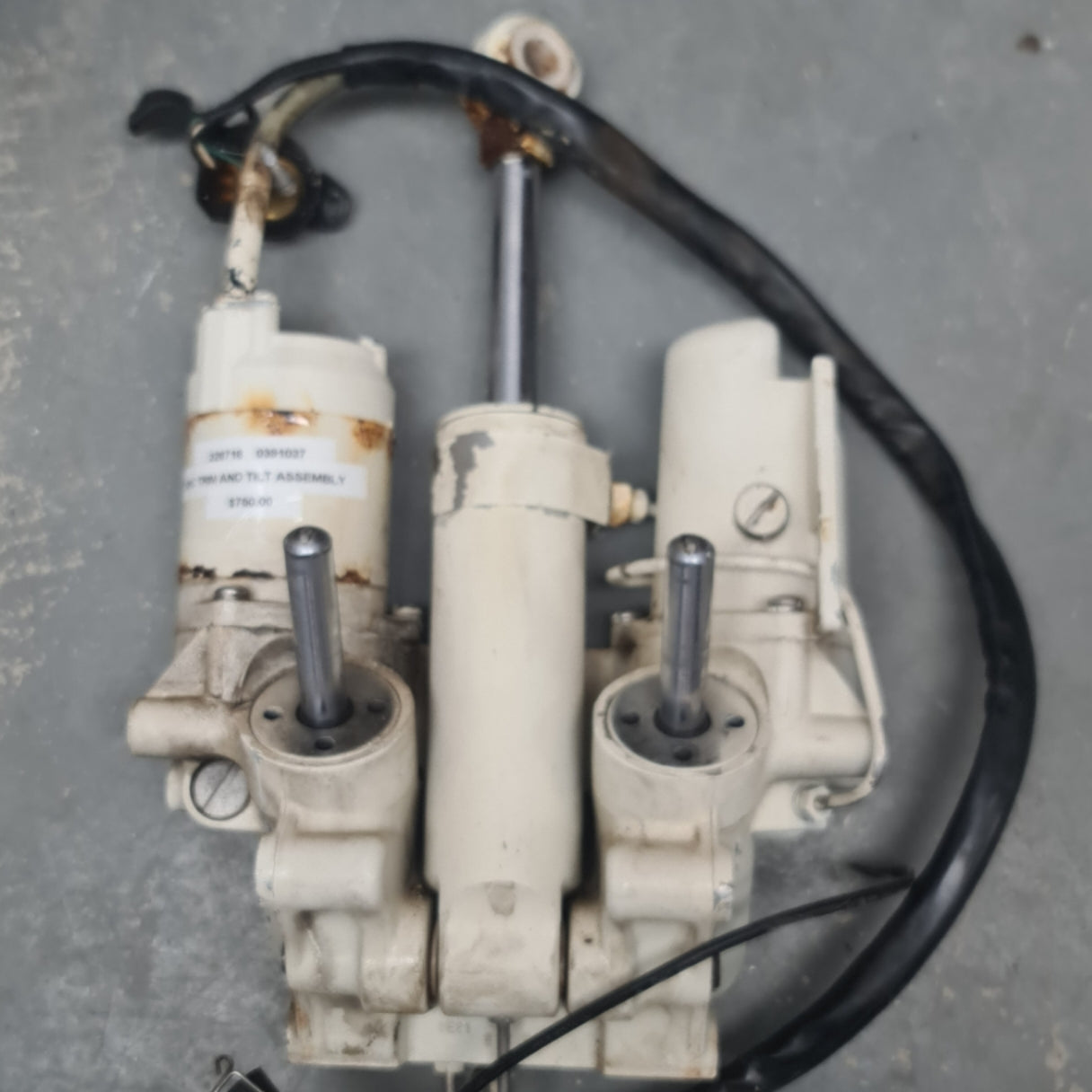

Genuine OMC Johnson / Evinrude Hydraulic Trim and Tilt Assembly - Part Number: 0391037

A genuine OMC hydraulic power-trim and tilt assembly from the late-1970s and 1980s Model-H / Model-M family. Number 328718, also formatted 0328718, is the cast hydraulic manifold or housing identifier. Complete hydraulic assembly 0391037 contains the valve-body and cylinder system used on selected 70HP-235HP outboards.

⚙️ Key Features

  • Genuine OMC hydraulic trim assembly
  • Complete service number 0391037
  • Casting / housing identifier 328718
  • Vintage Model-H / Model-M trim-system family
  • Used on selected mid- and high-horsepower OMC engines

🚤 Compatibility

  • Johnson / Evinrude 70HP, 75HP, 85HP, 90HP and 115HP applications
  • Johnson / Evinrude 140HP, 150HP, 175HP, 200HP and 235HP families
  • Documented examples include 1981 70HP / 75HP / 90HP / 115HP, 1982 175HP and 1983 175HP / 200HP
  • Broad application era: approximately 1978-1992
  • Exact fitment depends on H- or M-type stern-bracket and hydraulic layout

🔌 Function

The hydraulic system controls running trim and full engine tilt by directing pressurised fluid to the trim and tilt pistons.

⚠️ Common Signs of Failure

  • Hydraulic body leaks
  • Piston sleeves are scored
  • Motor fails
  • Engine drifts down
  • Valves stick
  • Housing casting is cracked or corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 0391037 is the documented hydraulic assembly number
  • 0328718 / 328718 identifies the hydraulic body or housing
  • The casting number and complete assembly number are related but not supersessions
  • Later OMC three-ram systems use different complete assemblies

OEM / Related Numbers

  • 0391037 / 391037
  • 0328718 / 328718
  • 0320980 related piston sleeves
  • Related trim cylinders, valve body, motor and reservoir
  • Related seal heads and mounting pins

Aftermarket / Verified Equivalents

  • Aftermarket KIT328227 trim-cylinder head / rebuild component for matching units
  • Sierra, ARCO and Pro Marine replacement trim motors for compatible vintage OMC systems
  • Aftermarket hydraulic seals and O-rings
  • No known new direct complete assembly

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
