32900-95510 Suzuki CDI | Genuine Used Part

🔧 Product Description

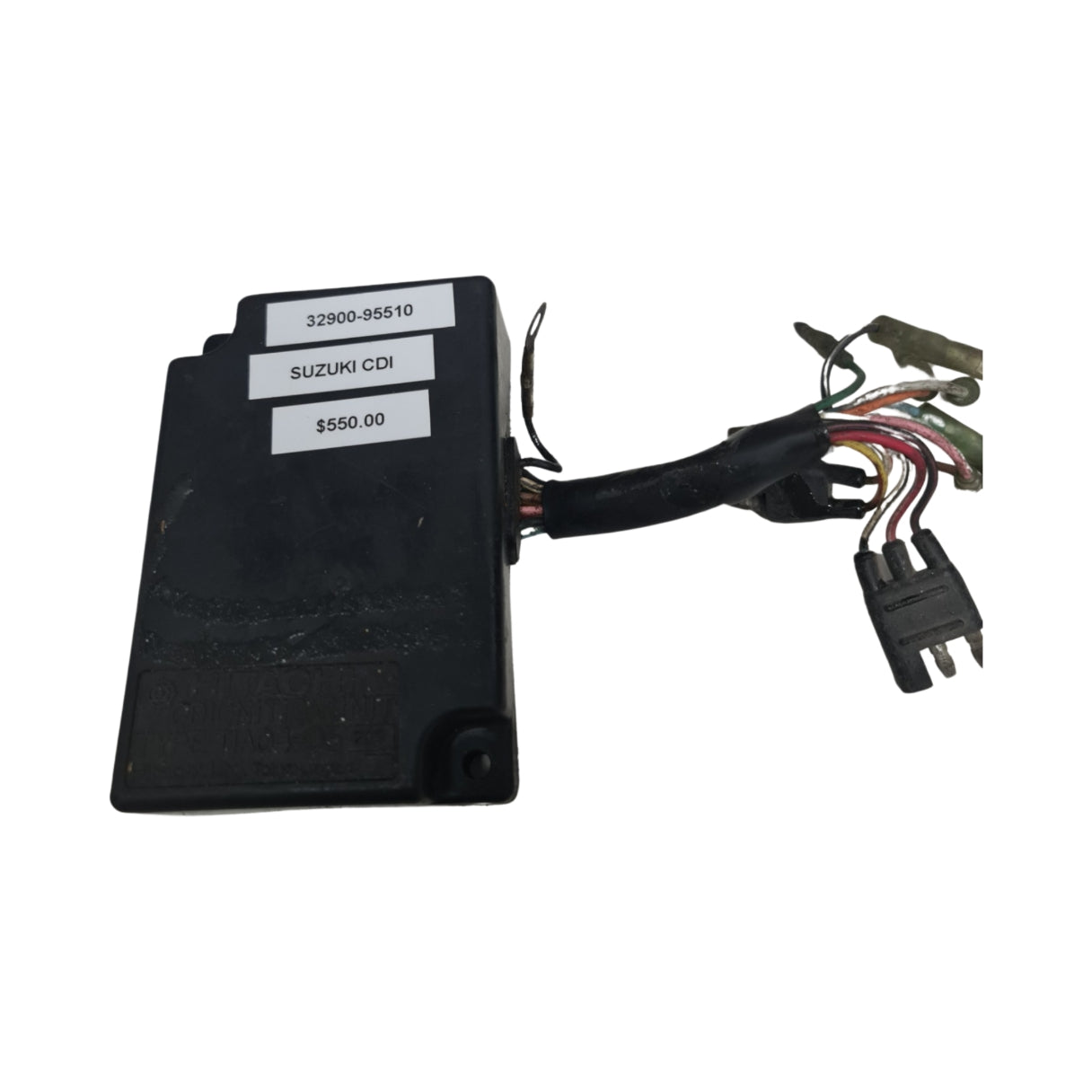

Genuine Suzuki CDI Unit - Part Number: 32900-95510

A genuine Suzuki CDI ignition unit used on early DT-series two-stroke outboards. This CDI controls ignition timing and spark output on compatible Suzuki DT75 and DT85 ignition systems requiring the 32900-95510 control unit.

⚙️ Key Features

• Genuine Suzuki CDI ignition unit

• Correct Suzuki part number 32900-95510

• Supersedes earlier 32900-95500 CDI reference

• Used on Suzuki DT75 and DT85 two-stroke ignition applications where specified

• Must be matched by exact model year, VIN range, connector layout and ignition system

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 32900-95510 → Supersedes 32900-95500

• 32900-95500 earlier CDI reference

• 32900-95520 later DT75 CDI reference for later VIN range applications

OEM / Related Numbers:

• 32900-95510

• 3290095510

• 32900-95500

• 32900-95520

• Suzuki OEM: 03-32900-95510

• Related DT75 / DT85 ignition-system reference

• Related ignition coil / pulser-coil electrical family

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Suzuki DT75 / DT85 two-stroke CDI ignition systems

Typically suits:

• Engine models:

• Suzuki DT85 1978 ignition applications using C.D.I. unit 32900-95510 up to option / serial reference 412597

• Suzuki DT75 1985 ignition applications using C.D.I. unit 32900-95510 up to VIN / serial reference 404156

• Suzuki DT75TCLF 1985 ignition diagram applications where C.D.I. unit 32900-95510 is specified

• Suzuki DT75 / DT85 early two-stroke ignition systems using the 32900-95510 CDI configuration

• HP Range: 75HP - 85HP

• Engine Type: Suzuki DT-series two-stroke outboard CDI ignition

• Year Range: confirmed 1978 DT85 and 1985 DT75 catalogue applications

• Fitment Note: later DT75 VIN applications may use 32900-95520 instead, so match the removed CDI and serial-numbered diagram

🔌 Function

The CDI module stores and releases ignition energy based on charge-coil and trigger inputs, controlling spark timing and firing the ignition coils.

Common signs of failure:

• No spark or weak spark

• Intermittent spark after warm-up

• Crank-no-start condition

• Misfire or rough running under load

• Ignition timing fault after stator and pulser checks

• No tachometer signal where supplied from the ignition circuit

• CDI case damage, corrosion or cracked wiring

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
