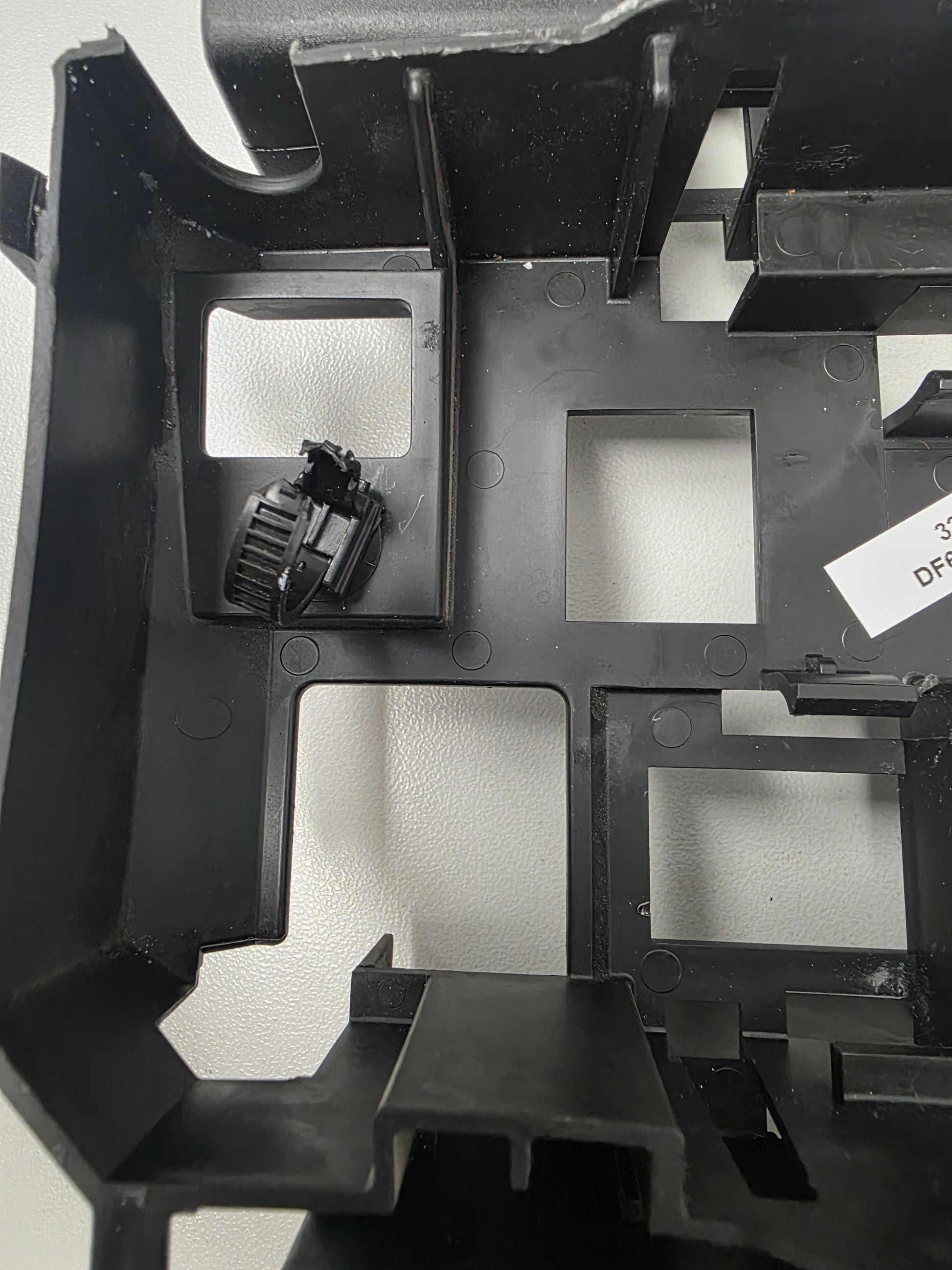

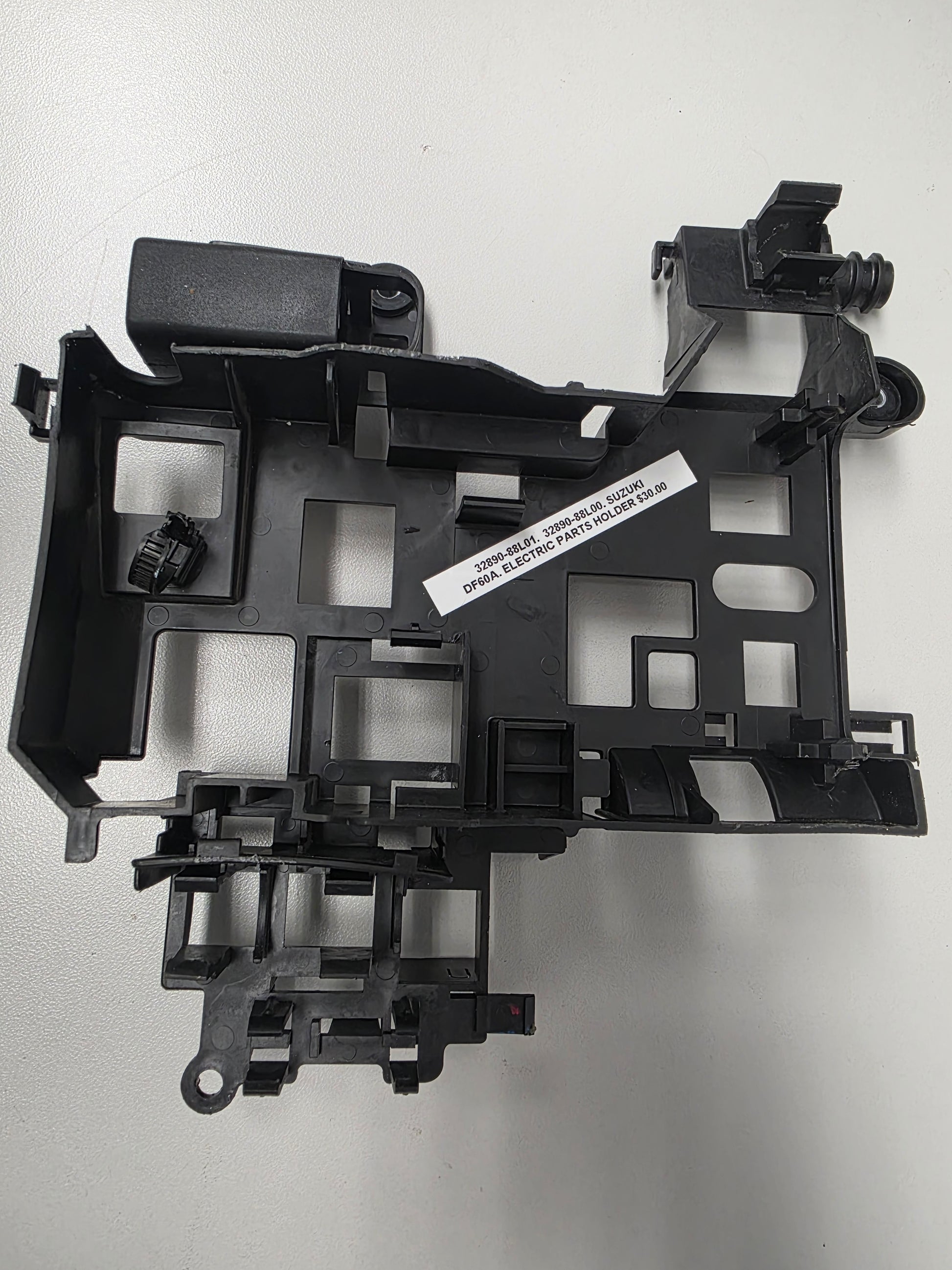

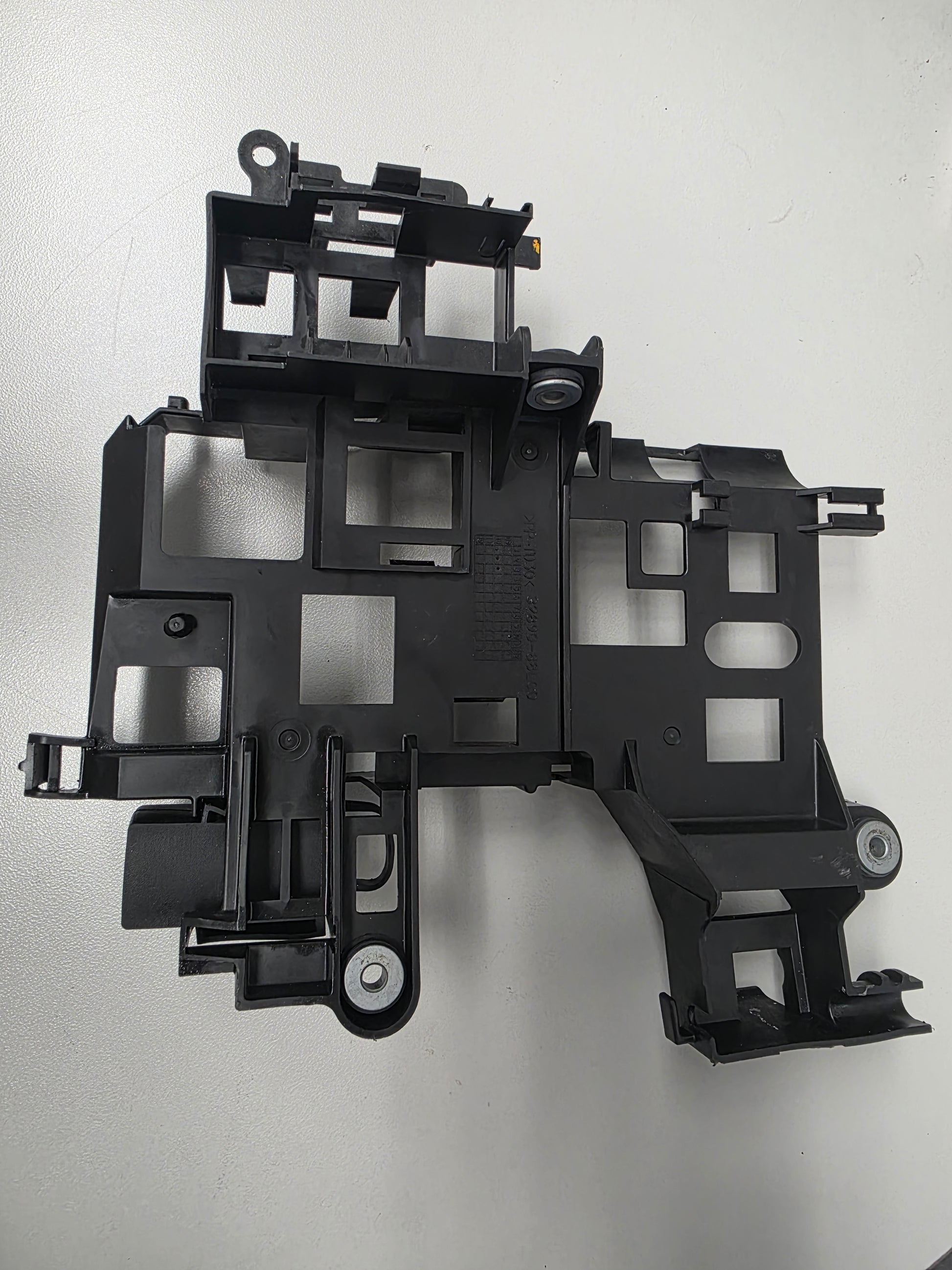

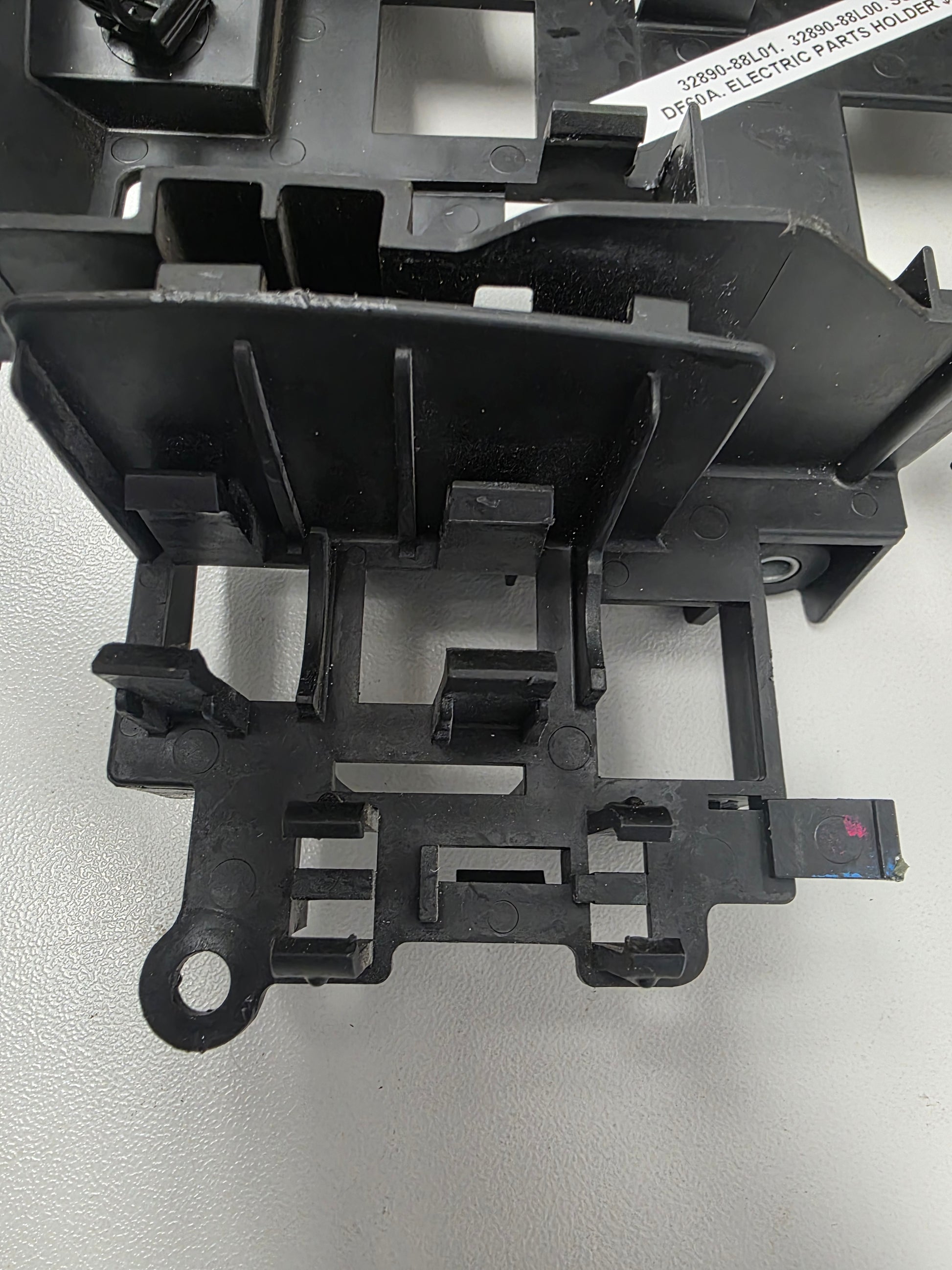

32980-88L01 32890-88L00 Suzuki DF60A Electric Parts Holder | Genuine Used Part

🔧 Product Description

Genuine Suzuki Electric Parts Holder - Part Number: 32890-88L00

A genuine used Suzuki electrical component holder for DF40A, DF50A and DF60A inline three-cylinder four-stroke outboards.

The holder provides the mounting structure for electrical components including the rectifier-regulator and ignition coils. Rubber cushions and mounting hardware isolate the installed components from engine vibration while keeping the wiring and electrical assemblies correctly positioned beneath the engine cowling.

The number 32980-88L01 may appear as a moulded, casting or assembly reference, while 32890-88L00 is the Suzuki catalogue part number for the electric-parts holder.

⚙️ Key Features

• Genuine Suzuki Marine electrical-parts mounting holder
• Correct Suzuki catalogue part number 32890-88L00
• Also marked or referenced as 32980-88L01
• Supports the rectifier-regulator and ignition-coil assemblies
• Used on Suzuki DF40A, DF50A and DF60A engine families

🚤 Compatibility

Commonly used on

• Suzuki DF40A electrical-component mounting assemblies
• Suzuki DF50A and DF50AV electrical-component mounting assemblies
• Suzuki DF60A electrical-component mounting assemblies

Typically suits

• Engine models:
• Suzuki DF40A
• Suzuki DF40AQH
• Suzuki DF40AST
• Suzuki DF40ATL - serial 04003F-110001 and above
• Suzuki DF50A
• Suzuki DF50ATH
• Suzuki DF50AV
• Suzuki DF50AVTL - serial 05004F-410001 and above
• Suzuki DF60A
• Suzuki DF60ATH
• Suzuki DF60AQH
• Suzuki DF60A short-shaft, long-shaft and extra-long-shaft configurations
• Suzuki DF60A - serial 06002F-210001 and above
• HP Range: 40HP - 60HP
• Engine Type: Suzuki 941cc inline three-cylinder four-stroke outboard
• Year Range: Approximately 2011 onward

🔌 Function

The holder secures the rectifier-regulator, ignition coils and related electrical components to the engine. It maintains component alignment, supports the wiring layout and helps isolate the electrical parts from vibration.

⚠️ Common Signs of Failure

• Ignition coils or rectifier-regulator sitting loose
• Cracked or broken holder mounting points
• Electrical components vibrating or rattling
• Wiring rubbing against the engine or cowling
• Corrosion or distortion around the mounting locations

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 32890-88L00 current Suzuki OEM service reference

OEM / Related Numbers

• 32890-88L00
• 32890-88L00-000
• 32980-88L01
• 32800-88L00 related rectifier-regulator assembly
• 33410-87L00 related ignition coil
• 09320-09016 related mounting cushion
• 09116-06202 related mounting bolt
• 09169-06062 related washer

Aftermarket / Verified Equivalents

• No aftermarket equivalent

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
