3303-8231752 Aftermarket Mercruiser Carburetor 2.5, 3 & 3.3 Engines | Sawley's Select Marine Parts

🔧 Product Description

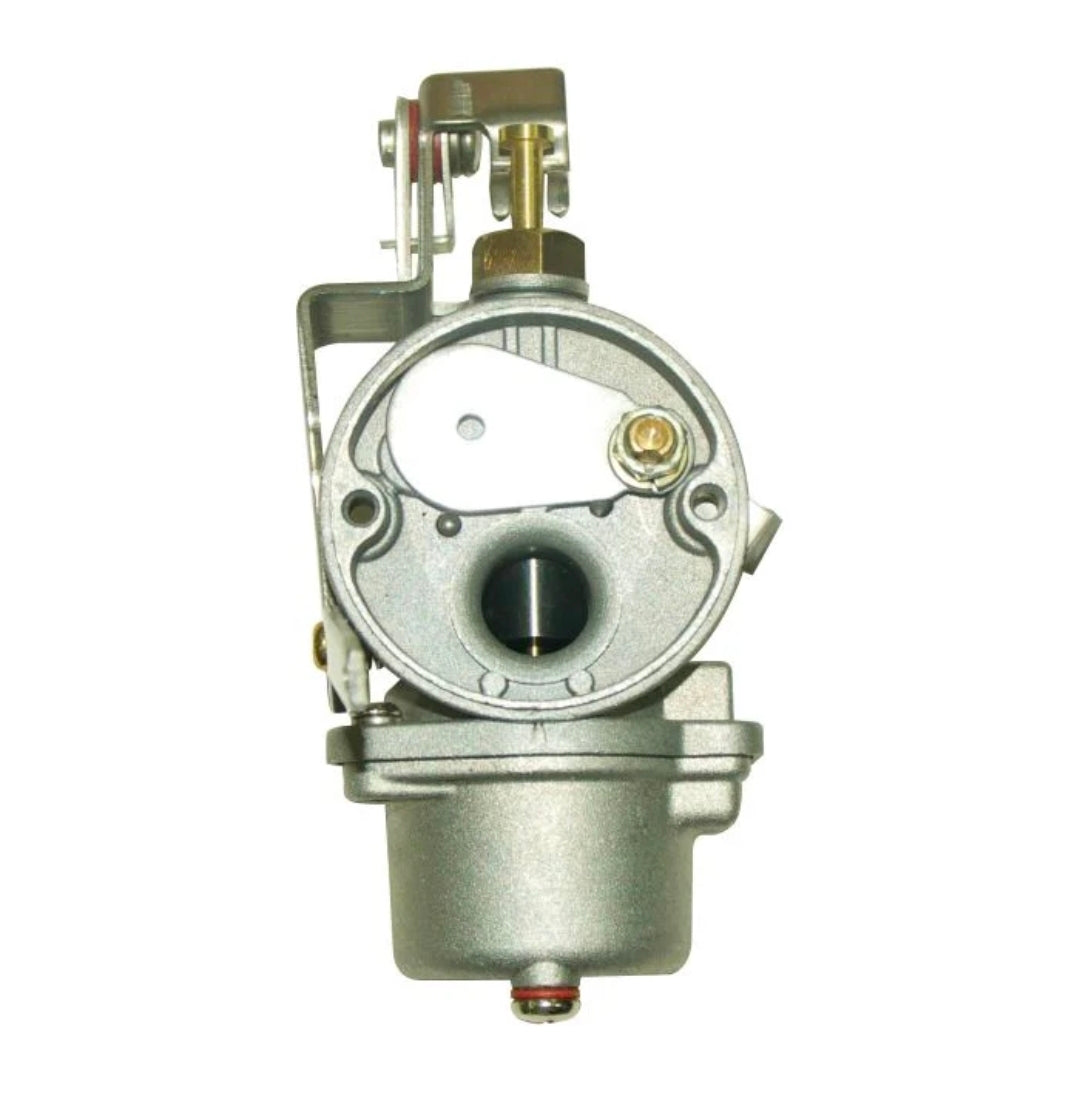

Aftermarket Mercury/Mariner/Tohatsu outboard carburettor - Replacement Part Number: 3303-8231752

A complete replacement carburettor for Mercury and Mariner 2.2HP, 2.5HP, 3HP and 3.3HP two-stroke outboards built on the related Tohatsu platform. This is an outboard carburettor rather than a MerCruiser sterndrive component. Because several calibrations exist in the 823175 family, the full original number and engine serial range must be checked.

⚙️ Key Features

• Complete carburettor for 2.2HP to 3.3HP two-stroke outboards

• Compatible with selected Mercury, Mariner and Tohatsu applications

• Cross-references to Tohatsu 3D5 and 3F0 carburettor numbers

• Restores correct starting, trolling and acceleration

• Direct replacement only where the original calibration matches

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 3303-8231752 → Supersedes 3303-815069 on applicable engines

• 8231751 and 823175 are related earlier calibration references

OEM / Related Numbers:

• 3303-8231752

• 8231752

• 3303-815069

• 8231751

• 823175

• Tohatsu 3D5-03100-2

• Tohatsu 3F0-03100-1

Aftermarket / Verified Equivalents:

• Recmar: REC3303-8231752

• Tohatsu: 3D5-03100-2

• Tohatsu: 3F0-03100-1

🚤 Compatibility

Commonly used on:

• Mercury, Mariner and Tohatsu-built portable two-stroke outboards

Typically suits:

• Engine models:

• Mercury/Mariner 2.2HP

• Mercury/Mariner 2.5HP

• Mercury/Mariner 3HP

• Mercury/Mariner 3.3HP

• HP Range: 2.2HP - 3.3HP

• Engine Type: Carburetted two-stroke, single-cylinder outboard

• Serial Reference: Selected 2.5HP engines through USA 0G574241 / Belgium 9973099

• Serial Reference: Selected 3HP engines from 0A855097 through 0G710612

🔌 Function

The carburettor creates the fuel-and-air mixture required for starting, idle and higher-speed running. Its small pilot and main passages are especially sensitive to stale fuel and contamination.

Common signs of failure:

• Engine will not start after storage

• Engine only runs with choke applied

• Unstable idle or repeated stalling

• Hesitation or weak acceleration

• Lean surging or rich, smoky running

• Fuel leakage or flooding from a sticking float valve

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
