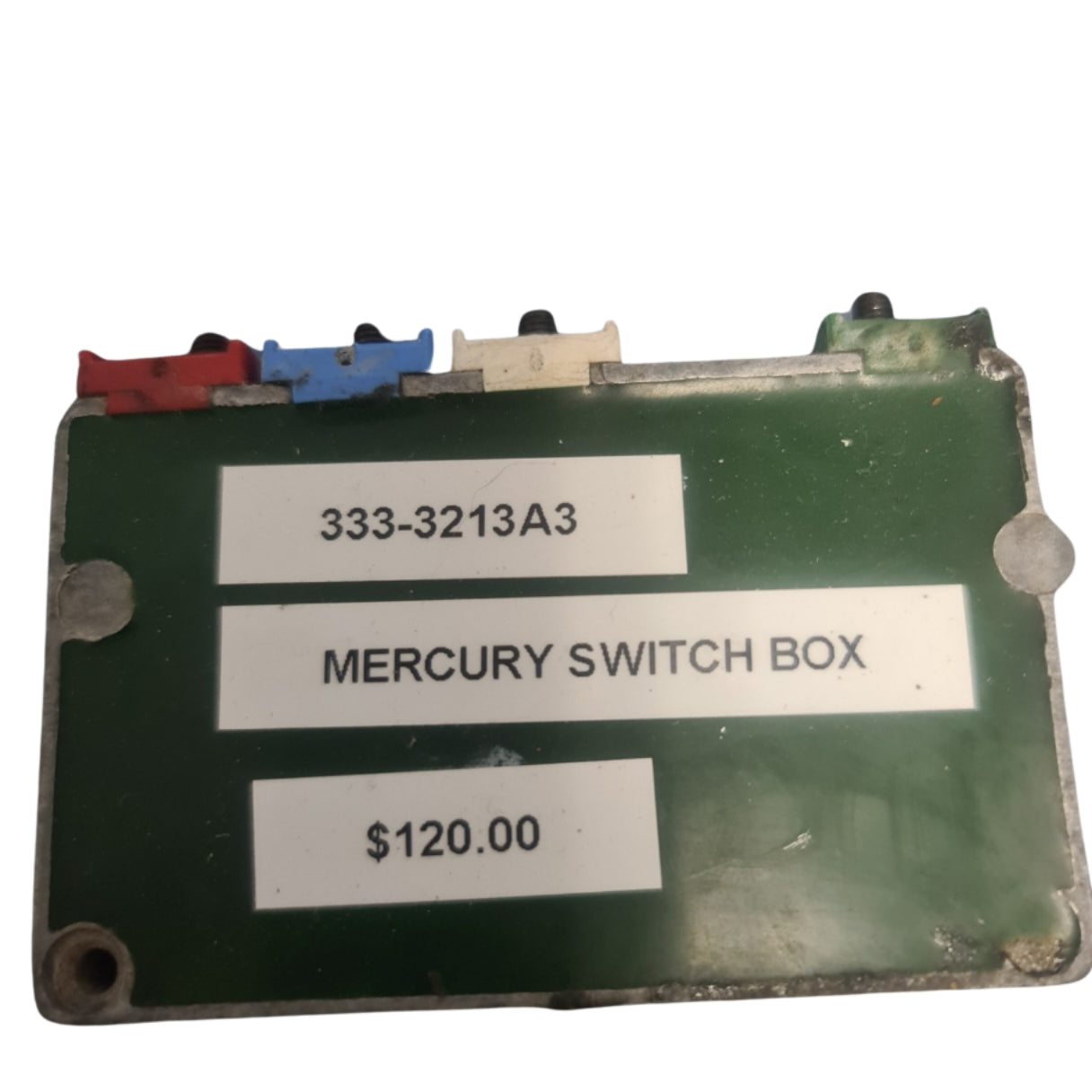

Genuine Mercury Switch Box Assembly - Part Number: 333-3213A3

A genuine Mercury ignition switch box assembly used on selected early Mercury 4-cylinder Thunderbolt ignition systems. This 4-post switch box is associated with classic Mercury 500 / 50HP and Mercury 650 / 65HP two-stroke outboards and must be matched by original switch-box number and wiring layout.

⚙️ Key Features

  • Genuine Mercury switch box assembly
  • Correct Mercury part number 333-3213A3
  • Early 4-post Thunderbolt ignition switch box
  • Used on selected Mercury 50HP and 65HP 4-cylinder two-stroke engines
  • Red / white / blue / green 4-post wiring layout must match the original unit

🚤 Compatibility

Commonly used on

  • Early Mercury 4-cylinder two-stroke Thunderbolt ignition systems

Typically suits

  • Engine models:
  • Mercury 500 / 50HP 4-cylinder - 1968-1975
  • Mercury 500 / 50HP - serial 4357640 to 5531629
  • Mercury 50HP 4-cylinder Thunderbolt ignition
  • Mercury 650 / 65HP 4-cylinder - late-1960s applications
  • Mercury 65HP 4-cylinder Thunderbolt ignition
  • HP Range: commonly 50HP - 65HP
  • Engine Type: Mercury 4-cylinder two-stroke outboard with early Thunderbolt switch-box ignition
  • Year Range: Approximately 1968 - 1975 for common 50HP / 65HP applications
  • Serial Range: Mercury 500 / 50HP parts-family range includes serial 4357640 to 5531629; 65HP applications must be checked by original serial-numbered ignition diagram and 4-post switch-box wiring.

🔌 Function

The switch box stores and releases ignition energy to the coil circuit when triggered, allowing the engine to produce spark at the correct timing point.

⚠️ Common Signs of Failure

  • No spark
  • Weak or intermittent spark
  • Engine starts then loses spark
  • No-start after trigger, coil and wiring checks
  • Spark returns when switch box is substituted
  • Internal failure caused by age, heat or vibration
  • Incorrect spark output from damaged terminals or wiring

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 333-3213A3 current Mercury switch box assembly reference
  • 333-3213 related base switch box reference
  • 3213A3 formatted Mercury switch box reference

OEM / Related Numbers

  • 333-3213A3
  • 3333213A3
  • 3213A3
  • 333-3213
  • 3333213
  • Switch box assembly
  • Ignition switch box
  • 4-post switch box
  • Red / white / blue / green terminal layout

Aftermarket / Verified Equivalents

  • Pro Marine: 19052
  • Maxrules: 19052

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
