33410-93J00 Suzuki Coil | Genuine Used Part

🔧 Product Description

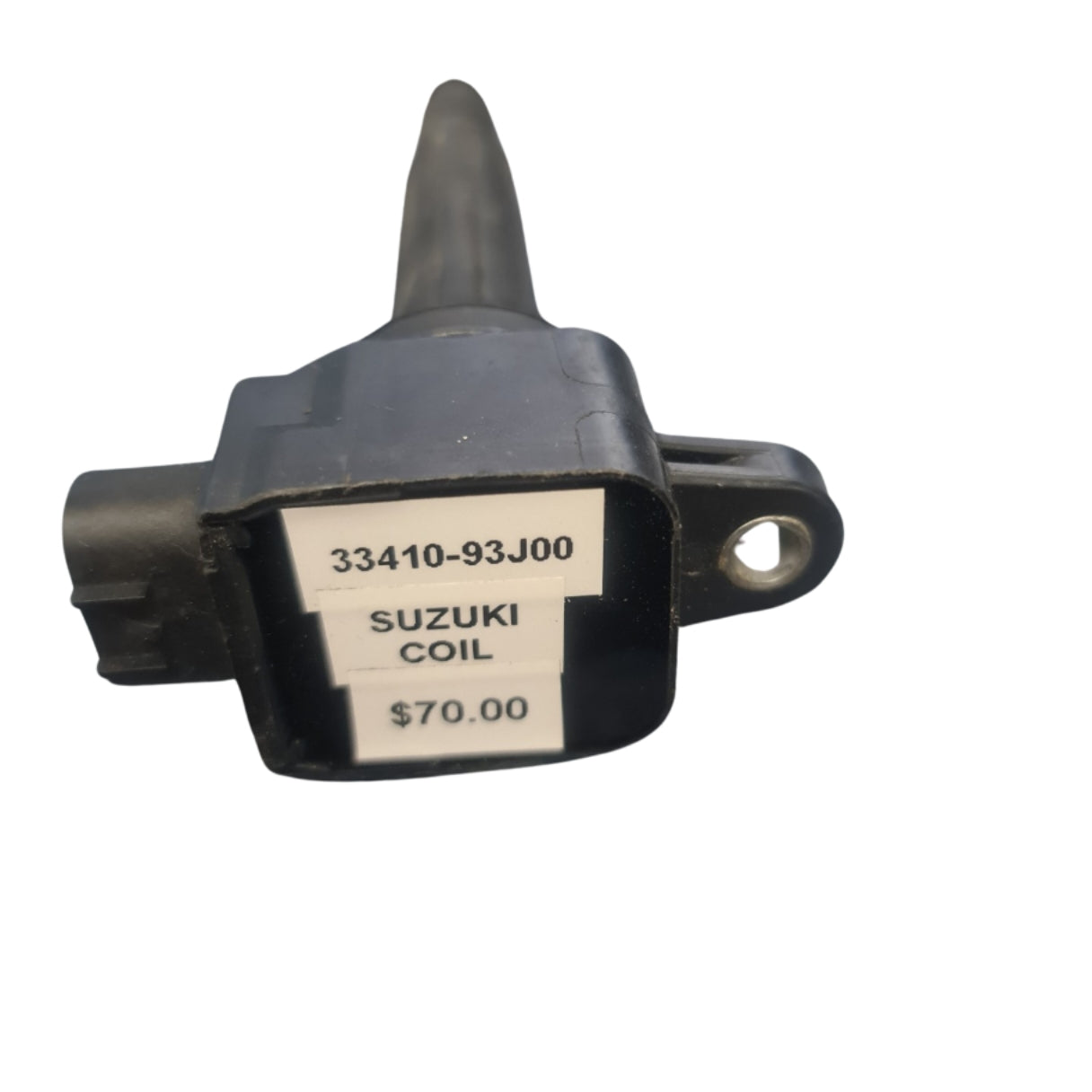

Genuine Suzuki Ignition Coil Assembly - Part Number: 33410-93J00

A genuine Suzuki ignition coil assembly used on selected Suzuki high-horsepower four-stroke outboards. This coil is commonly listed for DF150, DF175, DF200, DF225, DF250 and DF300 applications where the ignition-coil diagram specifies 33410-93J00.

⚙️ Key Features

• Genuine Suzuki ignition coil assembly

• Correct OEM part number 33410-93J00

• Related coil marking H6T11171 in replacement listings

• Used on selected Suzuki high-horsepower four-stroke EFI outboards

• Match by model code, VIN / serial, connector, coil body and ignition diagram

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 33410-93J00 Suzuki ignition coil assembly reference

• 33410-93J00-000 full Suzuki OEM ignition coil reference

OEM / Related Numbers:

• 33410-93J00

• 3341093J00

• 33410-93J00-000

• H6T11171

• Ignition coil

• Coil assembly

• Plug-top coil

• DF150 ignition coil

• DF175 ignition coil

• DF200 / DF225 / DF250 / DF300 ignition coil

Aftermarket / Verified Equivalents:

• Aftermarket replacement for 33410-93J00

• H6T11171 replacement coil reference

• DF150-DF300 aftermarket ignition coil replacement reference

🚤 Compatibility

Commonly used on:

• Suzuki high-horsepower four-stroke ignition systems

Typically suits:

• Engine models:

• Suzuki DF150 ignition applications where 33410-93J00 is specified

• Suzuki DF175 ignition applications where 33410-93J00 is specified

• Suzuki DF200 ignition applications where 33410-93J00 is specified

• Suzuki DF200T ignition applications where 33410-93J00 is specified

• Suzuki DF200Z ignition applications where 33410-93J00 is specified

• Suzuki DF225 ignition applications where 33410-93J00 is specified

• Suzuki DF250 ignition applications where 33410-93J00 is specified

• Suzuki DF300 ignition applications where 33410-93J00 is specified

• Suzuki DF200 4-stroke used-part reference applications, including 2006-2019+ listings

• Suzuki DF300 4-stroke used-part reference applications, including 2011 listings

• HP Range: commonly 150HP - 300HP where the diagram specifies 33410-93J00

• Engine Type: Suzuki high-horsepower four-stroke EFI outboard coil-on-plug ignition system

• Year Range: model and VIN / serial controlled; replacement listings commonly cover mid-2000s onward high-horsepower applications

• Serial / VIN Note: Match by exact Suzuki model code, VIN / serial, coil connector, coil marking, mounting style and original ignition-coil number before installation.

🔌 Function

The ignition coil produces high-voltage spark at the spark plug so the cylinder can fire reliably under idle, acceleration and high-load operation.

Common signs of failure:

• Misfire on one cylinder

• Hard starting

• Rough idle

• Poor acceleration

• Loss of power at higher RPM

• Engine warning or diagnostic ignition fault

• Coil body cracked, swollen or heat damaged

• Misfire follows the coil when swapped to another cylinder

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
