339-7452A3 Mercury Switch Box | Genuine Used Part

339-7452A3 Mercury Switch Box | Genuine Used Part

$90.00 AUD
$90.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

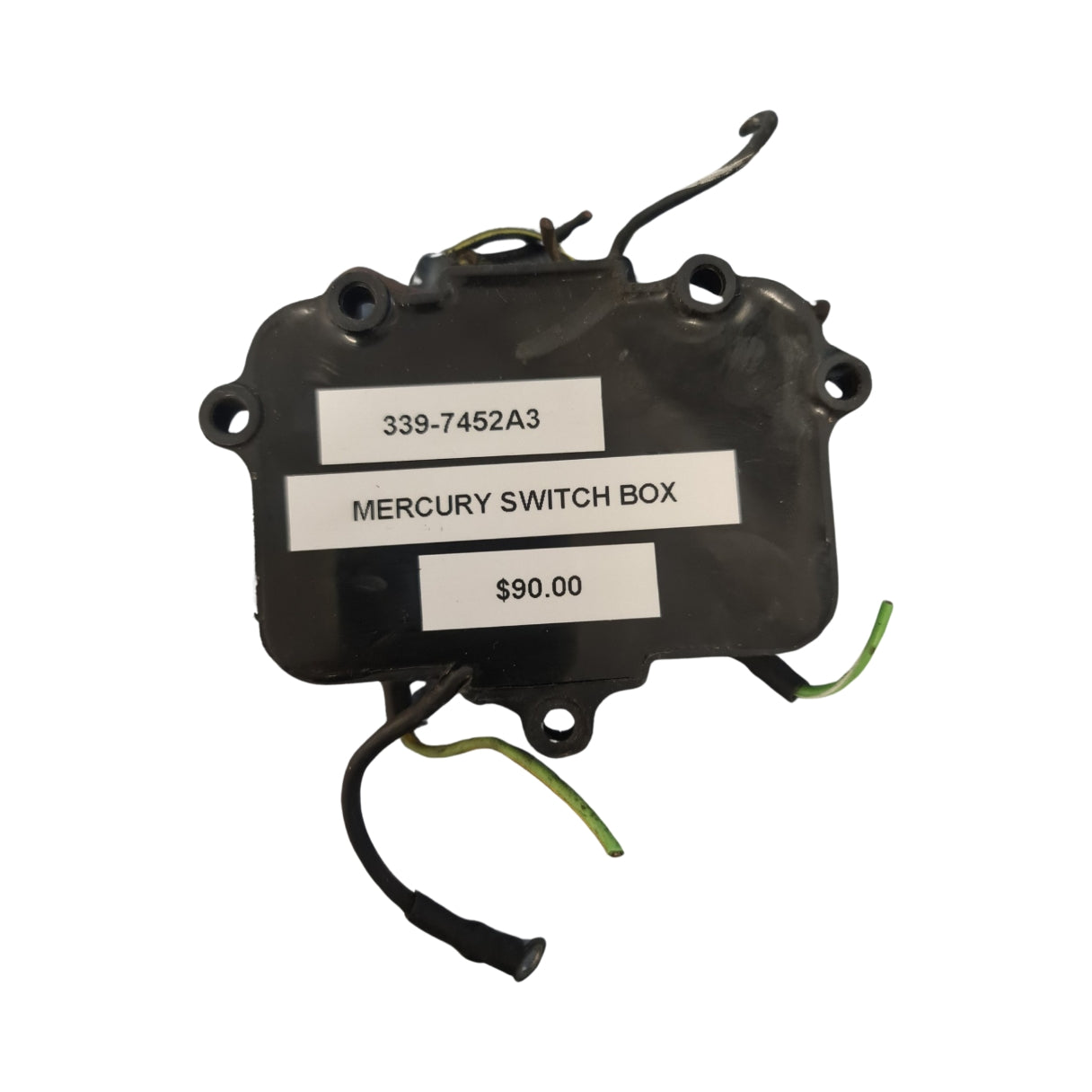

Genuine Mercury Switch Box / CDI Module - Part Number: 339-7452A3

A genuine Mercury switch box / CDI ignition module used on selected Mercury and Mariner two-cylinder two-stroke outboards. This capacitor discharge ignition pack controls spark triggering from the stator and trigger circuits to the ignition coils.

⚙️ Key Features

  • Genuine Mercury switch box / CDI module
  • Correct Mercury part number 339-7452A3
  • Used on selected 18HP, 20HP, 25HP, 35HP and 40HP two-cylinder Mercury / Mariner engines
  • Cross-references with CDI Electronics 114-7452A3
  • Also crosses with Sierra 18-5776 and Mallory 9-25101 style replacements

🚤 Compatibility

Commonly used on

  • Mercury / Mariner two-cylinder two-stroke CDI ignition systems

Typically suits

  • Engine models:
  • Mercury 18HP 2-cylinder two-stroke - 1980-1987
  • Mercury 20HP 2-cylinder two-stroke - 1980-1987
  • Mercury 25HP 2-cylinder two-stroke - 1980-1987
  • Mercury 35HP 2-cylinder two-stroke - 1980-1987
  • Mercury 40HP 2-cylinder two-stroke - 1980-1987
  • Mariner 18HP 2-cylinder two-stroke - 1980-1987
  • Mariner 20HP 2-cylinder two-stroke - 1980-1987
  • Mariner 25HP 2-cylinder two-stroke - 1980-1987
  • Mariner 35HP 2-cylinder two-stroke - 1980-1987
  • Mariner 40HP 2-cylinder two-stroke - 1980-1987
  • HP Range: 18HP - 40HP
  • Engine Type: Mercury / Mariner two-cylinder two-stroke outboard CDI ignition system
  • Year Range: approximately 1980 - 1987
  • Serial Note: Match by exact Mercury / Mariner serial number, original switch-box number, wiring colours, connector style and ignition-system diagram before installation.

🔌 Function

The switch box receives stator and trigger inputs, stores ignition energy and fires the ignition coils at the correct timing point.

⚠️ Common Signs of Failure

  • No spark on one or both cylinders
  • Weak or intermittent spark
  • Engine starts then loses spark
  • Misfire under load
  • Heat-related ignition failure
  • Kill circuit or stop wire fault damaging the module
  • Spark returns when a known-good switch box is fitted
  • Burnt, cracked or corroded switch-box terminals

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 339-7452A3 Mercury switch box reference
  • 339-7452A2 earlier related Mercury switch box reference
  • 339-7452A1 earlier related Mercury switch box reference

OEM / Related Numbers

  • 339-7452A3
  • 3397452A3
  • 7452A3
  • 339-7452A2
  • 3397452A2
  • 7452A2
  • 339-7452A1
  • 3397452A1
  • 7452A1
  • 899883230
  • Switch box
  • CDI module
  • Capacitor discharge ignition pack
  • Ignition switch box

Aftermarket / Verified Equivalents

  • CDI Electronics: 114-7452A3
  • Sierra: 18-5776
  • Mallory: 9-25101

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
