33920-88L70 33920-88L01 Suzuki DF60A ECU | Genuine Used Part

33920-88L70 33920-88L01 Suzuki DF60A ECU | Genuine Used Part

$1,100.00 AUD
$1,100.00 AUD
Sale Sold out
Shipping calculated at checkout.

Out of stock

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

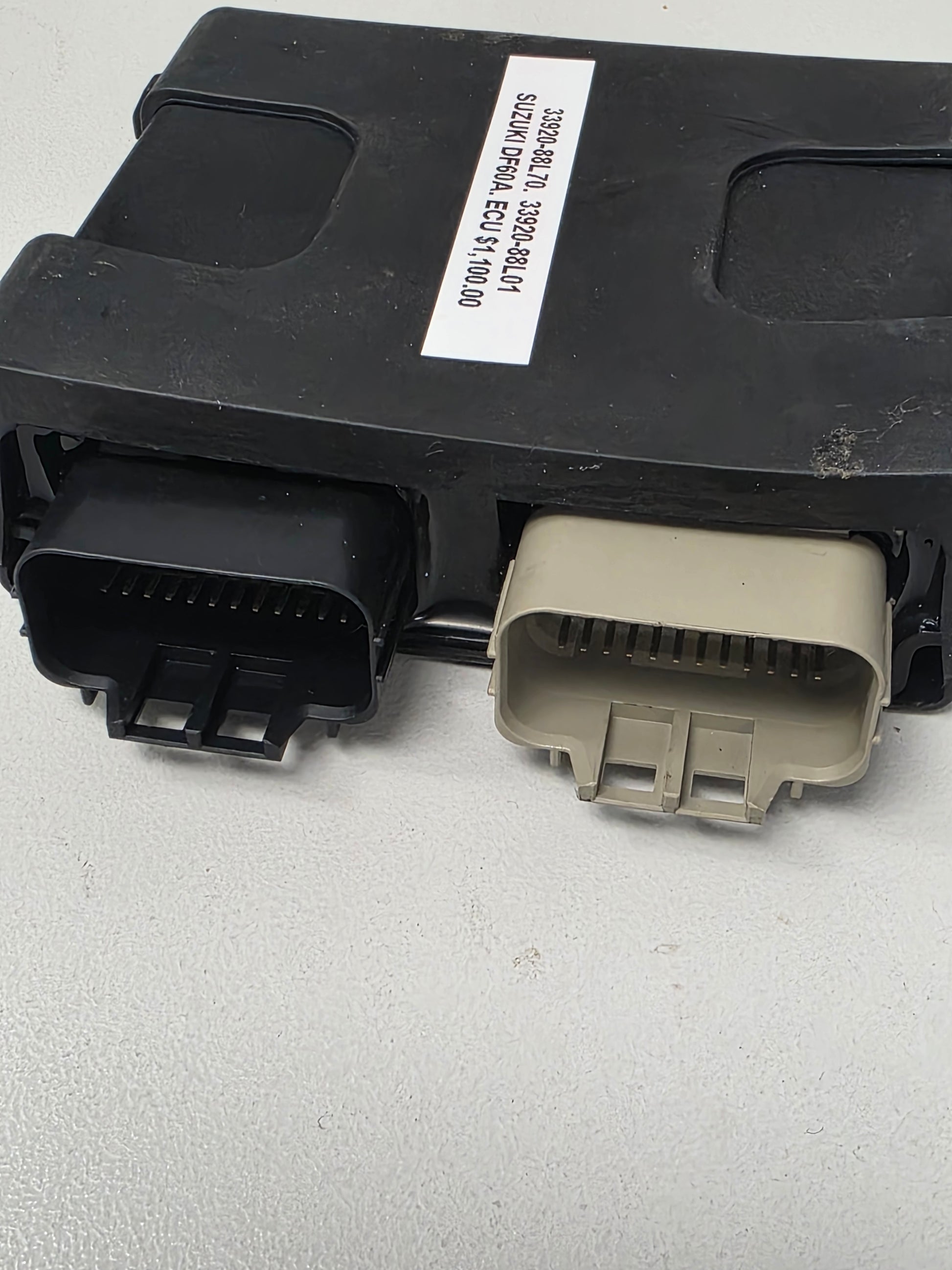

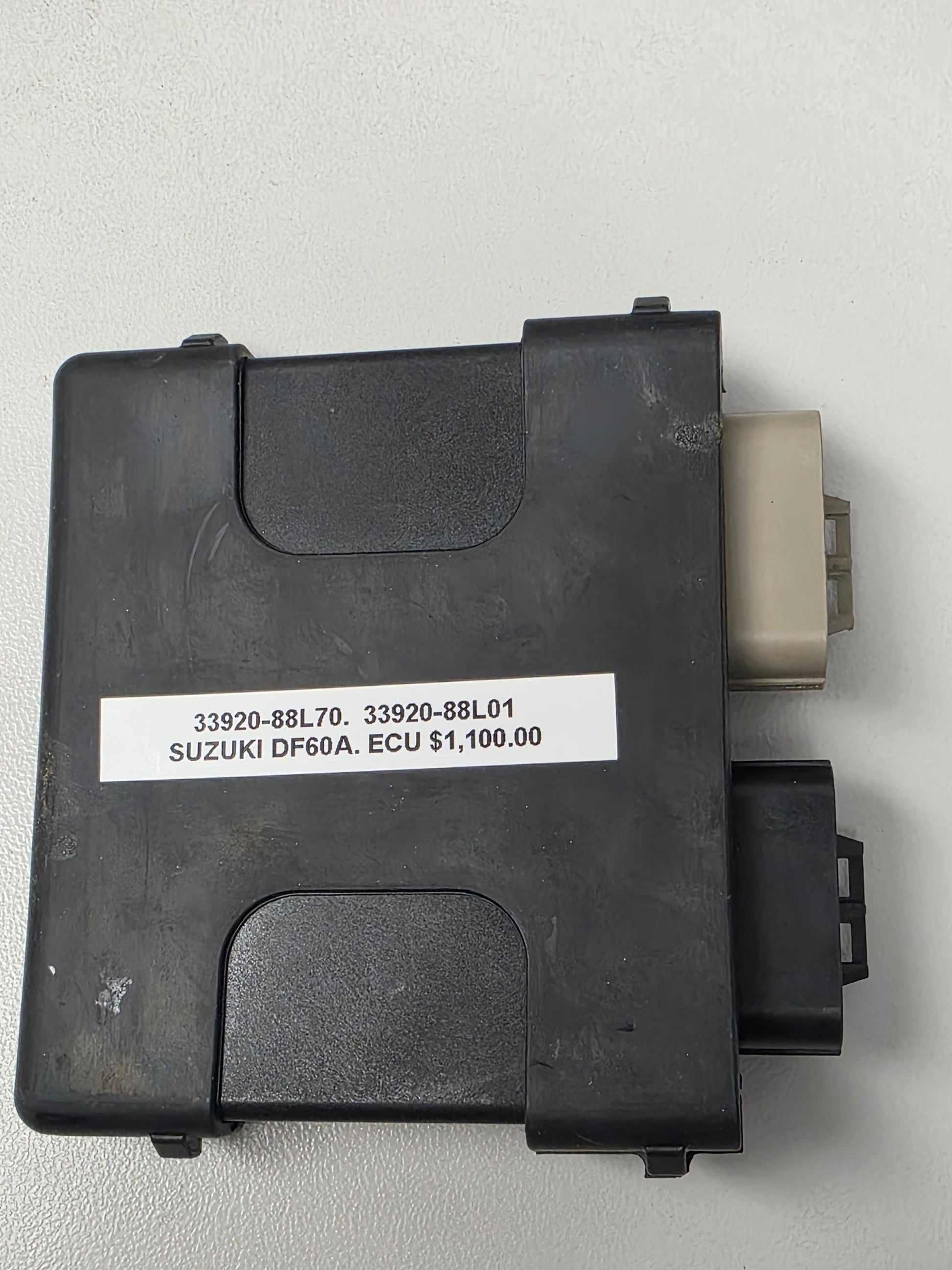

Genuine Suzuki DF60A ECU / Engine Control Unit - Part Number: 33920-88L70

A genuine Suzuki engine control unit for DF60A four-stroke EFI outboards. This ECU manages fuel injection, ignition timing, sensor input, warning strategy and engine-protection operation on compatible 60HP Suzuki applications using the 33920-88L70 / 33920-88L01 control-unit family.

⚙️ Key Features

  • Genuine Suzuki ECU / engine control module
  • Correct current Suzuki reference 33920-88L70
  • Cross-referenced with earlier Suzuki ECU reference 33920-88L01
  • Used on DF60A EFI four-stroke 60HP outboards where the parts catalogue specifies this unit
  • Must be matched by exact model, serial number, connector style and ECU calibration before fitting

🚤 Compatibility

Commonly used on

  • Suzuki DF60A EFI four-stroke engine-control systems

Typically suits

  • Engine models:
  • Suzuki DF60A from serial 06002F-210001, E01 / E40 market code, 2012 model-year engine-control-unit applications
  • Suzuki DF60A from serial 06002F-210001, E03 market code, 2012 model-year engine-control-unit applications
  • Suzuki DF60AQH E01 PTT switch / engine-control-unit diagram applications using 33920-88L70
  • Suzuki DF60ATH E01 PTT switch / engine-control-unit diagram applications using 33920-88L70
  • Suzuki DF60A E01 / E03 / E40 catalogue applications where ECU 33920-88L70 is specified
  • HP Range: 60HP
  • Engine Type: Suzuki DF60A EFI four-stroke outboard
  • Year Range: approximately 2012 catalogue applications for the listed serial family
  • Serial Range: from 06002F-210001 where the serial-numbered parts list specifies 33920-88L70

🔌 Function

The ECU receives crank, throttle, temperature, pressure and other sensor signals, then controls injector pulse, ignition timing, idle operation, warning output and engine-protection strategy.

⚠️ Common Signs of Failure

  • No-start with verified ECU power, grounds, fuel pressure and ignition inputs
  • No injector pulse or unstable injector command
  • No diagnostic communication
  • Intermittent stalling or limp-mode activation
  • Persistent ECU or sensor fault codes after harness checks
  • Rough idle, rich running or lean running after mechanical testing
  • Water ingress, corrosion or voltage damage at ECU connectors

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 33920-88L70 current Suzuki service reference
  • 33920-88L01 earlier Suzuki ECU reference superseded to 33920-88L70

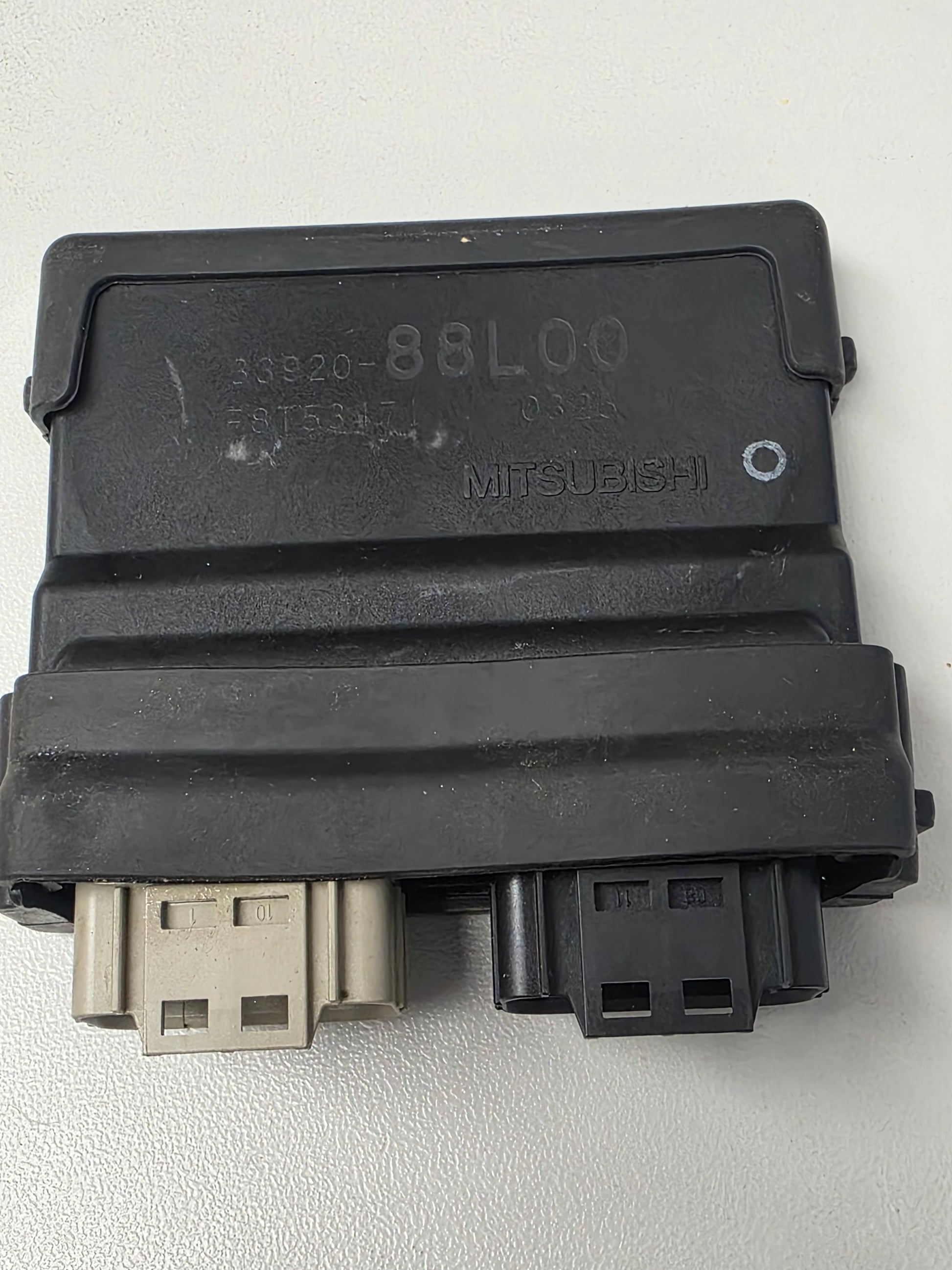

  • 33920-88L60 related DF60A ECU calibration reference

OEM / Related Numbers

  • 33920-88L70
  • 33920-88L70-000
  • 3392088L70
  • 33920-88L01
  • 33920-88L01-000
  • 3392088L01
  • 33920-88L60
  • Related ECU cushion reference: 33925-88L00
  • Related DF60A electrical control-unit family

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
