33920-90J94 Suzuki ECU | Genuine Used Part

🔧 Product Description

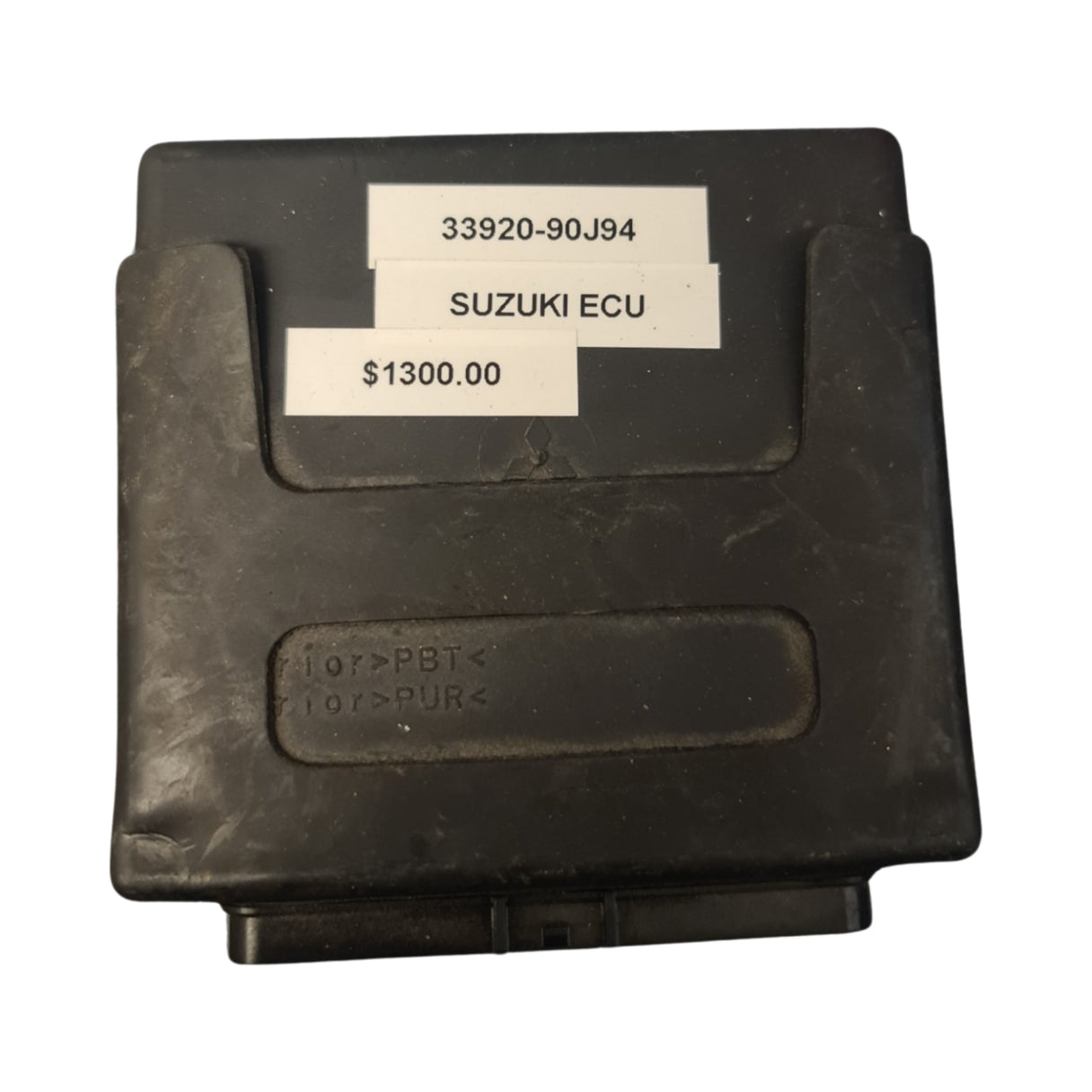

Genuine Suzuki Engine Control Unit - Part Number: 33920-90J94

A genuine Suzuki outboard engine control unit used in selected DF90 four-stroke EFI applications. This ECU controls fuel injection, ignition timing, sensor monitoring, diagnostic output and engine-protection strategy on compatible Suzuki EFI outboards requiring the 33920-90J94 module.

⚙️ Key Features

• Genuine Suzuki engine control unit

• Correct Suzuki part number 33920-90J94

• Supersedes earlier 33920-90J00 DF90 ECU reference

• Used in Suzuki four-stroke EFI engine-management systems

• Requires exact engine model, serial and ECU label confirmation before installation

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 33920-90J94 → Supersedes 33920-90J00

• 33920-90J00 earlier DF90 ECU reference

OEM / Related Numbers:

• 33920-90J94

• 33920-90J94-000

• 33920-90J94-0000

• 3392090J94

• 33920-90J00

• 33920-90J00-000

• Related DF90 model-code ECU reference: 33920-90J20

• Related later DF90 model-code ECU reference: 33920-90J84

• Related DF115 ECU family reference: 33920-90J10

• Related DF115 later ECU family reference: 33920-90JB4

• Related ECU cushion reference: 33925-87J00

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Suzuki DF90 four-stroke EFI engine-control systems

Typically suits:

• Engine models:

• Suzuki DF90 2001-2008 engine-control applications using 33920-90J94

• Suzuki DF90 MODEL:01~03 PTT switch / engine-control-unit diagram position using 33920-90J94

• Suzuki DF90 applications originally using 33920-90J00 where superseded to 33920-90J94

• Suzuki DF90 / DF100 / DF115 engine-control-unit family diagrams where the exact serial-numbered parts list specifies 33920-90J94

• HP Range: primarily 90HP for 33920-90J94 DF90 calibration

• Engine Type: Suzuki four-stroke EFI outboard

• Year Range: approximately 2001 - 2008 for DF90 applications using this ECU family

• Fitment Note: This ECU must be matched by exact model code, engine serial number, ECU label and calibration. DF100 / DF115 engines use separate ECU numbers unless the serial-numbered catalogue specifically calls for 33920-90J94.

🔌 Function

The ECU manages EFI engine operation by receiving crank, throttle, temperature, pressure and sensor inputs, then controlling injector pulse, ignition timing, idle strategy, warning functions and diagnostic fault output.

Common signs of failure:

• No-start with verified fuel pressure, spark inputs and ECU power supply

• No injector pulse or unstable injector command

• No diagnostic communication

• Intermittent stalling or limp-mode activation

• Persistent sensor or ECU fault codes after wiring checks

• Rich, lean or rough running caused by ECU output failure

• Corrosion, water ingress or voltage damage at ECU connectors

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
