• 33920-92J54 Suzuki 140HP ECU 5033924 Johnson ECU | Genuine Used Part
1 1

33920-92J54 Suzuki 140HP ECU 5033924 Johnson ECU | Genuine Used Part

33920-92J54 Suzuki 140HP ECU 5033924 Johnson ECU | Genuine Used Part

$1,200.00 AUD
$1,200.00 AUD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

✓ Authorised Volvo Penta Dealer · Genuine used marine parts · Ships Australia-wide

🔧 Product Description

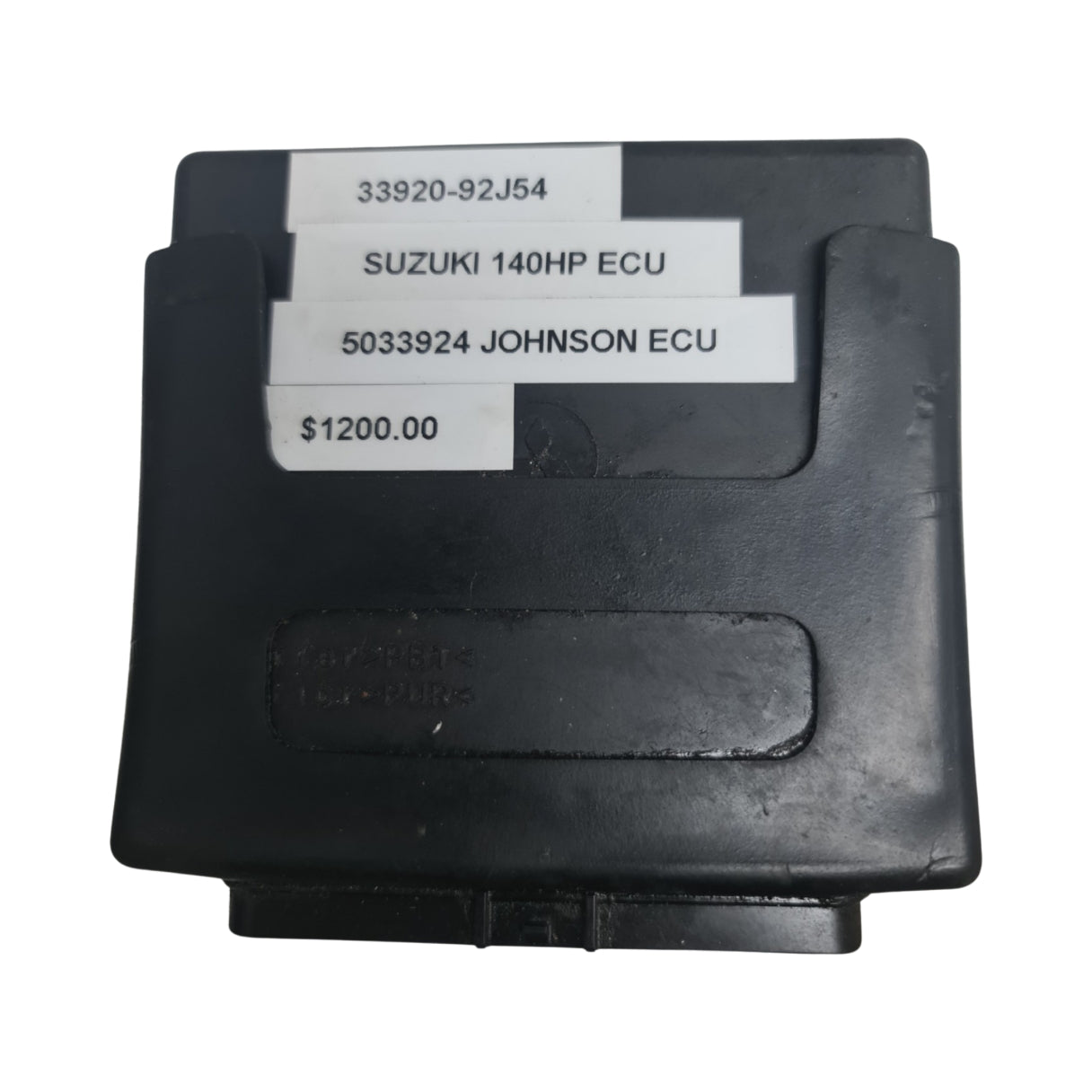

Genuine Suzuki / Johnson 140HP Engine Control Unit - Part Numbers: 33920-92J54 and 5033924

A genuine Suzuki-built engine control unit used on selected Suzuki DF140 and Johnson 140HP four-stroke outboard applications. This ECU manages fuel injection, ignition timing, sensor input, diagnostics and engine-protection functions on compatible 140HP EFI four-stroke engines.

⚙️ Key Features

  • Genuine Suzuki / Johnson engine control unit
  • Suzuki part number 33920-92J54
  • Johnson / BRP reference 5033924
  • Used on Suzuki DF140 and Suzuki-built Johnson 140HP four-stroke applications
  • Exact engine model, serial number and ECU label must be confirmed before installation

🚤 Compatibility

Commonly used on

  • Suzuki DF140 four-stroke EFI outboard engine-control systems
  • Johnson 140HP four-stroke Suzuki-built outboard engine-control systems

Typically suits

  • Engine models:
  • Suzuki DF140 2003 140HP EFI applications using 33920-92J54
  • Suzuki DF140TL applications using 33920-92J54
  • Suzuki DF140TX applications using 33920-92J54
  • Suzuki DF140WT / DF140WZ MODEL:05~07 applications where 33920-92J52 supersedes to 33920-92J54
  • Suzuki DF140WT / DF140WZ MODEL:08~ applications using 33920-92J54
  • Johnson 140HP four-stroke outboard applications using ECU 5033924
  • Johnson / Evinrude 140HP Suzuki-built four-stroke applications using related ECU reference 5034605
  • HP Range: 140HP
  • Engine Type: Suzuki-built 2.0L class inline four-cylinder EFI four-stroke outboard
  • Year Range: approximately 2003 - 2011 depending on exact Suzuki or Johnson model code
  • Fitment Note: Johnson 5033924 / 5034605 applications must be matched by BRP model number and the Suzuki ECU label before installation.

🔌 Function

The ECU controls electronic fuel injection, ignition timing, idle control, sensor monitoring, warning functions, diagnostic output and engine-protection strategy.

⚠️ Common Signs of Failure

  • No-start with verified fuel, ignition inputs and ECU power supply
  • No injector pulse or intermittent injector command
  • No diagnostic communication
  • Engine cutting out or entering limp mode
  • Persistent ECU, sensor or ignition fault codes after harness testing
  • Rough running, rich condition or lean condition after mechanical checks
  • Corrosion, heat damage or water ingress at ECU connector or case

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 33920-92J54 → Supersedes 33920-92J52 in listed DF140 applications
  • 33920-92J52 earlier DF140 ECU reference

OEM / Related Numbers

  • 33920-92J54
  • 33920-92J54-000
  • 33920-92J54-0000
  • 3392092J54
  • 33920-92J52
  • 5033924
  • 5034605 related / later Johnson ECU reference
  • Related ECU cushion reference: 33925-87J00
  • Related wiring harness assembly reference used in Johnson / Suzuki ECU service sets

Aftermarket / Verified Equivalents

  • No aftermarket equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine where applicable
  • In good working condition unless otherwise stated
