34100-98J11 Suzuki Speedo | Genuine Used Part

🔧 Product Description

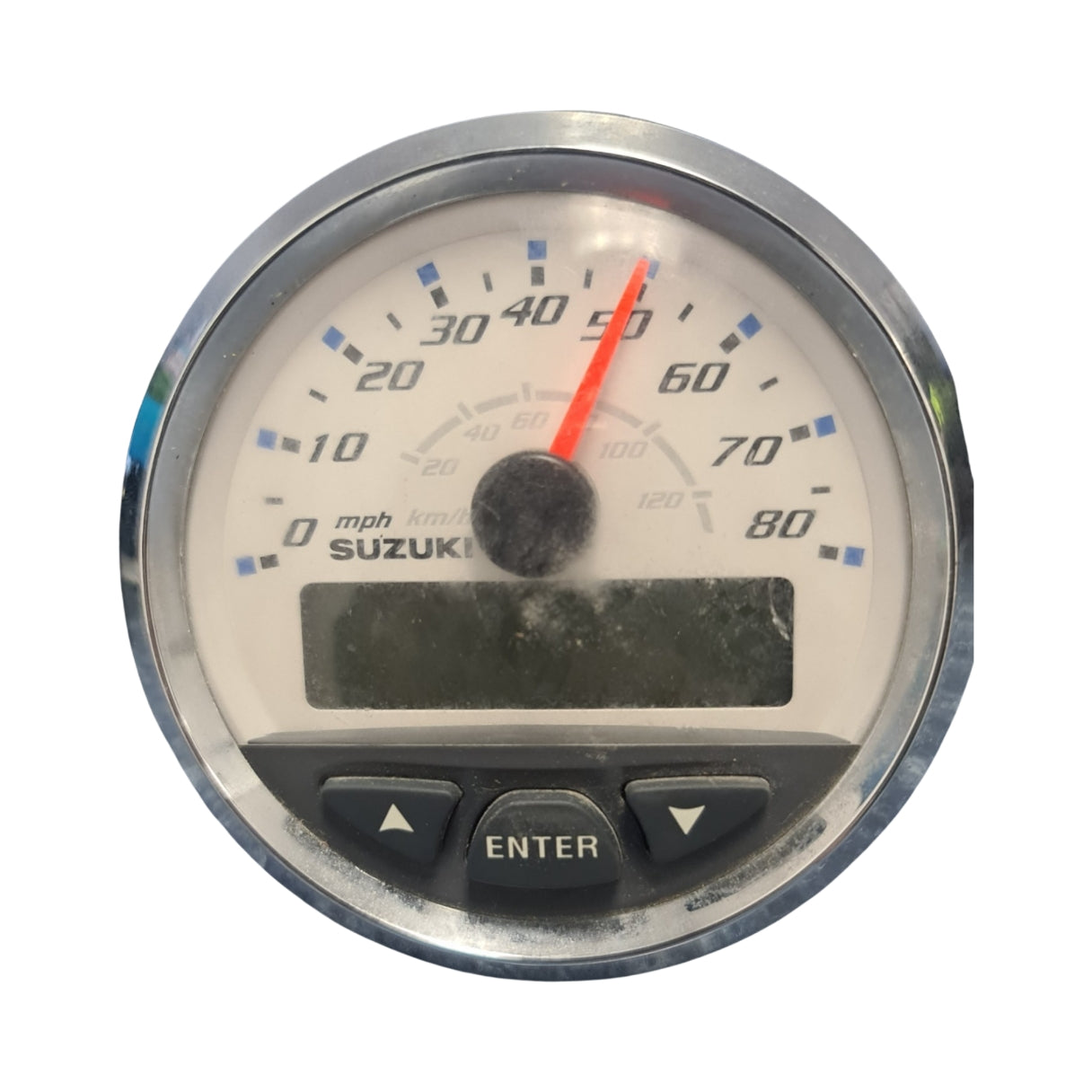

Genuine Suzuki White Precision-Control Speedometer - Part Number: 34100-98J11

A genuine used Suzuki white 4-inch electronic speedometer calibrated to a maximum of 130 KM/H, approximately 80 MPH.

This 98J-series instrument belongs to Suzuki's precision-control or digital gauge family. Unlike the 93J-series mechanical pitot gauge, speed information can be supplied through the Suzuki gauge network from a compatible NMEA 2000 speed transducer or GPS receiver.

⚙️ Key Features

• Genuine Suzuki Marine electronic speedometer
• Correct part number 34100-98J11
• White face
• Maximum scale 130 KM/H / approximately 80 MPH
• Designed for Suzuki digital or precision-control gauge systems

🚤 Compatibility

Commonly used on

• Suzuki DF-series digital-gauge installations
• Suzuki Precision Control gauge systems
• Suzuki active-hub or NMEA 2000 instrumentation networks
• Single- and multi-engine installations using compatible harnesses

Typically suits

• Selected Suzuki DF40 through DF300 four-stroke applications
• Common model years: approximately 2008-2014
• Dial Range: 0-130 KM/H / approximately 0-80 MPH
• Speed Source: NMEA 2000 GPS or compatible speed transducer
• Gauge Colour: White
• Installation must be matched to the original Suzuki gauge harness and network

🔌 Function

The instrument displays boat speed received from a compatible digital speed source and may integrate with the Suzuki precision-control instrumentation network.

⚠️ Common Signs of Failure

• Gauge powers up but shows no speed
• NMEA 2000 speed source is missing
• Network power or active hub has failed
• Display or pointer is intermittent
• Backlighting does not operate
• Incorrect network configuration or damaged harness

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34100-98J11 later white 130 KM/H speedometer reference
• 34100-98J10 / 34100-98J12 related production revisions may appear on earlier instruments
• No direct current replacement has been confirmed

OEM / Related Numbers

• Suzuki: 34100-98J11
• Suzuki: 3410098J11
• Suzuki: 34100-98J01 black 130 KM/H version
• Suzuki: 34100-98J21 black 80 KM/H version
• Suzuki: 34100-98J31 white 80 KM/H version
• Suzuki: 34100-98J41 white 60-knot version
• Suzuki: 34200-98J13 matching white electronic tachometer
• Suzuki: 34300-98J10 matching white fuel gauge
• Suzuki: 34112-98J00 related mounting nut
• Suzuki active-hub, power and gauge harnesses may be required

Aftermarket / Verified Equivalents

• No direct drop-in aftermarket equivalent verified
• Suzuki SMIS / NMEA 2000 multifunction display may replace the speed-display function with the correct network
• Lowrance or compatible NMEA 2000 displays may provide speed information but are not physical plug-in gauge replacements
• Gauge-network compatibility and speed-source input must be confirmed

📦 Condition

• Genuine used part
• Removed from running vessel where applicable
• In good working condition unless otherwise stated
