34200-98J13 Suzuki Tacho | Genuine Used Part

🔧 Product Description

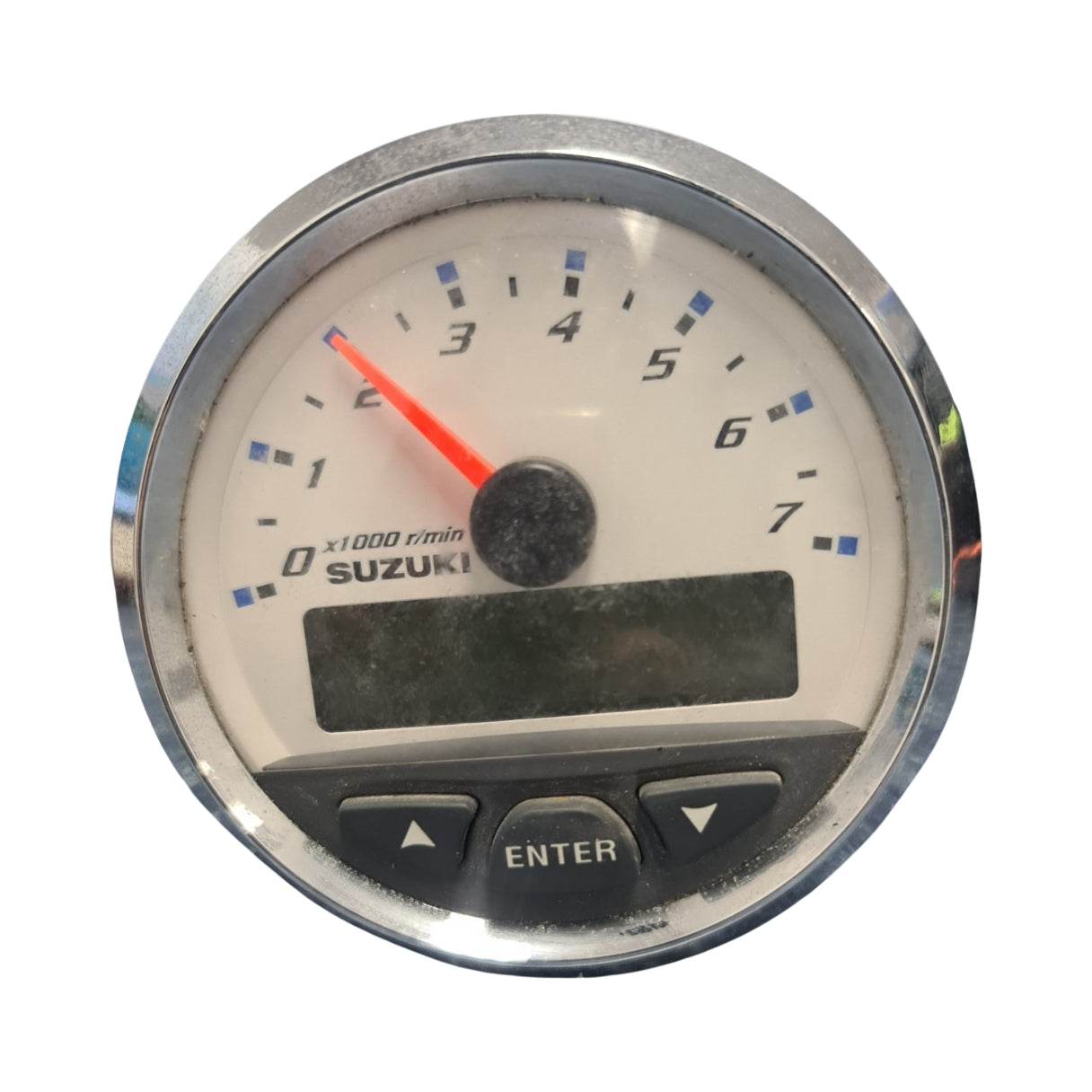

Genuine Suzuki White Electronic Tachometer - Correct Part Number: 34200-98J13

A genuine used Suzuki white 4-inch electronic tachometer for Suzuki DF-series four-stroke outboards.

Earlier listings used 34100-98J13, which is not a verified Suzuki tachometer number. Suzuki catalogues identify the white tachometer as 34200-98J13. The gauge is part of the 98J precision-control instrument family and works with the correct Suzuki digital gauge harness or network.

⚙️ Key Features

• Genuine Suzuki Marine electronic tachometer
• Correct OEM part number 34200-98J13
• Listing reference 34100-98J13 is a catalogue-number error
• White face
• Used with Suzuki precision-control and digital instrumentation systems

🚤 Compatibility

Commonly used on

• Suzuki DF-series four-stroke outboards
• Suzuki Precision Control digital gauge installations
• Suzuki active-hub / NMEA 2000 instrumentation systems
• White-face 98J instrument packages

Typically suits

• Suzuki DF40 / DF50
• Suzuki DF60 / DF70
• Suzuki DF70A / DF80A / DF90A
• Suzuki DF100 / DF115 / DF140
• Suzuki DF150 / DF175 / DF200
• Suzuki DF225 / DF250 / DF300
• Common application period: approximately 2008-2014
• Exact fitment depends on the gauge harness, active hub and engine interface

🔌 Function

The tachometer displays engine RPM and may receive additional engine information through the Suzuki digital instrument network.

⚠️ Common Signs of Failure

• Gauge powers up but shows no RPM
• Incorrect engine-interface or network connection
• Active hub has no power
• Pointer or display is intermittent
• Backlight failure
• Corroded network or gauge connector

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34200-98J13 later white tachometer reference
• 34200-98J12 earlier white production reference
• No direct current supersession verified

OEM / Related Numbers

• Suzuki: 34200-98J13
• Suzuki: 3420098J13
• Suzuki: 34200-98J12
• Incorrect earlier reference: 34100-98J13
• Suzuki: 34200-98J03 black electronic tachometer
• Suzuki: 34200-98J02 earlier black electronic tachometer
• Suzuki: 34100-98J11 matching white speedometer
• Suzuki: 34300-98J10 matching white fuel gauge
• Suzuki active-hub and gauge harness components may be required

Aftermarket / Verified Equivalents

• No direct physical aftermarket replacement verified
• Suzuki SMIS multifunction gauge can provide tachometer and engine-data functions with the correct interface
• Compatible NMEA 2000 displays may show engine RPM but are not direct dash-gauge replacements
• Original harness, network, software generation and engine interface must be matched

📦 Condition

• Genuine used part
• Removed from running vessel where applicable
• In good working condition unless otherwise stated
