34200-93J02 Suzuki Multifunction Tacho | Genuine Used Part

🔧 Product Description

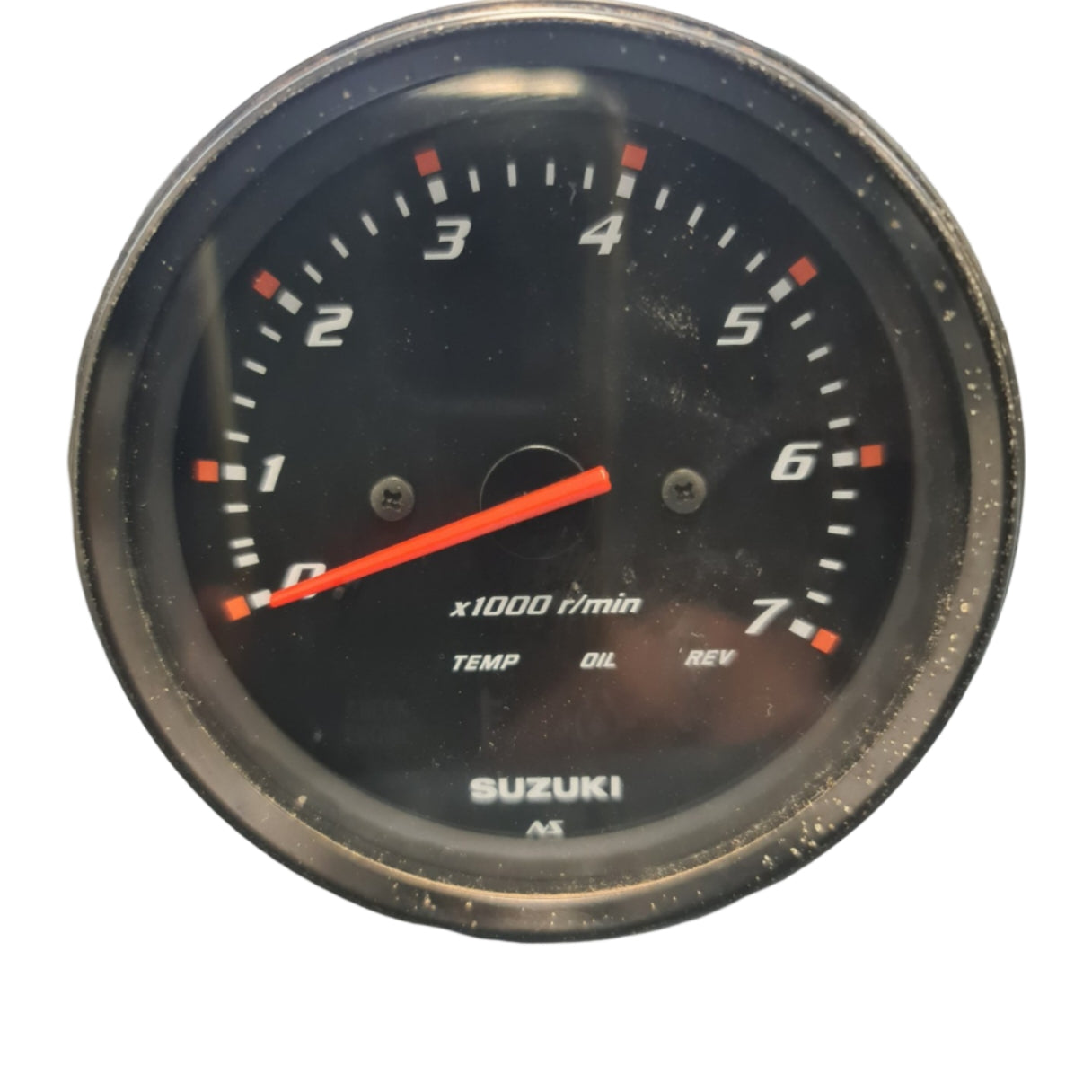

Genuine Suzuki Black Multifunction Tachometer with Monitor - Part Number: 34200-93J02

A genuine used Suzuki 4-inch black-face tachometer with integrated four-stroke engine warning lamps.

The gauge reads up to 7000 RPM and includes monitor functions for low oil pressure, engine temperature, check engine and over-rev conditions. It is intended for analogue-harness-compatible electric-start Suzuki four-stroke outboards.

⚙️ Key Features

• Genuine Suzuki Marine multifunction tachometer
• Correct part number 34200-93J02
• Black face
• 0-7000 RPM scale
• Integrated low-oil, temperature, check-engine and over-rev warning lamps

🚤 Compatibility

Commonly used on

• Suzuki electric-start four-stroke outboards
• Mechanical-control and analogue-instrument Suzuki rigging
• Single- and twin-engine panels using the matching monitor harness

Typically suits

• Suzuki DF25 / DF30 where specified
• Suzuki DF40 / DF50 / DF60
• Suzuki DF70 / DF80 / DF90
• Suzuki DF100 / DF115 / DF140
• Suzuki DF150 / DF175 / DF200
• Selected DF225 / DF250 / DF300 analogue-harness installations
• Exact fitment depends on engine year, pulse setting and warning-harness connectors

🔌 Function

The gauge displays engine speed and provides visual warning indicators for key Suzuki four-stroke protection systems.

⚠️ Common Signs of Failure

• Incorrect RPM due to wrong pole or pulse setting
• No RPM signal
• Warning lamps remain on or do not test
• Gauge lighting fails
• Harness plug is corroded
• Intermittent needle movement

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34200-93J02 later black monitor-tachometer reference
• 34200-93J00 earlier related black monitor tachometer

OEM / Related Numbers

• Suzuki: 34200-93J02
• Suzuki: 3420093J02
• Suzuki: 34200-93J00
• Suzuki: 34200-93J14 white-face monitor version
• Suzuki: 34200-93J22 black tachometer without monitor functions
• Suzuki: 34200-93J34 white tachometer without monitor functions
• Suzuki: 34200-93J43 later black troll-mode tachometer
• Suzuki: 34200-93J54 later white troll-mode tachometer
• Compatible Suzuki tachometer and monitor harnesses are required

Aftermarket / Verified Equivalents

• Generic OEM-style replacement tachometers are sold under 34200-93J02
• No established branded direct equivalent verified
• Suzuki 34200-93J14 is the white cosmetic equivalent
• Faria or Veethree tachometers can replace RPM indication only and normally do not reproduce Suzuki warning-lamp functions

📦 Condition

• Genuine used part
• Removed from running vessel where applicable
• In good working condition unless otherwise stated
