34200-93J14 Suzuki Multifunction Tacho | Genuine Used Part

🔧 Product Description

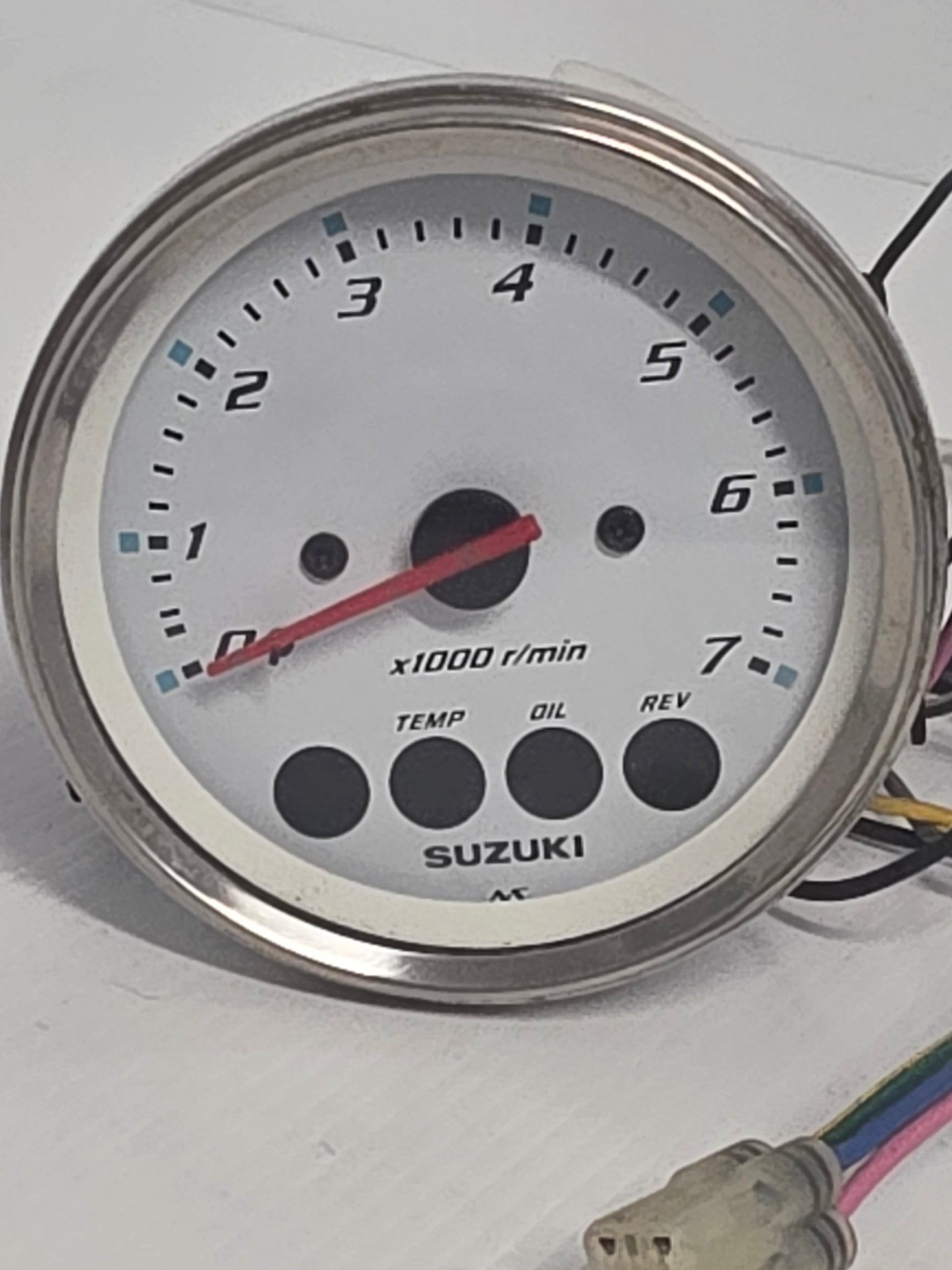

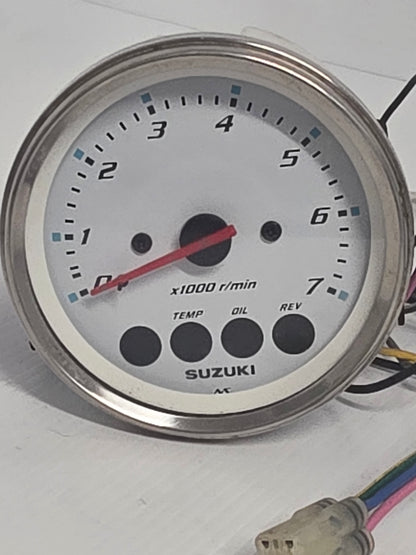

Genuine Suzuki White Multifunction Tachometer with Monitor - Part Number: 34200-93J14

A genuine used Suzuki 4-inch white-face tachometer with integrated four-stroke warning functions.

The instrument has a 0-7000 RPM scale and monitor lamps for low oil pressure, engine temperature, check engine and over-rev. It is the white-face counterpart to black gauge 34200-93J02.

⚙️ Key Features

• Genuine Suzuki Marine multifunction tachometer
• Correct part number 34200-93J14
• White face
• 0-7000 RPM scale
• Four integrated engine-warning monitor functions

🚤 Compatibility

Commonly used on

• Electric-start Suzuki four-stroke outboards
• White-face analogue Suzuki instrument packages
• Mechanical-control Suzuki rigging systems
• Single- and multi-engine dashboards

Typically suits

• Suzuki DF25 / DF30 where specified
• Suzuki DF40 / DF50 / DF60
• Suzuki DF70 / DF80 / DF90
• Suzuki DF100 / DF115 / DF140
• Suzuki DF150 / DF175 / DF200
• Selected larger DF engines using analogue monitor wiring
• Verify engine year, tach pulse selection and harness plug before installation

🔌 Function

The tachometer shows engine speed and provides warning lights for low oil pressure, overheating, engine fault and over-rev protection.

⚠️ Common Signs of Failure

• RPM reading is incorrect
• Warning indicators do not illuminate
• Needle is intermittent
• Gauge has no switched power or ground
• Harness connectors are damaged
• Backlighting has failed

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34200-93J14 later white monitor-tachometer reference
• 34200-93J12 and 34200-93J11 earlier related white references

OEM / Related Numbers

• Suzuki: 34200-93J14
• Suzuki: 3420093J14
• Suzuki: 34200-93J12
• Suzuki: 34200-93J11
• Suzuki: 34200-93J02 black-face monitor version
• Suzuki: 34200-93J34 white tachometer without monitor functions
• Suzuki: 34200-93J54 white troll-mode tachometer
• Matching Suzuki monitor and tachometer wiring harness required

Aftermarket / Verified Equivalents

• Generic OEM-style replacement gauges are sold under 34200-93J14
• No established branded direct equivalent verified
• Suzuki 34200-93J02 is the black cosmetic equivalent
• Universal tachometers can replace RPM display only and generally do not retain Suzuki warning functions

📦 Condition

• Genuine used part
• Removed from running vessel where applicable
• In good working condition unless otherwise stated
