34300-93J13 Suzuki Fuel Gauge | Genuine Used Part

🔧 Product Description

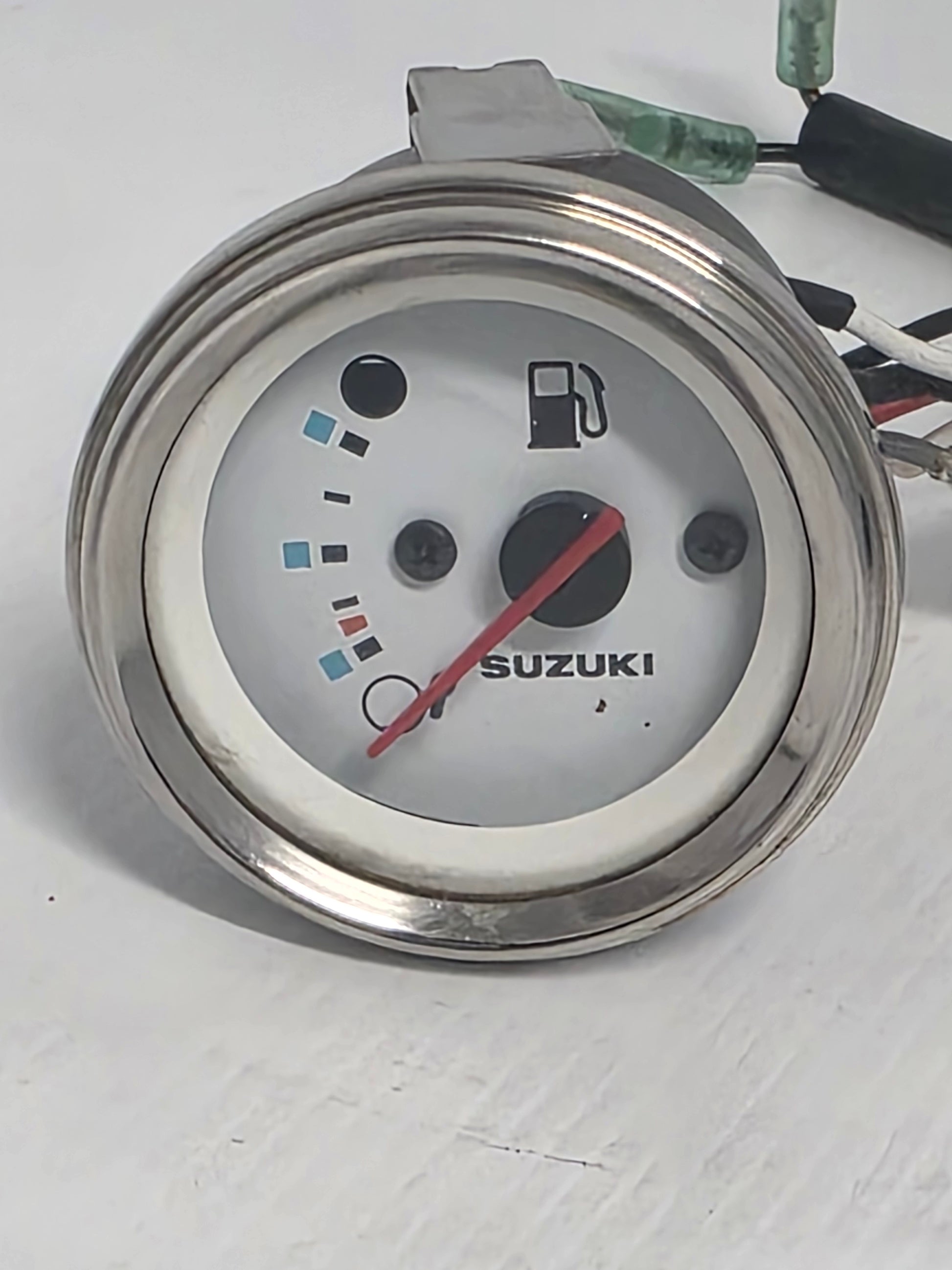

Genuine Suzuki White Fuel Level Gauge - Part Number: 34300-93J13

A genuine used Suzuki 2-inch white-face fuel gauge for conventional resistive marine fuel-tank senders.

The gauge operates on a 12-volt electrical system and uses a magnetically damped needle. Suzuki later catalogues list 34300-93J14 as the current white gauge, with 34300-93J13 and 34300-93J11 appearing as earlier references.

⚙️ Key Features

• Genuine Suzuki Marine fuel gauge
• Correct part number 34300-93J13
• White face
• 12-volt operation
• Magnetically damped needle for stable readings

🚤 Compatibility

Commonly used on

• Suzuki analogue instrument panels
• Marine fuel tanks with conventional resistive senders
• Single- and twin-tank installations
• 12-volt recreational boats

Typically suits

• Instrument Type: Electrical fuel-level gauge
• Gauge Size: 2-inch class
• Electrical System: 12 volts
• Engine Compatibility: Not engine-specific
• Sender Requirement: Match the installed tank sender resistance
• Suitable for petrol or diesel tanks with an approved marine sender

🔌 Function

The gauge converts sender resistance into an empty-to-full fuel-level indication.

⚠️ Common Signs of Failure

• Gauge remains on empty or full
• Reading moves backwards
• Needle fluctuates
• Sender resistance is incompatible
• Poor ground or corroded terminal
• Tank float is stuck

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34300-93J14 later white fuel-gauge reference
• 34300-93J13 earlier white reference
• 34300-93J11 earlier related white reference

OEM / Related Numbers

• Suzuki: 34300-93J13
• Suzuki: 3430093J13
• Suzuki: 34300-93J14
• Suzuki: 34300-93J11
• Suzuki: 34300-93J02 black fuel gauge
• Suzuki: 34300-93J03 later black fuel gauge
• Matching marine fuel-tank sender required

Aftermarket / Verified Equivalents

• Faria Beede 2-inch marine fuel gauge for a compatible sender range
• Sierra 2-inch marine fuel gauge
• Veethree 2-inch marine fuel gauge
• Generic 240-33 ohm or 10-180 ohm gauges are not interchangeable unless the sender range matches
• Confirm sender resistance, voltage, bezel and terminal arrangement

📦 Condition

• Genuine used part
• Removed from running vessel where applicable
• In good working condition unless otherwise stated
