34300-98J10 Suzuki Fuel Gauge | Genuine Used Part

🔧 Product Description

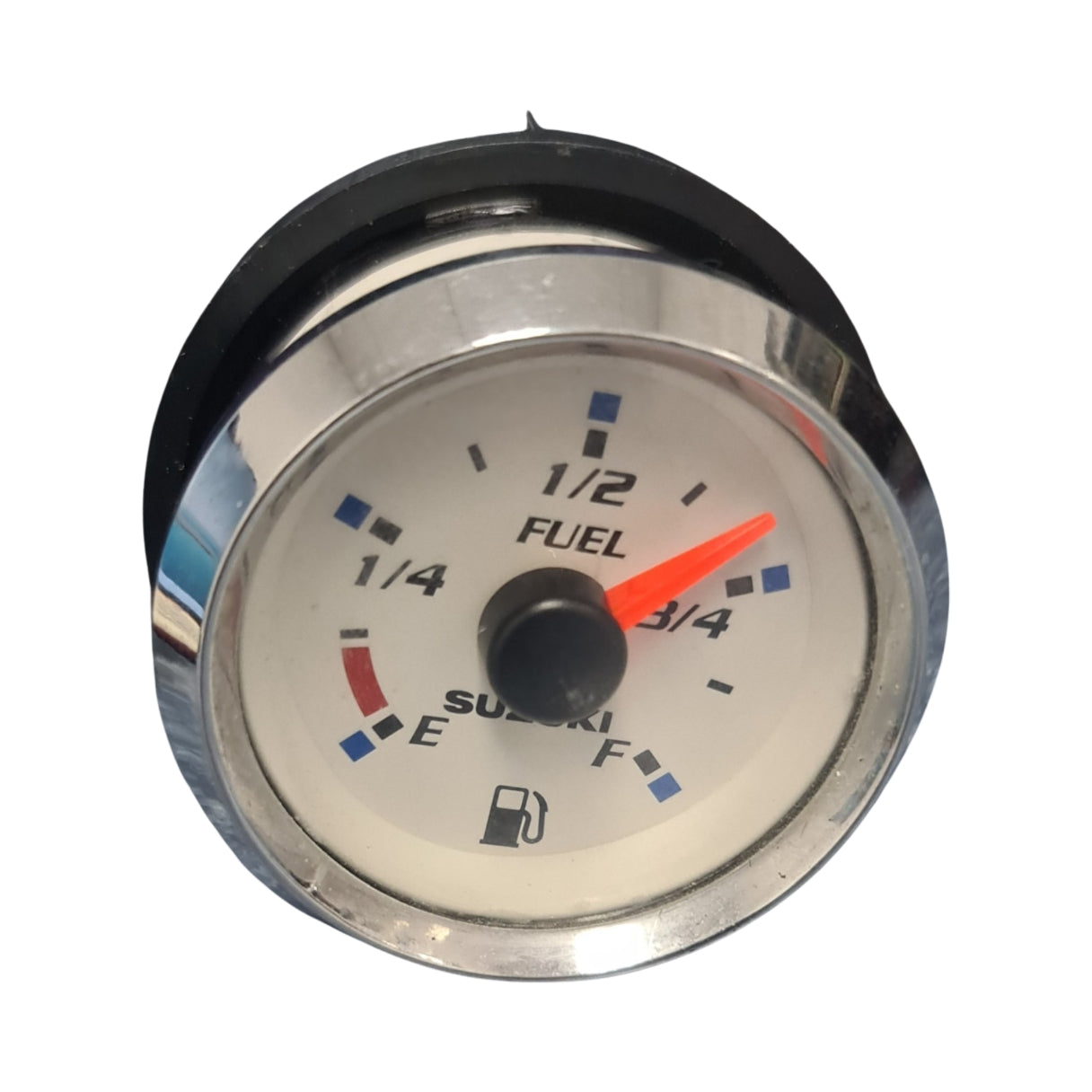

Genuine Suzuki White Fuel Level Gauge - Part Number: 34300-98J10

A genuine used Suzuki white fuel-level gauge from the 98J precision-control instrument family.

The gauge is shown in Suzuki DF-series digital-gauge and precision-control instrument packages. It connects directly to a compatible tank sender and is used alongside 34100-98J11 speedometers and 34200-98J13 tachometers.

⚙️ Key Features

• Genuine Suzuki Marine fuel gauge
• Correct part number 34300-98J10
• White face
• Designed for Suzuki 98J instrument packages
• Suitable for single- or twin-tank installations with separate senders

🚤 Compatibility

Commonly used on

• Suzuki DF-series instrument panels
• Suzuki 98J precision-control gauge packages
• Single- and dual-fuel-tank systems
• White-face Suzuki dashboards

Typically suits

• Suzuki DF40 through DF300 applications where 34300-98J10 is shown
• Common model years: approximately 2008-2014
• Instrument Type: Electrical fuel-level gauge
• Gauge Colour: White
• Tank Sender: Conventional resistive marine sender
• Engine Compatibility: Gauge function is tank-specific rather than engine-specific

🔌 Function

The fuel gauge measures resistance from the connected tank sender and displays the remaining fuel level.

⚠️ Common Signs of Failure

• Gauge stays on empty or full
• One gauge reads both tanks because sender wiring is incorrectly joined
• Needle fluctuates
• Sender ground is missing
• Gauge and sender resistance do not match
• Illumination or terminal connections are damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34300-98J10 established white fuel-gauge reference
• Part is discontinued in several Suzuki catalogues
• No direct current supersession verified

OEM / Related Numbers

• Suzuki: 34300-98J10
• Suzuki: 3430098J10
• Suzuki: 34300-98J00 black-face version
• Suzuki: 34100-98J11 matching white speedometer
• Suzuki: 34200-98J13 matching white tachometer
• Suzuki: 34800-98J10 related white trim gauge
• Suzuki: 34650-98J10 related white water-pressure gauge
• Fuel-sender lead connects directly to the gauge sender terminal

Aftermarket / Verified Equivalents

• No direct Suzuki-network drop-in aftermarket equivalent verified
• Faria, Sierra and Veethree fuel gauges can provide the same basic function if the sender resistance and wiring match
• Universal replacement requires confirmation of sender range, cutout, illumination and bezel
• Black Suzuki counterpart 34300-98J00 is a functional colour alternative

📦 Condition

• Genuine used part
• Removed from running vessel where applicable
• In good working condition unless otherwise stated
