346-76010-0M Aftermarket Tohatsu Starter Assembly | Sawley's Select Marine Parts

🔧 Product Description

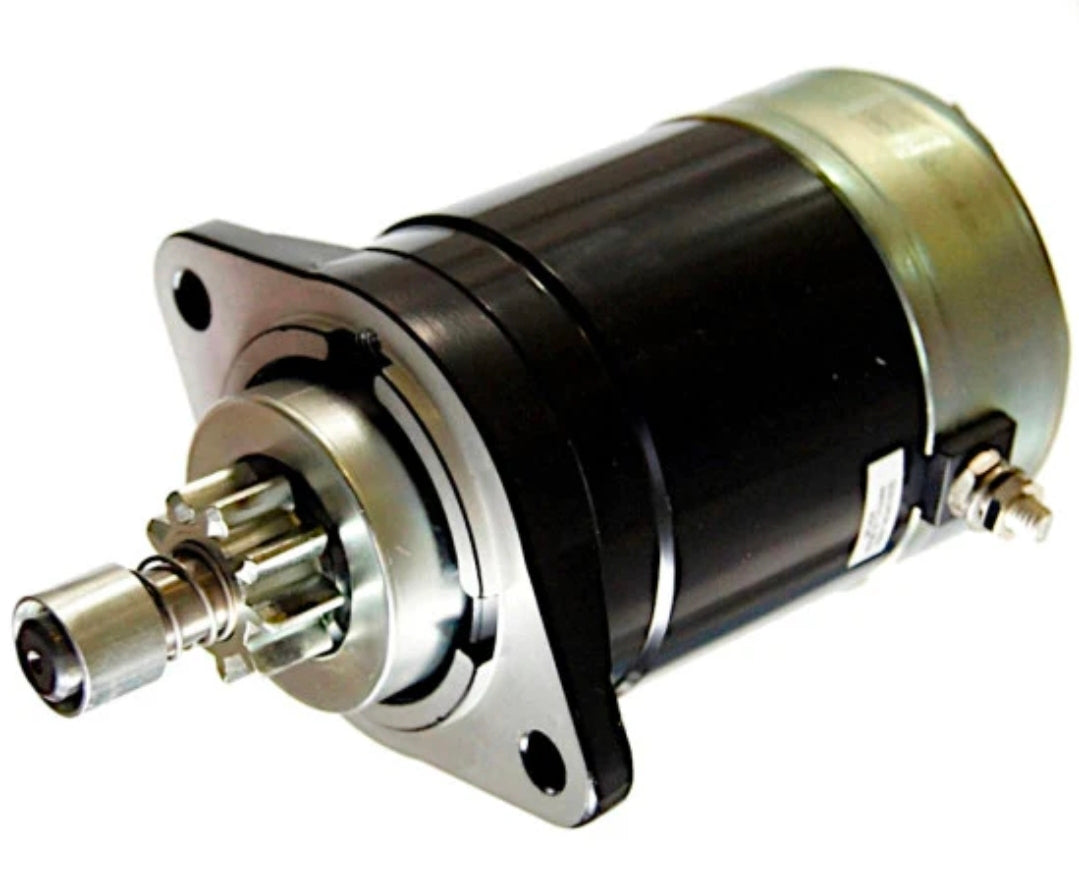

Aftermarket replacement Tohatsu/Nissan Small Two-Stroke Starter Motor - Replaces Part Number: 346-76010-0M

New aftermarket Hitachi-pattern starter replacing Tohatsu 346-76010-0M for 25HP-40HP carburetted two-stroke outboards.

⚙️ Key Features

• 12-volt electrical system

• Counter-clockwise rotation viewed from the drive end

• 9-tooth pinion

• Permanent-magnet direct-drive construction

• Integrated marine starter solenoid

• Complete new starter motor with integrated solenoid

• Marine or engine-grade corrosion-resistant construction

• Direct replacement only after voltage, rotation, tooth count and mounting pattern are confirmed

🧰 Kit / Assembly Contents

• 1 × Complete starter motor assembly - P/N 346-76010-0M

• 1 × Integrated starter solenoid and shift mechanism

• 1 × Installed pinion gear and overrunning clutch/Bendix assembly

• 1 × Installed armature, field-magnet/winding, brush holder and drive housing

• Mounting bolts, electrical cables and external relays are transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 346-76010-0M → Cross-references 346-76010-0 and 346-76010-0A0

OEM / Related Numbers:

• 346-76010-0

• 346-76010-0A0

• 346-76010-0M

• Mercury 50-853805A1

• Hitachi S108-98

Aftermarket / Verified Equivalents:

• Recmar: REC346-76010-0M

• Aftermarket S108-98 starter

🚤 Compatibility

Commonly used on:

• Tohatsu and Nissan two-stroke outboard starting systems

Typically suits:

• Engine / Generator models:

• M25C2, M25C3, M30A3 and M30A4

• M35C and M40C

• Nissan NS25C3, NS30A4, NS35C and NS40C

• HP / Output Range: 25HP - 40HP

• Year Range: Principally 1992 onward; model dependent

• Starter Identification: Confirm 9 teeth and counter-clockwise rotation.

🔌 Function

The starter motor converts battery electrical energy into high-torque mechanical rotation to crank the engine. When the start circuit energises the solenoid, the pinion moves into the flywheel ring gear and the motor turns the crankshaft until the engine starts. The overrunning clutch then protects the starter as engine speed rises.

Common signs of failure / incorrect starter fitment:

• No-crank condition even though the battery and start-control circuit test correctly

• Solenoid clicks but the starter motor does not rotate

• Starter turns slowly, draws excessive current or overheats the battery cables

• Pinion spins without engaging the flywheel ring gear

• Grinding, clashing or repeated pinion kick-out during cranking

• Intermittent cranking caused by worn brushes, solenoid contacts or heat soak

• Corrosion, water intrusion, burnt windings or excessive shaft/bearing play

📦 Condition

• New aftermarket replacement starter motor

• Brand new

• Supplied in original or equivalent packaging
