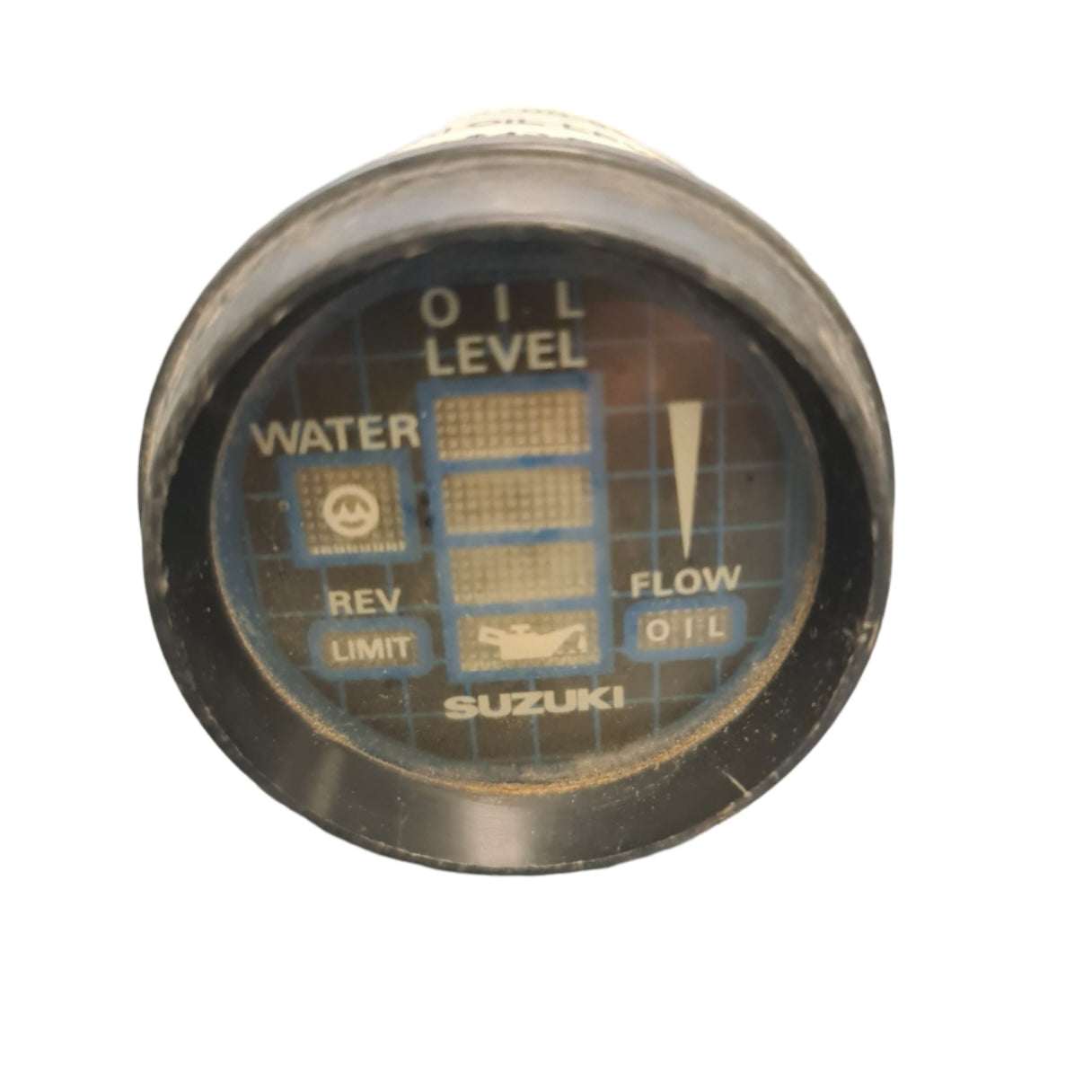

Genuine Suzuki Oil and Water Warning Monitor Gauge - Part Number: 34700-92E11

A genuine used Suzuki monitor gauge for selected DT-series two-stroke outboards.

Although commonly described as an oil-level gauge, 34700-92E11 is a warning monitor that works with the engine's oil-injection and cooling protection circuits. It provides visual indication of conditions such as low oil, oil-flow warning, overheating and related engine-protection events, depending on the model.

⚙️ Key Features

  • Genuine Suzuki Marine warning monitor
  • Correct part number 34700-92E11
  • Used on DT-series two-stroke outboards
  • Monitors oil and cooling-system warning circuits
  • Obsolete genuine Suzuki instrument

🚤 Compatibility

Commonly used on

  • Suzuki DT-series oil-injected two-stroke outboards
  • Suzuki oil-tank and engine-protection monitoring systems
  • DT warning and limp-mode circuits

Typically suits

  • Suzuki DT25 / DT30
  • Suzuki DT40 / DT55 / DT65
  • Suzuki DT75 / DT85 / DT90 / DT100
  • Suzuki DT115 / DT140
  • Suzuki DT150 / DT175 / DT200
  • Suzuki DT225
  • Approximate application period: late 1980s through 2000
  • Exact harness and warning functions vary by model and serial number

🔌 Function

The monitor displays warning inputs from the oil-injection and cooling systems so the operator can identify low oil, oil-flow, overheat or related protection conditions.

⚠️ Common Signs of Failure

  • Warning lamp does not illuminate during self-test
  • False oil or overheat warning
  • Engine enters protection mode without a matching display
  • Gauge has no power or ground
  • Harness plug is damaged
  • Incorrect replacement gauge causes wiring-function mismatch

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 34700-92E11 later monitor-gauge reference
  • 34700-92E10 earlier related monitor reference
  • 34701-92X50 related oil-and-water warning indicator assembly; wiring differs and it is not automatically a plug-in replacement

OEM / Related Numbers

  • Suzuki: 34700-92E11
  • Suzuki: 3470092E11
  • Suzuki: 34700-92E11-000
  • Suzuki: 34700-92E10
  • Suzuki: 34701-92X50
  • Suzuki: 34200-92E02 related DT115 / DT140 tachometer
  • Suzuki: 34830-92E00 related air-temperature sensor
  • Suzuki monitor-gauge extension harnesses vary by model and shaft length

Aftermarket / Verified Equivalents

  • No direct aftermarket equivalent verified
  • Used genuine 34700-92E11 is generally the closest matching replacement
  • 34701-92X50 may provide related warning functions but requires wiring and compatibility checks
  • Individual warning lamps can be engineered as a custom replacement but are not a plug-in equivalent

📦 Condition

  • Genuine used part
  • Removed from running engine or vessel where applicable
  • In good working condition unless otherwise stated
