34800-93J02 Suzuki Trim Gauge | Genuine Used Part

🔧 Product Description

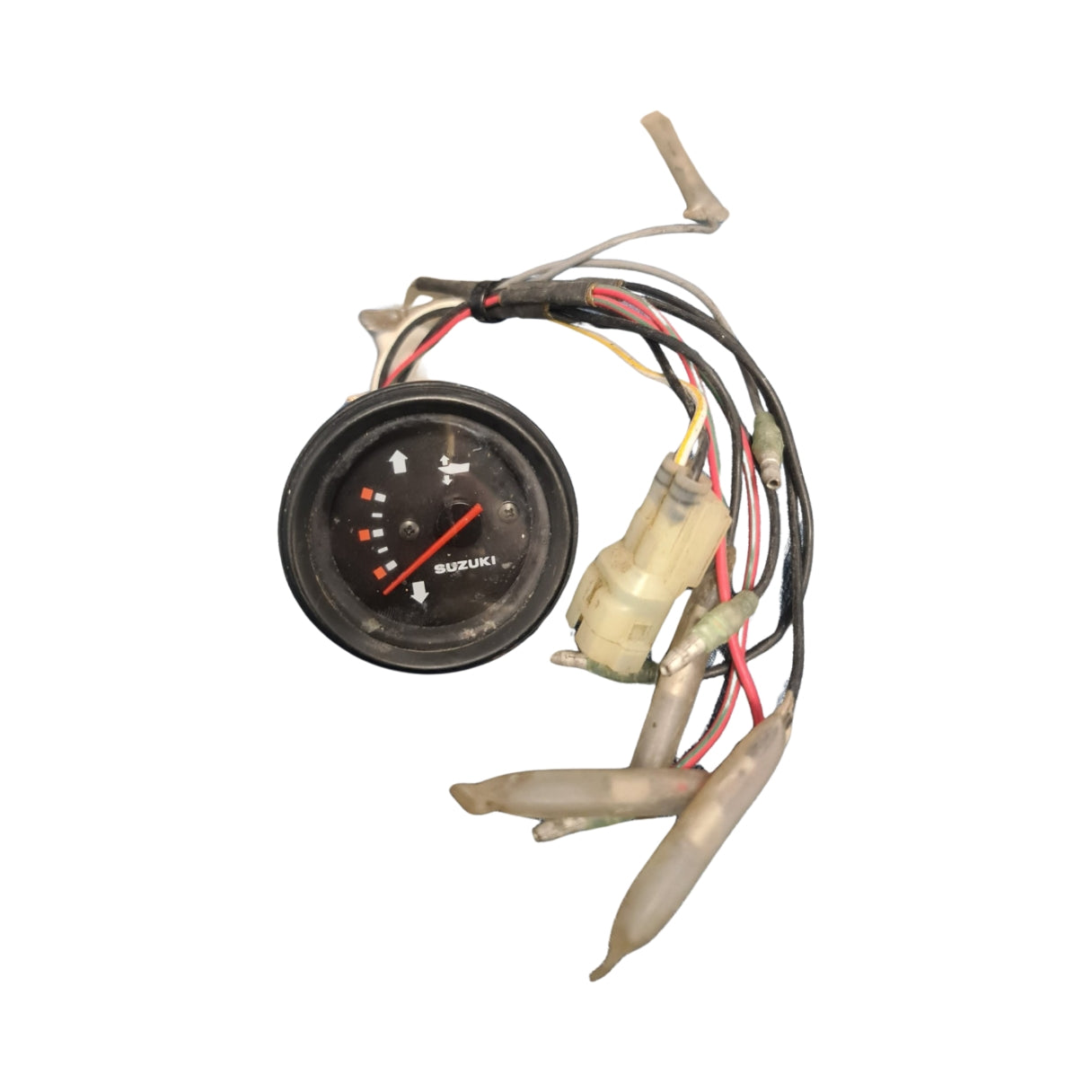

Genuine Suzuki Black Analogue Trim Gauge - Part Number: 34800-93J02

A genuine used Suzuki Marine trim-position gauge for selected four-stroke outboard motors fitted with a compatible two-wire trim sender.

The gauge displays the engine's relative angle from the fully lowered position through the operating trim and tilt range. Its black face and compact two-inch-class body suit Suzuki analogue instrument panels.

⚙️ Key Features

• Genuine used Suzuki Marine trim gauge
• Correct OEM part number 34800-93J02
• Black analogue instrument face
• Designed for a compatible two-wire trim sender
• Fits a standard approximately 2-1/16-inch dash opening

🚤 Compatibility

Commonly used on

• Suzuki DF-series four-stroke analogue instrument panels
• Outboards fitted with a compatible two-wire trim-position sender

Typically suits

• Selected Suzuki DF40 through DF300 model groups using 93J-series analogue instrumentation
• 12-volt marine electrical systems
• Approximately 2-1/16-inch dash cut-outs
• Fitment controlled by the sender resistance range and wiring configuration

🔌 Function

The gauge converts the variable resistance from the engine-mounted trim sender into an up-and-down needle position.

⚠️ Common Signs of Failure

• Needle remains fully up or fully down
• Gauge does not respond as the engine tilts
• Reading is reversed or inaccurate
• Needle moves intermittently
• Illumination does not operate
• Sender and gauge calibrations do not match
• Terminals or harness connectors are corroded

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34800-93J02 later black Nippon-style trim-gauge reference
• 34800-93J00 earlier related black trim gauge
• Confirm the sender and harness before treating the references as directly interchangeable

OEM / Related Numbers

• 34800-93J02
• 3480093J02
• 34800-93J00
• 990C0-80005 related Suzuki / Faria black trim gauge
• 36682-90J00 related trim-gauge harness
• 34815-98J00 related retaining nut
• Engine-mounted two-wire trim sender according to model

Aftermarket / Verified Equivalents

• Suzuki / Faria: 990C0-80005 - black analogue trim gauge
• Sierra Premier Pro trim gauge for Johnson, Evinrude and Suzuki four-stroke senders
• Faria two-inch trim gauge calibrated for Suzuki / Johnson / Evinrude senders

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
