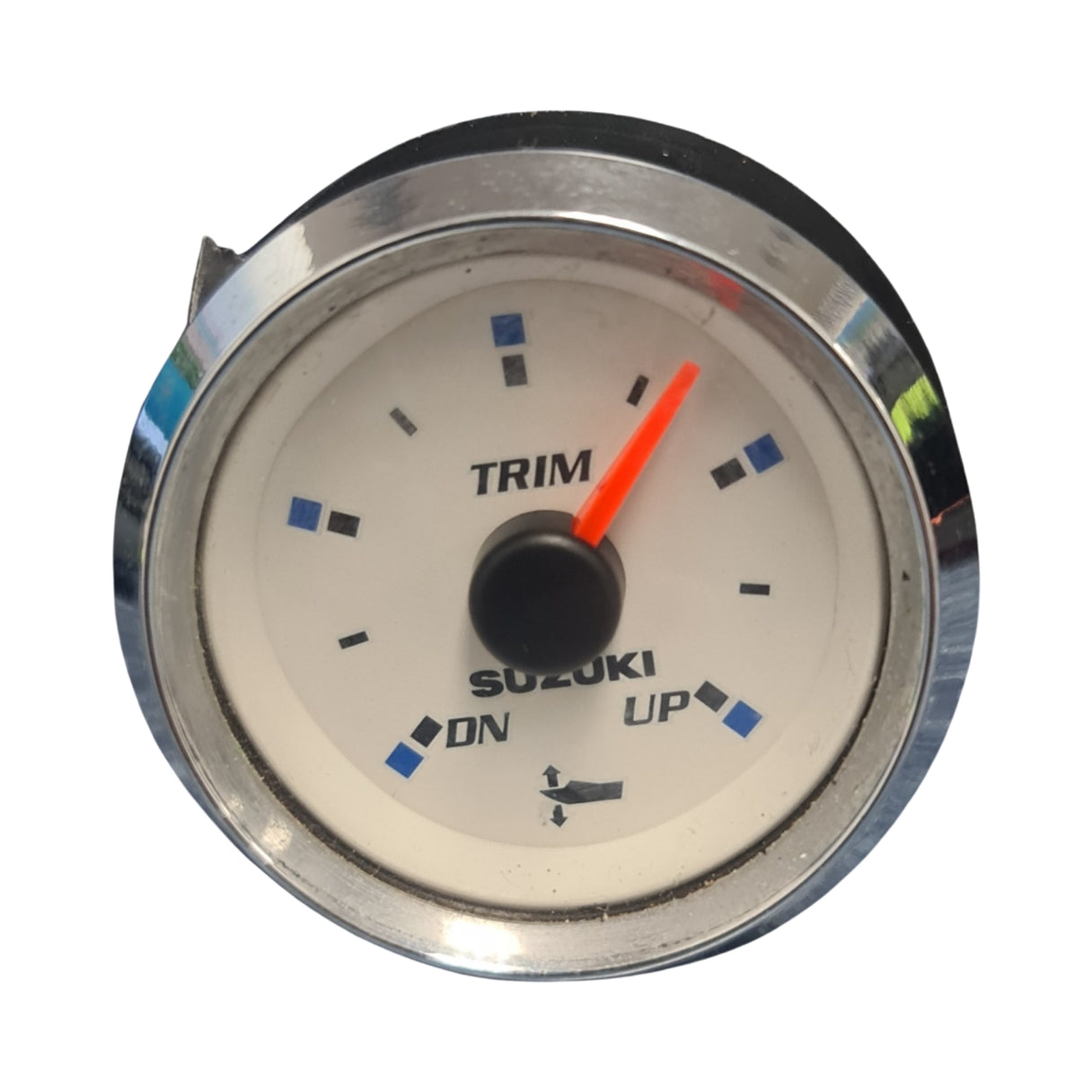

Genuine Suzuki White Optional-Meter Trim Gauge - Part Number: 34800-98J10
A genuine used Suzuki trim-position gauge for selected later DF-series four-stroke outboards using the Suzuki optional analogue meter and hub system.
Unlike a basic standalone trim gauge, this instrument may operate through Suzuki interface, active-hub and passive-hub components. The gauge, harness and engine communication system must therefore be matched before installation.
⚙️ Key Features
- Genuine used Suzuki Marine trim gauge
- Correct OEM part number 34800-98J10
- White optional-meter instrument face
- Used with selected Suzuki hub-based analogue systems
- Designed for later DF-series engine installations
🚤 Compatibility
Commonly used on
- Suzuki optional analogue meter systems
- Engines using Suzuki interface and gauge-hub components
Typically suits
- Suzuki DF70A
- Suzuki DF80A
- Suzuki DF90A
- Selected DF150, DF175, DF200, DF225, DF250 and DF300 model groups
- Model-year 2008 and newer non-US or optional-meter applications where the parts diagram specifies 34800-98J10
- Fitment controlled by engine model, market specification, harness and hub configuration
🔌 Function
The gauge displays trim position using information supplied through the compatible Suzuki sender, interface and gauge-network components.
⚠️ Common Signs of Failure
- Gauge does not power up
- Trim position is not displayed
- Reading is frozen or intermittent
- Active or passive hub has lost power
- Interface harness is damaged
- Instrument is connected to an incompatible standalone sender
- Connector terminals are corroded
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 34800-98J10 white trim-gauge reference
- 34800-98J00 related black-face version
- These colour variants are related but not automatic cosmetic substitutes for every dash package
OEM / Related Numbers
- 34800-98J10
- 3480098J10
- 34800-98J00
- 34921-98J00 active hub
- 34921-98J10 passive hub
- 34922-98J02 interface unit
- 36661-98J00 interface harness
- 36662-98J00 and 36662-98J10 hub harnesses
- 36663-98J00 and 36663-98J10 active-hub power harnesses
Aftermarket / Verified Equivalents
- No aftermarket equivalent
📦 Condition
- Genuine used part
- Gauge only unless hubs or harnesses are shown or stated
- Removed from running engine where applicable
- In good working condition unless otherwise stated
