34801-93J03 Aftermarket Suzuki Trim Sender for DF200, DF225, DF250 Engines | Sawley's Select Marine Parts

🔧 Product Description

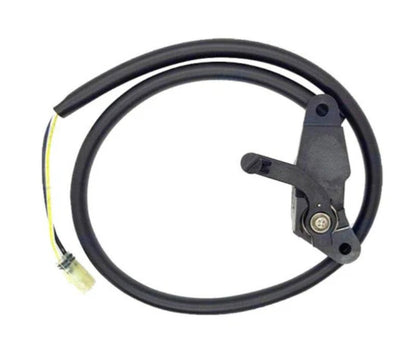

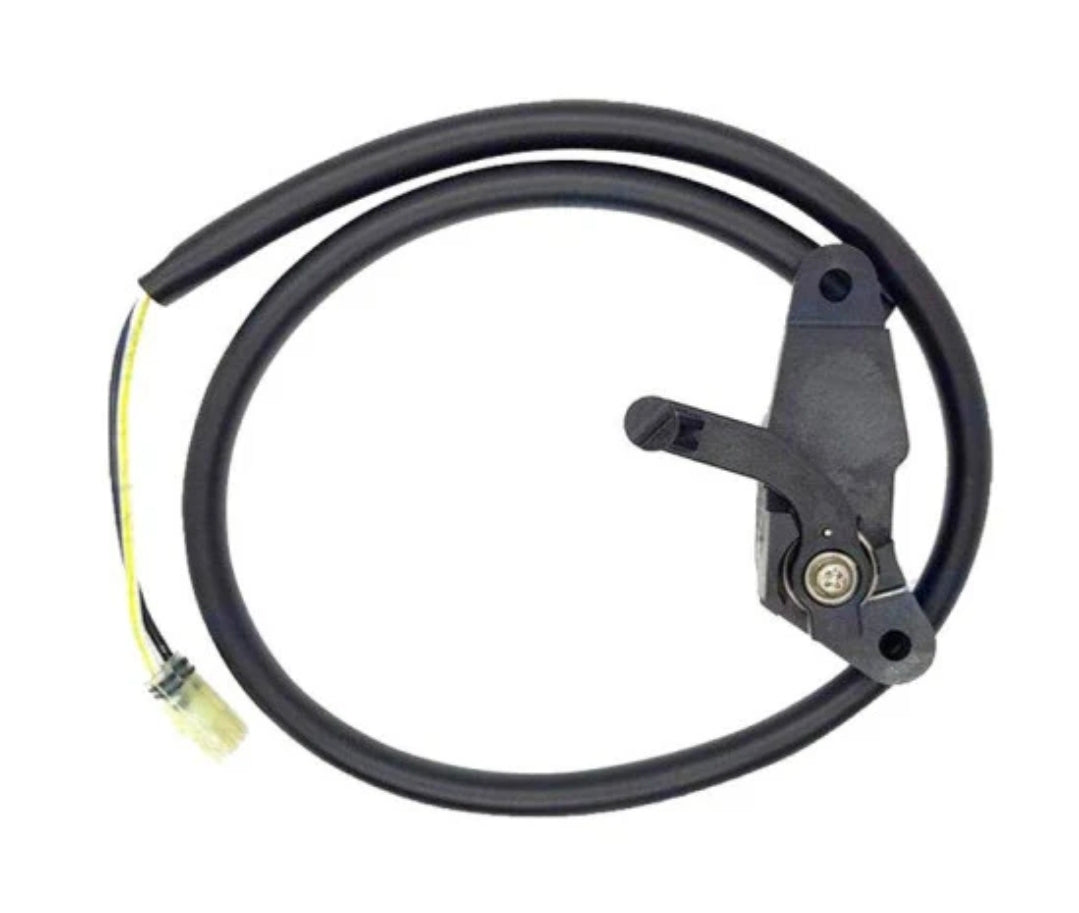

Aftermarket replacement Trim Sender Sensor - Replaces Part Number: 34801-93J03

New aftermarket trim sender replacing Suzuki 34801-93J03 for 25-inch shaft DF200, DF225 and DF250 outboards. It also cross-references the Suzuki-built Johnson/Evinrude sender 5035099.

⚙️ Key Features

• Direct replacement trim-angle sensor

• Correct for DF200/DF225/DF250 V6 four-strokes

• 25-inch X-shaft application family

• Sealed sensor and wiring lead

• Cross-brand Johnson/Evinrude fitment where 5035099 is specified

🧰 Kit / Assembly Contents

• 1 × Complete trim sender assembly - P/N 34801-93J03

• 1 × Integrated sensor lead and connector

• Sensor arm and mounting hardware - supplied or transferred according to package

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 34801-93J04 → Later revision associated with 34801-93J03

• 34801-93J03 → Supersedes 34801-93J02, 34801-93J01 and 34801-93J00

OEM / Related Numbers:

• 34801-93J00

• 34801-93J01

• 34801-93J02

• 34801-93J04

• 5035099

Aftermarket / Verified Equivalents:

• Recmar: REC34801-93J03

• SeaSierra Suzuki trim sender family

• OMC/BRP: 5035099

🚤 Compatibility

Commonly used on:

• Suzuki V6 four-stroke outboard trim-sensing systems

Typically suits:

• Engine / Drive models:

• DF200, DF225 and DF250 from approximately 2004 onward

• Suzuki-built Johnson/Evinrude models using sender 5035099

• HP / Drive Range: 200HP - 250HP

• System Type: Outboard trim-position sensor

• Year Range: Approximately 2004 onward; model-serial dependent

• Serial / Component Identification: Confirm 25-inch shaft sensor arm and connector.

🔌 Function

The trim sensor measures outboard or sterndrive angle and sends a position signal to the trim gauge, engine display or control system.

Common signs of failure / service requirement:

• Trim gauge remains fixed or reads incorrectly

• Gauge jumps as the drive moves

• Control system reports an implausible trim angle

• Sensor wiring is open, shorted or corroded

• Sensor arm or mounting bracket is damaged

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
