🔧 Product Description

Aftermarket replacement Trim Sender Sensor - Replaces Part Number: 34801-99E04

New aftermarket trim sender replacing Suzuki 34801-99E04. The sender is used across numerous DF four-stroke outboards and was superseded by later 99E revisions.

⚙️ Key Features

• Direct replacement for Suzuki 34801-99E04

• Cross-references 34801-99E03 and 34801-99E05

• Sealed marine potentiometer and lead

• Broad DF four-stroke bracket coverage

• Provides trim-gauge angle feedback

🧰 Kit / Assembly Contents

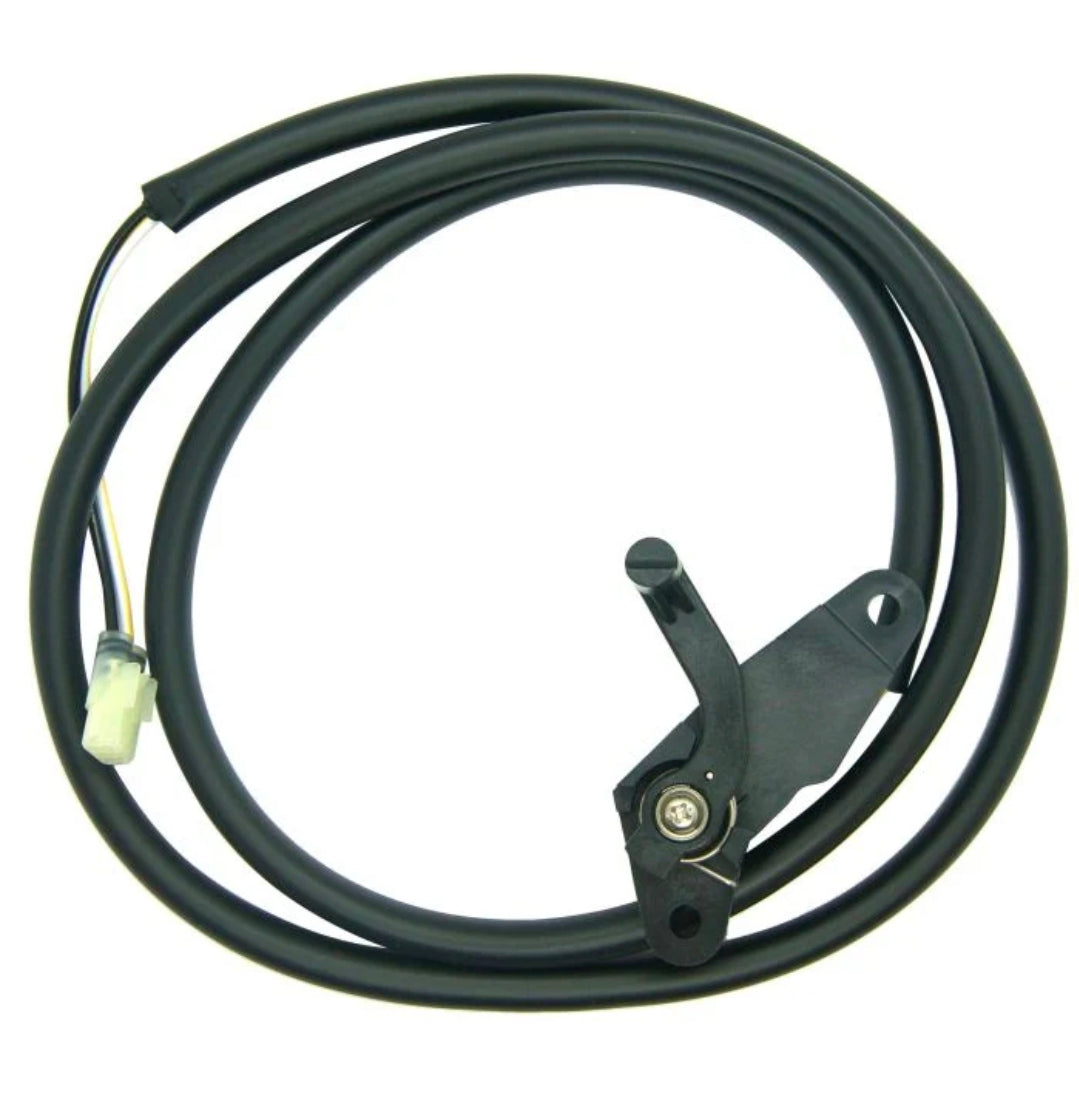

• 1 × Complete trim sender assembly - P/N 34801-99E04

• 1 × Integrated sensor arm, lead and connector

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 34801-99E05 → Supersedes/updates 34801-99E04

• 34801-99E04 → Supersedes/cross-references 34801-99E03

OEM / Related Numbers:

• 34801-99E03

• 34801-99E05

Aftermarket / Verified Equivalents:

• Recmar: REC34801-99E04

• Aftermarket Suzuki 99E trim sender

🚤 Compatibility

Commonly used on:

• Suzuki DF four-stroke outboard trim-sensing systems

Typically suits:

• Engine / Drive models:

• DF25, DF30, DF40, DF50, DF60 and DF70 applications using the 99E sender

• DF90, DF100, DF115 and DF140

• DF150, DF175 and selected DF200 applications specifying 34801-99E04

• HP / Drive Range: 25HP - 200HP

• System Type: Outboard trim-position sensor

• Year Range: Principally late-1990s through 2000s; model-dependent

• Serial / Component Identification: Use the exact OEM number because different shaft lengths and brackets use different sender arms.

🔌 Function

The trim sensor measures outboard or sterndrive angle and sends a position signal to the trim gauge, engine display or control system.

Common signs of failure / service requirement:

• Trim gauge remains fixed or reads incorrectly

• Gauge jumps as the drive moves

• Control system reports an implausible trim angle

• Sensor wiring is open, shorted or corroded

• Sensor arm or mounting bracket is damaged

📦 Condition

• New aftermarket replacement part

• Brand new

• Supplied in original or equivalent packaging
