34820-95D20-000 Suzuki Temp Sensor | Genuine Used Part

🔧 Product Description

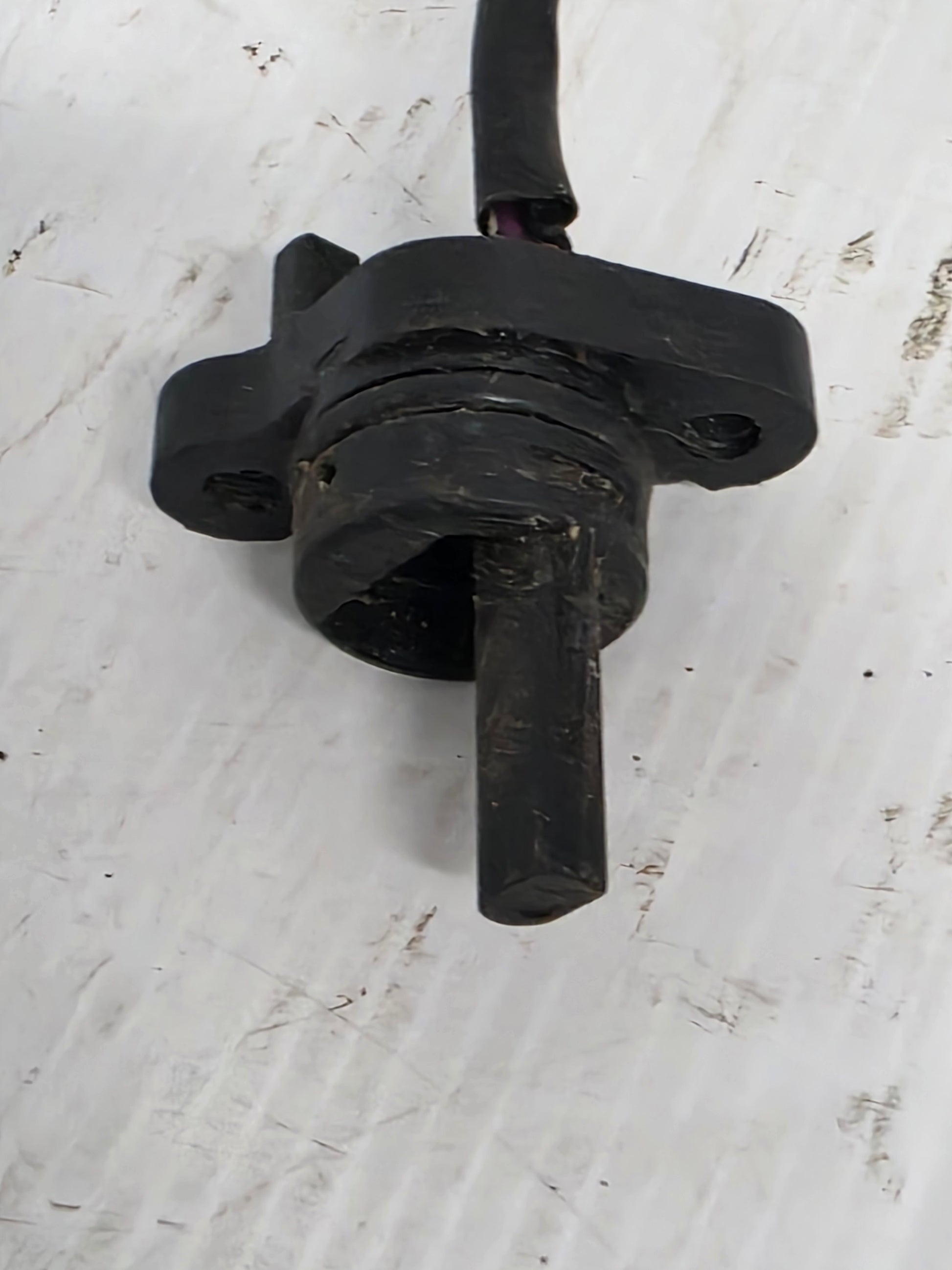

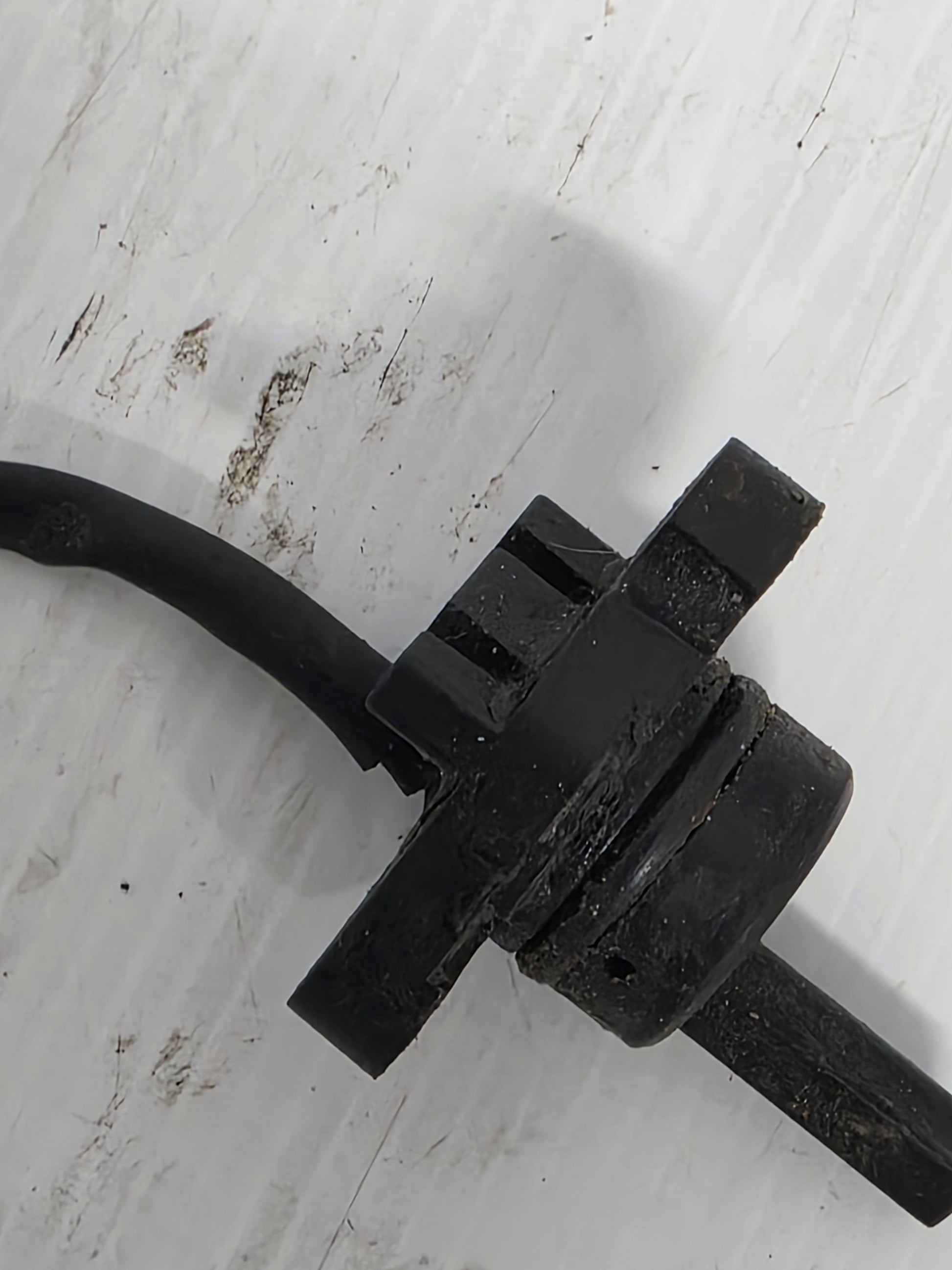

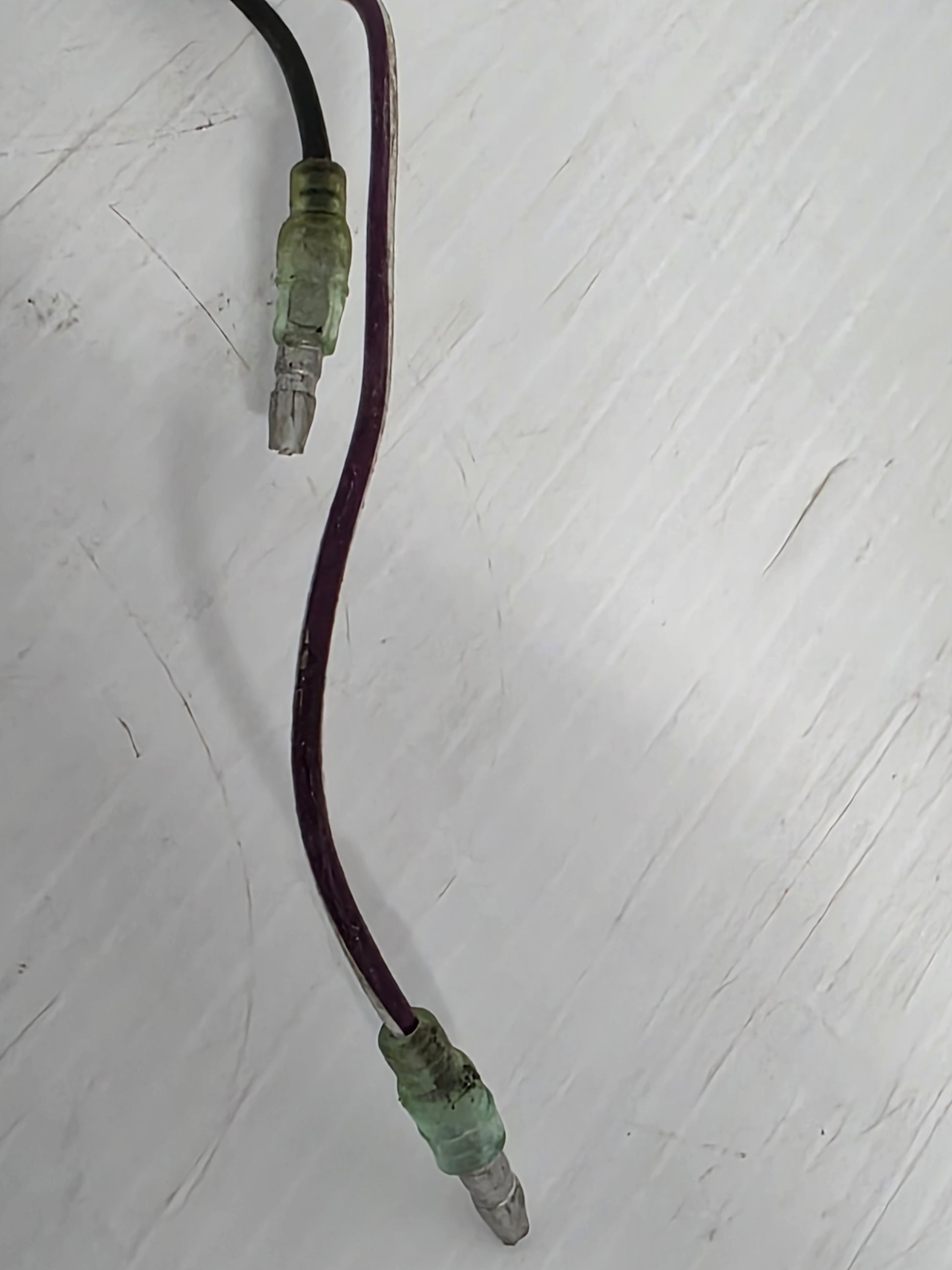

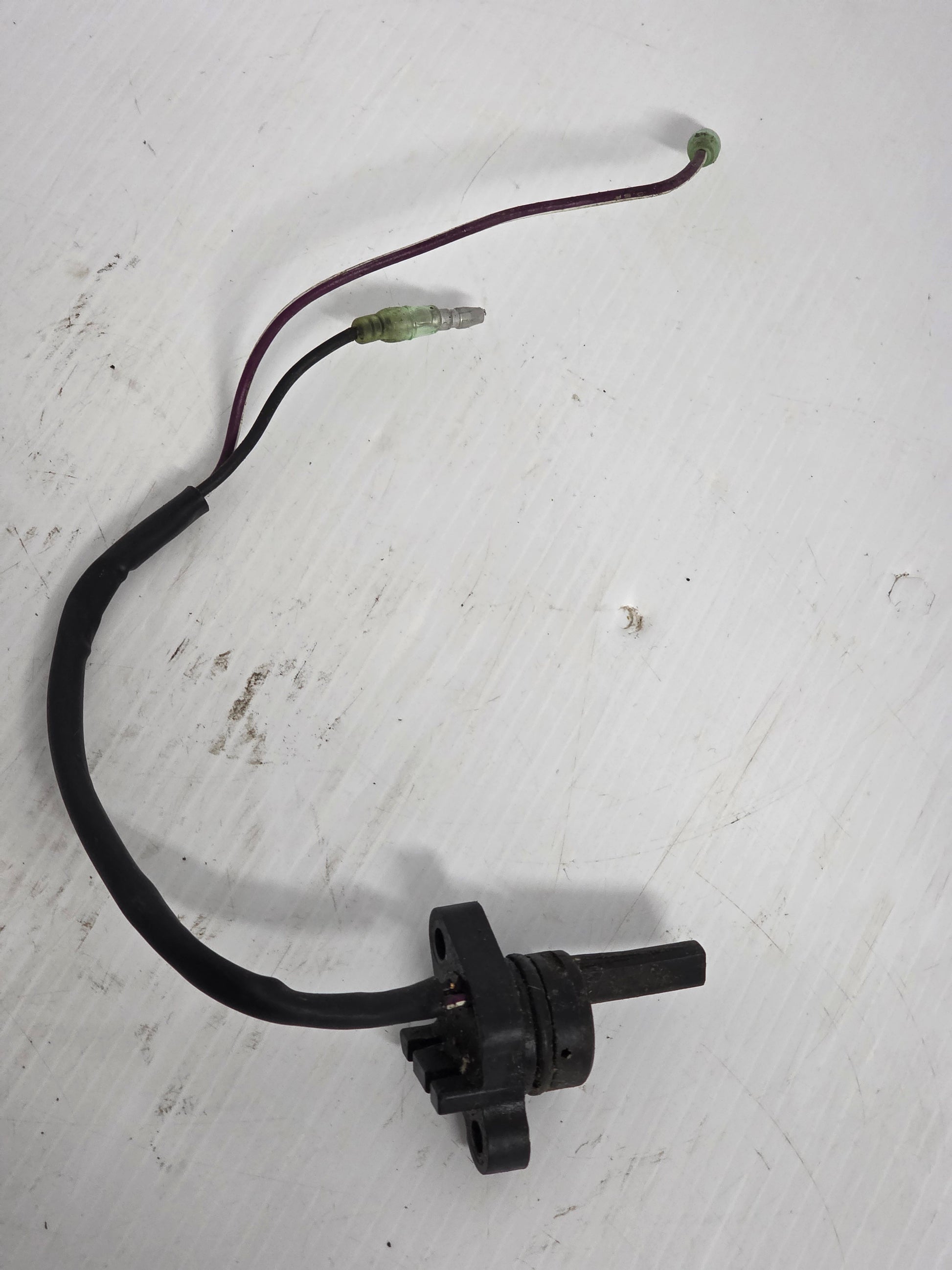

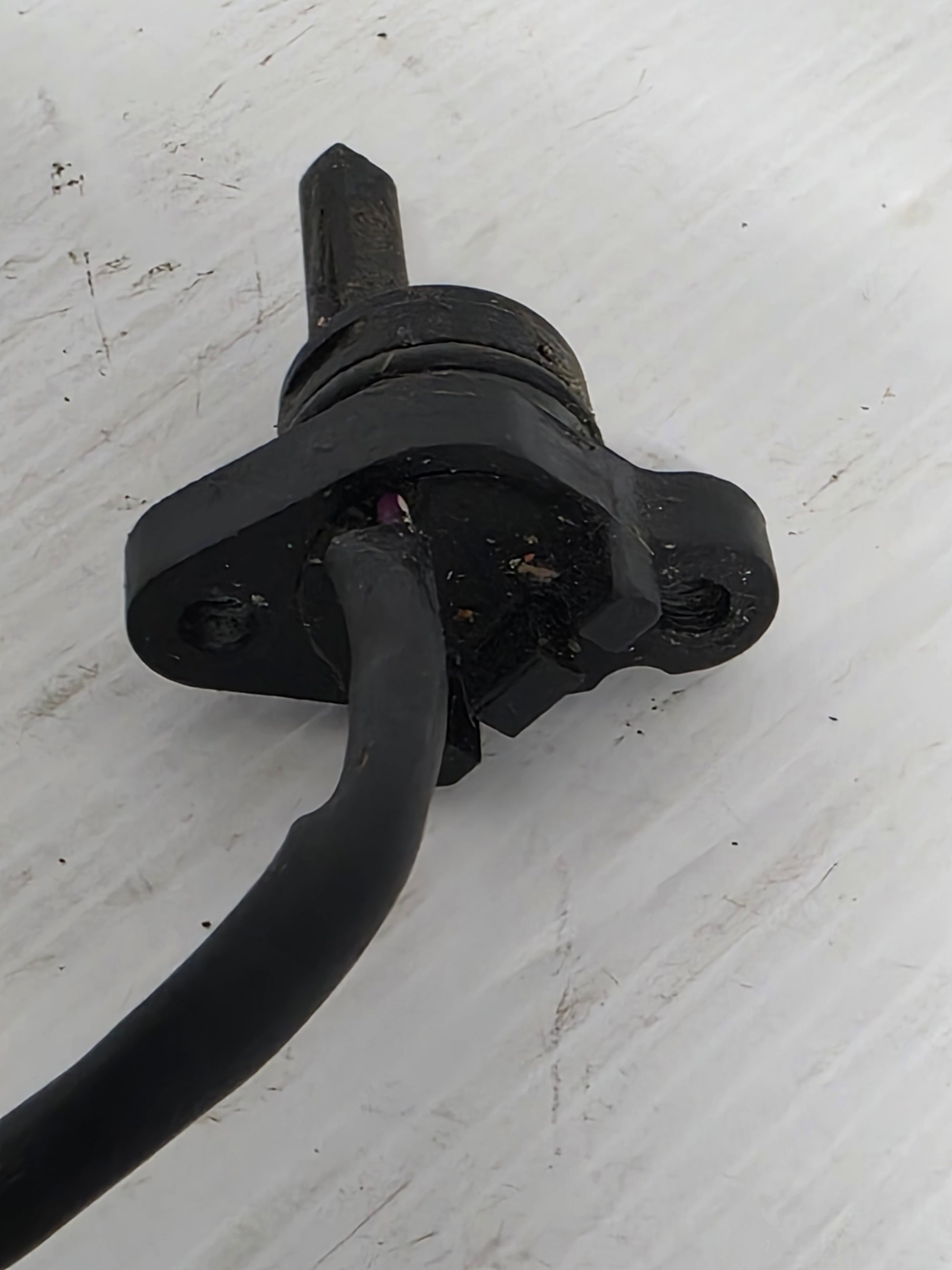

Genuine Suzuki Cylinder Temperature Sensor - Part Number: 34820-95D20-000

A genuine used Suzuki cylinder-temperature sensor for selected DT-series two-stroke outboards.

The sensor monitors cylinder or engine-block temperature and activates the temperature-warning and engine-protection circuit if excessive heat is detected.

⚙️ Key Features

• Genuine Suzuki Marine temperature sensor

• Correct Suzuki part number 34820-95D20-000

• Also referenced as 34820-95D20

• Used on selected DT-series two-stroke outboards

• Provides overheat-warning information

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 34820-95D20-000 established Suzuki cylinder-temperature sensor reference

OEM / Related Numbers:

• 34820-95D20-000

• 34820-95D20

• 3482095D20

• DT-series cylinder-temperature sensor reference

Aftermarket / Verified Equivalents:

• No aftermarket equivalent

🚤 Compatibility

Commonly used on:

• Suzuki DT-series cylinder-temperature monitoring systems

• Two-stroke engine overheat-warning circuits

Typically suits:

• Engine models:

• Suzuki DT25C applications using sensor 34820-95D20

• Suzuki DT30C applications using sensor 34820-95D20

• Suzuki DT40C applications using sensor 34820-95D20

• Suzuki DT50A

• Selected DT25, DT30, DT40 and DT50 ignition-system diagrams specifying this temperature sensor

• HP Range: Approximately 25HP - 50HP

• Engine Type: Suzuki carburetted two-stroke outboard

• Year Range: Approximately 1992 - 2000

🔌 Function

The sensor monitors engine temperature and signals the warning or protection circuit when the cylinder block exceeds its safe operating range.

Common signs of failure:

• False overheat alarm

• No overheat warning when the engine is hot

• Warning activates intermittently

• Engine-protection system limits RPM incorrectly

• Sensor wire or terminal is damaged or corroded

📦 Condition

• Genuine used part

• Removed from running engine where applicable

• In good working condition unless otherwise stated
