34840-87L01 Suzuki DF60A Trim Sensor Assy | Genuine Used Part

🔧 Product Description

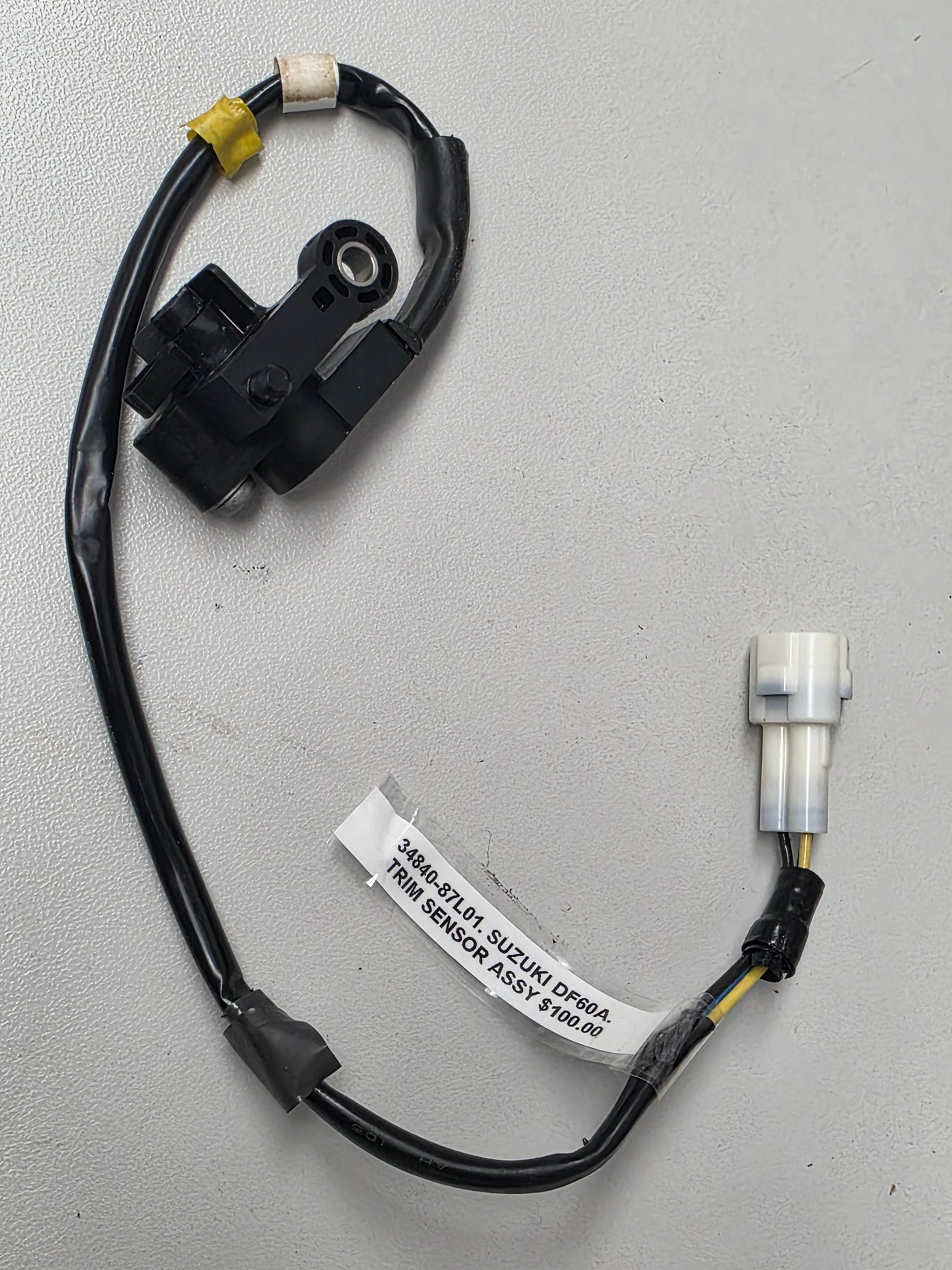

Genuine Suzuki DF60A Power Trim Position Sensor Assembly - Part Number: 34840-87L01

A genuine used Suzuki trim-position sensor for selected DF60A four-stroke outboard motors.

The sensor mounts to the swivel-bracket and power-trim assembly, measuring the engine's tilt angle and sending the corresponding position signal to the dash-mounted trim gauge or engine-monitoring system.

⚙️ Key Features

• Genuine used Suzuki Marine trim sensor
• Correct OEM part number 34840-87L01
• Supersedes earlier sensor 34840-87L00

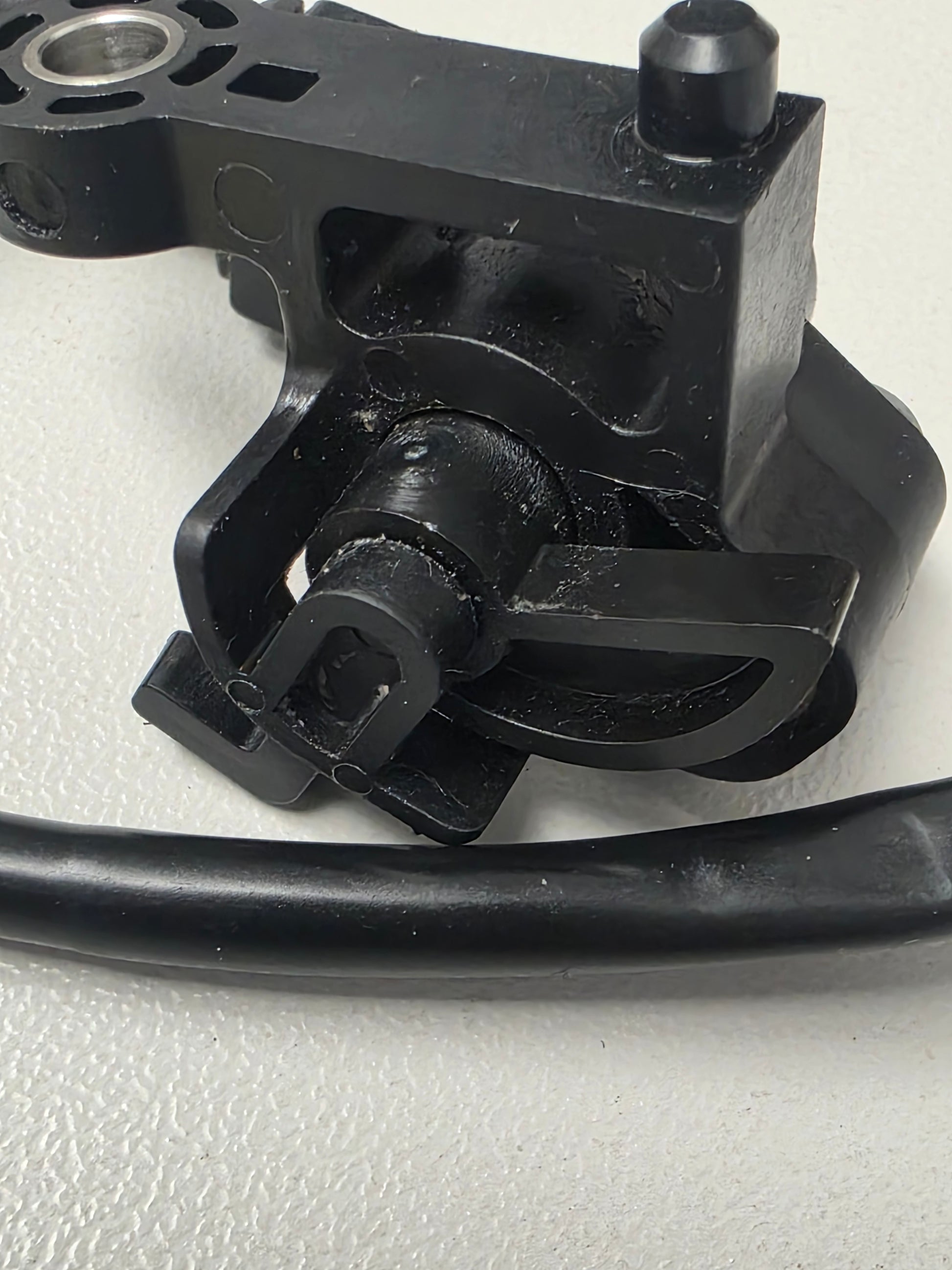

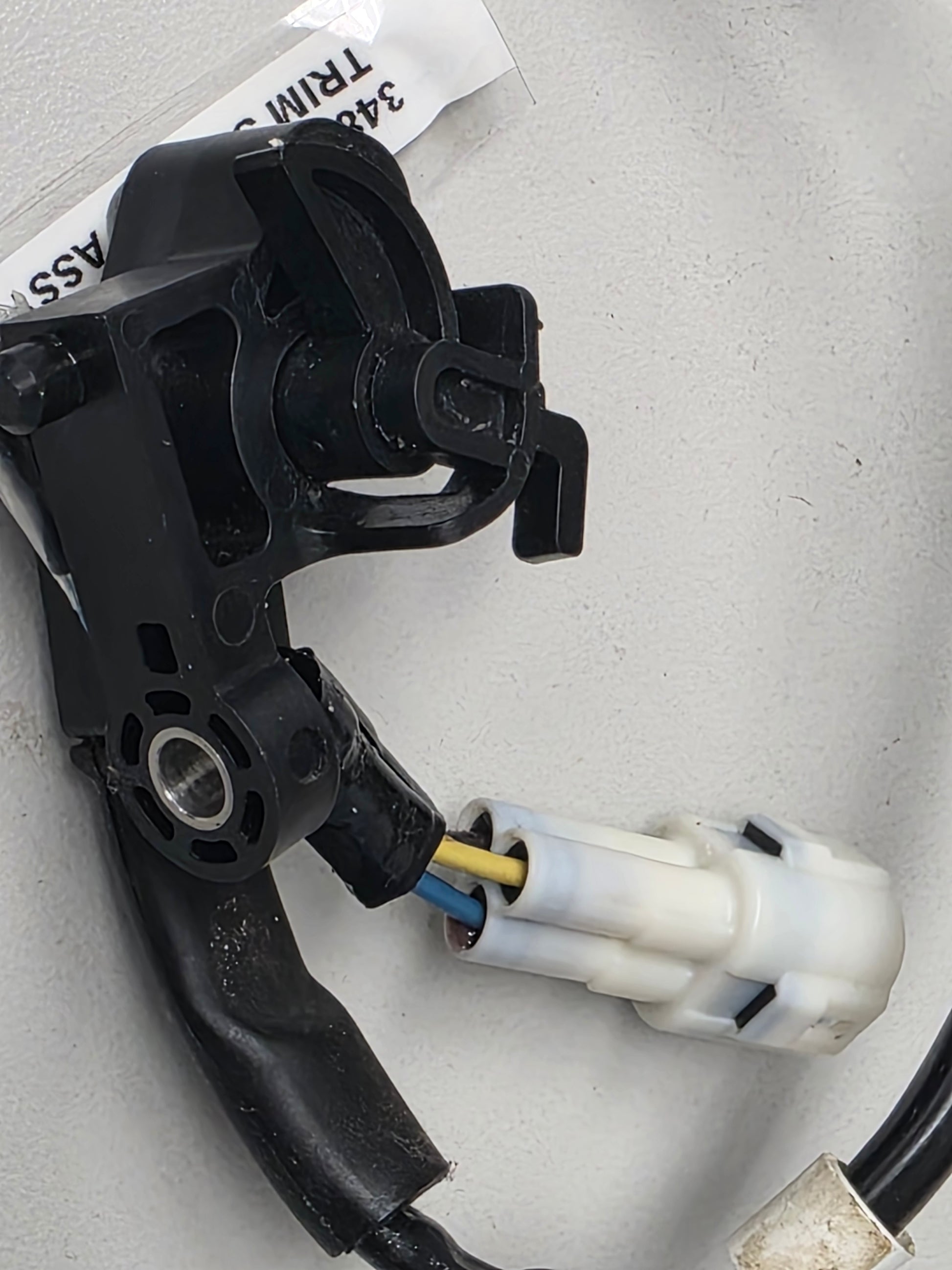

• Includes the sensor arm and electrical lead where fitted
• Designed for the DF60A power-trim and tilt assembly

🚤 Compatibility

Commonly used on

• Suzuki DF60A power-trim and tilt assemblies
• Trim-gauge and engine-position monitoring systems

Typically suits

• Engine models:
• Suzuki DF60A
• Suzuki DF60ATH
• Suzuki DF60AQH applications using the 87L-series sensor
• Selected DF70A, DF80A and DF90A production groups only where the parts diagram specifies 34840-87L01
• HP Range: Primarily 60HP
• Engine Type: Suzuki inline three-cylinder EFI four-stroke outboard
• Year Range: Model and serial-number dependent

🔌 Function

The sensor converts the engine's physical trim angle into an electrical resistance or voltage signal used by the trim gauge and compatible engine-monitoring equipment.

⚠️ Common Signs of Failure

• Trim gauge remains at the full-up or full-down position
• Gauge reading does not change as the engine tilts
• Trim reading moves erratically
• Sensor arm is seized, bent or broken
• Wiring is damaged near the swivel bracket

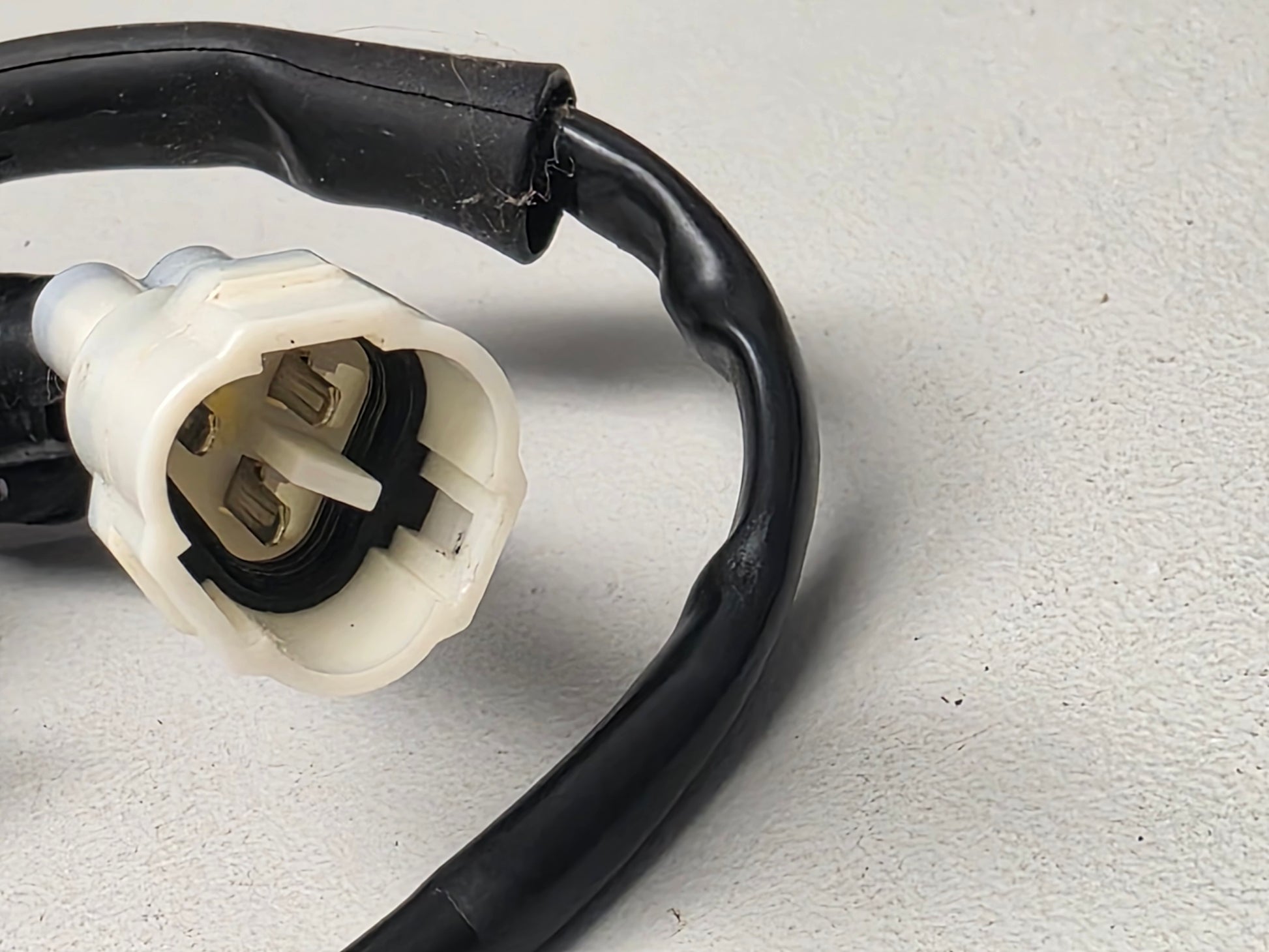

• Connector terminals are corroded
• Gauge reading does not match the actual engine angle

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 34840-87L01 → Supersedes 34840-87L00
• 34840-87L00 earlier trim-sensor reference

OEM / Related Numbers

• 34840-87L01
• 3484087L01
• 34840-87L01-000
• 34840-87L00
• 3484087L00
• Related trim-sensor cam, mounting screw and wiring connector
• 34840-98J-series sensors used on different Suzuki model groups and not automatically interchangeable

Aftermarket / Verified Equivalents

• Aftermarket direct-replacement trim sensor sold under 34840-87L01
• Aftermarket direct-replacement trim sensor sold under 34840-87L00

📦 Condition

• Genuine used part
• Removed from running engine where applicable
• In good working condition unless otherwise stated
